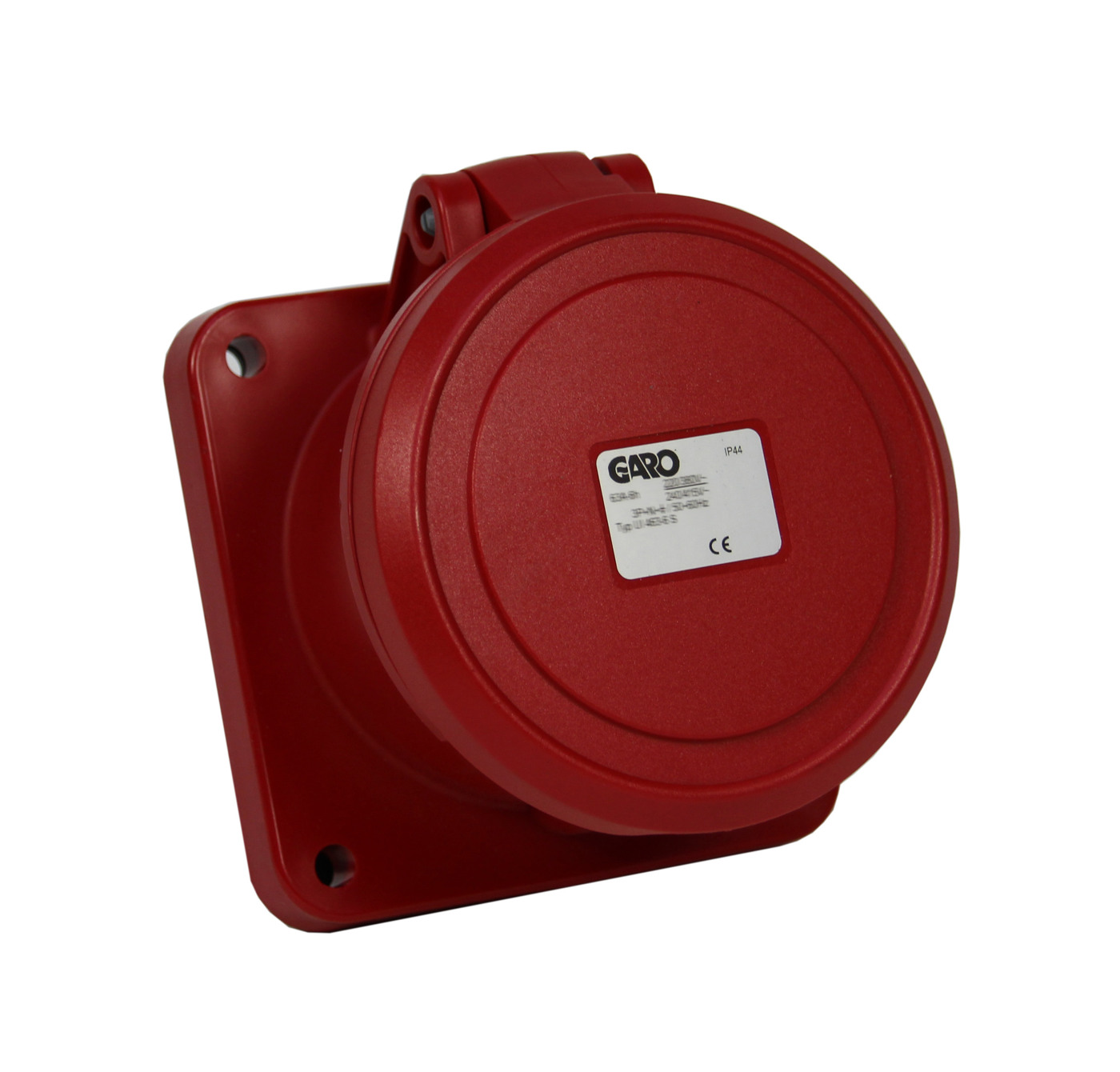

Flanged sockets Basic with straight mounting plate 63A IP44

Basic, our standard range with a screw function.Socket 63A for recess mounting with straight mounting plate. Supplied including seal. Socket straight basic 5-poles 63A 6h
E-number
2424949
Article number
2424949
Wire flexible [mm²] 6-16
Rated current [A] 63
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Width [mm] 100
Height [mm] 100
Depth [mm] 124
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 6-25
Name SOCKET STRAIGHT 5P 63A 6h
E-number 2424949
Article number 2424949
Type designation UI 463-6 S
Colour Red
Frequency [Hz] 50-60
Rated voltage [V AC] 230-400
Netweight [kg] 0.60
No.of Poles [pcs] 5/3PN+E
Position of earth [h] 6
RAL-nummer RAL3000

More variants of Flanged sockets Basic with straight mounting plate 63A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
SOCKET STRAIGHT 3P 63A 4h 2424934 2424934 UI 263-4 S Yellow 50/60 100-130 0.49 3/2P+E 4 RAL1023
SOCKET STRAIGHT 3P 63A 6h 2424935 2424935 UI 263-6 S Blue 50/60 200-250 0.49 3/2P+E 6 RAL5017
SOCKET STRAIGHT 3P 63A 9h 2424936 2424936 UI 263-9 S Red 50/60 380-415 0.49 3/2P+E 9 RAL3000
SOCKET STRAIGHT 3P 63A 12h 2424937 2424937 UI 263-12 S Grey 50/60 Matning fr.isolertransf. 0.49 3/2P+E 12 RAL7046
SOCKET STRAIGHT 4P 63A 3h 2424938 2424938 UI 363-3 S Red 50/60 380-440 0.55 4/3P+E 3 RAL3000
SOCKET STRAIGHT 4P 63A 4h 2424939 2424939 UI 363-4 S Yellow 50/60 100-130 0.55 4/3P+E 4 RAL1023
SOCKET STRAIGHT 4P 63A 5h 2424940 2424940 UI 363-5 S Black 50/60 600-690 0.55 4/3P+E 5 RAL9005
SOCKET STRAIGHT 4P 63A 6h 2424941 2424941 UI 363-6 S Red 50/60 400 0.55 4/3P+E 6 RAL3000
SOCKET STRAIGHT 4P 63A 7h 2424942 2424942 UI 363-7 S Black 50/60 480-500 0.55 4/3P+E 7 RAL9005
SOCKET STRAIGHT 4P 63A 9h 2424943 2424943 UI 363-9 S Blue 50/60 230 0.55 4/3P+E 9 RAL5017
SOCKET STRAIGHT 4P 63A 10h 2424944 2424944 UI 363-10 S Green 100-300 >50 0.55 4/3P+E 10 RAL6010
SOCKET STRAIGHT 4P 63A 11h 2424945 2424945 UI 363-11 S Red 60 440-460 0.55 4/3P+E 11 RAL3000
SOCKET STRAIGHT 5P 63A 2h 2424946 2424946 UI 463-2 S Green >300-500 >50 0.60 5/3PN+E 2 RAL6010
SOCKET STRAIGHT 5P 63A 4h 2424947 2424947 UI 463-4 S Yellow 50/60 100-130 0.60 5/3PN+E 4 RAL1023
SOCKET STRAIGHT 5P 63A 5h 2424948 2424948 UI 463-5 S Black 50/60 600-690 0.60 5/3PN+E 5 RAL9005
SOCKET STRAIGHT 5P 63A 6h 2424949 2424949 UI 463-6 S Red 50-60 230-400 0.60 5/3PN+E 6 RAL3000
SOCKET STRAIGHT 5P 63A 7h 2424950 2424950 UI 463-7 S Black 50/60 480-500 0.60 5/3PN+E 7 RAL9005
SOCKET STRAIGHT 5P 63A 9h 2424951 2424951 UI 463-9 S Blue 50/60 208-250 0.60 5/3PN+E 9 RAL5017
SOCKET STRAIGHT 5P 63A 11H 2424952 2424952 UI 463-11 S Red 60 440-460 0.60 5/3PN+E 11 RAL3000
