• SWITCH SAFETY 4P 16A WHITE - 1

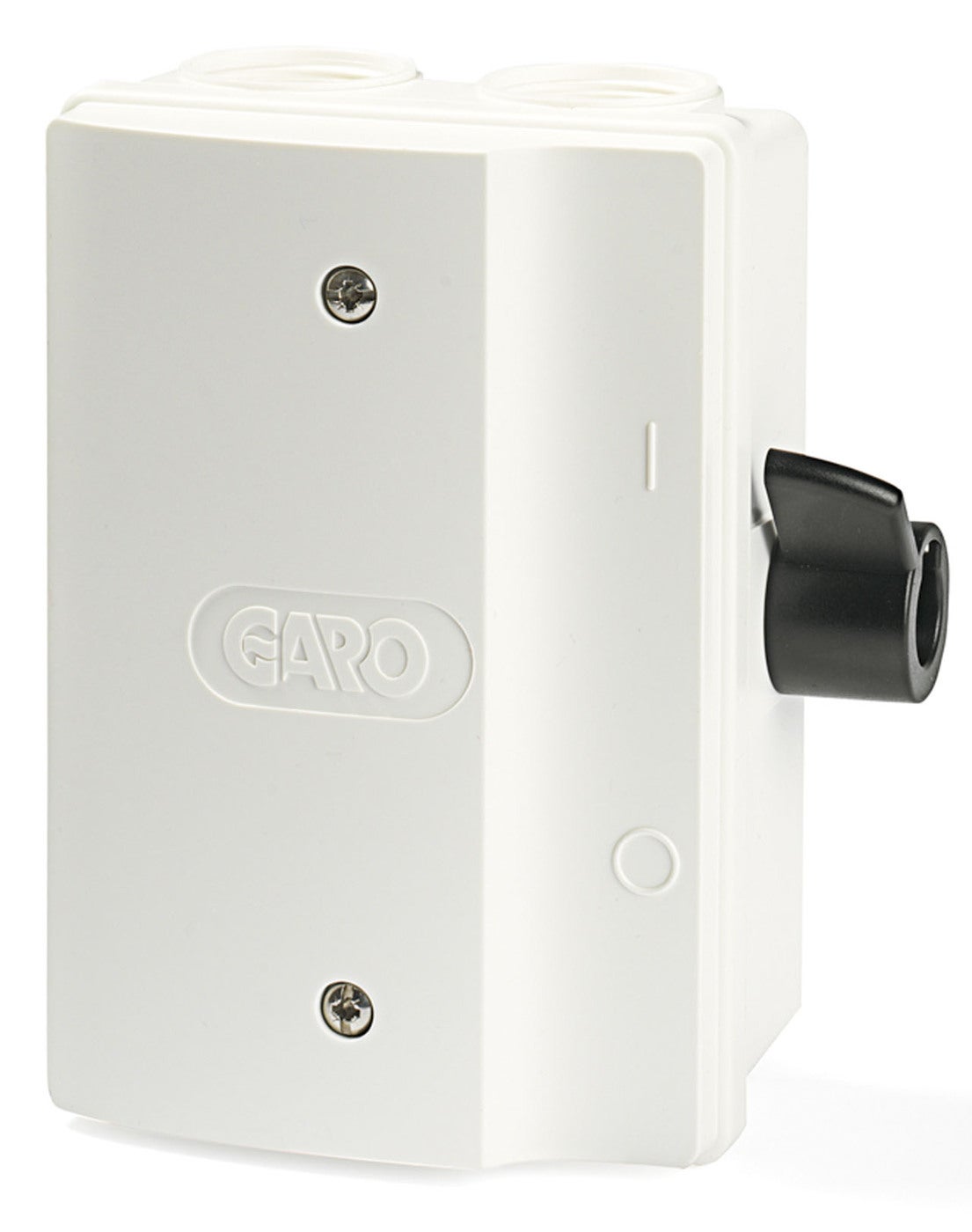

  • SWITCH SAFETY 4P 16A WHITE - 2

Safety switches 4-poles without auxiliary switch

Safety switches polycarbonate Safety switch white 4 poles 16A
E-number
E3155222
Article number
3155222
Support
Standard EN60947-3
Number of poles 4P
Mounting method Wall mounting
Power[kW] 7,5kW
Isolation voltage [V] 690V
Rated current AC23 400V [A] 16A
Degree of protection [IP] IP65
Connection area 16
Auxiliary contact No
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH SAFETY 4P 16A WHITE
E-number E3155222
Article number 3155222
Type designation SBG 416V
Housing material Polycarbonate
Color White
RAL-number RAL9010
Connection PE [pcs] 12+11
With lighting No

More variants of Safety switches 4-poles without auxiliary switch

E-number Article number Type designation Housing material Color RAL-number Connection PE [pcs] With lighting Connection PE [mm²]
SWITCH SAFETY 4P 16A GREY E3155203 3155203 SBG 416G Grey RAL7035 12+11 No
SWITCH SAFETY 4P 16A WHITE E3155222 3155222 SBG 416V Polycarbonate White RAL9010 12+11 No
SWITCH SAFETY 4P 16A RED E3135626 354187 SBGR 416 Polycarbonate Red RAL3009 No 6mm²
SWITCH SAFETY 4P 16A BLACK E3135627 354188 SBGS 416 Polycarbonate Black RAL9005 6mm²
