• SWITCH SAFETY 4P 16A RED - 1

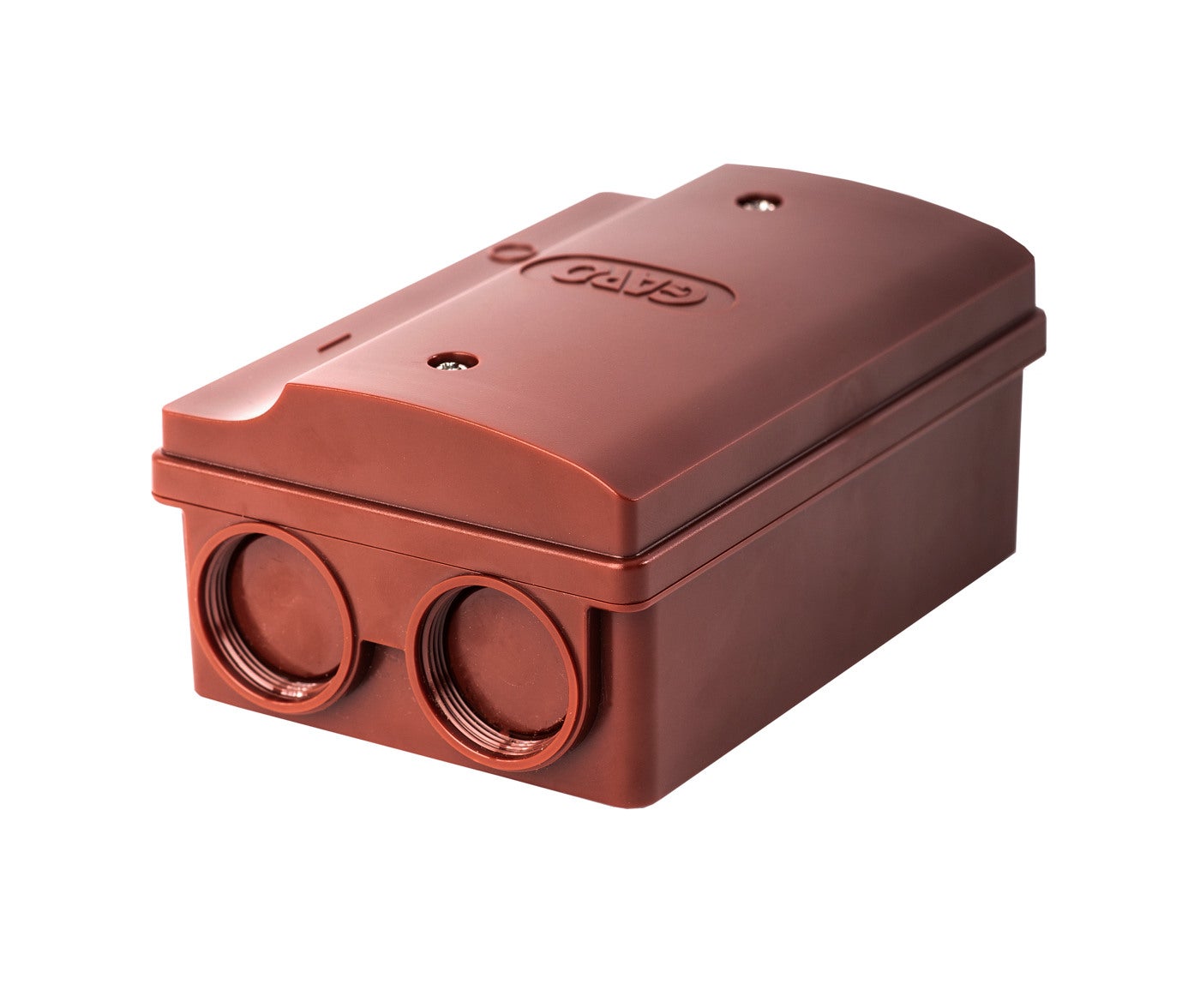

  • SWITCH SAFETY 4P 16A RED - 2

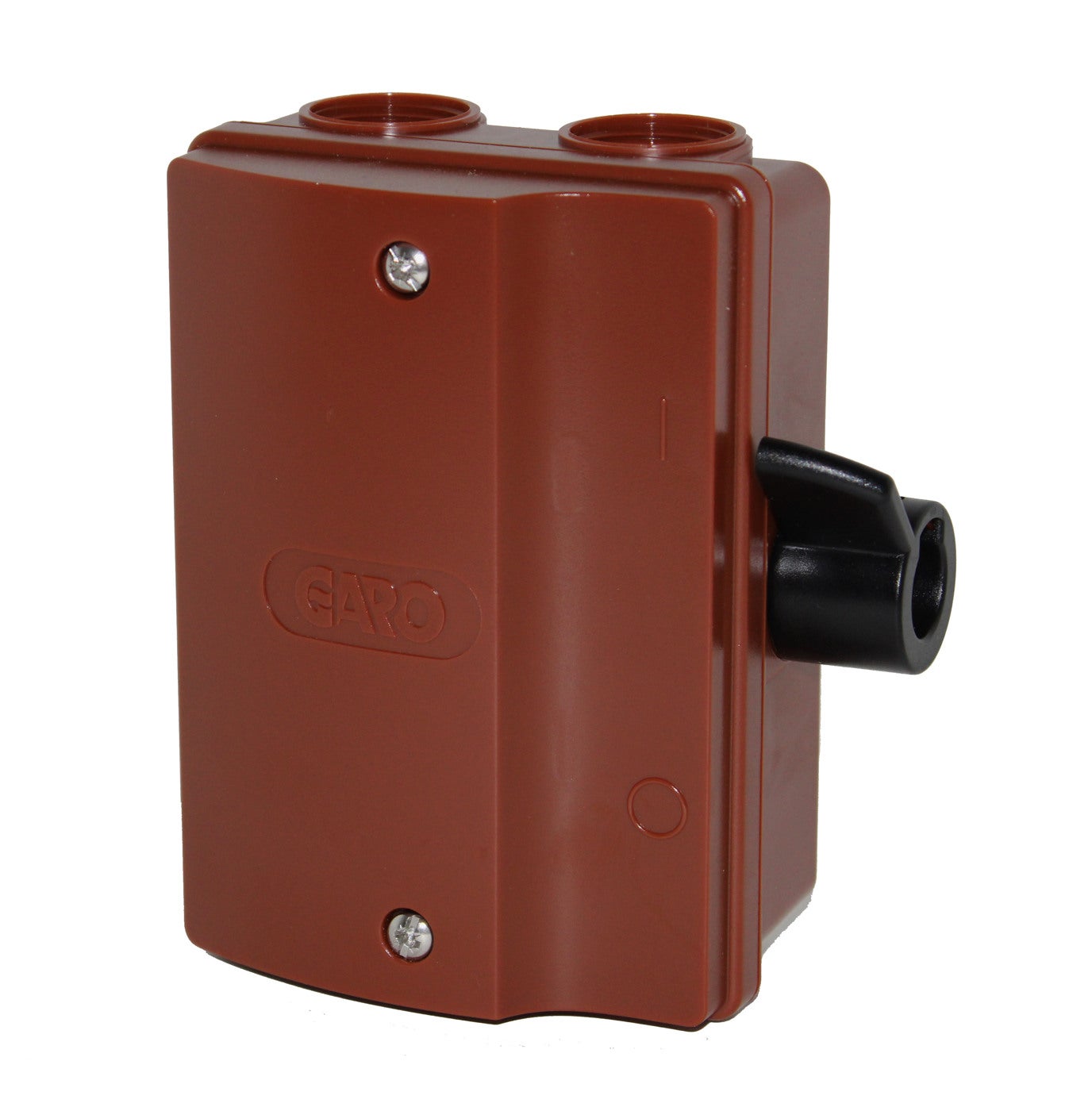

  • SWITCH SAFETY 4P 16A RED - 3

Safety switches 4-poles without auxiliary switch

Safety switches polycarbonate Safety switch red 4 poles 16A
E-number
E3135626
Article number
354187
Support
Standard EN60947-3
Number of poles 4P
Mounting method Wall mounting
Power[kW] 7,5kW
Isolation voltage [V] 690V
Rated current AC23 400V [A] 16A
Degree of protection [IP] IP65
Connection area 16
Auxiliary contact No
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH SAFETY 4P 16A RED
E-number E3135626
Article number 354187
Type designation SBGR 416
Housing material Polycarbonate
Color Red
RAL-number RAL3009
With lighting No
Connection PE [mm²] 6mm²

Manual

More variants of Safety switches 4-poles without auxiliary switch

E-number Article number Type designation Housing material Color RAL-number Connection PE [pcs] With lighting Connection PE [mm²]
SWITCH SAFETY 4P 16A GREY E3155203 3155203 SBG 416G Grey RAL7035 12+11 No
SWITCH SAFETY 4P 16A WHITE E3155222 3155222 SBG 416V Polycarbonate White RAL9010 12+11 No
SWITCH SAFETY 4P 16A RED E3135626 354187 SBGR 416 Polycarbonate Red RAL3009 No 6mm²
SWITCH SAFETY 4P 16A BLACK E3135627 354188 SBGS 416 Polycarbonate Black RAL9005 6mm²
