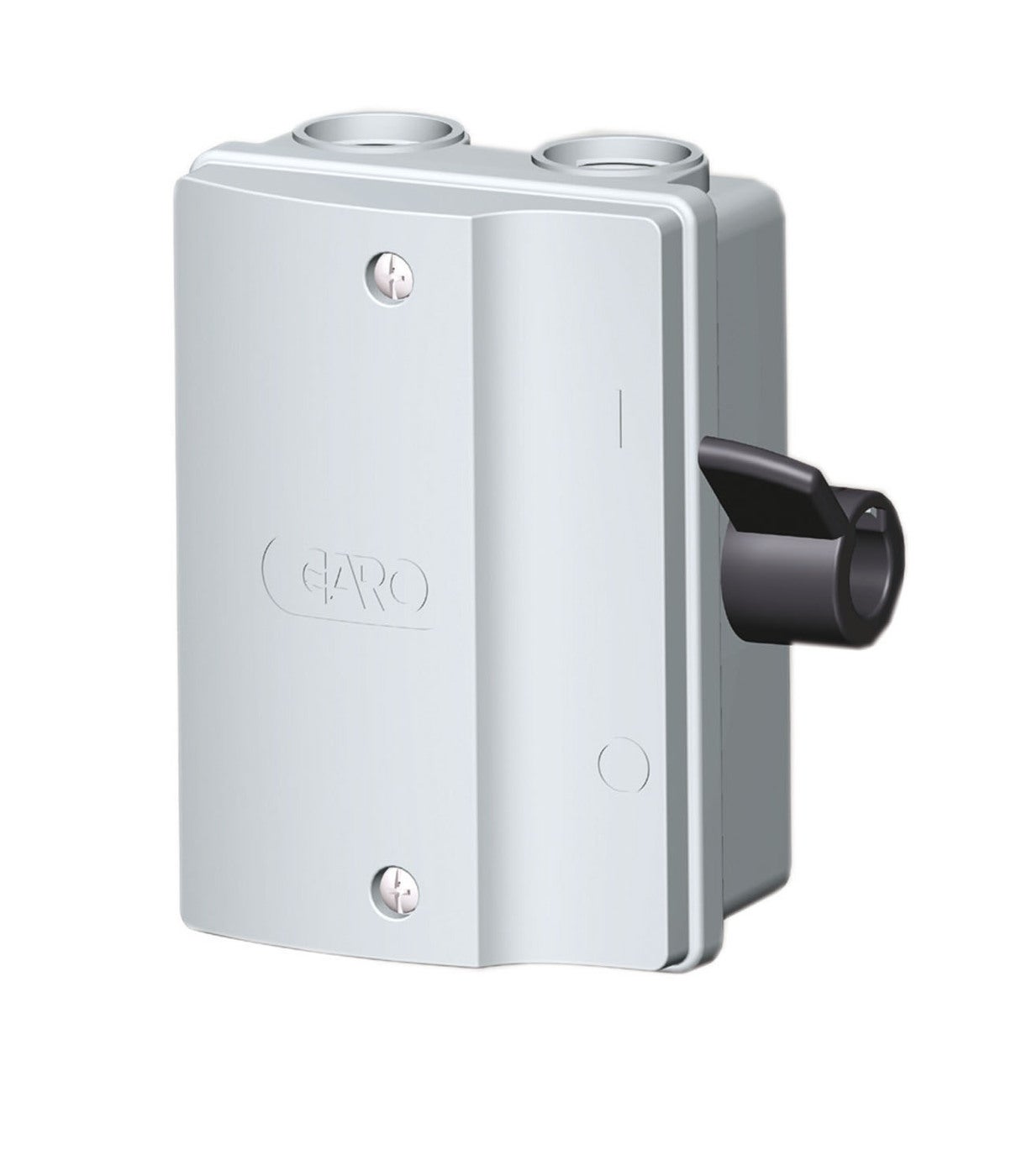

SWITCH SAFETY 4P 16A GREY

Safety switches 4-poles without auxiliary switch

Safety switches polycarbonate Safety switch grey 4 poles 16A
E-number
E3155203
Article number
3155203
Support
Standard EN60947-3
Mounting method Wall mounting
Power[kW] 7,5kW
Rated current AC23 400V [A] 16A
Degree of protection [IP] IP65
Connection area 16
Auxiliary contact No
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH SAFETY 4P 16A GREY
E-number E3155203
Article number 3155203
Type designation SBG 416G
Color Grey
Number of poles 4P
RAL-number RAL7035
Isolation voltage [V] 690V
With lighting No
Connection PE [mm²] 12+11

More variants of Safety switches 4-poles without auxiliary switch

E-number Article number Type designation Color Number of poles RAL-number Isolation voltage [V] With lighting Connection PE [mm²]
SWITCH SAFETY 4P 16A GREY E3155203 3155203 SBG 416G Grey 4P RAL7035 690V No 12+11

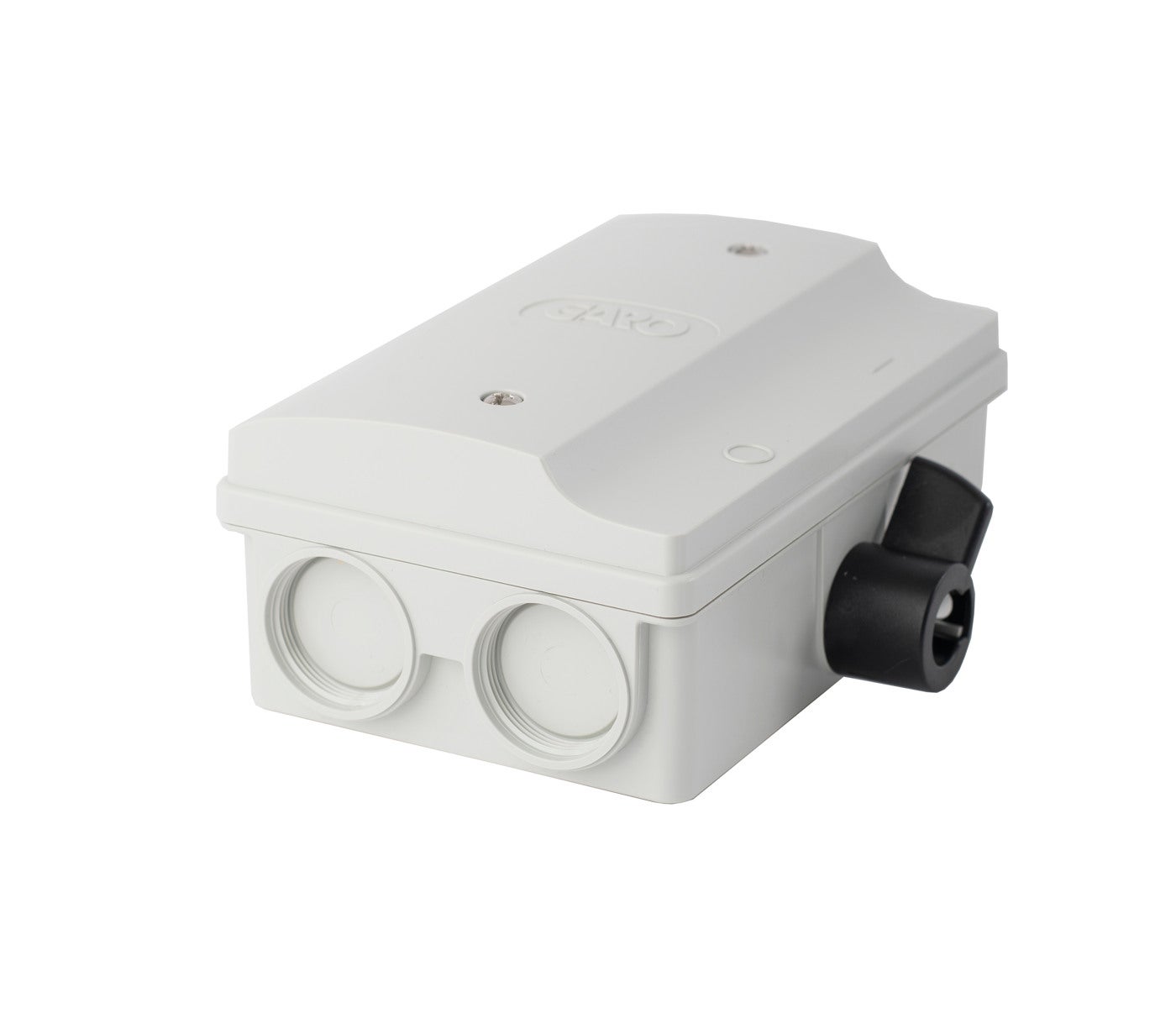

SWITCH SAFETY 4P 16A WHITE E3155222 3155222 SBG 416V White RAL9010 690V AC No 12+11

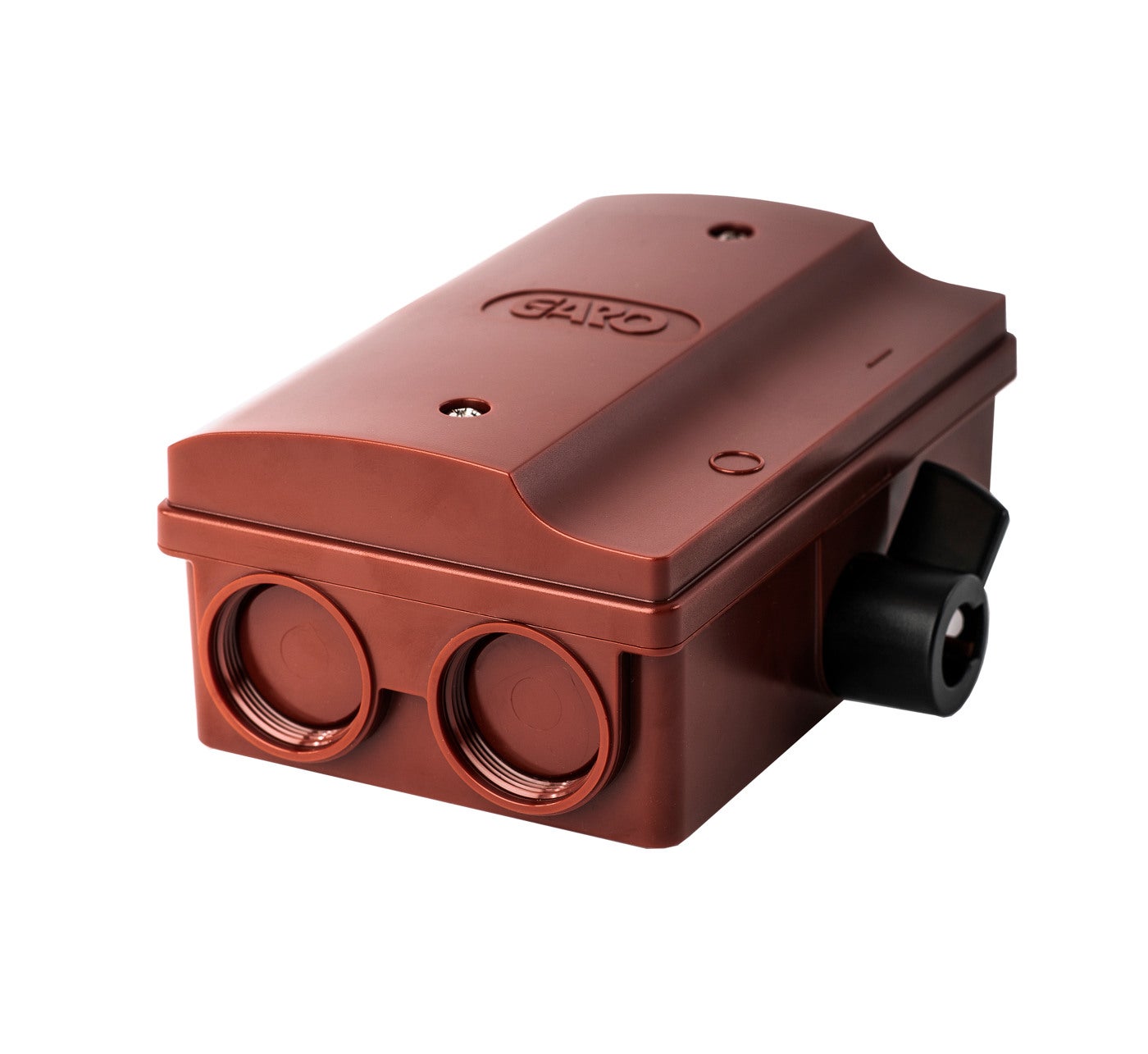

SWITCH SAFETY 4P 16A RED E3135626 354187 SBGR 416 Red 4P RAL3009 690V AC No 6mm²

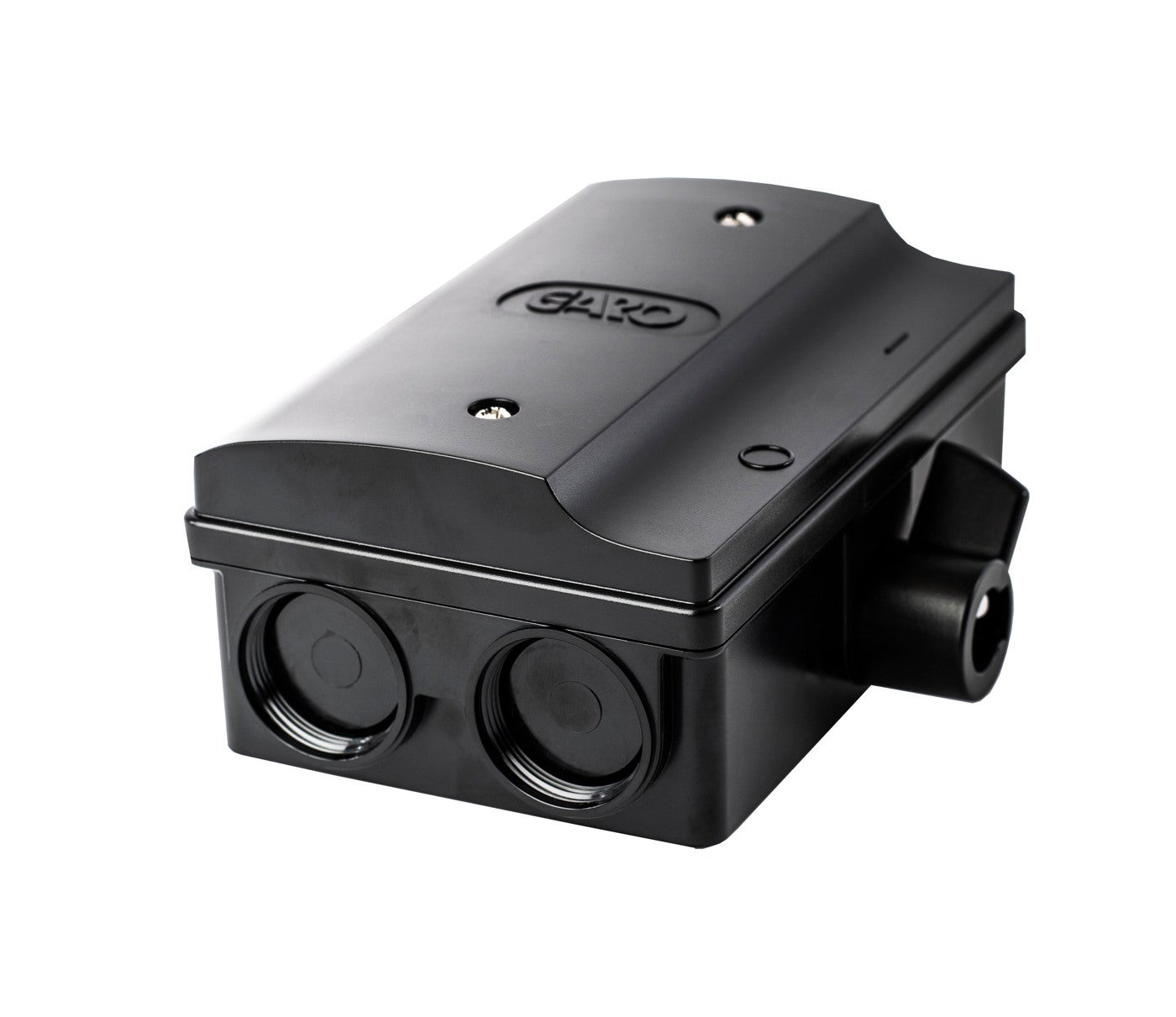

SWITCH SAFETY 4P 16A BLACK E3135627 354188 SBGS 416 Black 4P RAL9005 690V AC 6mm²
