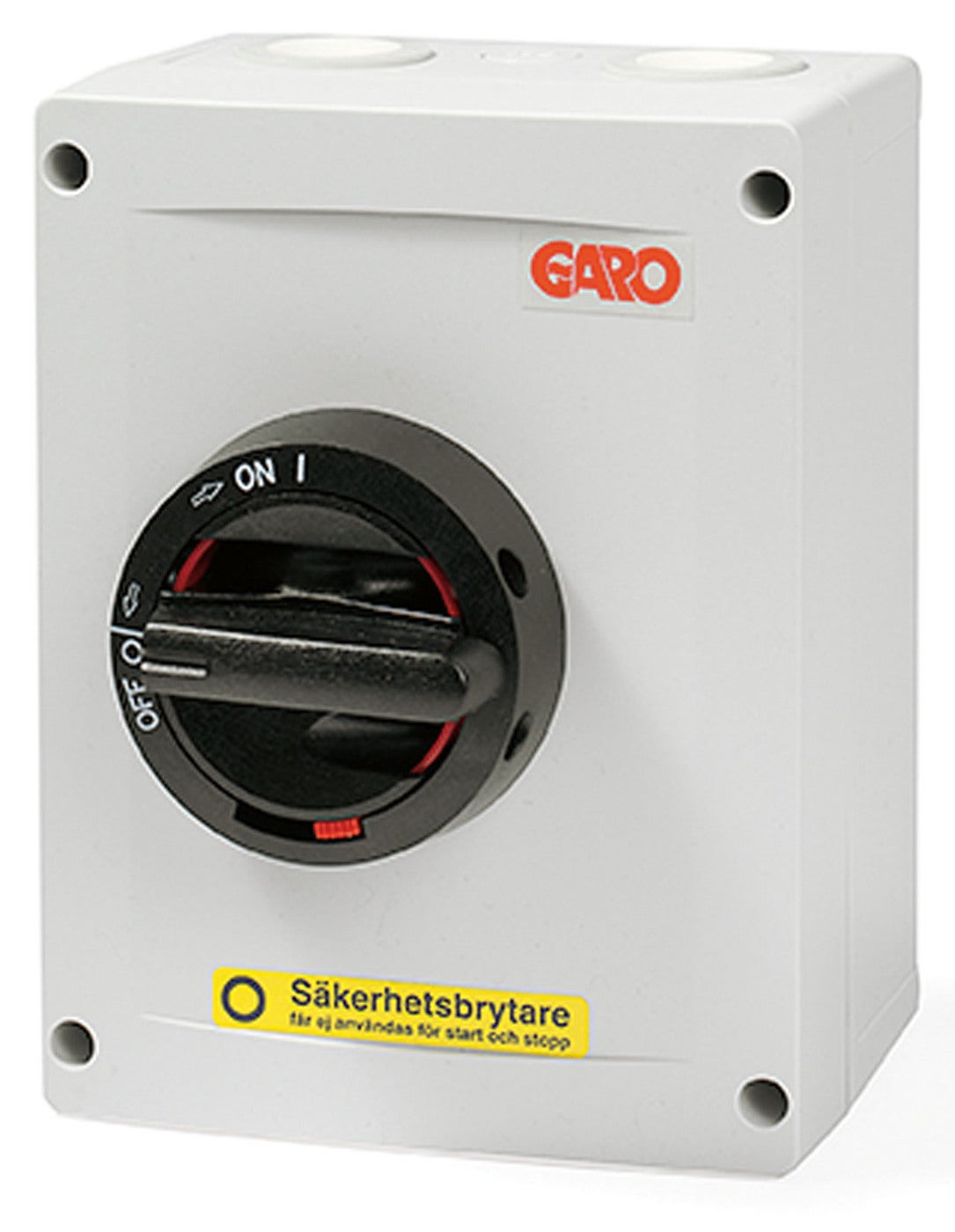

SWITCH SAFETY 6P 32A GREY AS

Safety switches 6-poles with auxiliary switch

Safety switches polycarbonate with auxiliary switch Safety switch grey 6-poles 32A with auxilliary
E-number
E3155216
Article number
3155216
Support
Name SWITCH SAFETY 6P 32A GREY AS
E-number E3155216
Article number 3155216
Type designation SBG 632H
Standard EN60947-3
Color Grey
Number of poles 6
Mounting method Wall mounting
RAL-number RAL7035
Power[kW] 15kW
Isolation voltage [V] 690V
Rated current AC23 400V [A] 32A
Degree of protection [IP] IP66
Connection N [mm²] 16mm²
Connection PE [mm²] 12+11
Connection area 35
Auxiliary contact Yes
EngineerWidth 144
EngineerHeight 190
EngineerDepth 131

More variants of Safety switches 6-poles with auxiliary switch

E-number Article number Type designation Standard Color Number of poles Mounting method RAL-number Power[kW] Isolation voltage [V] Rated current AC23 400V [A] Degree of protection [IP] Connection N [mm²] Connection PE [mm²] Connection area Auxiliary contact NetProductWeight EngineerWidth EngineerHeight EngineerDepth

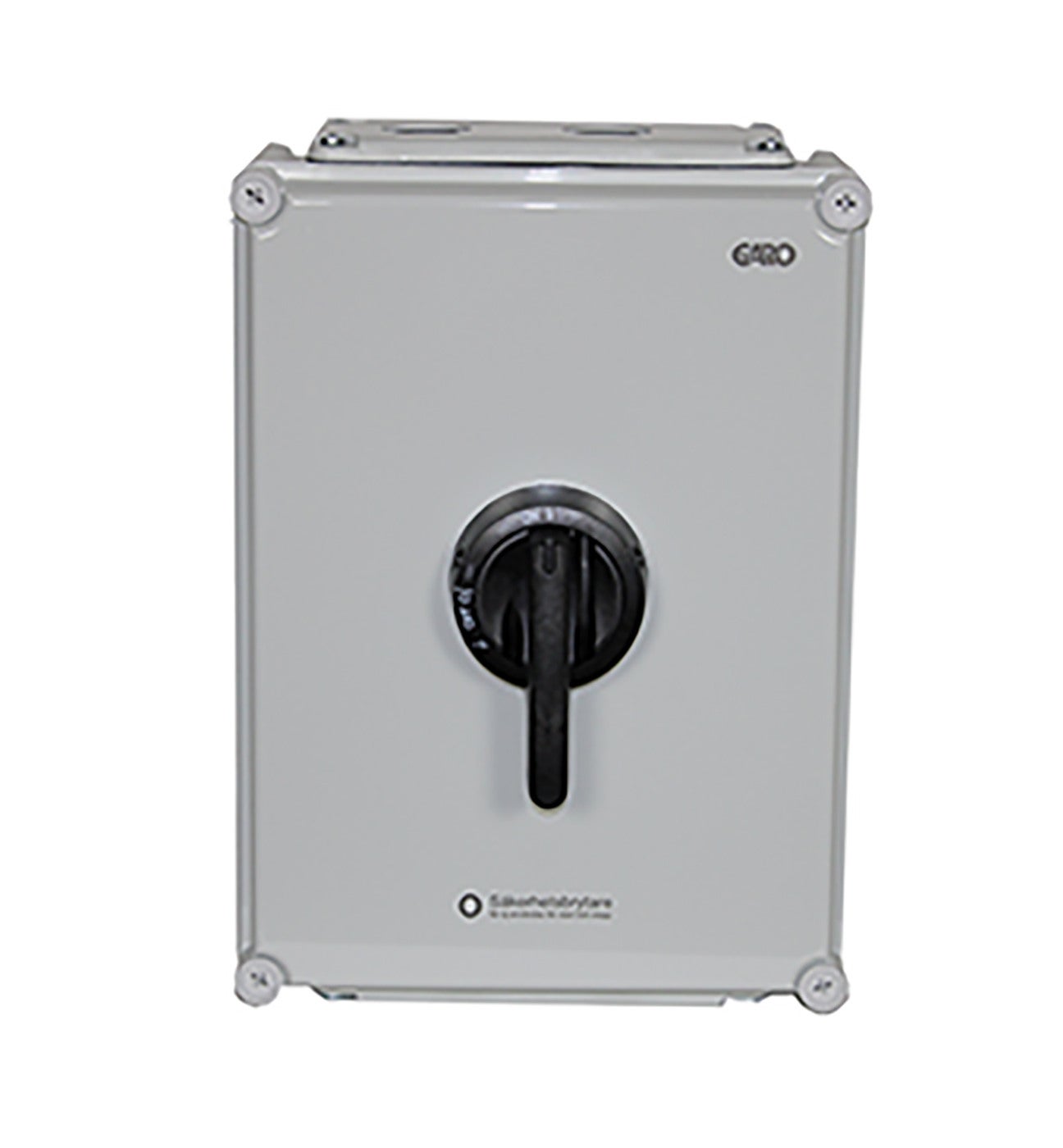

SAFETY SWITCH GREY 6P 80A AUX E3135758 110127 SBG680H 3.82 280 380 171

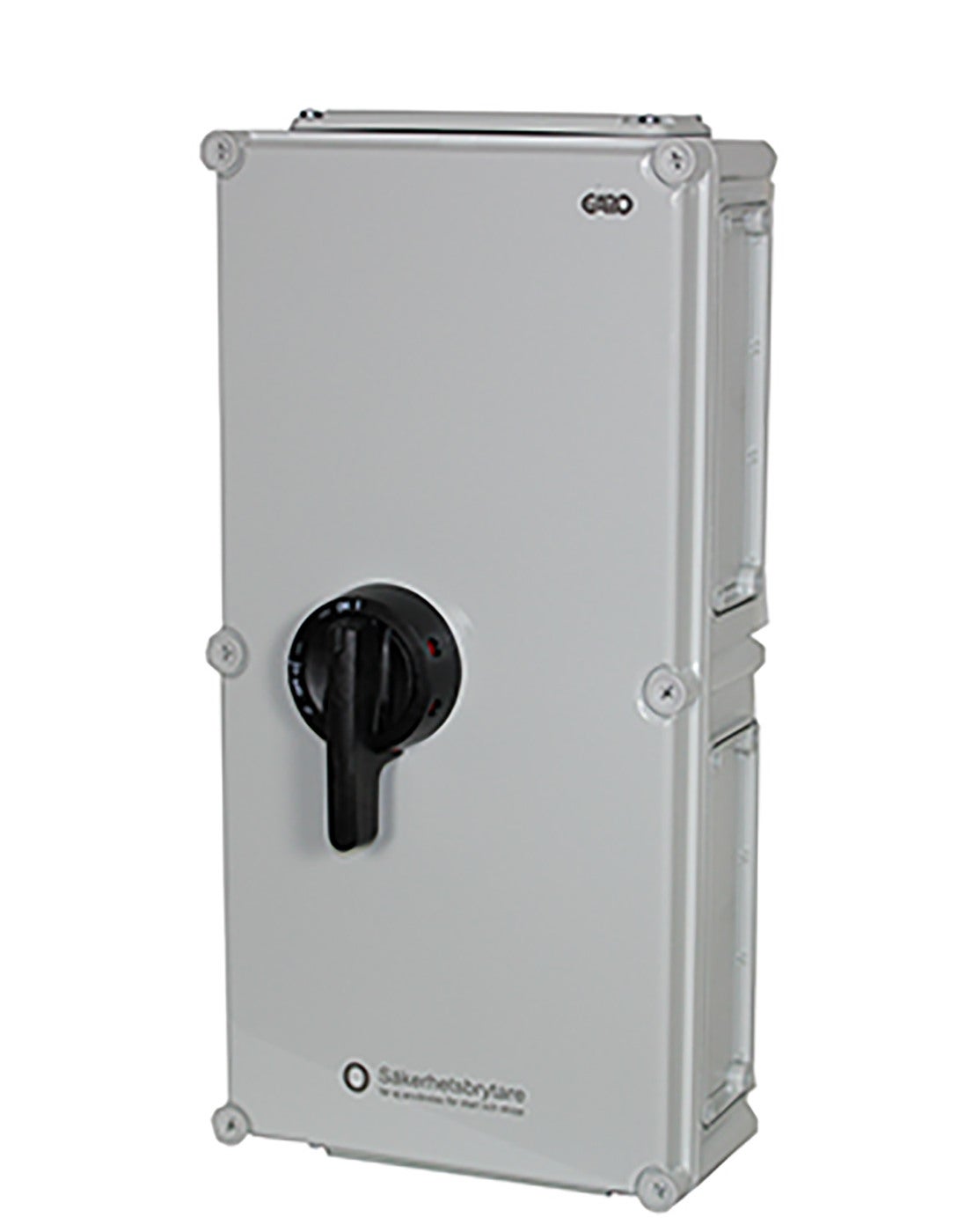

SAFETY SWITCH GREY 6P 125A H E3135759 110128 SBG6125H 10.23 380 560 240
SWITCH SAFETY 6P 32A GREY AS E3155216 3155216 SBG 632H EN60947-3 Grey 6 Wall mounting RAL7035 15kW 690V 32A IP66 16mm² 12+11 35 Yes 144 190 131

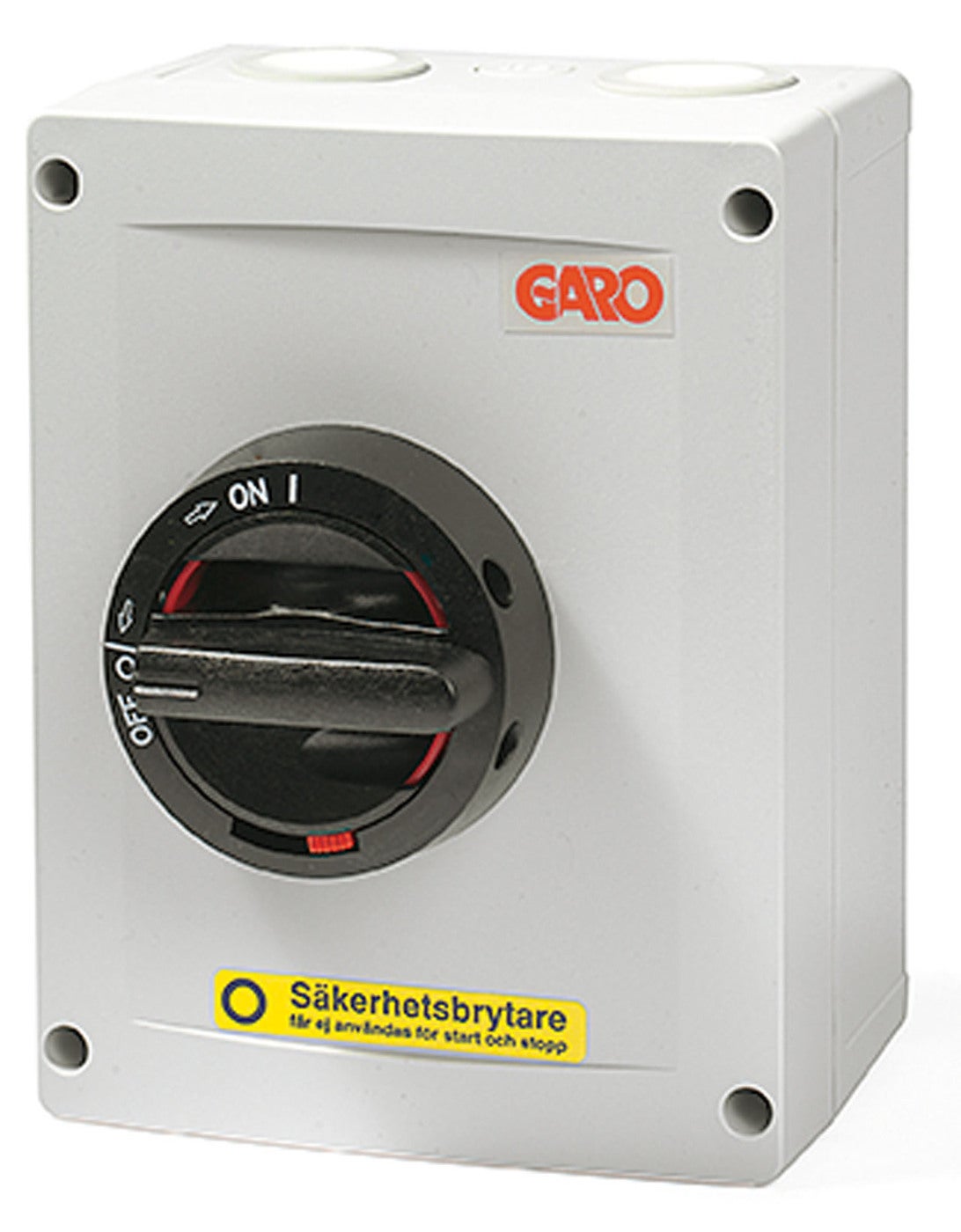

SWITCH SAFETY 6P 40A GREY AS E3155218 3155218 SBG 640H EN60947-3 Grey 6 Wall mounting RAL7035 13,9kW 690V AC 40A IP66 16mm² 12+11 35 Yes 144 190 131

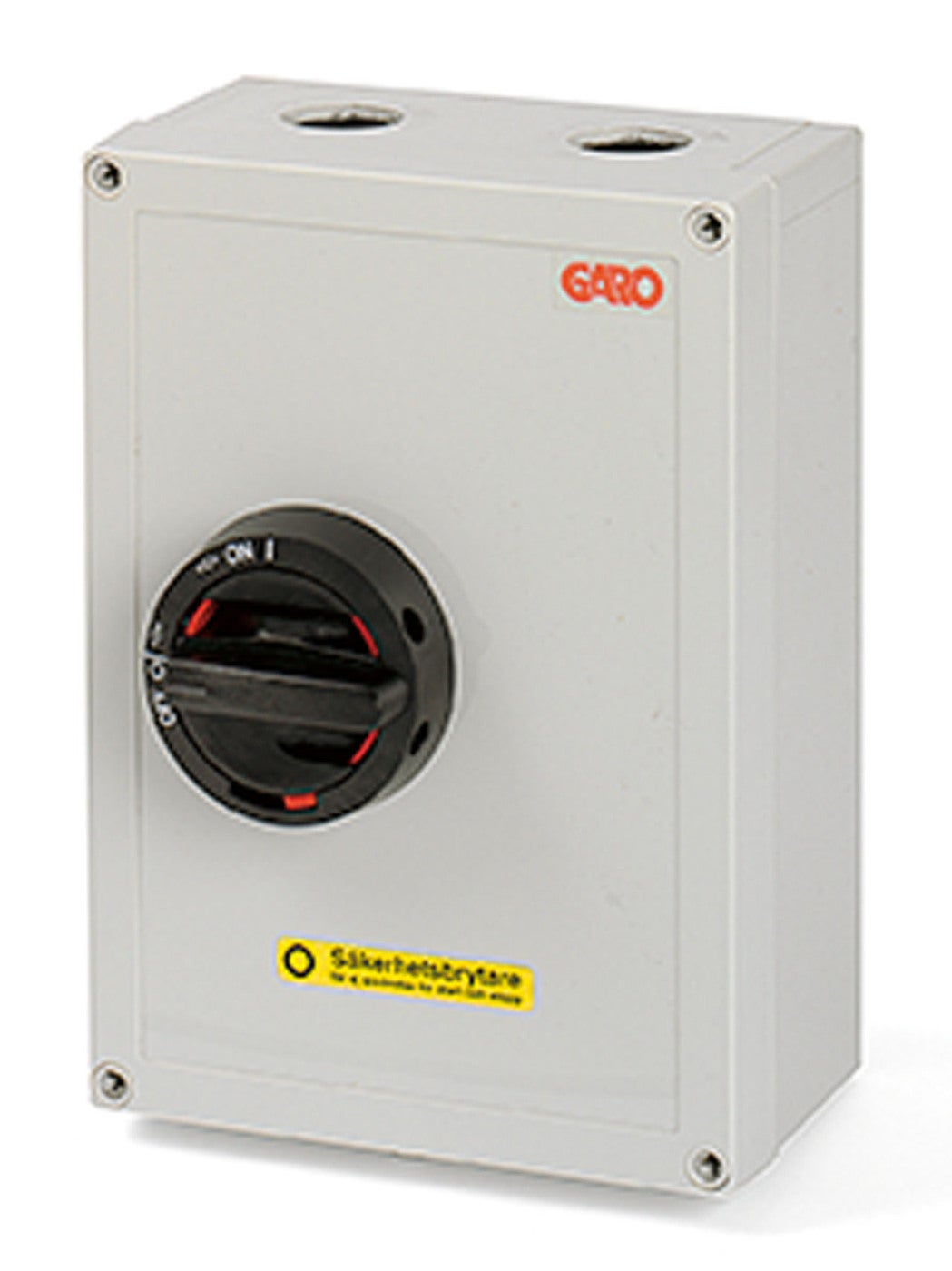

SWITCH SAFETY 6P 63A GREY AS E3155220 3155220 SBG 663H EN60947-3 Grey 6 Wall mounting 30kW 690V AC 63A IP66 35mm² 12+11 35 Yes 180 255 139
