Connectors Solid 16A IP20

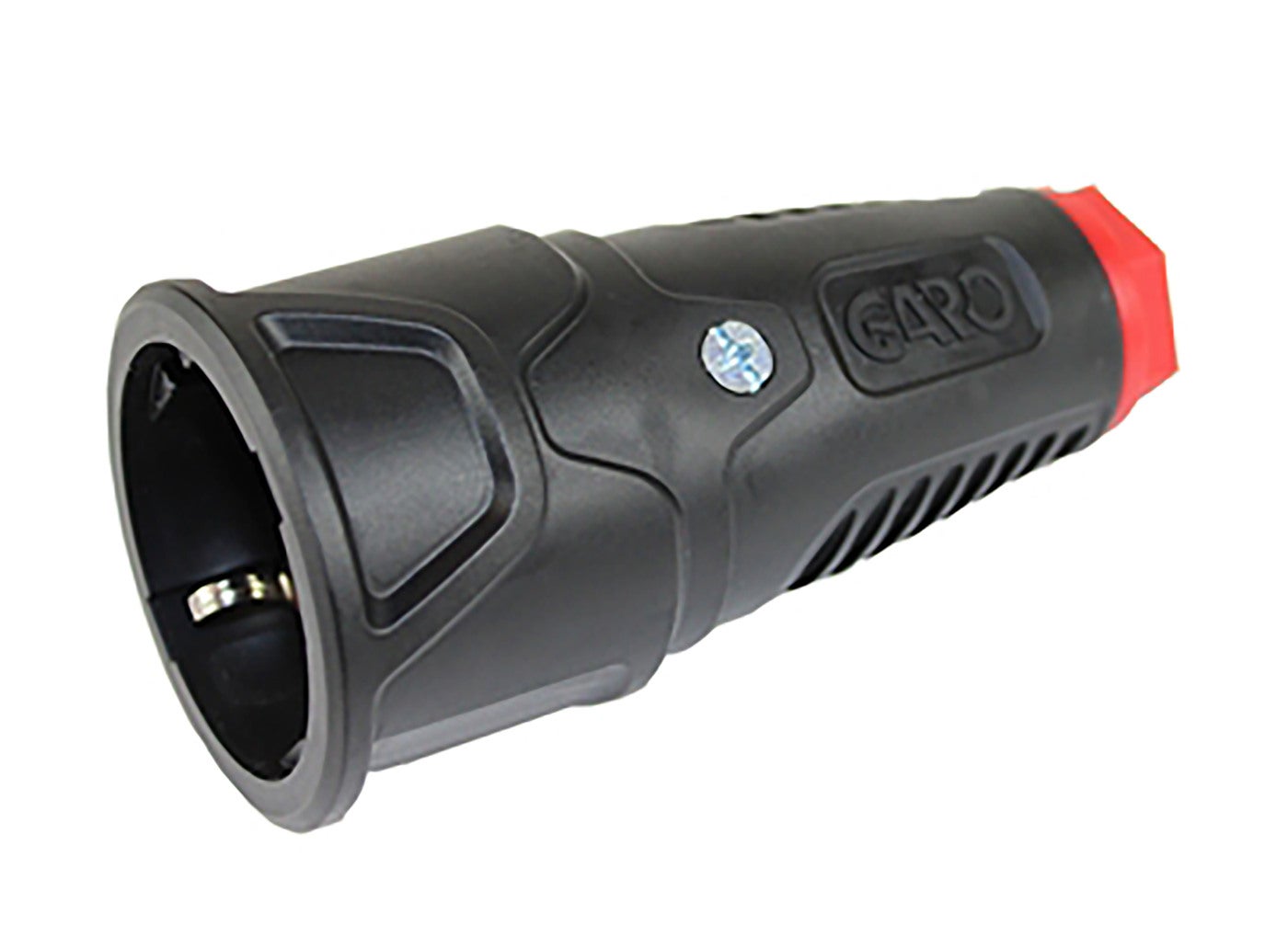

Solid, a tough and durable range that can withstand just about everything, even being run over by construction vehicles. In-line connector 16A has cable clamps that are open for quicker handling and easier assembly. Screw connection +/- Ph2. Available with or without lid. Connector 16A 3-poles rubber (TPE) without lid IP20
E-number
E2405260
E2405260
Article number
109738
109738
| Materials | Rubber |
|---|---|
| Standard | EN60309-2 |
| Frequency [Hz] | 50Hz |
| Color | Black/Red |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 250V AC |
| Number of poles | 3/2P+E |
| Wire flexible [mm²] | 2,5-6mm² |
| Modelltype | Solid |
| RAL-number | RAL9005 |
| Pin/Sleeve | 0 |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.09 |
| EngineerWidth | 50 |
| EngineerHeight | 50 |
| EngineerDepth | 100 |
| Name | CONNECTOR 16A 3P R WO LID IP20 |
|---|---|
| E-number | E2405260 |
| Article number | 109738 |
| Type designation | CRWOL-216 |
