CONNECTOR 5P 16A 4h WT

Connectors Basic 16A IP67

Basic, our standard range with a screw function. In-line connector 32A in waterproof design. Connectors basic 5-poles 16A 4h watertight
E-number
E2424708
Article number
2424708
Support
Materials Plastic
Rated current [A] 16A
Modelltype Basic
Degree of protection [IP] IP67
Name CONNECTOR 5P 16A 4h WT
E-number E2424708
Article number 2424708
Type designation SV 416-4 S
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 5/3P+N+E
Wire flexible [mm²] 1-2,5mm²
RAL-number RAL1023
Clock hour position [h] 4h

More variants of Connectors Basic 16A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Wire flexible [mm²] RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
CONNECTOR 3P 16A 6h WT E2424699 2424699 SV 216-6 S 50/60Hz Blue 200-250V AC 3/2P+E 1-2,5mm² RAL5017 6h 0.15 190 140 260
CONNECTOR 3P 16A 9h WT E2424700 2424700 SV 216-9 S 50/60Hz Red 380-415V AC 4/3P+E 1-2,5mm² RAL3000 9h
CONNECTOR 4P 16A 2h WT E2424701 2424701 SV 316-2 S 300-500Hz Green >50V AC 4/3P+E 1-2,5mm² RAL6010 2h

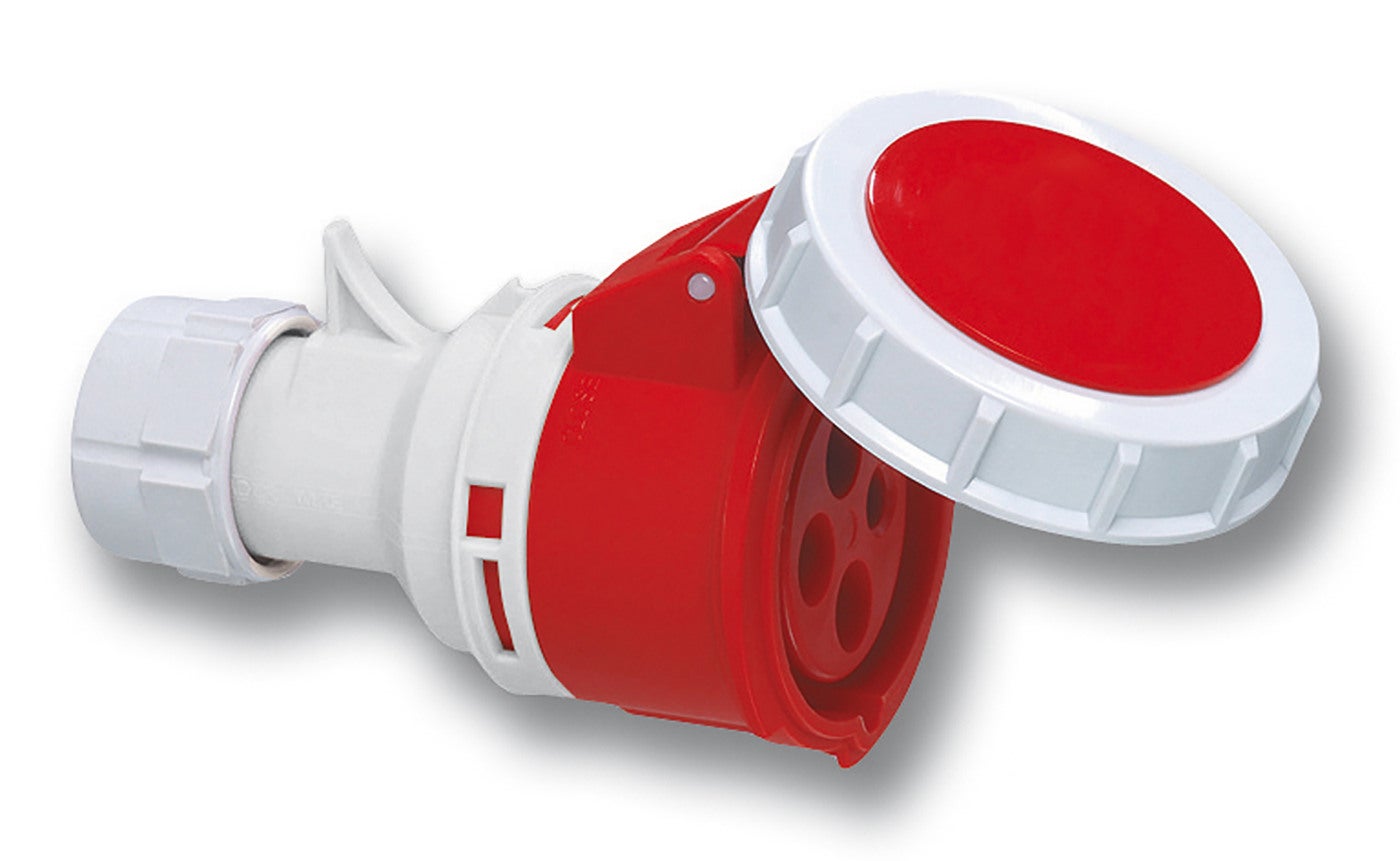

CONNECTOR 4P 16A 6h WT E2424703 2424703 SV 316-6 S 50/60Hz Red 400V AC 4/3P+E 1-2,5mm² RAL3000 6h 0.19 190 170 290

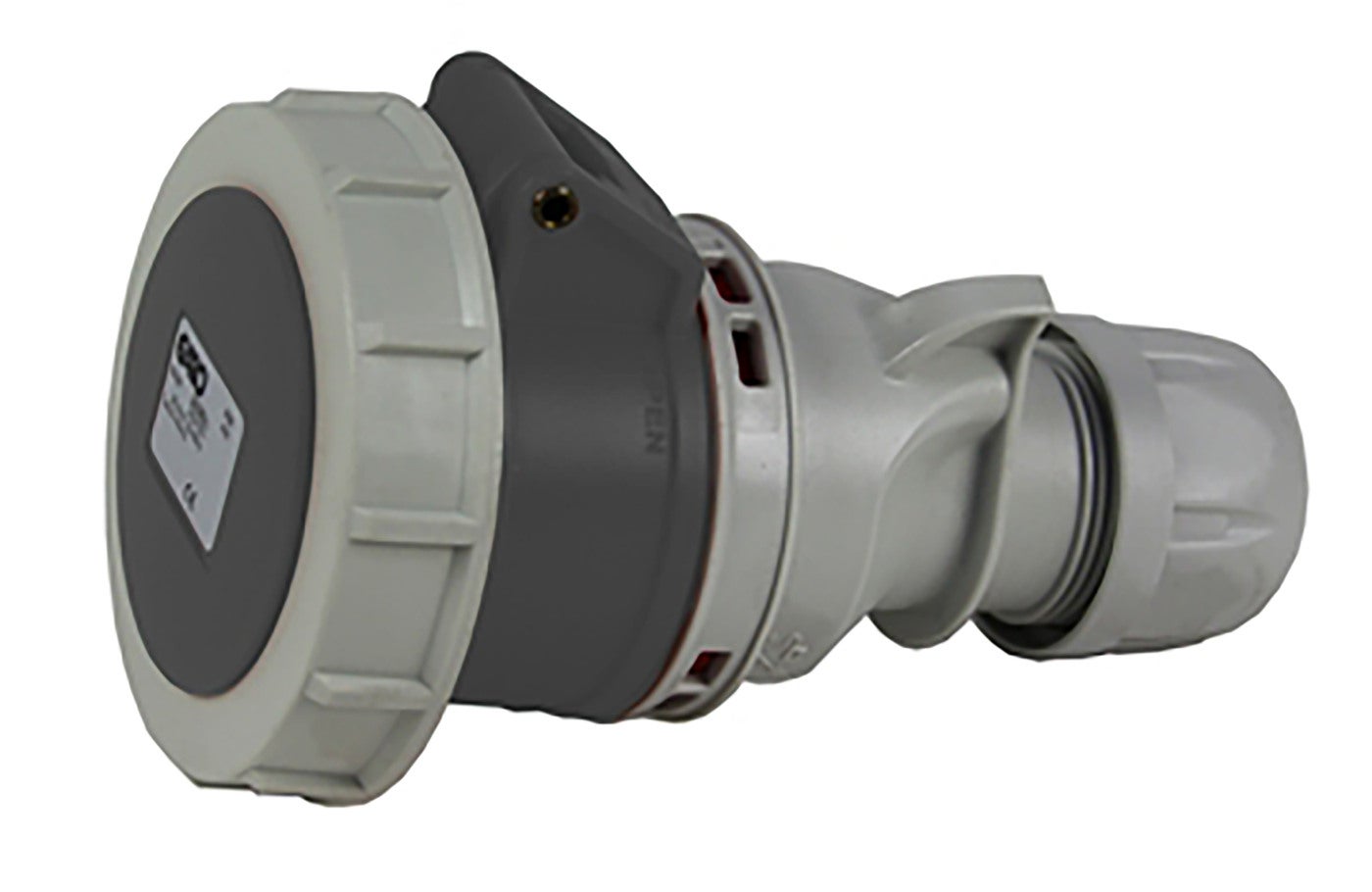

CONNECTOR 4P 16A 7h WT E2424704 2424704 SV 316-7 S 50/60Hz Black 480-500V AC 4/3P+E 1-2,5mm² RAL9005 7h
CONNECTOR 4P 16A 9h WT E2424705 2424705 SV 316-9 S 50/60Hz Blue 230V AC 4/3P+E 1-2,5mm² RAL5017 9h

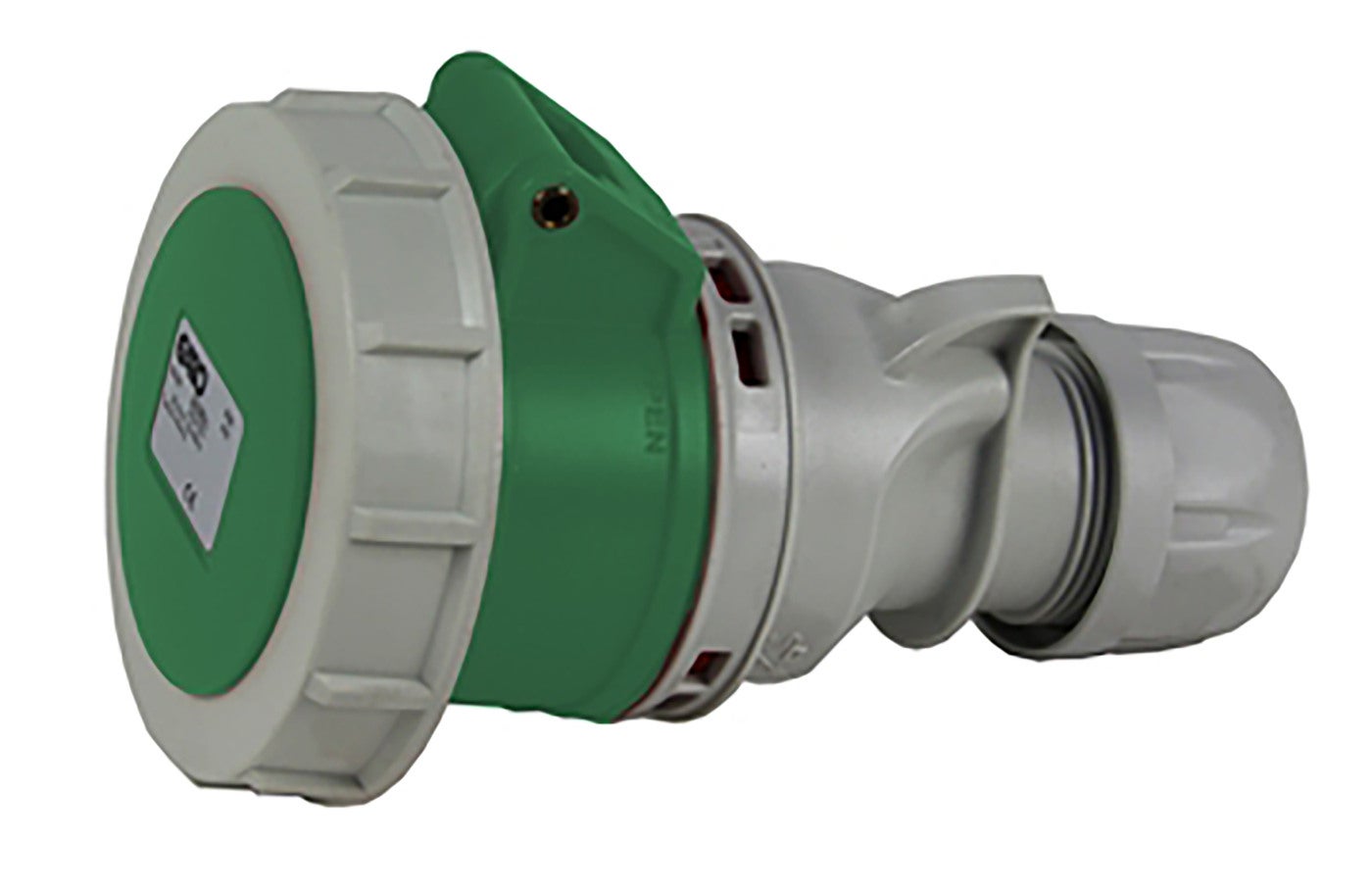

CONNECTOR 4P 16A 10h WT E2424706 2424706 SV 316-10 S 100-300Hz Green >50V AC 4/3P+E 1-2,5mm² RAL6010 10h
CONNECTOR 4P 16A 11h WT E2424707 2424707 SV 316-11 S 60Hz Red 440-460V AC 4/3P+E 1-2,5mm² RAL3000 11h
CONNECTOR 5P 16A 4h WT E2424708 2424708 SV 416-4 S 50/60Hz Yellow 100-130V AC 5/3P+N+E 1-2,5mm² RAL1023 4h
CONNECTOR 5P 16A 6h WT E2424709 2424709 SV 416-6S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.22 190 2250 290
