Cable cabinets for meter 1group
The distribution cabinets are available in two widths and in two different heights, depending on whether the cabinet is to have room for measurement or not. The narrow cabinet is 372 mm wide and can have up to 3 outgoing groups. The wide cabinet is 522 mm wide with up to 7 outgoing groups. The cabinets that are equipped with electricity meters are 1140 mm high, while cabinets without meter inserts are 860 mm high, calculated from the foundation. Distribution cabinet measure , 1 outgoing DII group 25A incoming.
| Type designation | GFSM-1D25 |
|---|---|
| Standard | EN61439-5 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Magnelis |
| Color | Grey |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 400V AC |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Fuse size | 1xDIII |
| Outgoing terminal [mm²] | 16mm² Cu |
| Measurement | Yes |
| Time switch | No |
| Degree of protection [IP] | IP34D |
| Impact strength [IK] | IK10 |
| Light relay | No |
| EngineerWidth | 372 |
| EngineerHeight | 1140 |
| EngineerDepth | 250 |

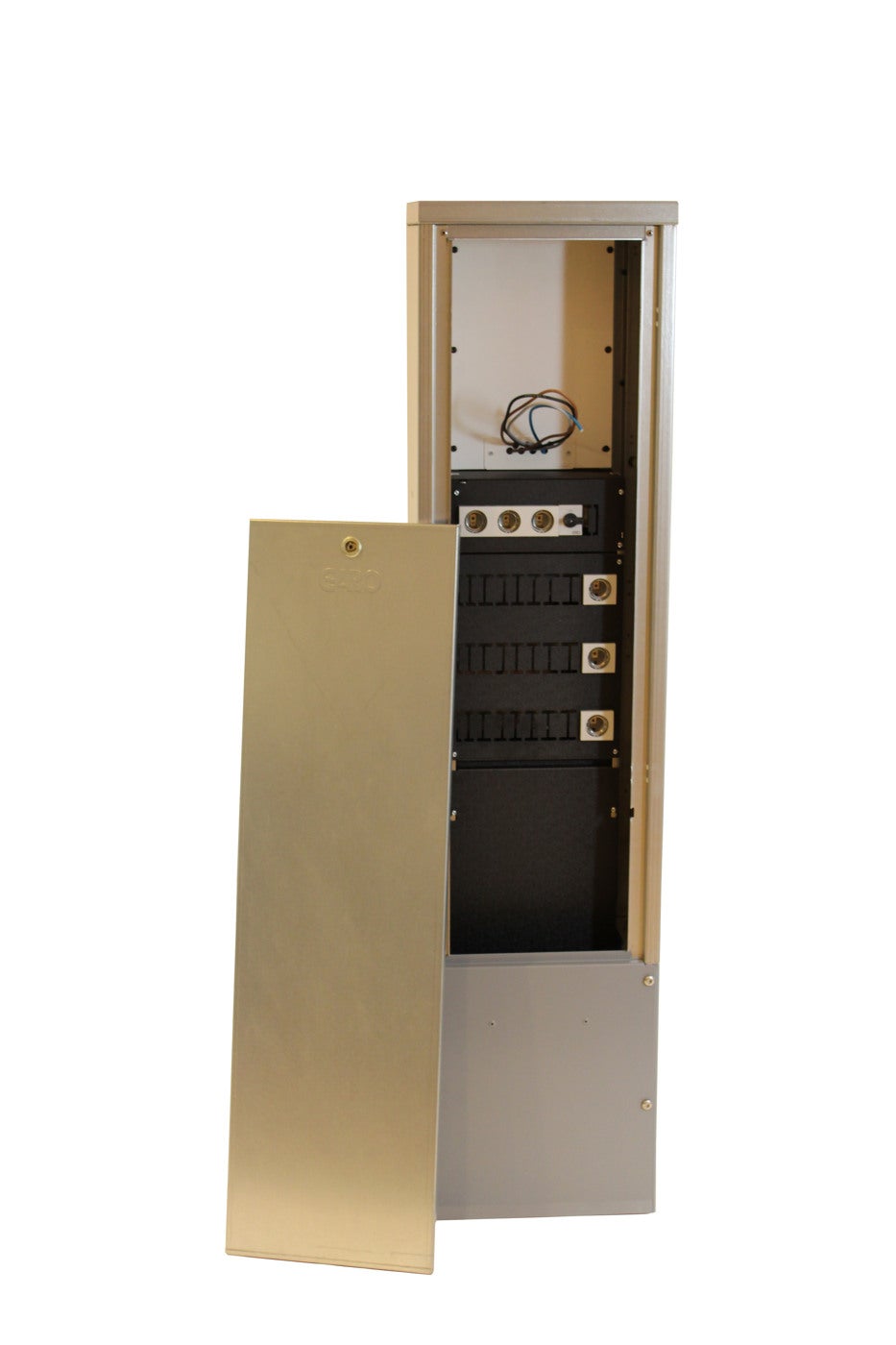

| Name | DISTRIBUTION CABINET 1 ROW 25A MEA |
|---|---|
| Article number | 353772 |
