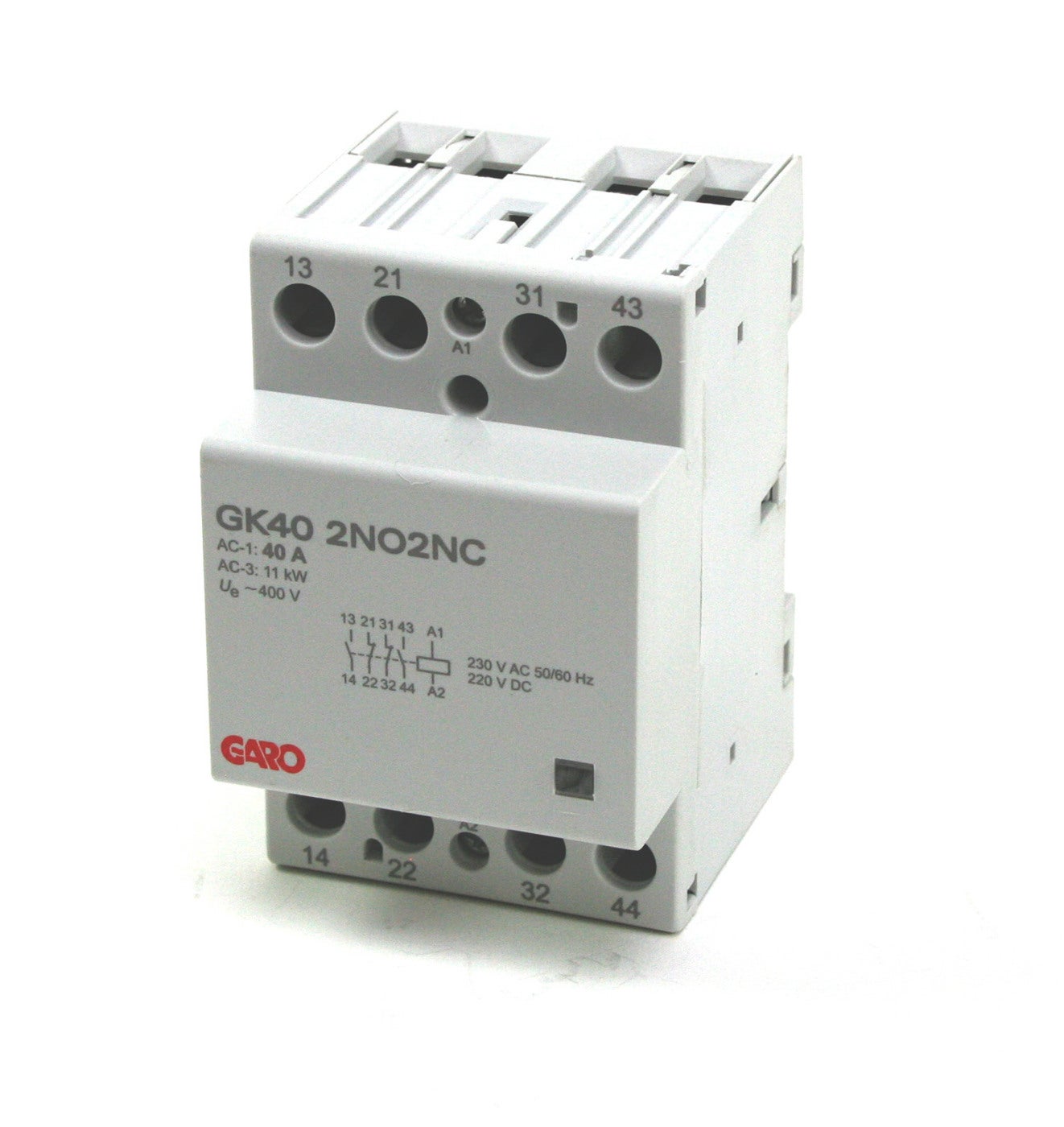

CONTACTOR 4P 40A 2NO 2NC 230V 3M

Contactors 4-poles

The range includes both the closing, opening and switching contactors. Contactor 40A 2NO 2NC 230V 3 modules
E-number
E3290501
Article number
351968
Support
Storage temperature [C] -30C...+80C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Color Grey
Rated voltage [V AC] 400V
Hum-free Yes
Voltage type AC
Degree of protection [IP] IP20
Name CONTACTOR 4P 40A 2NO 2NC 230V 3M
E-number E3290501
Article number 351968
Type designation GK40 2NO2NC 230V ACDC
Rated current [A] 40A
Number of modules 3
Tightening torque [Nm] 3,5Nm
Wire flexible [mm²] 1-16mm²
Wire solid [mm²] 1-25mm²
Power loss 4W
Control line voltage 230V ACDC
Power AC1 230V 8,7kW
Power AC1 400V 26kW
Power AC3 230V 2,7kW
Power AC3 400V 11kW
Contacts [pcs] 2NO2NC
NetProductWeight 0.4
EngineerWidth 57
EngineerHeight 68
EngineerDepth 86

More variants of Contactors 4-poles

E-number Article number Type designation Rated current [A] Number of modules Tightening torque [Nm] Wire flexible [mm²] Wire solid [mm²] Power loss Control line voltage Power AC1 230V Power AC1 400V Power AC3 230V Power AC3 400V Contacts [pcs] NetProductWeight EngineerWidth EngineerHeight EngineerDepth ProductWidth ProductHeight ProductDepth Volume

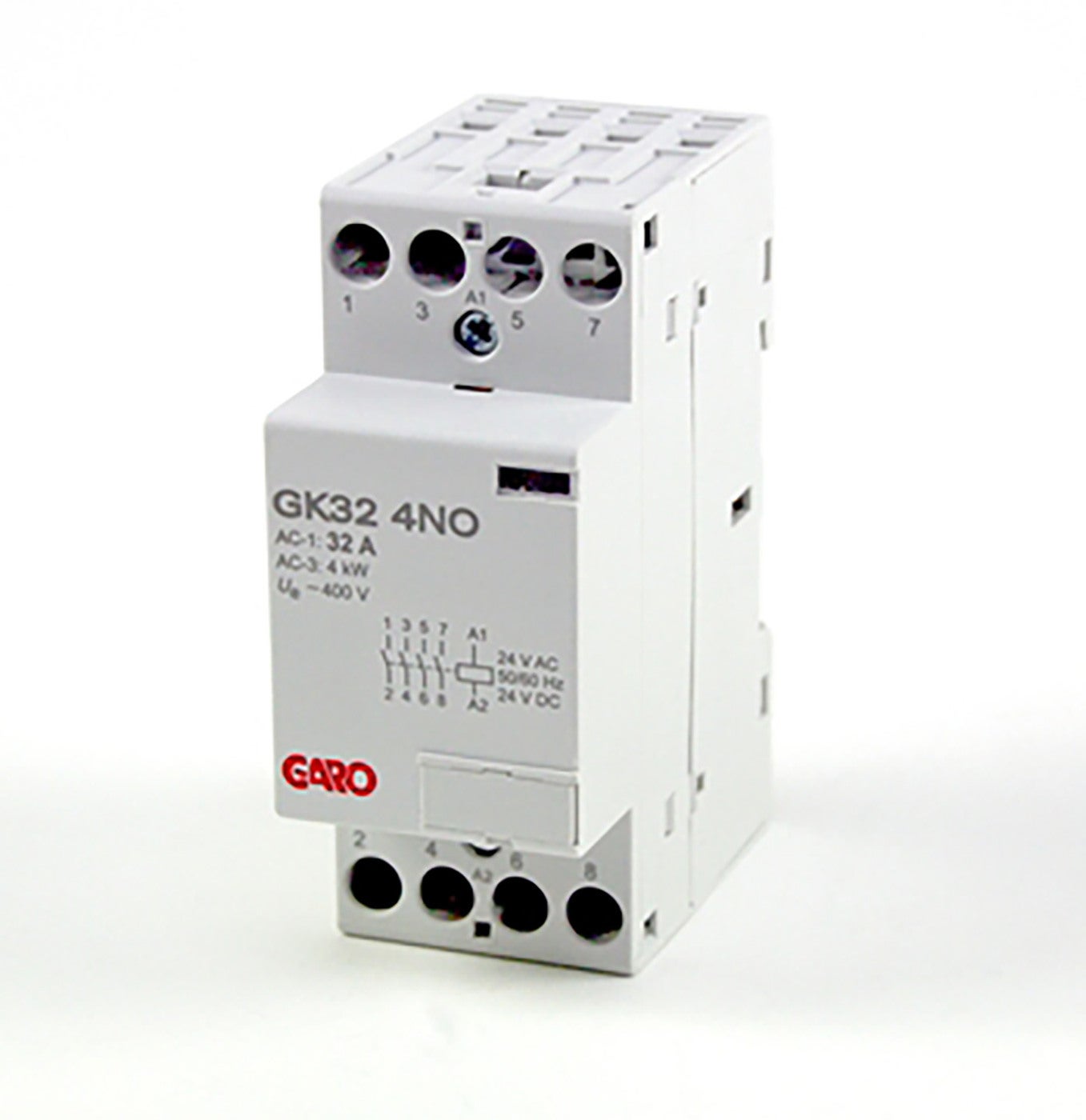

CONTACTOR 4P 32A 4NO 24V E3290773 107785 GK32 4NO 24V ACDC 32A 2 1,2Nm 1-6mm² 1-10mm² 2,5W 24V ACDC 7kW 4kW 4NO 0.27 37 67 87

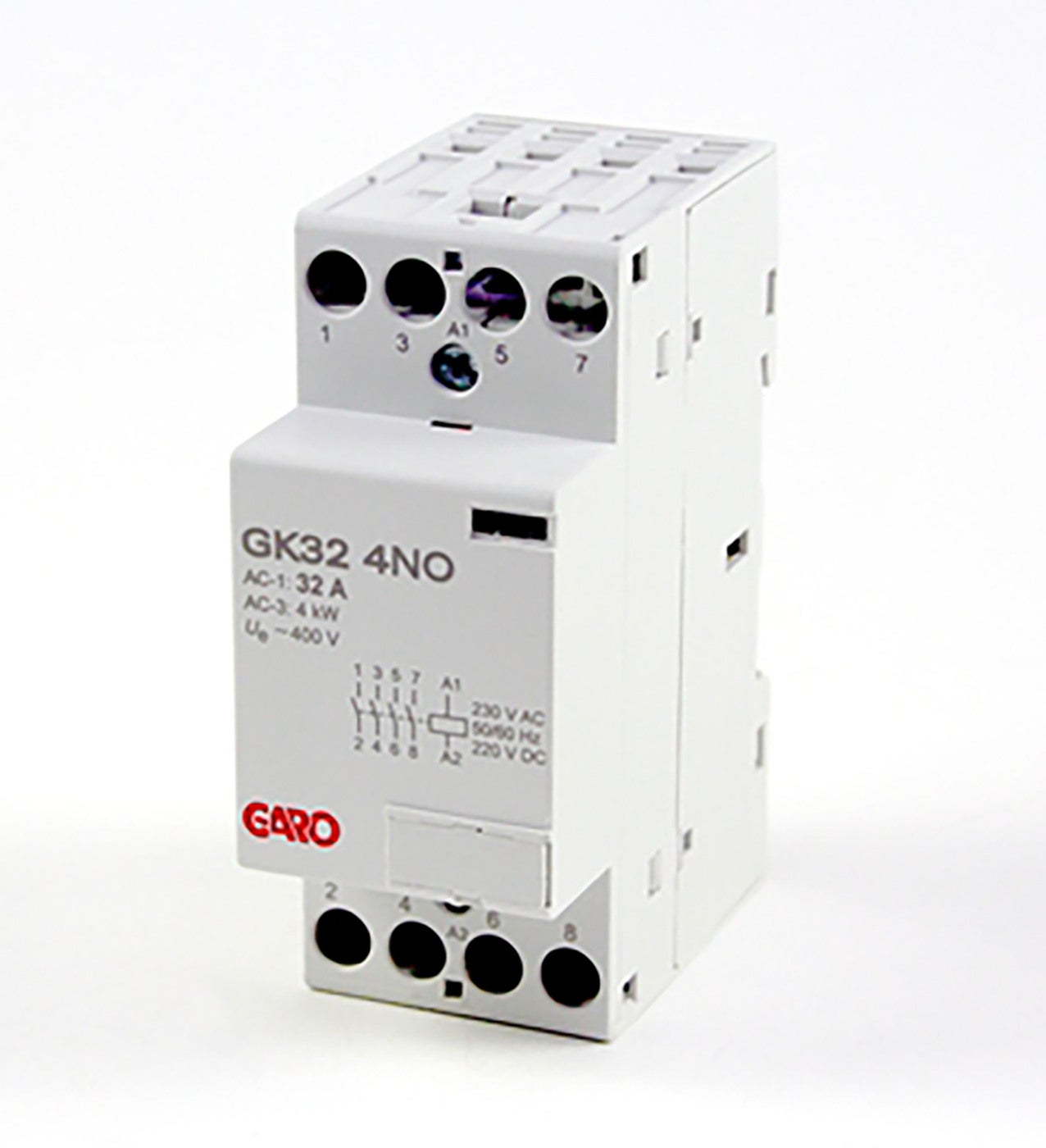

CONTACTOR 4P 32A 4NO 230V E3290775 107786 GK32 4NO 230V ACDC 32A 2 1,2Nm 1-6mm² 1-10mm² 2,5W 230V ACDC 7kW 21kW 1,3kW 4kW 4NO 2.7 36 45 66

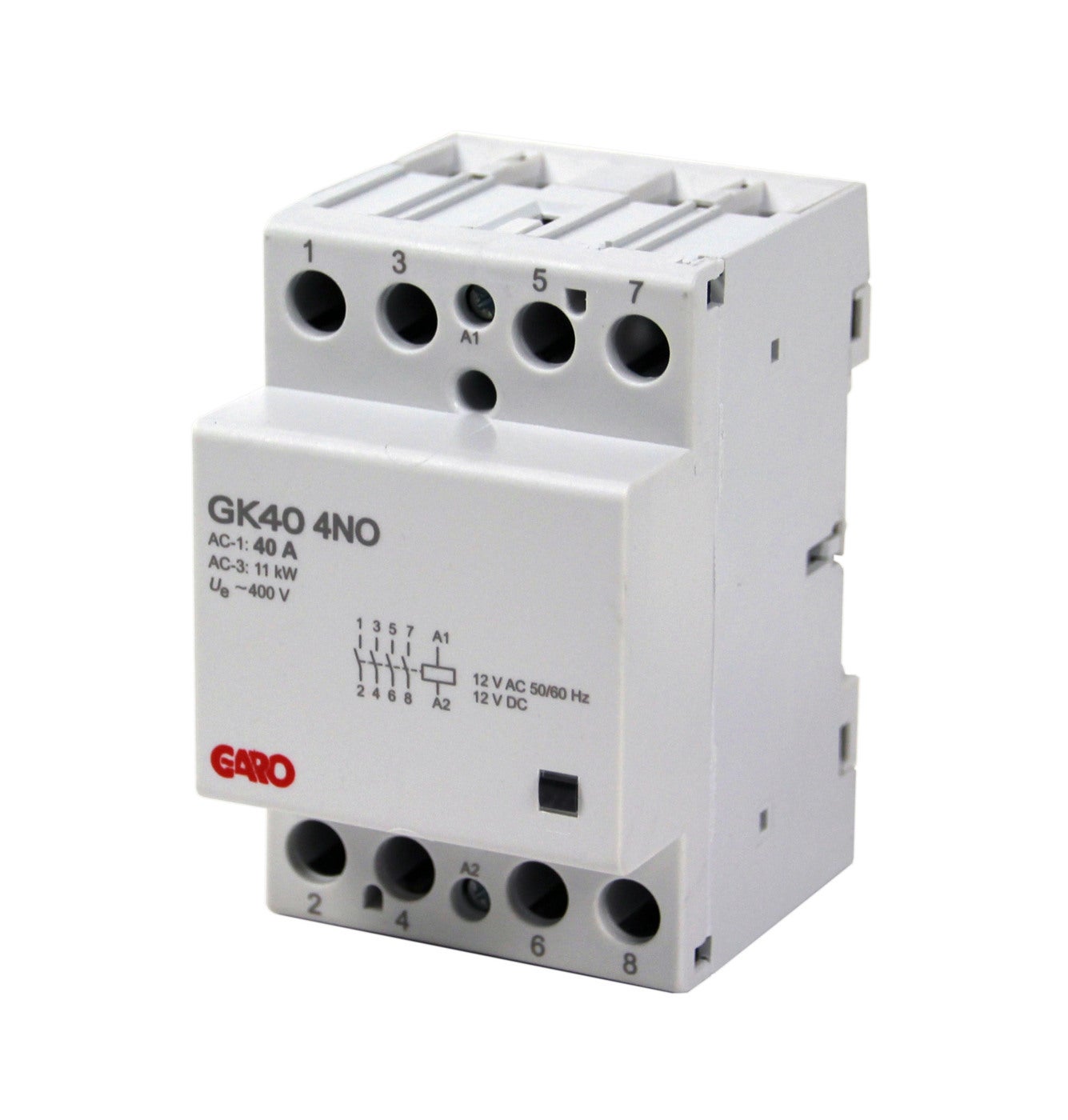

CONTACTOR 40 4NO 12V 3M E3205627 108327 GK40 4NO 12V ACDC 40A 3 3,5Nm 1-16mm² 1-25mm² 12-230V ACDC 4NO 0.36 54 85 66 58 68 86 339184

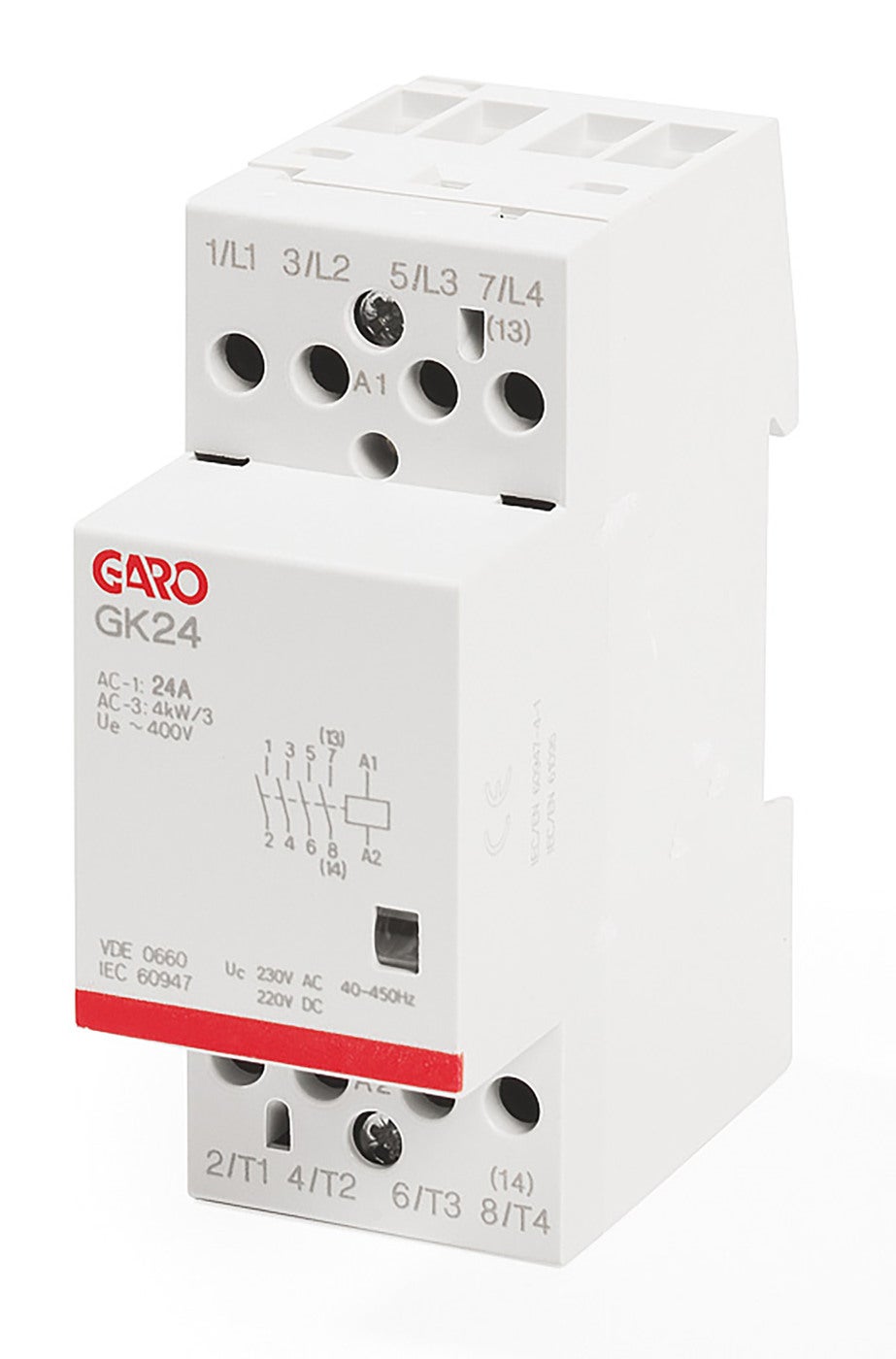

CONTACTOR 4P 24A 4NO 230V E3294580 3294580 GK24 4NO 230V ACDC 24A 2 1,2Nm 1-6mm² 1-10mm² 2,2W 230V ACDC 5,4kW 1,3kW 0.26 37 67 87

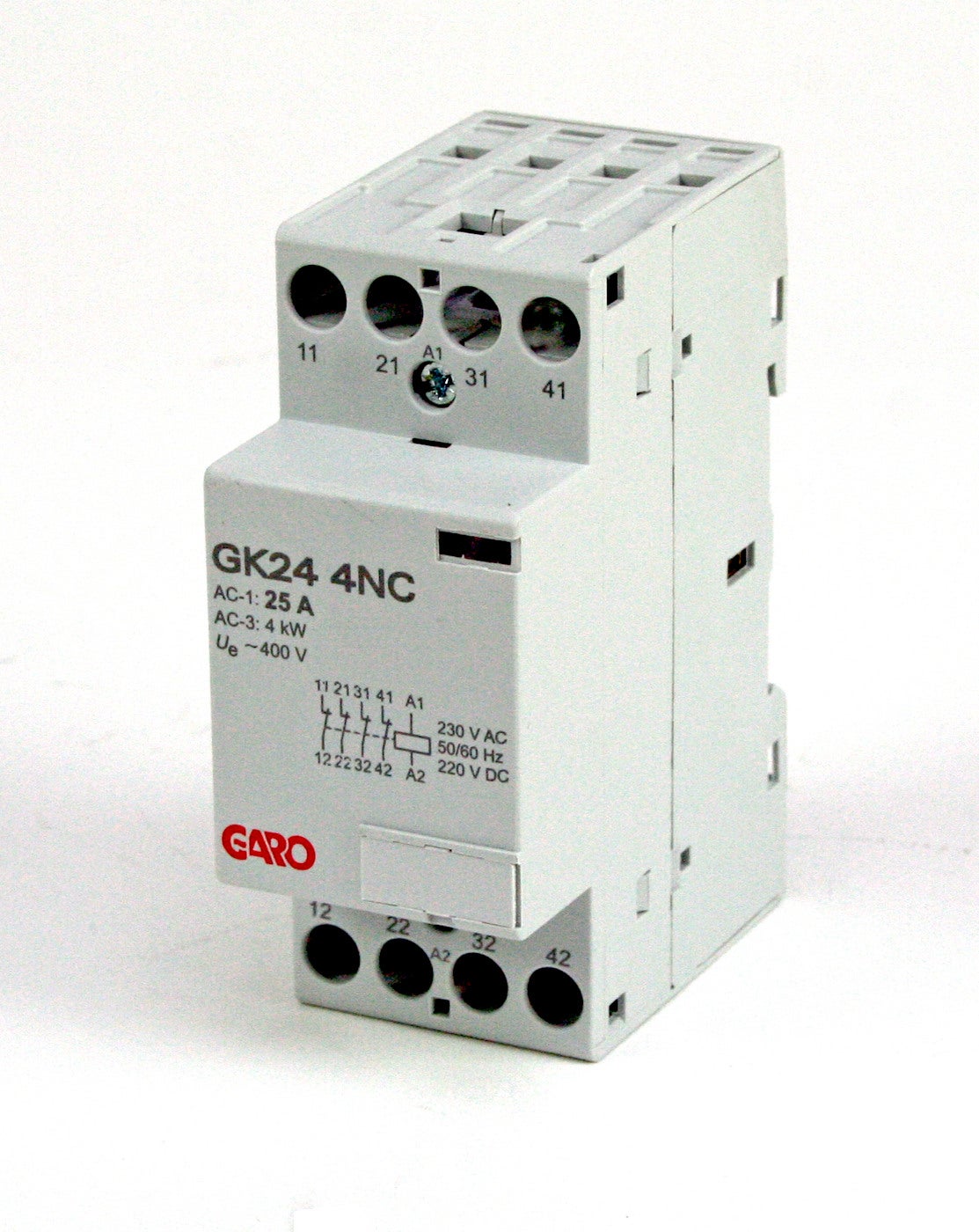

CONTACTOR 4P 24A 4NC 230V E3294581 3294581 GK24 4NC 230V ACDC 24A 2 1,2Nm 1-6mm² 1-10mm² 2,2W 230V ACDC 5,4kW 16kW 1,3kW 4kW 4NC 0.27 37 67 87

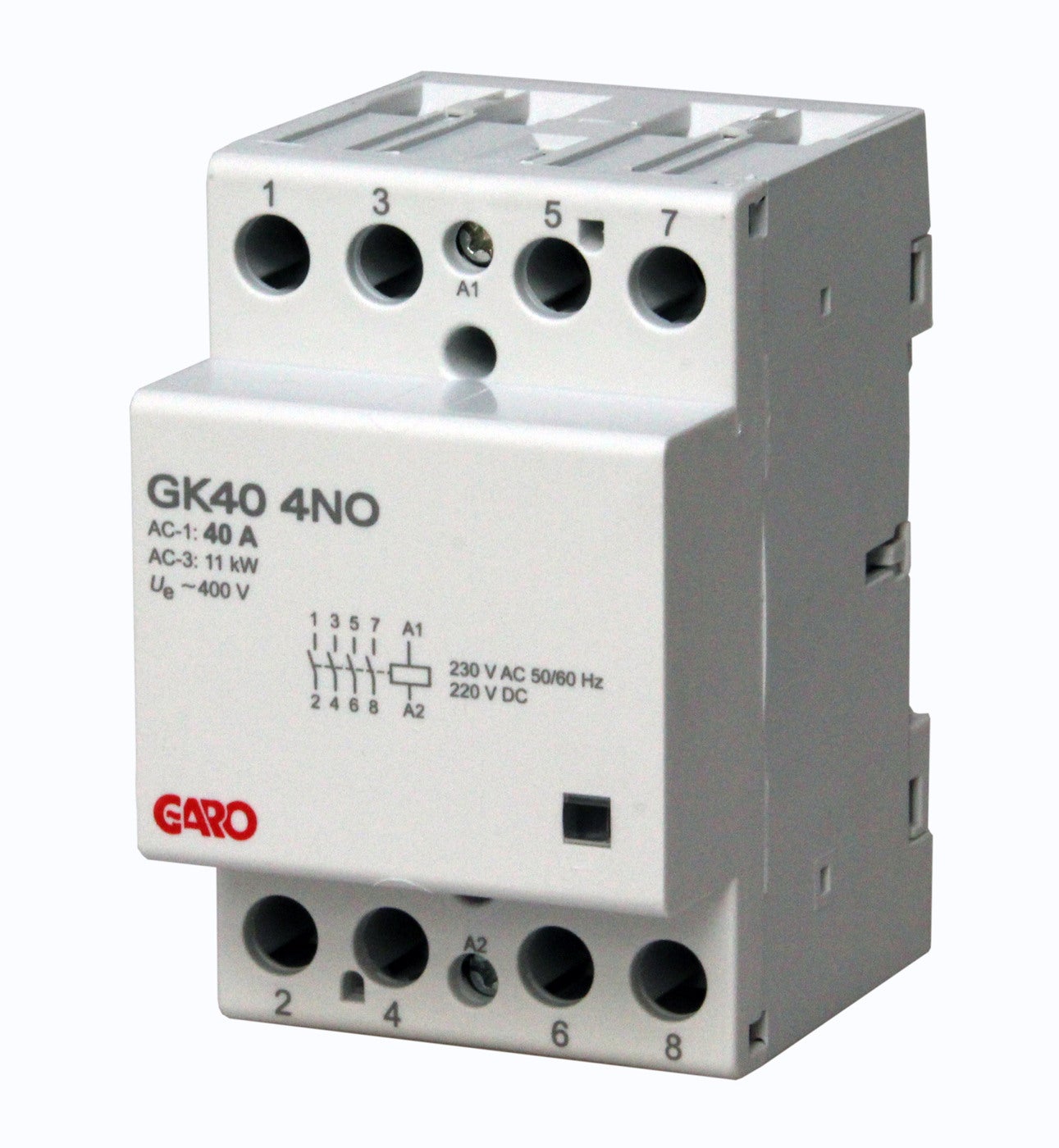

CONTACTOR 4P 40A 4NO 230V E3294584 3294584 GK40 4NO 230V ACDC 40A 3 3,5Nm 1-16mm² 1-25mm² 230V ACDC 8,7kW 26kW 3,7kW 11kW 4NO 0.39 54 85 66

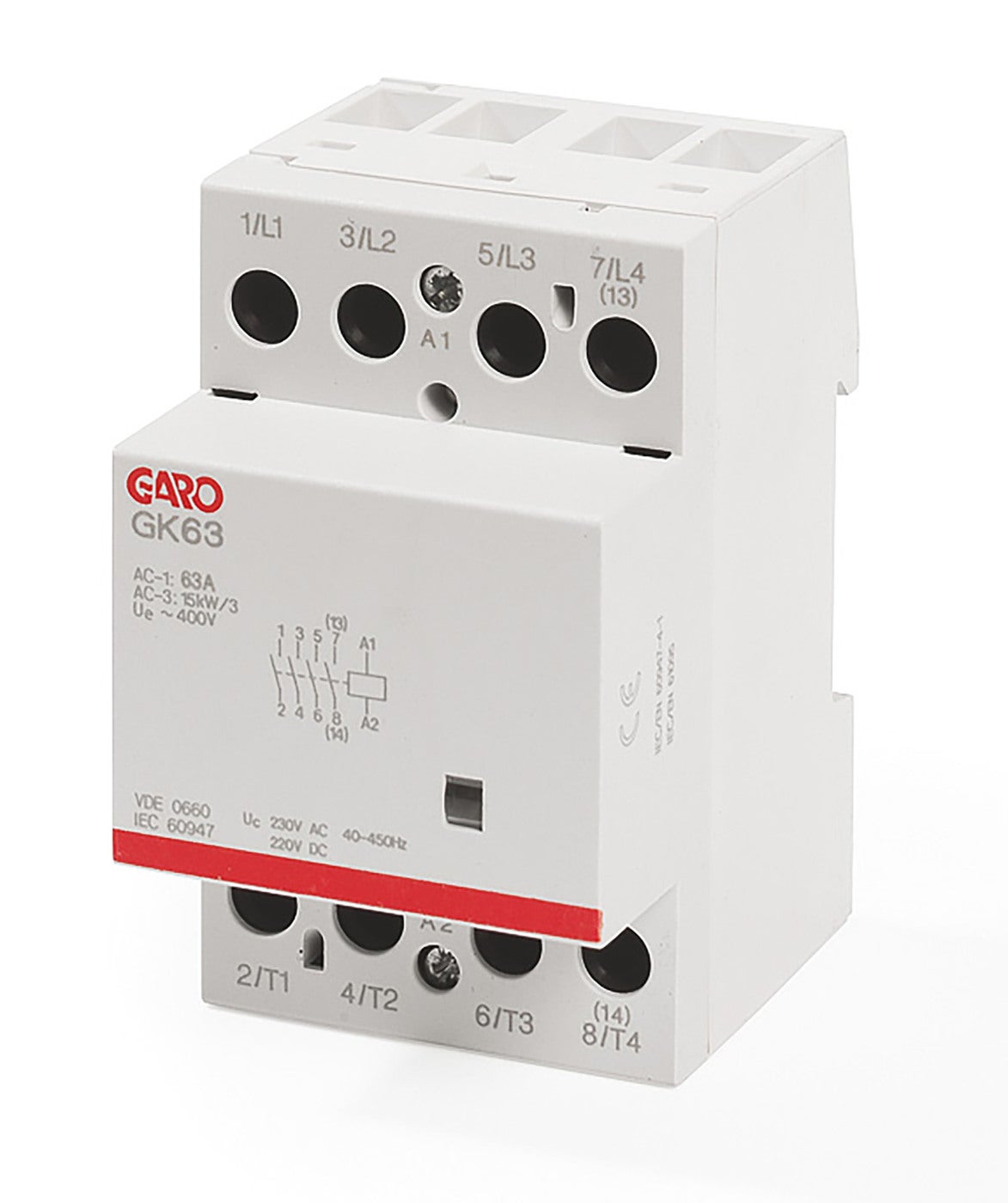

CONTACTOR 4P 63A 4NO 230V E3294594 3294594 GK63 4NO 230V ACDC 63A 3 3,5Nm 1-16mm² 1-25mm² 8W 230V ACDC 13,3kW 120kW 5kW 15kW 4NO 0.41 54 85 66
CONTACTOR 4P 40A 2NO 2NC 230V 3M E3290501 351968 GK40 2NO2NC 230V ACDC 40A 3 3,5Nm 1-16mm² 1-25mm² 4W 230V ACDC 8,7kW 26kW 2,7kW 11kW 2NO2NC 0.4 57 68 86

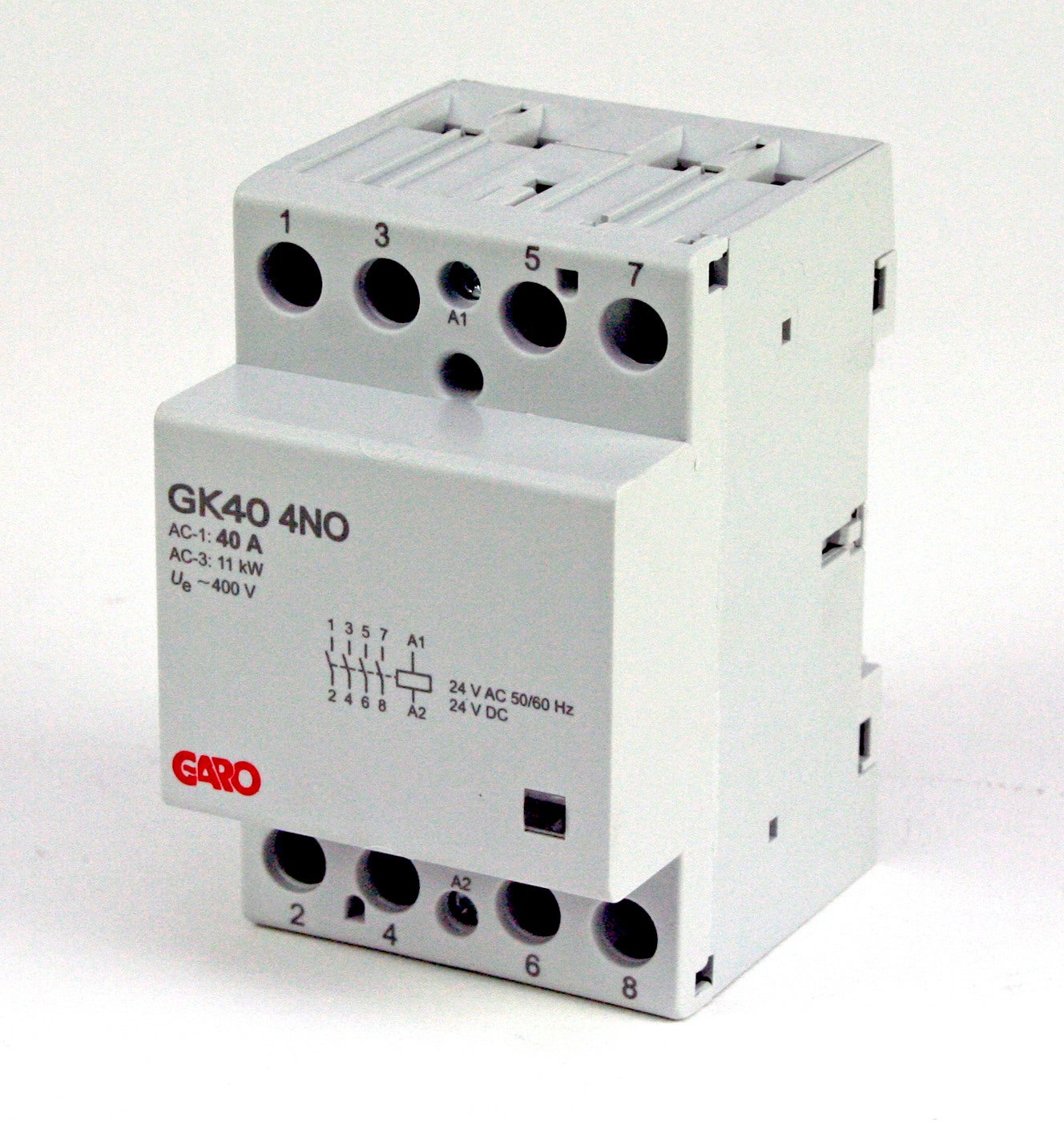

CONTACTOR 4P 40A 4NO 24V 3M E3290502 351969 GK40 4NO 24V ACDC 40A 3 3,5Nm 1-16mm² 8,7kW 26kW 3,7kW 11kW 4NO 0.4 57 68 87

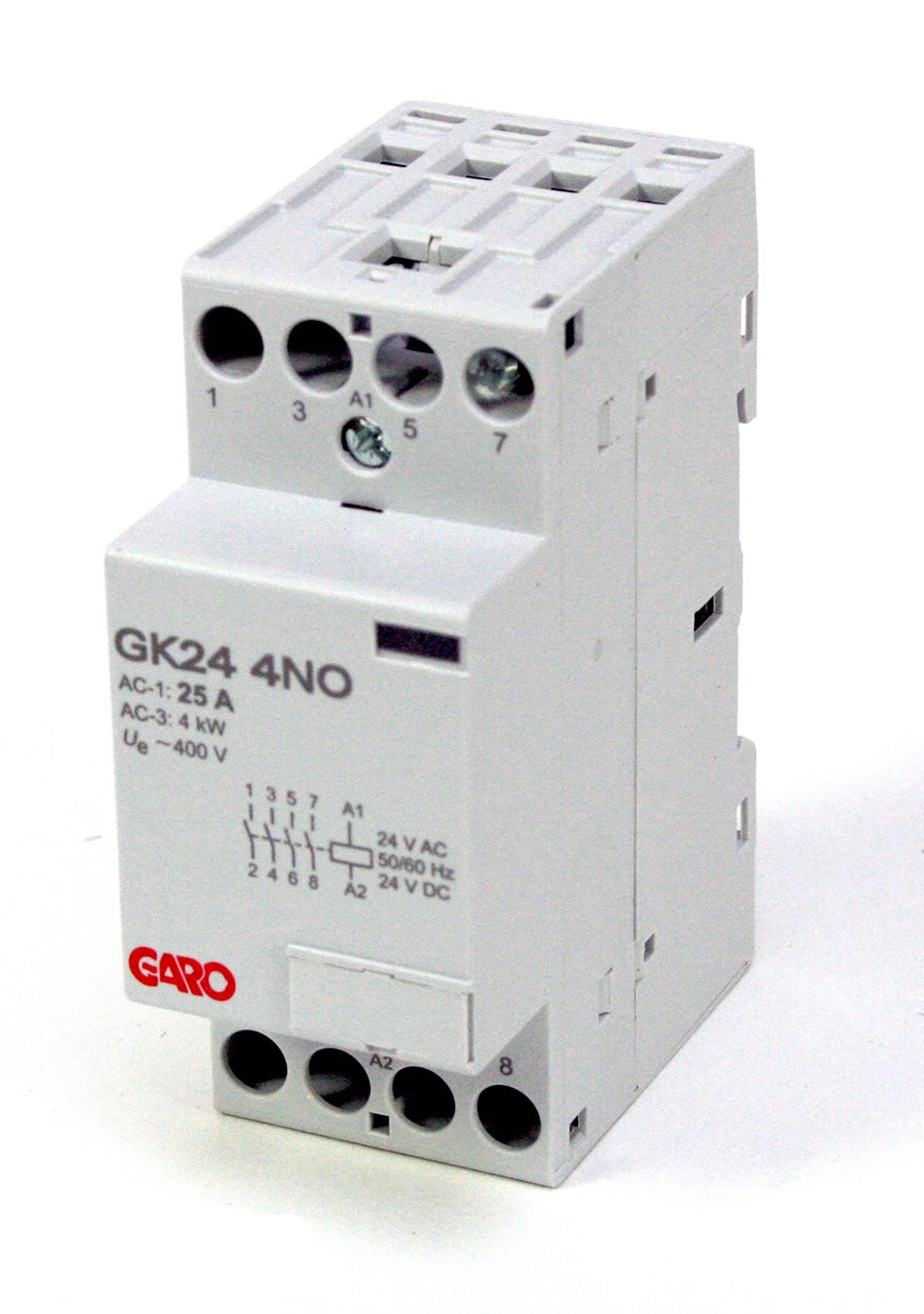

CONTAKTOR 4P 24A 4NO 24V 2M E3290797 352144 GK24 4NO 24V ACDC 24A 2 1,2Nm 1-6mm² 1-10mm² 2,2W 24V ACDC 5,4kW 16kW 1,3kW 4kW 4NO 0.27 37 67 87
