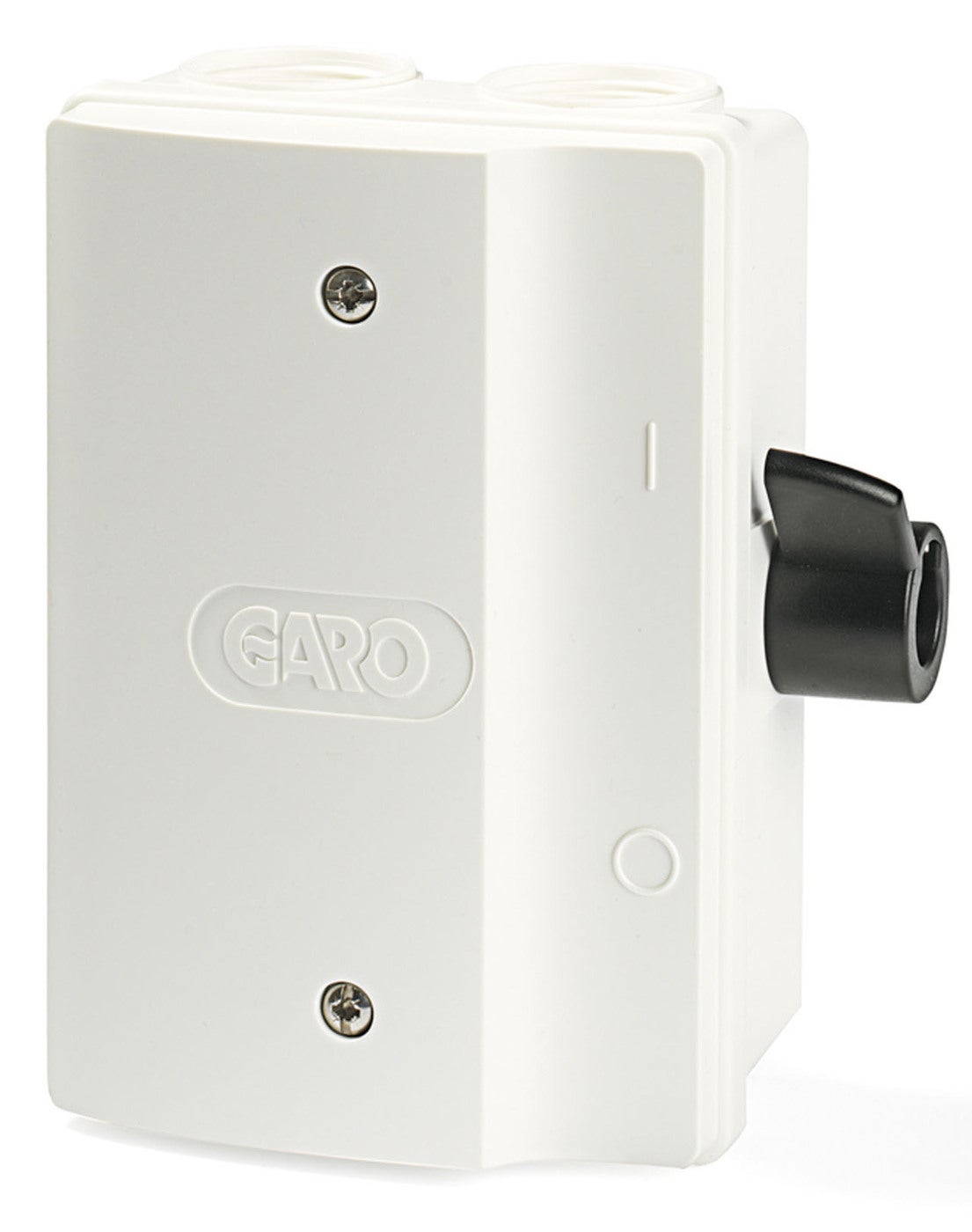

SWITCH SAFETY 3P 16A GREY BT

Safety switches 3-poles without auxiliary switch

Safety switches polycarbonate SBG-316 SAFETY SWITCH
Article number
315520048
Support
Power[kW] 7,5kW
Rated current AC23 400V [A] 16A
Degree of protection [IP] IP65
Name SWITCH SAFETY 3P 16A GREY BT
Article number 315520048
Type designation
Standard EN60947-3
Color Grey
Number of poles 3P
Mounting method Wall mounting
Isolation voltage [V] 690V
Connection N [mm²] 10mm² Cu
Connection PE [mm²] 12+11
Connection area 70
Auxiliary contact Yes

More variants of Safety switches 3-poles without auxiliary switch

E-number Article number Type designation Standard Color Number of poles Mounting method RAL-number Isolation voltage [V] Connection N [mm²] Connection PE [mm²] Connection area Auxiliary contact EngineerWidth EngineerHeight EngineerDepth
SWITCH SAFETY 3P 16A GREY BT 315520048 EN60947-3 Grey 3P Wall mounting 690V 10mm² Cu 12+11 70 Yes
SWITCH SAFETY 3P 16A GREY E3155201 3155201 SBG 316G Grey 3P Wall mounting RAL7035 690V AC 12+11 16 No 117 137 62
SWITCH SAFETY 3P 16A WHITE E3155221 3155221 SBG 316V EN60947-3 White 3P Wall mounting RAL9010 690V AC 12+11 16 No 117 137 62
SWITCH SAFETY 3P 16A RED E3135624 354185 SBGR 316 EN60947-3 Red 3P Wall mounting RAL3009 690V AC 12+11 16 No 117 137 62
SWITCH SAFETY 3P 16A BLACK E3135625 354186 SBGS 316 EN60947-3 Black Floor fastening RAL9005 16 No 117 137 62
