• SWITCH SAFETY 3P 16A RED AS - 1

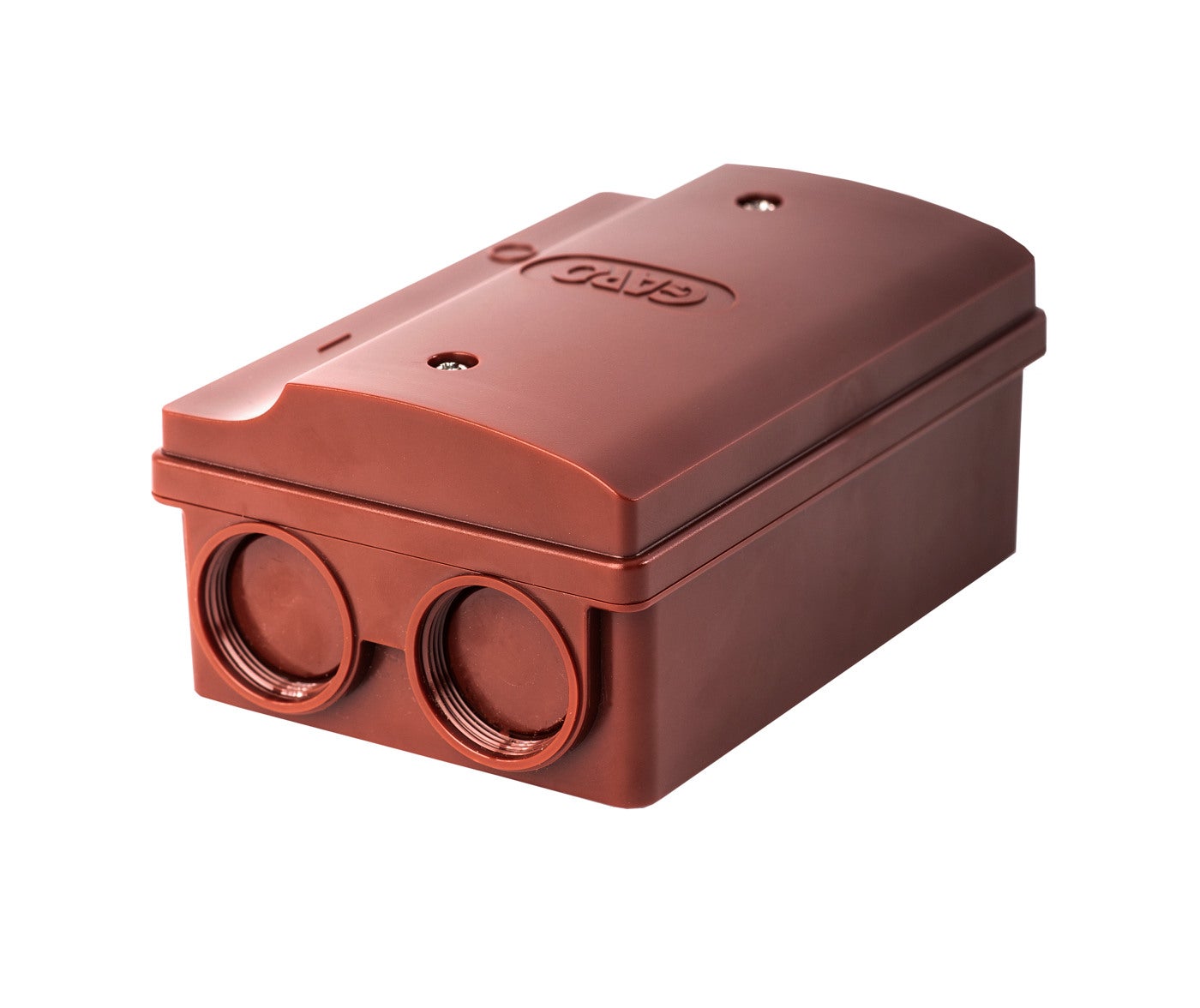

  • SWITCH SAFETY 3P 16A RED AS - 2

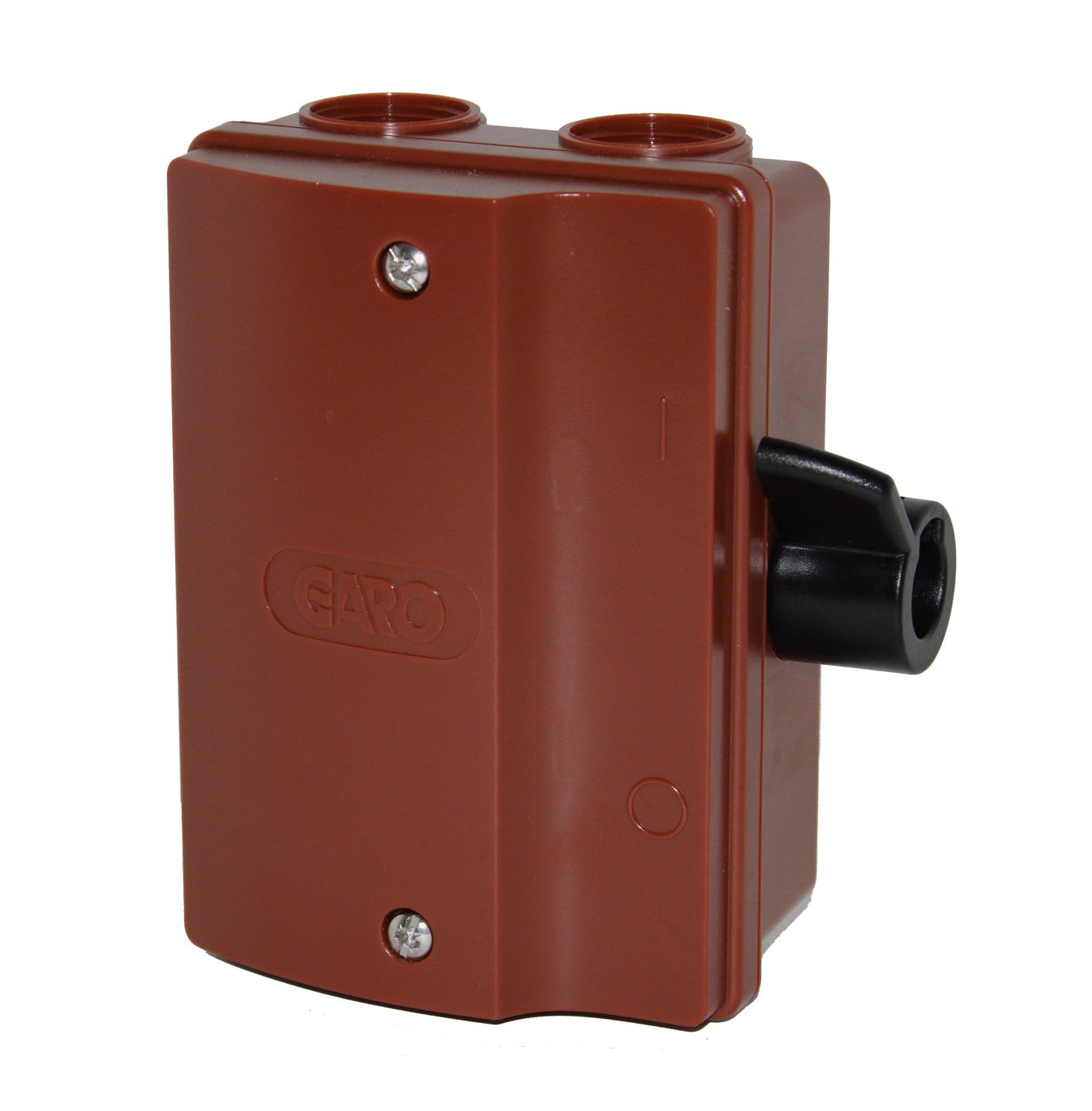

  • SWITCH SAFETY 3P 16A RED AS - 3

Safety switches 3-poles with auxiliary switch

Safety switches polycarbonate with auxiliary switch Safety switch red 3 poles 25A with auxilliary switch
E-number
E3135628
Article number
354189
Support
Name SWITCH SAFETY 3P 16A RED AS
E-number E3135628
Article number 354189
Type designation SBGR 325H
EngineerWidth 127
EngineerHeight 157
EngineerDepth 71

Manual

More variants of Safety switches 3-poles with auxiliary switch

E-number Article number Type designation Housing material Color Rated current [A] Number of poles Mounting method RAL-number Power [kW] Cable gland Isolation voltage [V] Rated current AC23 400V [A] With lighting Degree of protection [IP] Connection N [mm²] Connection PE [mm²] Auxiliary contact NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SAFETY SWITCH 3-POL 80A AUX E3135756 110125 SBGH380H 3.1 280 380 171
SAFETY SWITCH 3-POL 125 A AUX E3135757 110126 SBG3125H 5.3 280 560 171
SWITCH SAFETY 3P 16A GREY AS E3155204 3155204 SBG 316GH Floor fastening 117 137 62
SWITCH SAFETY 3P 25A GREY E3155206 3155206 SBG 325GH 127 157 71
SWITCH SAFETY 3P 32A GREY AS E3155215 3155215 SBG 332H 144 190 131
SWITCH SAFETY 3P 40A GREY AS E3155217 3155217 SBG 340H Plastic Grey 40A 3P Wall mounting RAL7035 22kW 2xM32+M16 690V 40A No IP66 35mm² 12+11 Yes 144 190 131
SWITCH SAFETY 3P 63A GREY AS E3155219 3155219 SBG 363H 144 190 131
SWITCH SAFETY 3P 16A WHITE AS E3155223 3155223 SBG 316VH 117 137 62
SWITCH SAFETY 3P 25A WHITE AS E3155225 3155225 SBG 325VH 127 157 71
SWITCH SAFETY 3P 16A RED AS E3135628 354189 SBGR 325H 127 157 71
SWITCH SAFETY 3P 16A BLACK AS E3135629 354190 SBGS 325H 127 157 71
