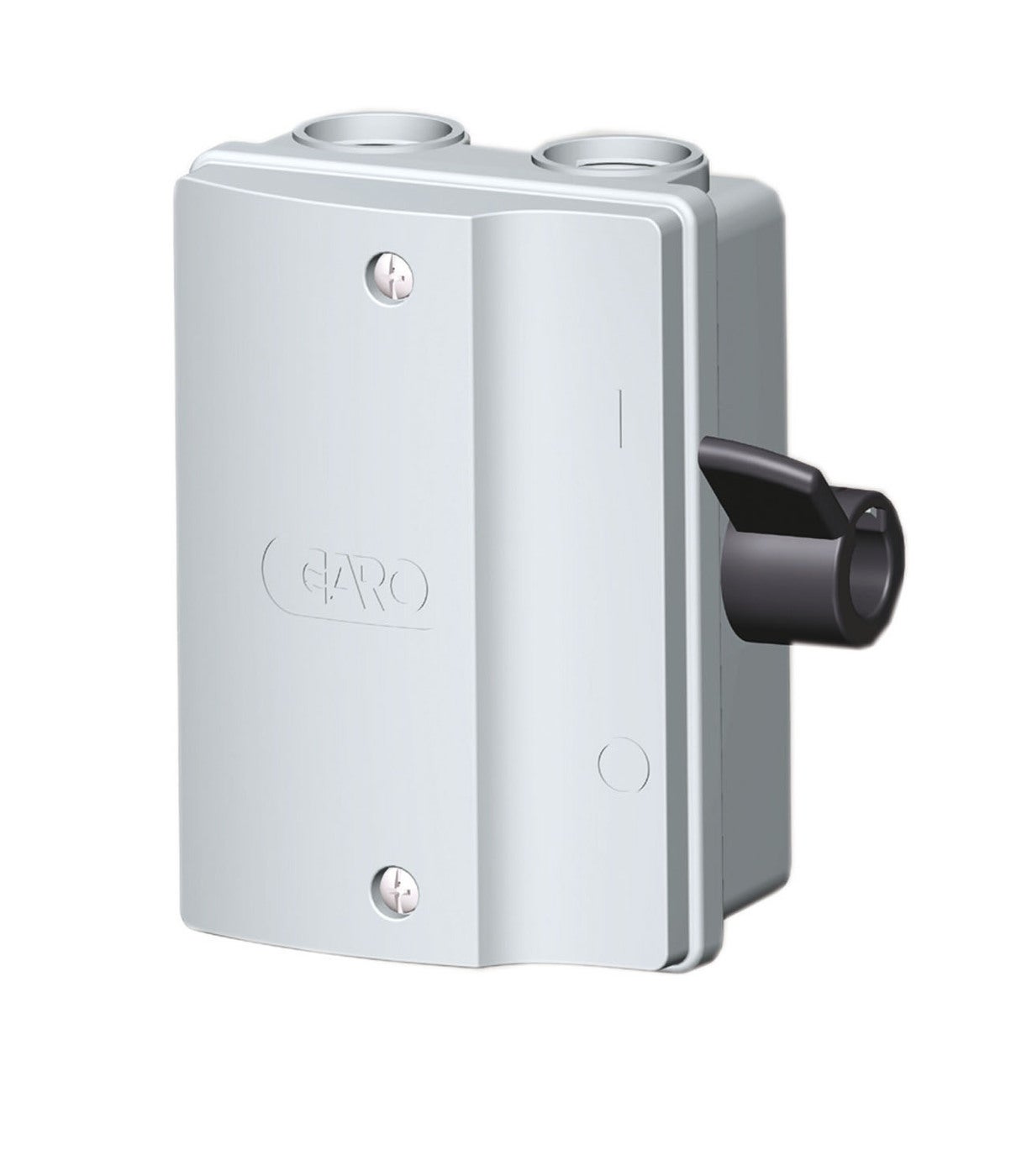

SWITCH SAFETY 3P 16A GREY AS

Safety switches 3-poles with auxiliary switch

Safety switches polycarbonate with auxiliary switch Safety switch grey 3 poles 16A with auxilliary
E-number
E3155204
Article number
3155204
Support
Name SWITCH SAFETY 3P 16A GREY AS
E-number E3155204
Article number 3155204
Type designation SBG 316GH
Standard EN60947-3
Color Grey
Number of poles 3P
Mounting method Wall mounting
RAL-number RAL7035
Power[kW] 7,5kW
Isolation voltage [V] 690V AC
Rated current AC23 400V [A] 16A
Degree of protection [IP] IP65
Connection PE [mm²] 12+11
Connection area 16
Auxiliary contact Yes
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62

More variants of Safety switches 3-poles with auxiliary switch

E-number Article number Type designation Standard Color Rated current [A] Number of poles Mounting method RAL-number Power[kW] Power [kW] Cable gland Isolation voltage [V] Rated current AC23 400V [A] With lighting Degree of protection [IP] Connection N [mm²] Connection PE [mm²] Connection area Auxiliary contact NetProductWeight EngineerWidth EngineerHeight EngineerDepth

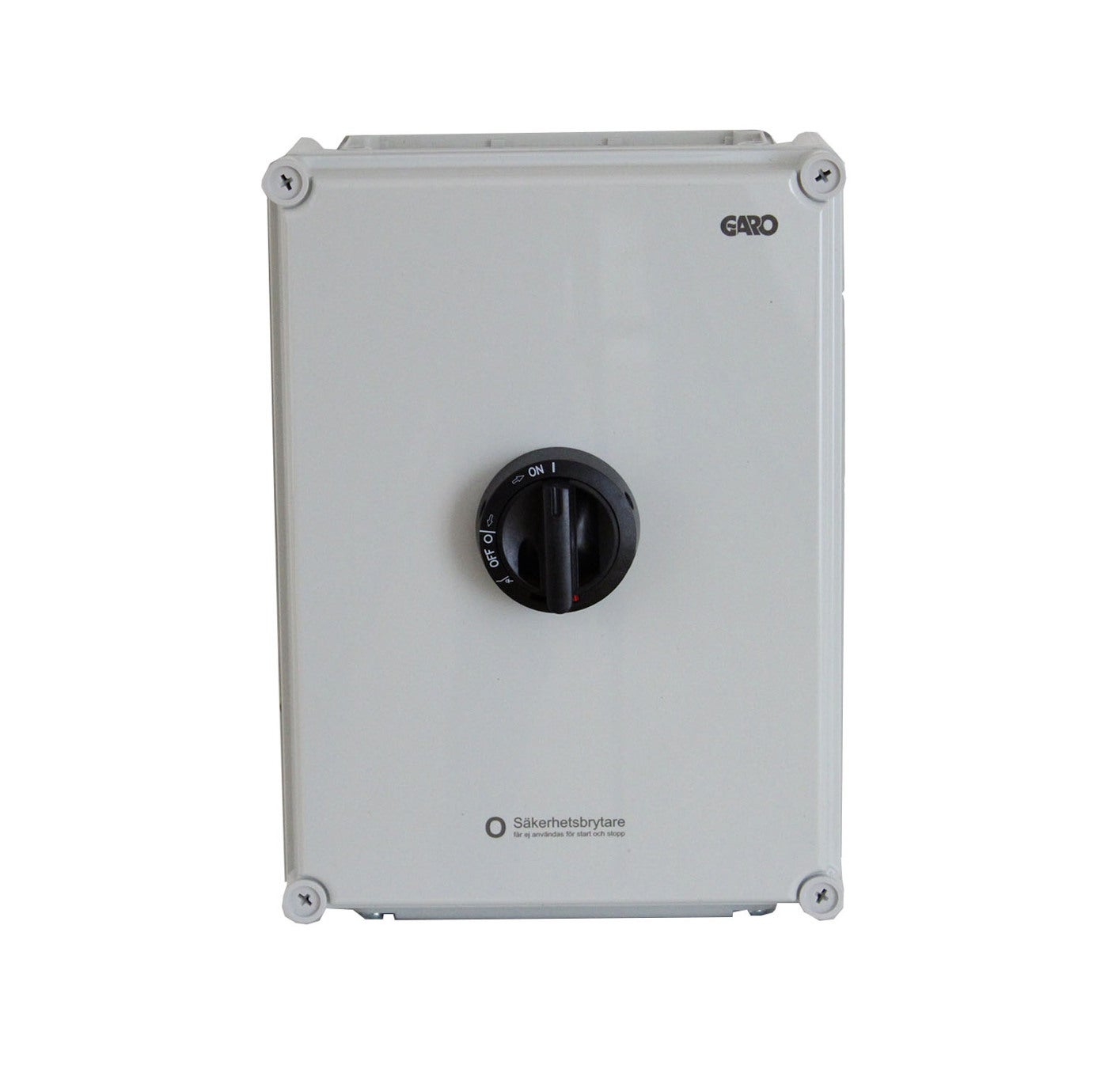

SAFETY SWITCH 3-POL 80A AUX E3135756 110125 SBGH380H 3.1 280 380 171

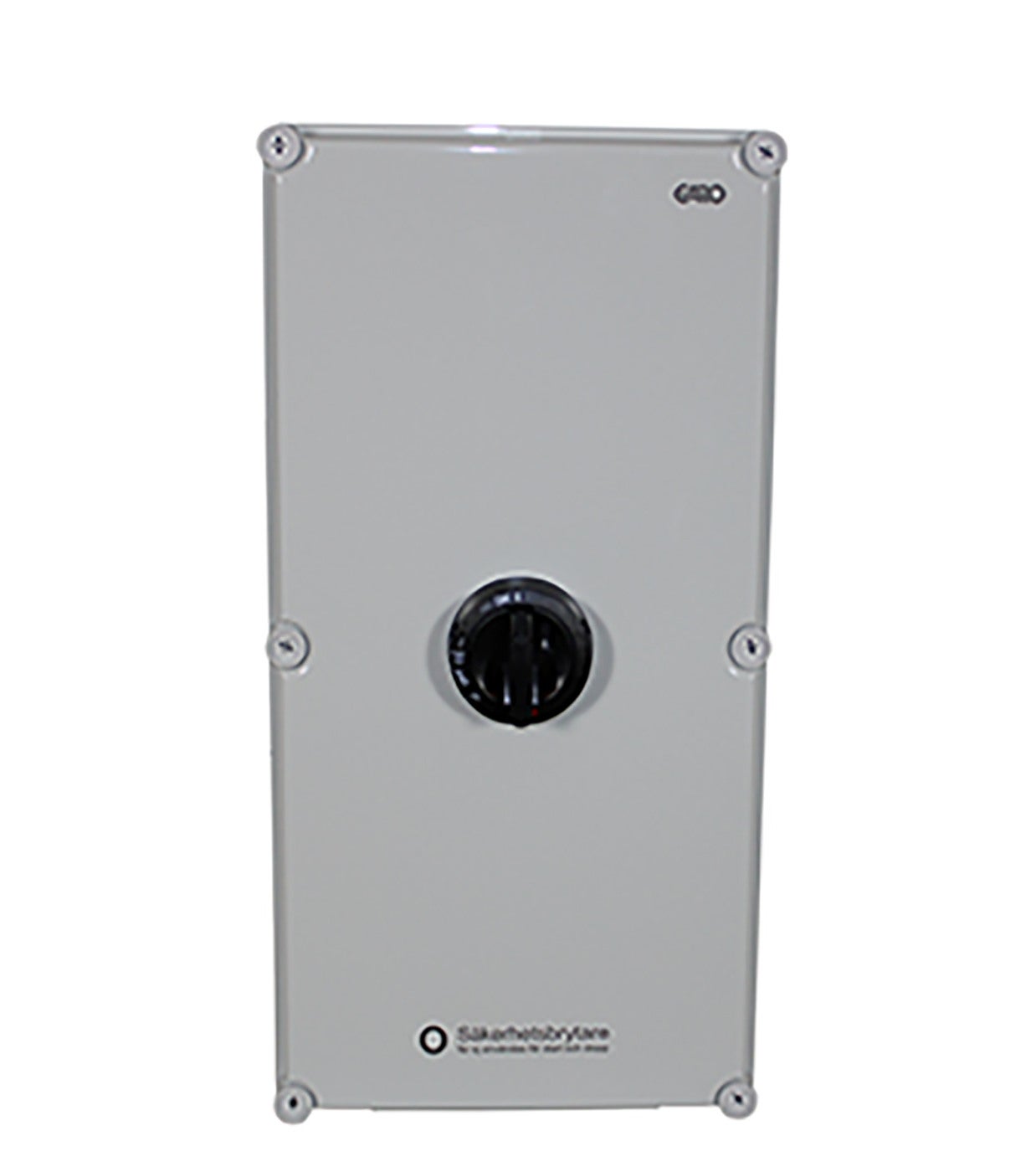

SAFETY SWITCH 3-POL 125 A AUX E3135757 110126 SBG3125H 5.3 280 560 171
SWITCH SAFETY 3P 16A GREY AS E3155204 3155204 SBG 316GH EN60947-3 Grey 3P Wall mounting RAL7035 7,5kW 690V AC 16A IP65 12+11 16 Yes 117 137 62

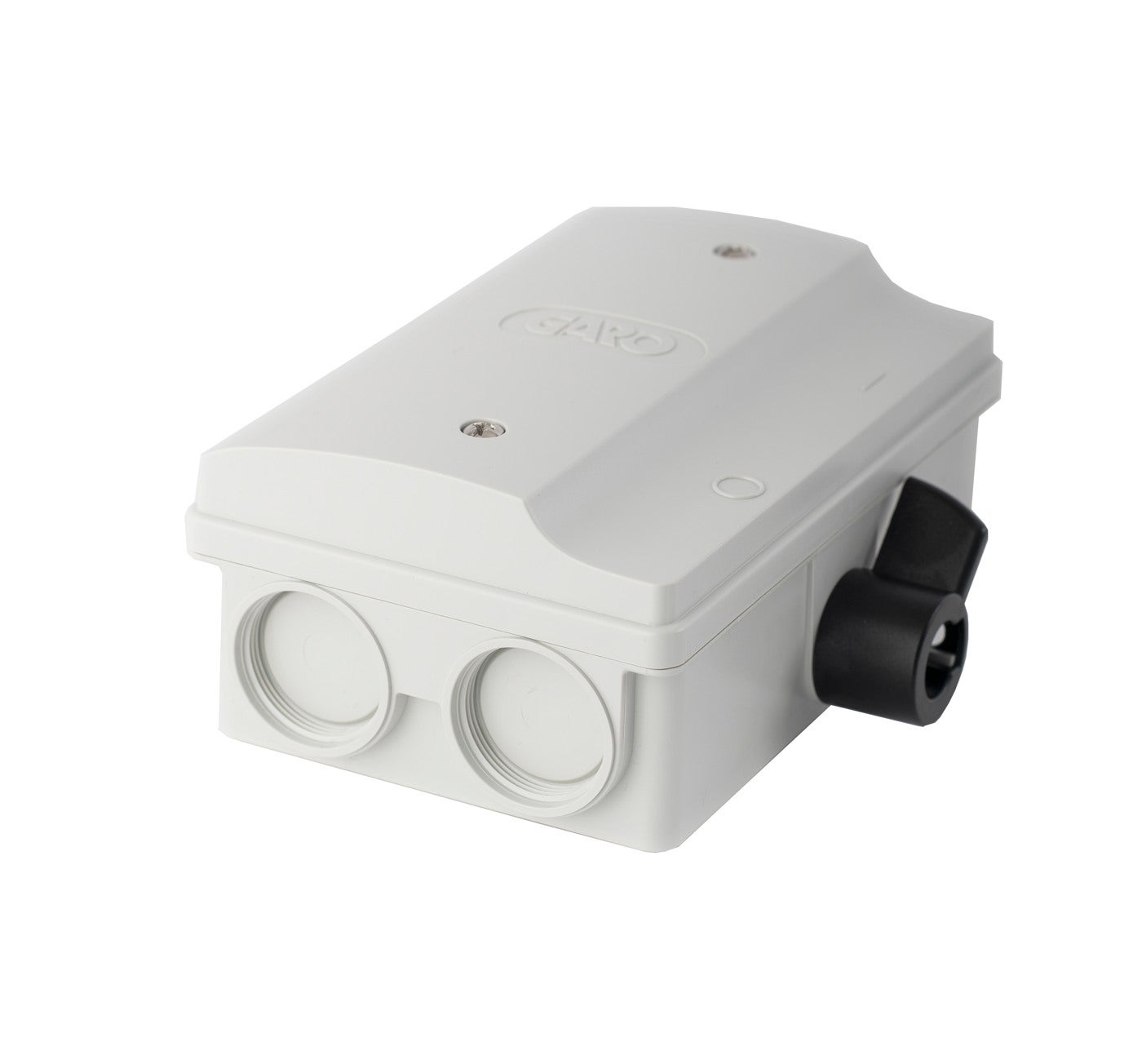

SWITCH SAFETY 3P 25A GREY E3155206 3155206 SBG 325GH EN60947-3 Grey 3P Wall mounting RAL7035 11kW 690V AC 25A IP65 12+11 16 Yes 127 157 71

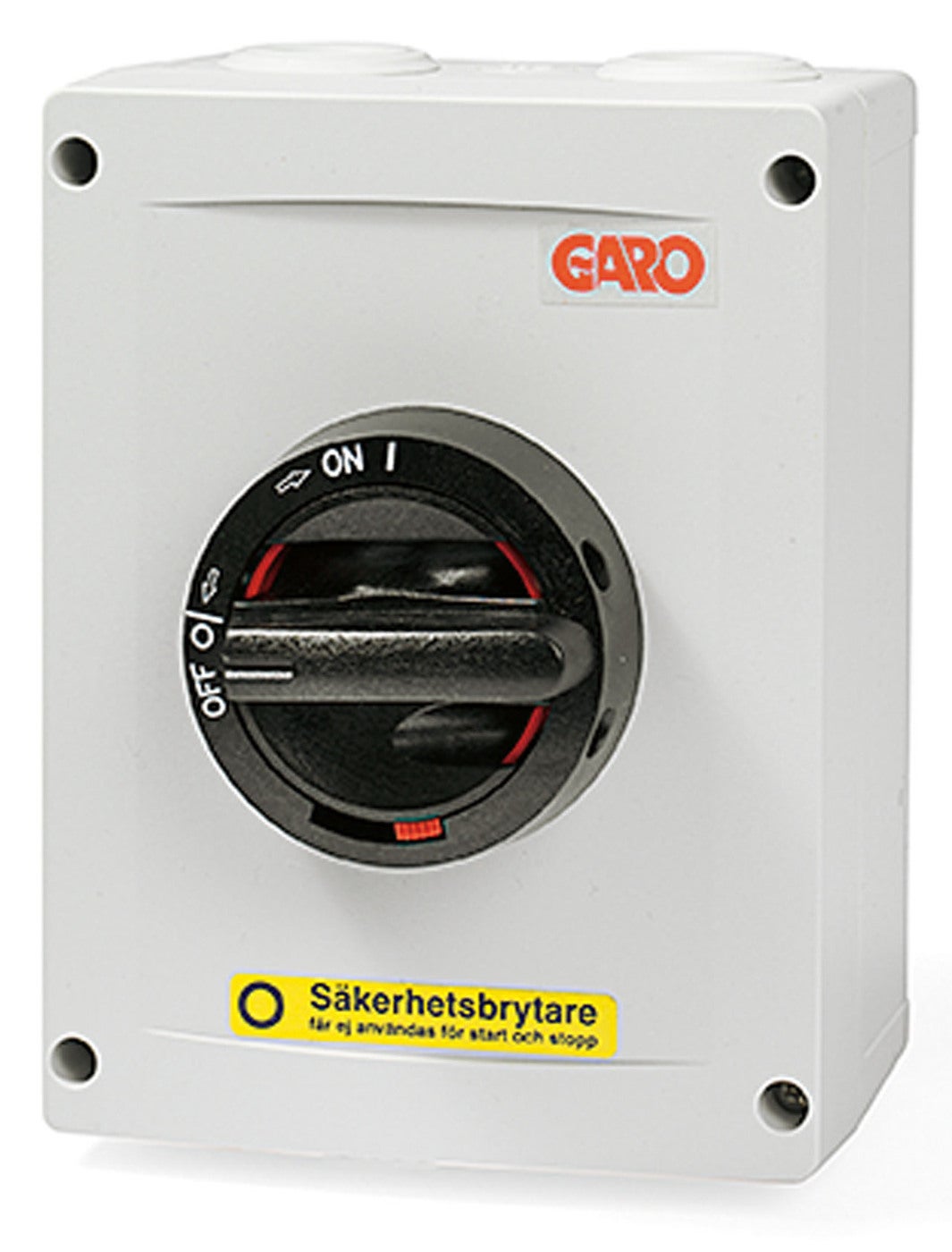

SWITCH SAFETY 3P 32A GREY AS E3155215 3155215 SBG 332H EN60947-3 Grey 3P Wall mounting RAL7035 15kW 2xM32+M16 690V 32A IP66 16mm² 12+11 35 Yes 144 190 131

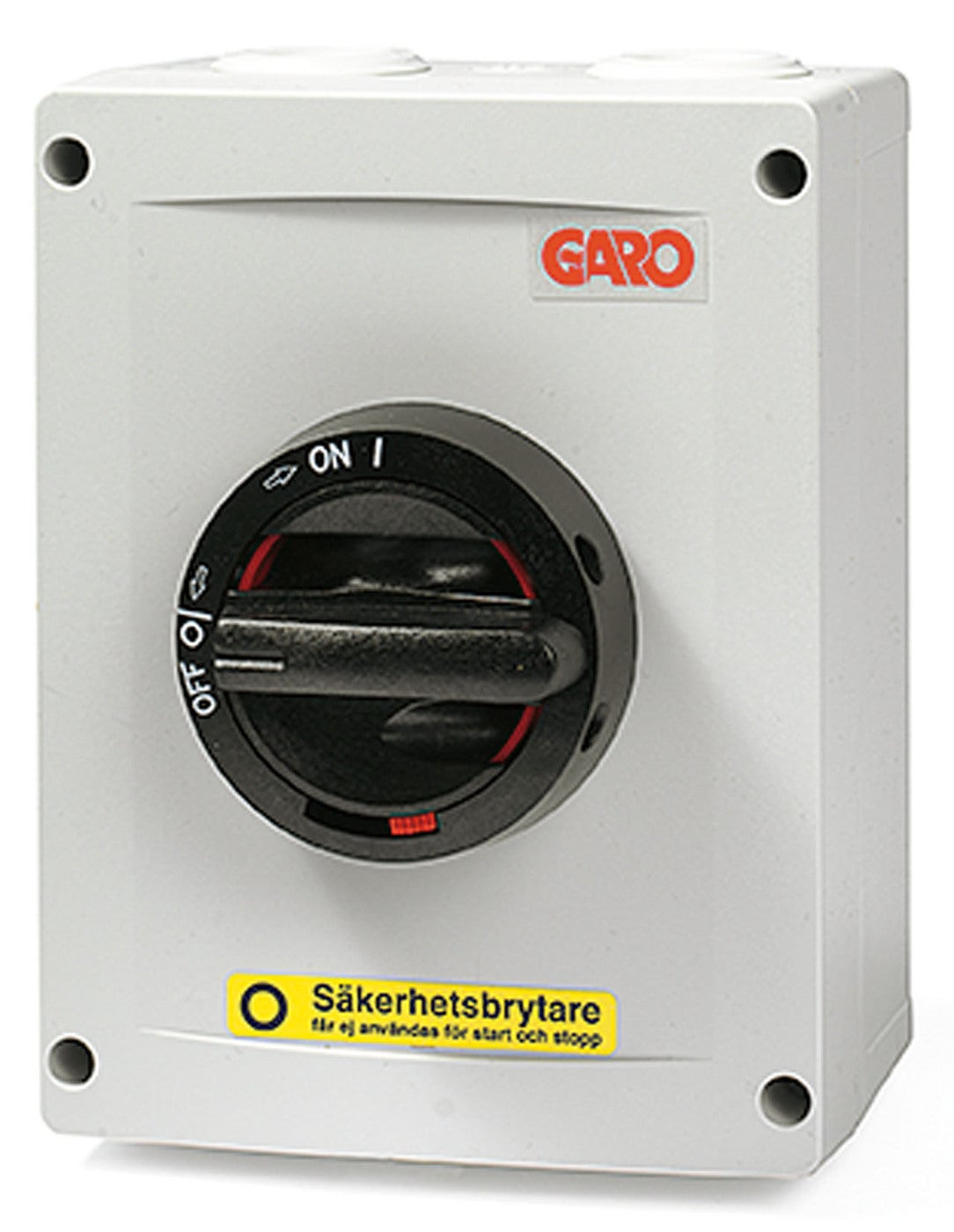

SWITCH SAFETY 3P 40A GREY AS E3155217 3155217 SBG 340H EN60947-3 Grey 40A 3P Wall mounting RAL7035 22kW 2xM32+M16 690V 40A No IP66 35mm² 12+11 35 Yes 144 190 131

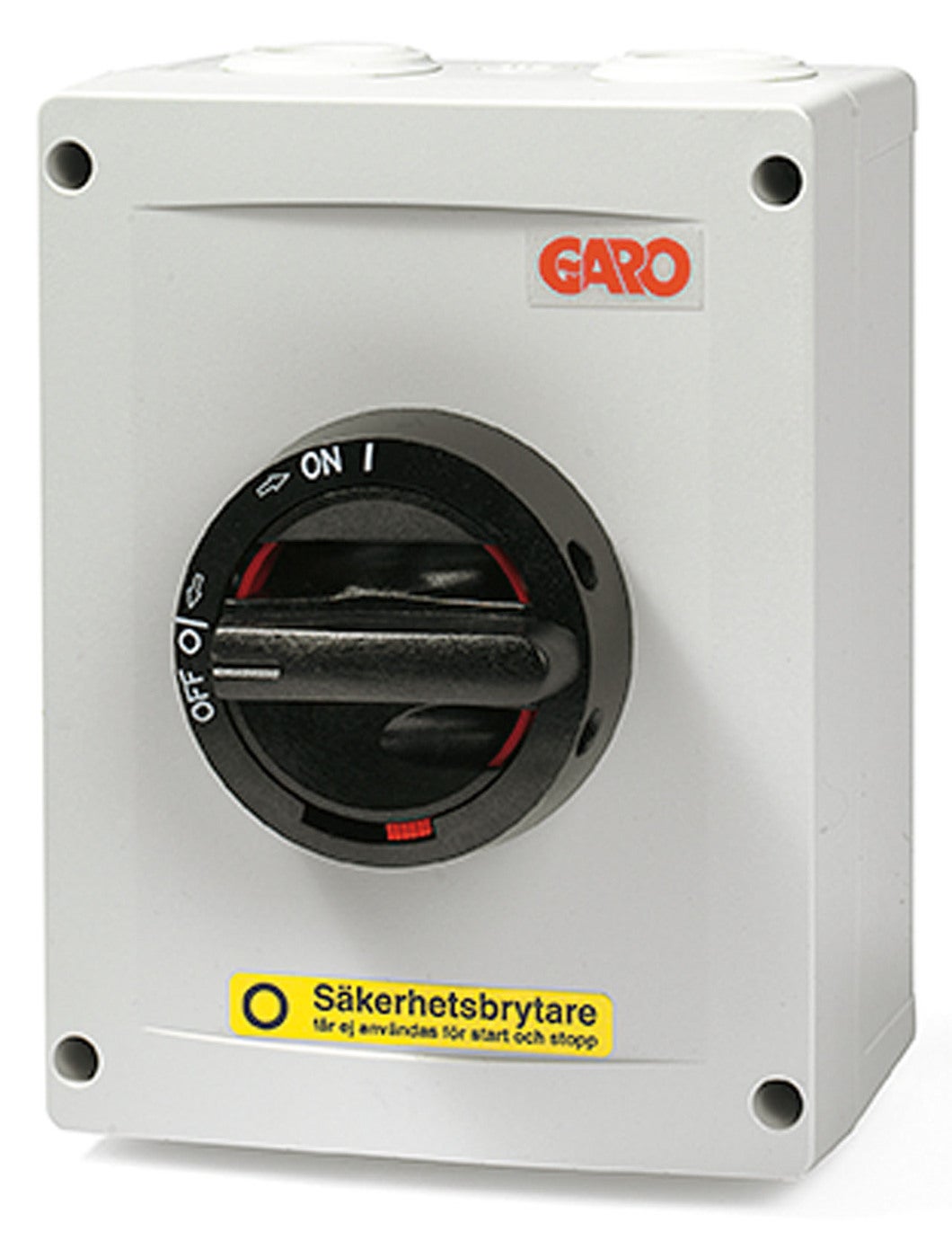

SWITCH SAFETY 3P 63A GREY AS E3155219 3155219 SBG 363H EN60947-3 Grey 3P Wall mounting RAL7035 22kW 690V 40A IP66 35mm² 12+11 35 144 190 131

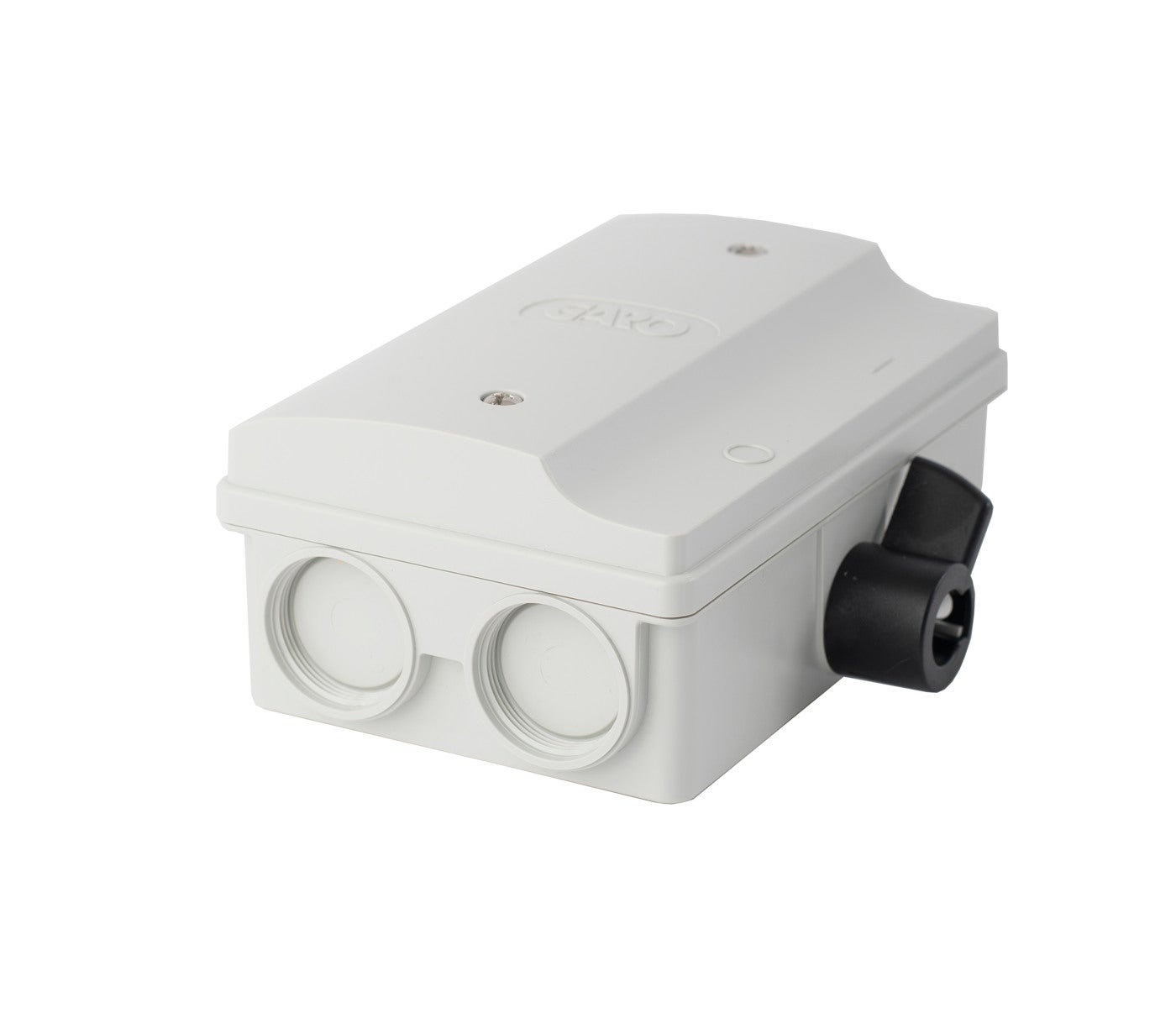

SWITCH SAFETY 3P 16A WHITE AS E3155223 3155223 SBG 316VH EN60947-3 White 3P Wall mounting RAL9010 7,5kW 690V AC 16A IP65 12+11 16 Yes 117 137 62

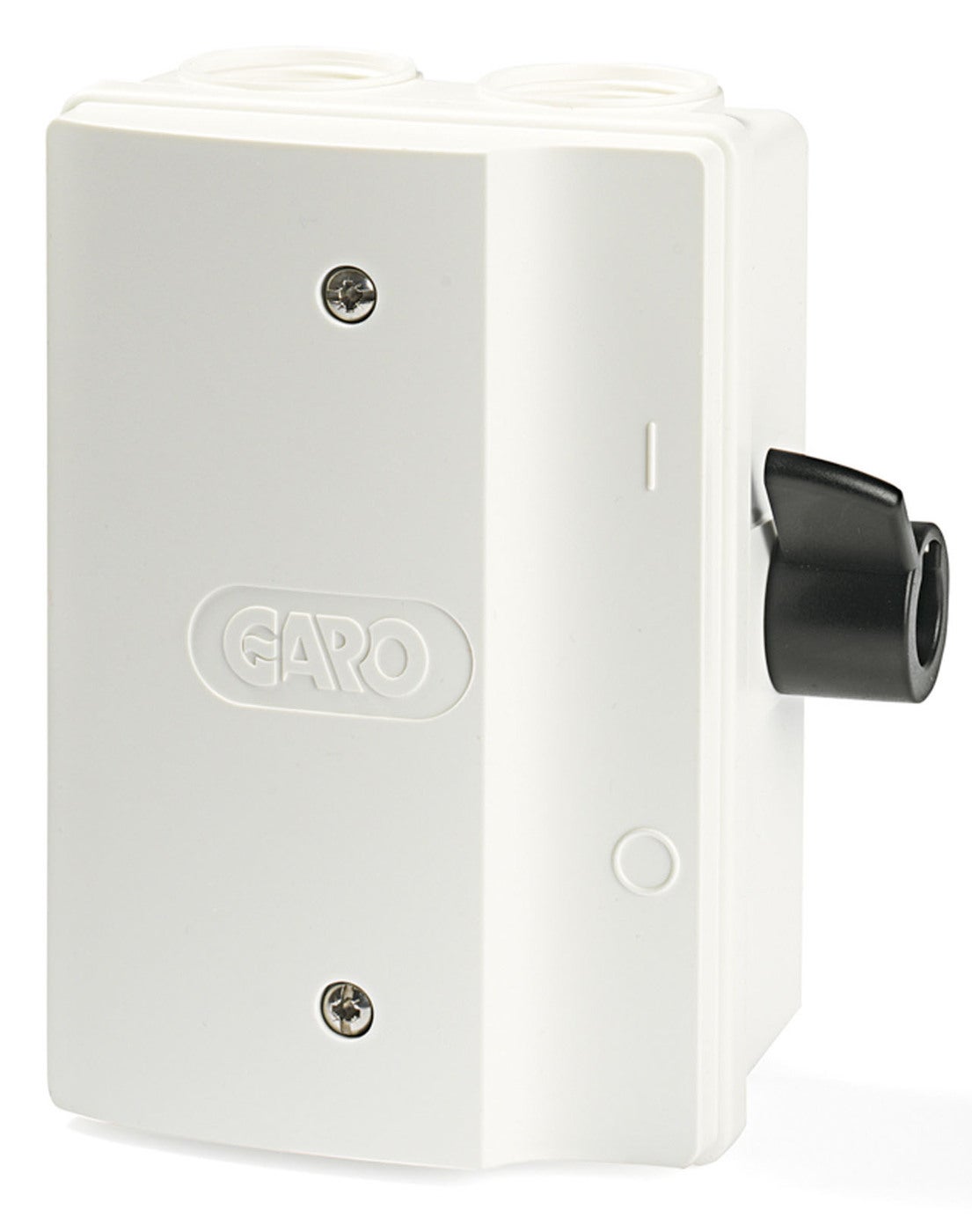

SWITCH SAFETY 3P 25A WHITE AS E3155225 3155225 SBG 325VH EN60947-3 White 3P Wall mounting RAL9010 11kW 690V AC 25A IP65 12+11 16 Yes 127 157 71

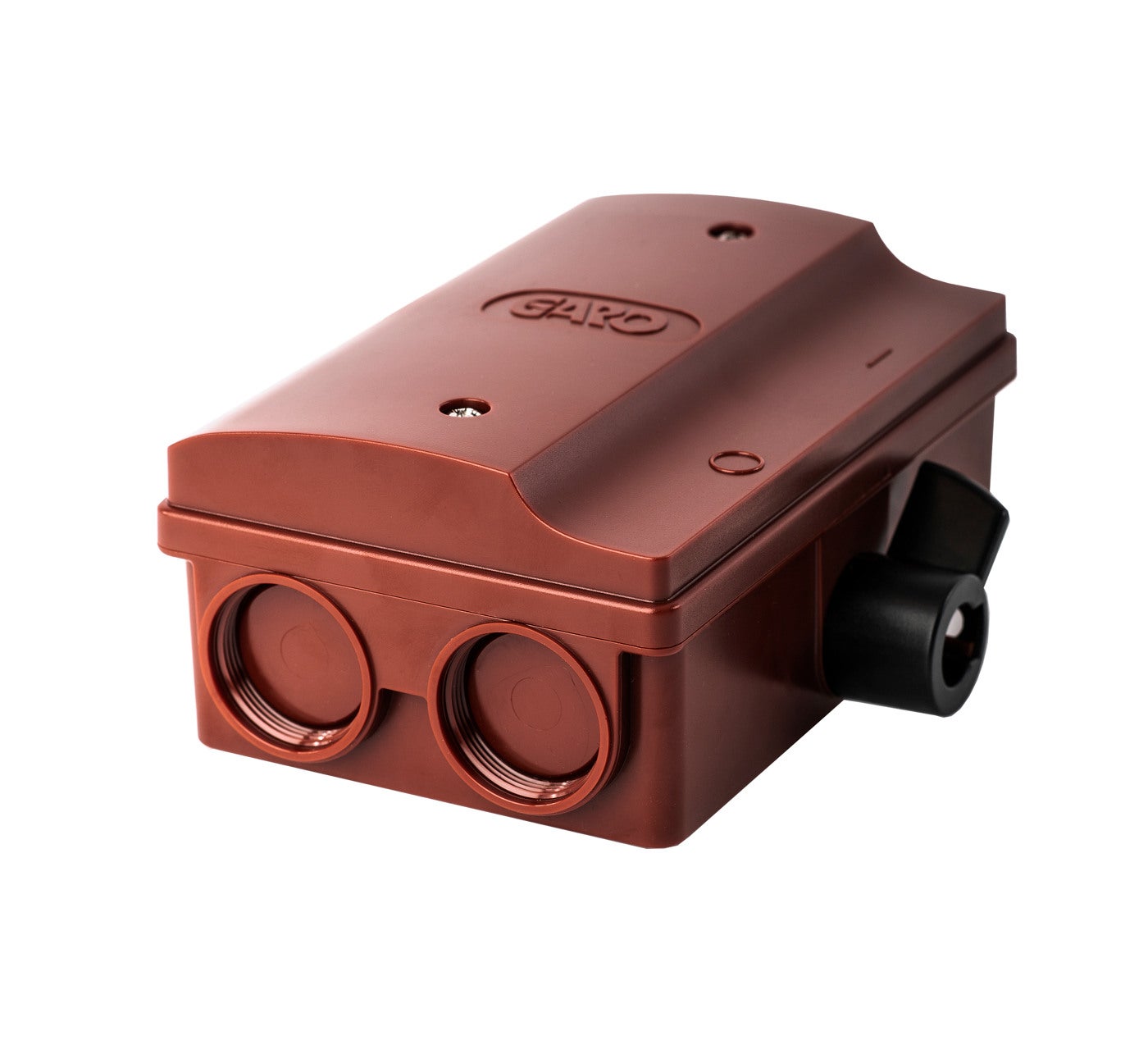

SWITCH SAFETY 3P 16A RED AS E3135628 354189 SBGR 325H EN60947-3 Red 3P Wall mounting RAL3009 11kW 690V AC 25A IP65 12+11 16 Yes 127 157 71

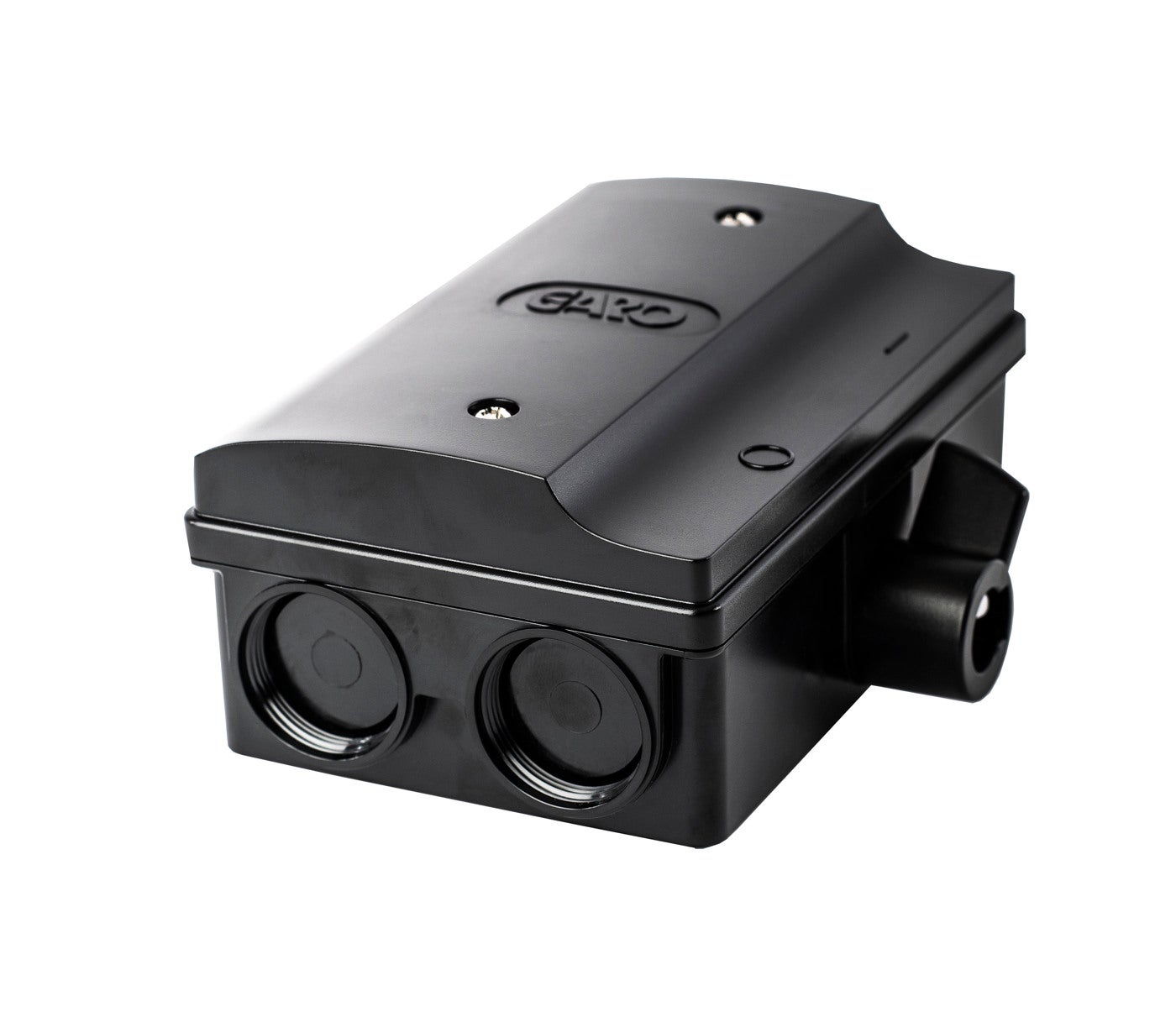

SWITCH SAFETY 3P 16A BLACK AS E3135629 354190 SBGS 325H EN60947-3 Red 3P Floor fastening RAL3009 11kW 690V AC 25A IP65 12+11 16 Yes 127 157 71
