Safety switches 3-poles with auxiliary switch

Safety switches polycarbonate with auxiliary switch Safety switch grey 3-poles 125A with auxilliary
E-number
E3135757
Article number
110126
Support
Standard EN60947-3
Isolation voltage [V] 690V

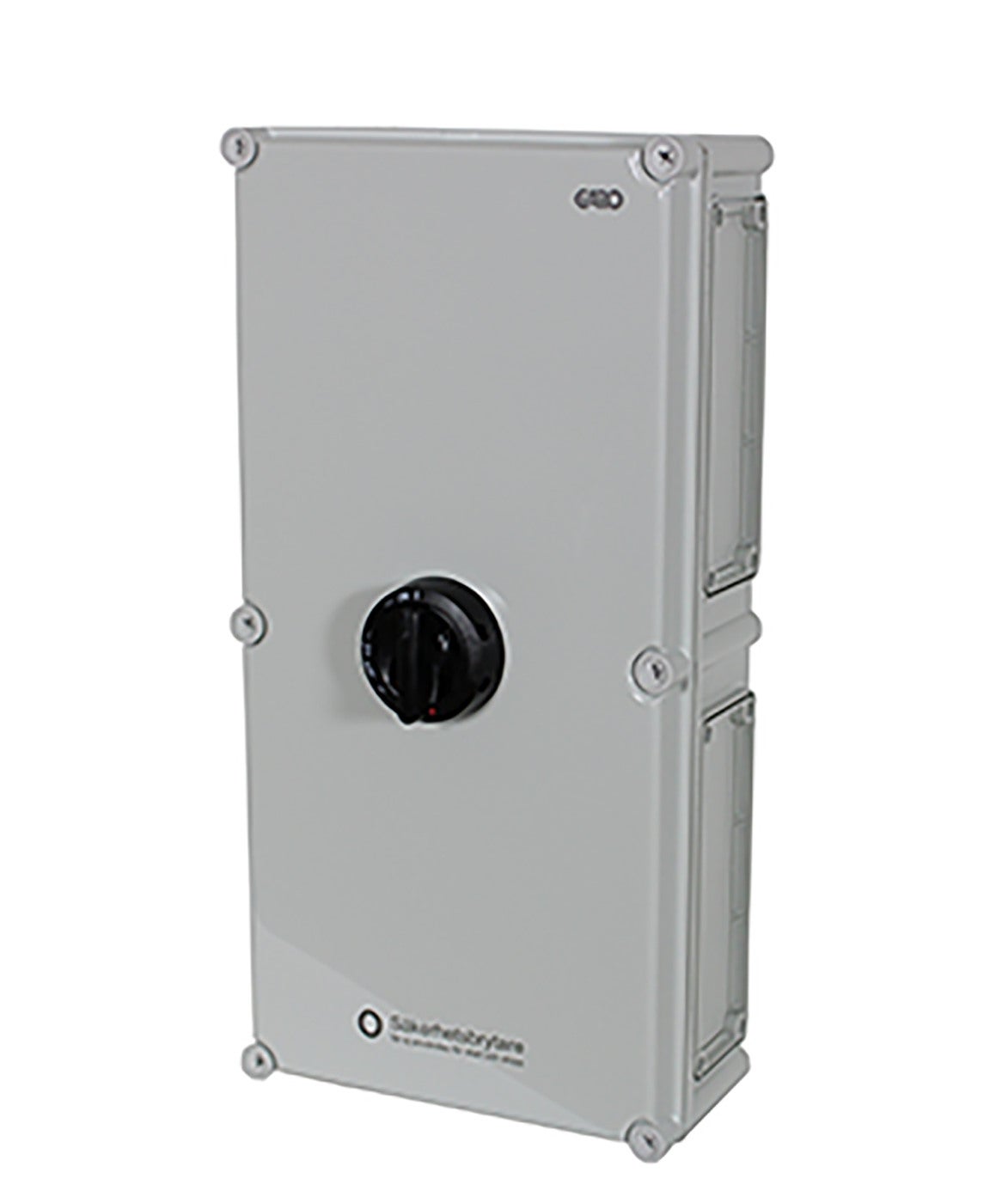

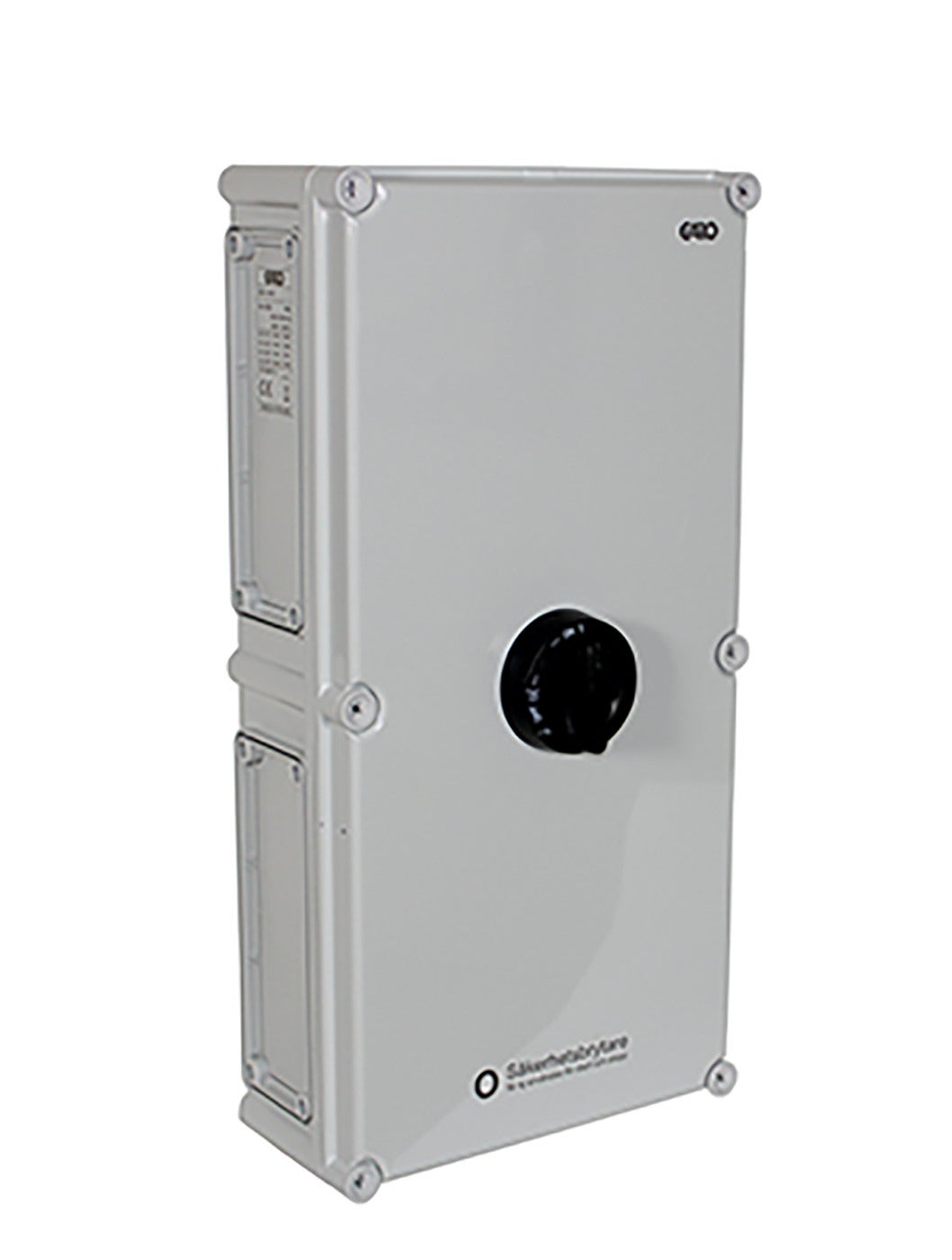

Name SAFETY SWITCH 3-POL 125 A AUX
E-number E3135757
Article number 110126
Housing material Polycarbonate
Color Grey
Number of poles 3
Mounting method Wall mounting
RAL-number RAL7035
Connection PE [pcs] 12+11
Power[kW] 55kW

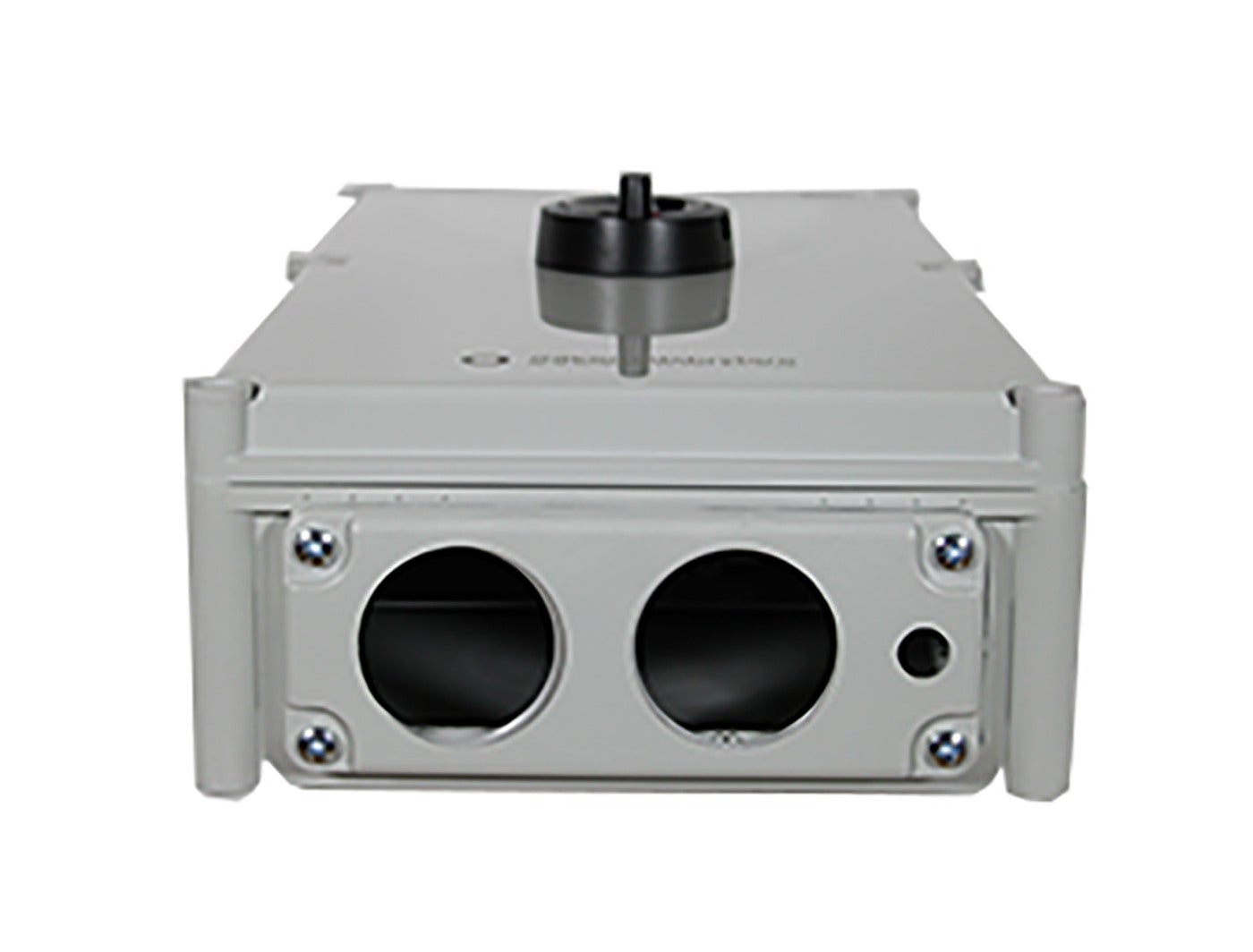

Cable gland 1XEPA2260+M20
Rated current AC23 400V [A] 125A
Degree of protection [IP] IP65
Connection N [mm²] 70mm²
Connection area 70
NetProductWeight 5.3
EngineerWidth 280
EngineerHeight 560
EngineerDepth 171

More variants of Safety switches 3-poles with auxiliary switch

E-number Article number Type designation Housing material Color Rated current [A] Number of poles Mounting method RAL-number Connection PE [pcs] Power[kW] Power [kW] Cable gland Connection Cu/Al Rated current AC23 400V [A] With lighting Degree of protection [IP] Connection N [mm²] Connection PE [mm²] Connection area Auxiliary contact NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SAFETY SWITCH 3-POL 80A AUX E3135756 110125 SBGH380H Polycarbonate Grey 3 Wall mounting RAL7035 45kW 2xM40+M16 80A IP66 70mm² Max 70mm² Yes 3.1 280 380 171
SAFETY SWITCH 3-POL 125 A AUX E3135757 110126 Polycarbonate Grey 3 Wall mounting RAL7035 12+11 55kW 1XEPA2260+M20 125A IP65 70mm² 70 5.3 280 560 171
SWITCH SAFETY 3P 16A GREY AS E3155204 3155204 SBG 316GH Grey 3P Wall mounting RAL7035 7,5kW 16A IP65 12+11 16 Yes 117 137 62
SWITCH SAFETY 3P 25A GREY E3155206 3155206 SBG 325GH Grey 3P Wall mounting RAL7035 11kW 25A IP65 12+11 16 Yes 127 157 71
SWITCH SAFETY 3P 32A GREY AS E3155215 3155215 SBG 332H Polycarbonate Grey 3P Wall mounting RAL7035 15kW 2xM32+M16 240mm² 32A IP66 16mm² 16mm² 35 Yes 144 190 131
SWITCH SAFETY 3P 40A GREY AS E3155217 3155217 SBG 340H Polycarbonate Grey 40A 3P Wall mounting RAL7035 22kW 2xM32+M16 40A No IP66 35mm² 12+11 35 Yes 144 190 131
SWITCH SAFETY 3P 63A GREY AS E3155219 3155219 SBG 363H Polycarbonate Grey 3P Wall mounting RAL7035 30kW 40A IP66 35mm² 12+11 35 144 190 131
SWITCH SAFETY 3P 16A WHITE AS E3155223 3155223 SBG 316VH Polycarbonate White 3P Wall mounting RAL9010 12+11 7,5kW 16A IP65 16 Yes 117 137 62
SWITCH SAFETY 3P 25A WHITE AS E3155225 3155225 SBG 325VH Polycarbonate White 3P Wall mounting RAL9010 12+11 11kW 1,5-16mm² 25A IP65 16 Yes 127 157 71
SWITCH SAFETY 3P 16A RED AS E3135628 354189 SBGR 325H Red 3P Wall mounting RAL3009 11kW 25A IP65 12+11 16 Yes 127 157 71
SWITCH SAFETY 3P 16A BLACK AS E3135629 354190 SBGS 325H Red 3P Floor fastening RAL3009 11kW 25A IP65 12+11 16 Yes 127 157 71
