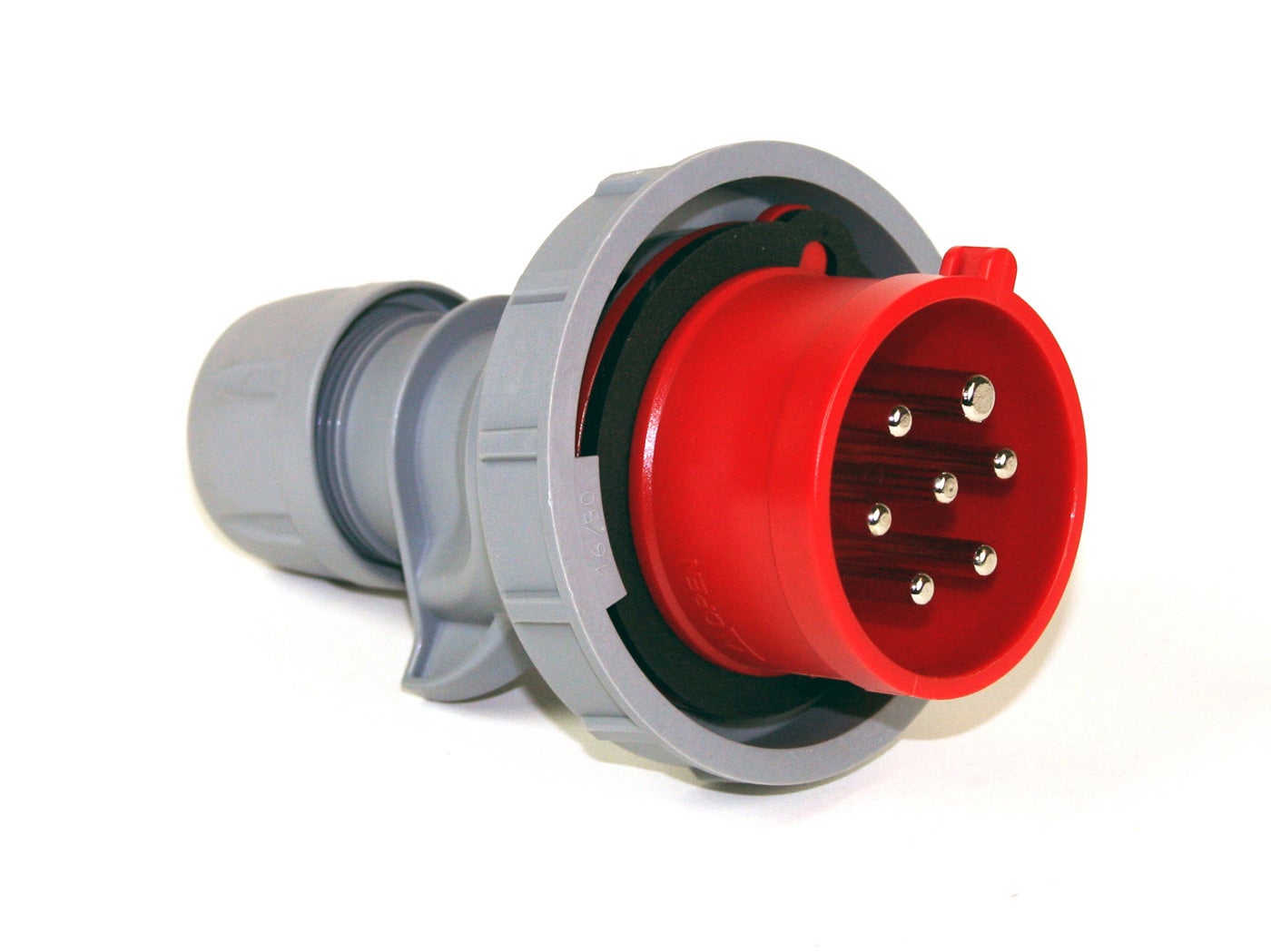

  • PLUG 7P 32A 6h WT - 2

Plugs 32A IP67 Basic

Plug Basic in waterproof design, our standard range with a screw function. Plug basic 7-poles 32A 6h watertight
E-number
E2425911
Article number
107751
Support
Materials Plastic
Standard EN60309-2
Connection type Screwed terminal
Wire flexible [mm²] 2,5-6mm²
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Name PLUG 7P 32A 6h WT
E-number E2425911
Article number 107751
Type designation PV 732-6S
Frequency [Hz] 50/60Hz
Color Red
Number of poles 3
RAL-number RAL3020
Clock hour position [h] 6h
Degree of protection [IP] IP44
NetProductWeight 0.33
EngineerWidth 100
EngineerHeight 155
EngineerDepth 100

More variants of Plugs 32A IP67 Basic

E-number Article number Type designation Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Modelltype RAL-number Clock hour position [h] Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
PLUG 7P 32A 6h WT E2425911 107751 PV 732-6S 50/60Hz Red 3 RAL3020 6h IP44 0.33 100 155 100
PLUG 3P 32A 6h WT E2424583 2424583 PV 232-6 S 50/60Hz Blue 32A 200-250V AC 3/2P+E RAL5017 6h IP67 0.22 190 225 290
PLUG 4P 32A 3h WT E2424586 2424586 PV 332-3 S 50/60Hz Red 32A 380-440V AC 4/3P+E Basic RAL3000 3h IP67 0.24 93 146 50
PLUG 4P 32A 6h WT E2424588 2424588 PV 332-6 S 50/60Hz Red 32A 400V AC 4/3P+E Basic RAL3000 6h IP67 0.24 190 225 290
PLUG 4P 32A 7h WT E2424589 2424589 PV 332-7 S 50/60Hz Black 32A 480-500V AC 4/3P+E Basic RAL9005 7h IP67 0.24 93 146 50
PLUG 4P 32A 9h WT E2424590 2424590 PV 332-9 S 50/60Hz Blue 32A 230V AC 4/3P+E Basic RAL5017 9h IP67 0.26 93 146 50
PLUG 4P 32A 9h WT E2424591 2424591 PV 332-10 S 100-300Hz Green 32A >50V AC 4/3P+E Basic RAL6010 10h IP67 0.24 93 146 50
PLUG 4P 32A 11h WT E2424592 2424592 PV 332-11 S 60Hz Red 32A 440-460V AC 4/3P+E Basic RAL3000 11h IP67 0.24 93 146 50
PLUG 5P 32A 6h WT E2424594 2424594 PV 432-6 S 50/60Hz Red 32A 230/400V AC 5/3P+N+E Basic RAL3000 6h IP67 28 260 170 330
PLUG 5P 32A 9h WT E2424595 2424595 PV 432-9 S 50/60Hz Blue 32A 208-250V AC 5/3P+N+E Basic RAL5017 9h IP67 0.28 100 152 50
PLUG 5P 32A 11h WT E2424596 2424596 PV 432-11 S 60Hz Red 32A 440-460V AC 5/3P+N+E Basic RAL3000 11h IP67 0.28 100 152 50
