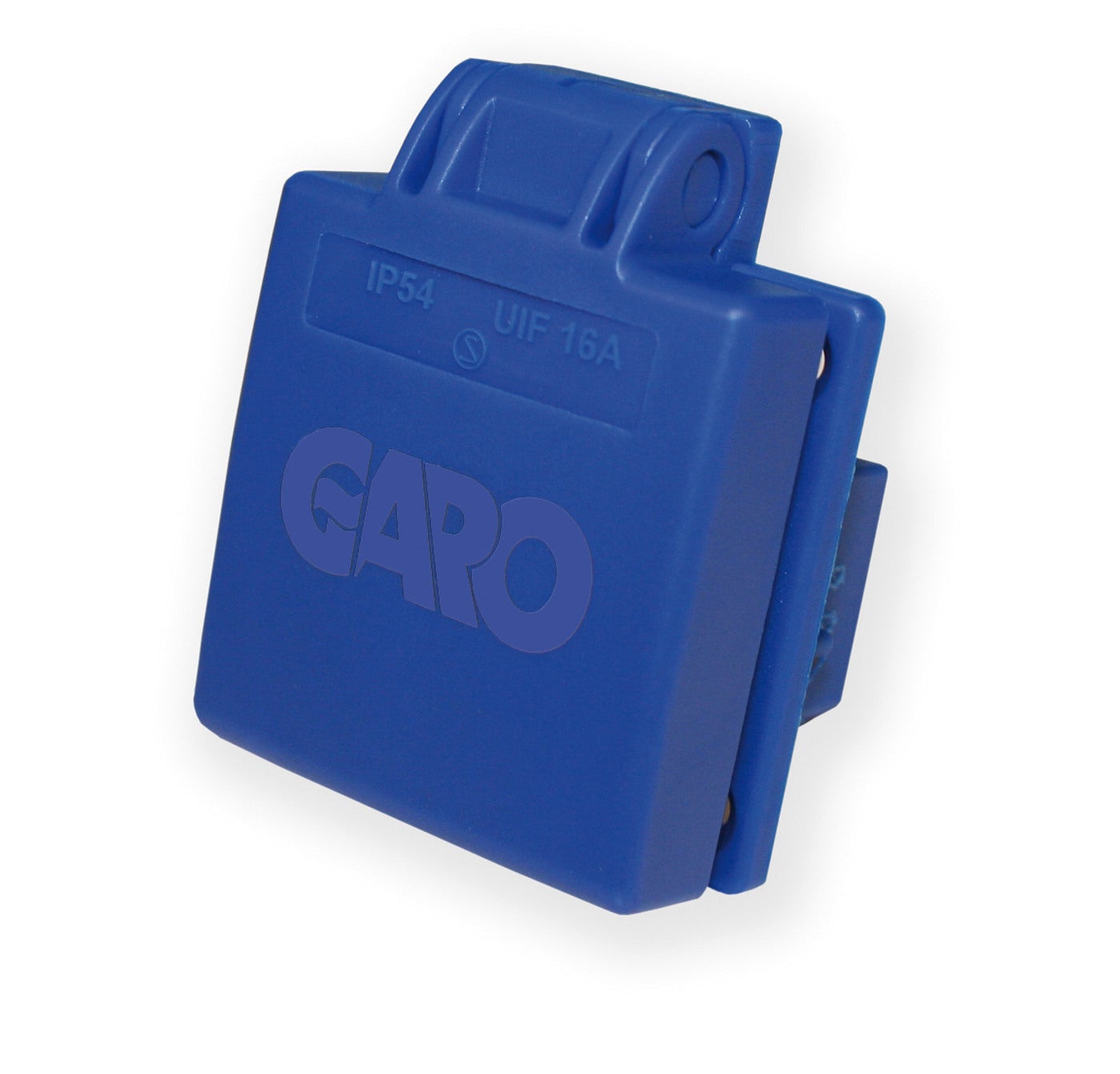

OUTLET SCHUKO UIF 10/16

Flanged sockets Schuko 16A IP54

Childproof Schuko socket for panel mounting and screw connections. Supplied with seal. Schuko outlet UIF MVPE
E-number
E2449508
Article number
2449508
Support
Frequency [Hz] 50Hz
Housing material Plastic
Color Blue
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype Basic
Degree of protection [IP] IP54
Name OUTLET SCHUKO UIF 10/16
E-number E2449508
Article number 2449508
Type designation UIF-P
Number of poles 3/2P+E
Wire flexible [mm²] 1-2x2,5mm²

More variants of Flanged sockets Schuko 16A IP54

E-number Article number Type designation Number of poles Connection type Wire flexible [mm²] Wire solid [mm²] Angle of plug NetProductWeight EngineerWidth EngineerHeight EngineerDepth
OUTLET SCHUKO 10/16A E1896880 1896880 UIF 10/16 Screw 1-2,5mm² 1-2,5mm² Straight 0.05 50 58 30
OUTLET SCHUKO UIF 10/16 E2449508 2449508 UIF-P 3/2P+E 1-2x2,5mm²
