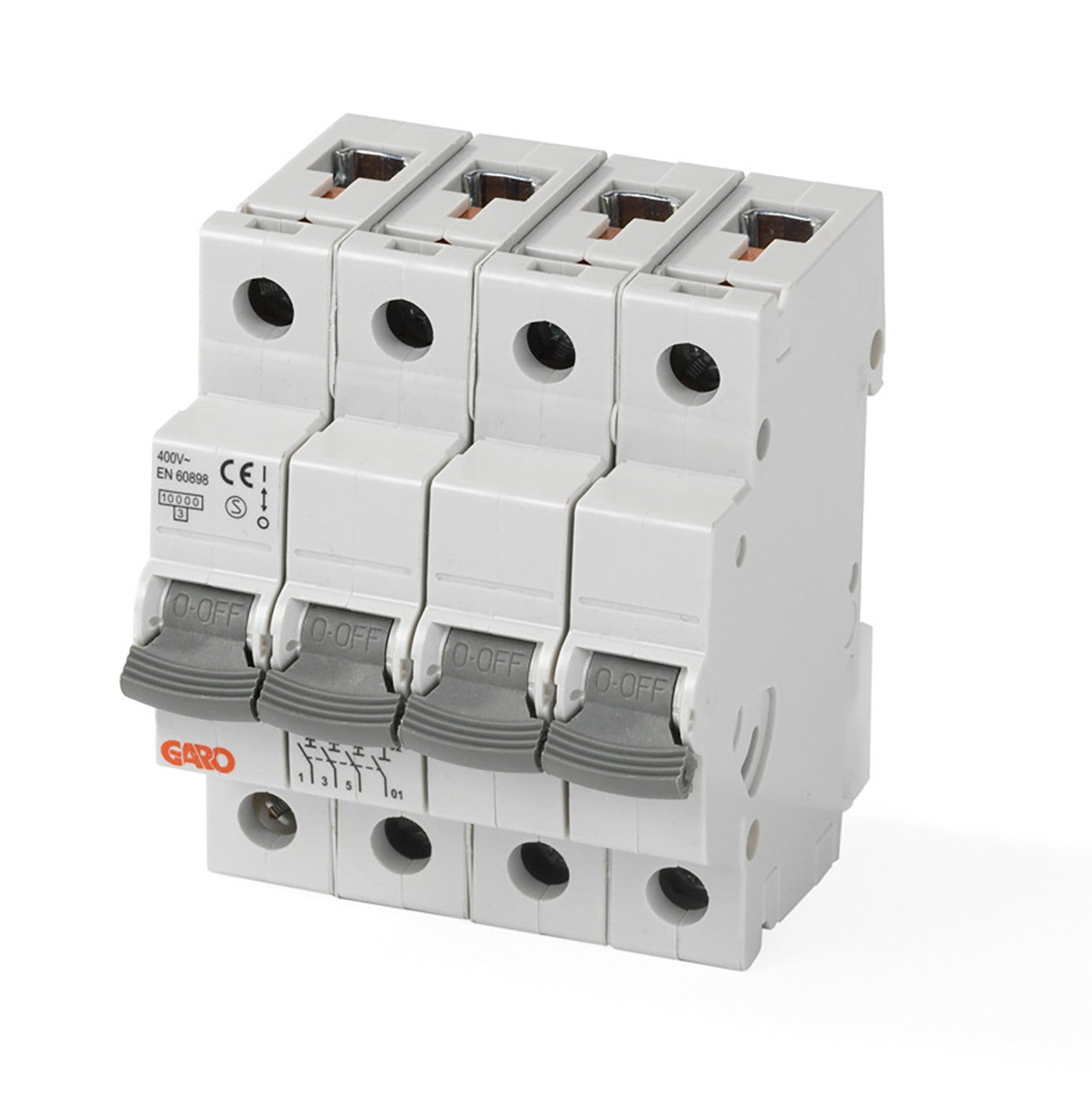

MCB C 4P 4A 10kA GS

Miniature circuit breaker(MCB) 10kA 4-poles C-characteristic

Miniature circuit breaker 10kA ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10kA. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GS C-Characteristic 4A 10kA 4-pole
E-number
E2142764
Article number
2142764
Support
NetProductWeight 0.37
EngineerWidth 68
EngineerHeight 90
EngineerDepth 75
Name MCB C 4P 4A 10kA GS
E-number E2142764
Article number 2142764
Type designation MCB GS C404
Standard EN60898-1
Short-circuit current [kA] 10kA
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated current [A] 4A
Rated voltage [V AC] 415 V AC
Number of modules 4
Number of poles 4
Tightening torque [Nm] 3,5Nm
Tripping characteristics C
Connection type Screw
Wire flexible [mm²] 1-25mm²
Degree of protection [IP] IP20

More variants of Miniature circuit breaker(MCB) 10kA 4-poles C-characteristic

E-number Article number Type designation Standard Short-circuit current [kA] Storage temperature [C] Operation Temperature [C] Frequency [Hz] Housing material Color Rated current [A] Rated voltage [V AC] Number of modules Number of poles Tightening torque [Nm] Tripping characteristics Connection type Wire flexible [mm²] Degree of protection [IP]
MCB C 4P 0,5A 10kA GS E2142760 2142760 MCB GS C4005
MCB C 4P 1A 10kA GS E2142761 2142761 MCB GS C401
MCB C 4P 2A 10kA GS E2142763 2142763 MCB GS C402
MCB C 4P 4A 10kA GS E2142764 2142764 MCB GS C404 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 4A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 10A 10kA GS E2142766 2142766 MCB GS C410 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 10A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 13A 10kA GS E2142767 2142767 MCB GS C413 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 13A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 16A 10kA GS E2142768 2142768 MCB GS C416 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 16A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 20A 10kA GS E2142769 2142769 MCB GS C420 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 20A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 25A 10kA GS E2142770 2142770 MCB GS C425 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 25A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 32A 10kA GS E2142771 2142771 MCB GS C432 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 32A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 40A 10kA GS E2142772 2142772 MCB GS C440 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 40A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 50A 10kA GS E2142773 2142773 MCB GS C450 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 50A 415 V AC 4 4 3,5Nm C Screw 1-25mm² IP20
MCB C 4P 63A 10kA GS E2142774 2142774 MCB GS C463 EN60898-1 10kA -35C...+55C 50/60Hz Plastic Grey 63A 415 V AC 4 4 3,5Nm C Screw 1-25mm²
