MCB B 2P 10A 10kA GS

Miniature circuit breaker(MCB) 10kA 2-poles B-characteristic

Miniature circuit breaker 10kA ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10kA. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GS B-Characteristic 10A 10kA 2-pole
E-number
E2142181
Article number
2142181
Support
NetProductWeight 0.184
EngineerWidth 36
EngineerHeight 90
EngineerDepth 75
Name MCB B 2P 10A 10kA GS
E-number E2142181
Article number 2142181
Type designation MCB GS B210
Standard EN60898-1
Short-circuit current [kA] 10kA
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated current [A] 10A
Rated voltage [V AC] 415 V AC
Number of modules 2
Number of poles 2
Tightening torque [Nm] 3,5Nm
Tripping characteristics B
Connection type Screw
Wire flexible [mm²] 1-25mm²
Degree of protection [IP] IP20

More variants of Miniature circuit breaker(MCB) 10kA 2-poles B-characteristic

E-number Article number Type designation Standard Short-circuit current [kA] Storage temperature [C] Operation Temperature [C] Frequency [Hz] Housing material Color Rated current [A] Rated voltage [V AC] Number of modules Number of poles Tightening torque [Nm] Tripping characteristics Connection type Wire flexible [mm²] Degree of protection [IP]
MCB B 2P 6A 10kA GS E2142180 2142180 MCB GS B206
MCB B 2P 10A 10kA GS E2142181 2142181 MCB GS B210 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 10A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20

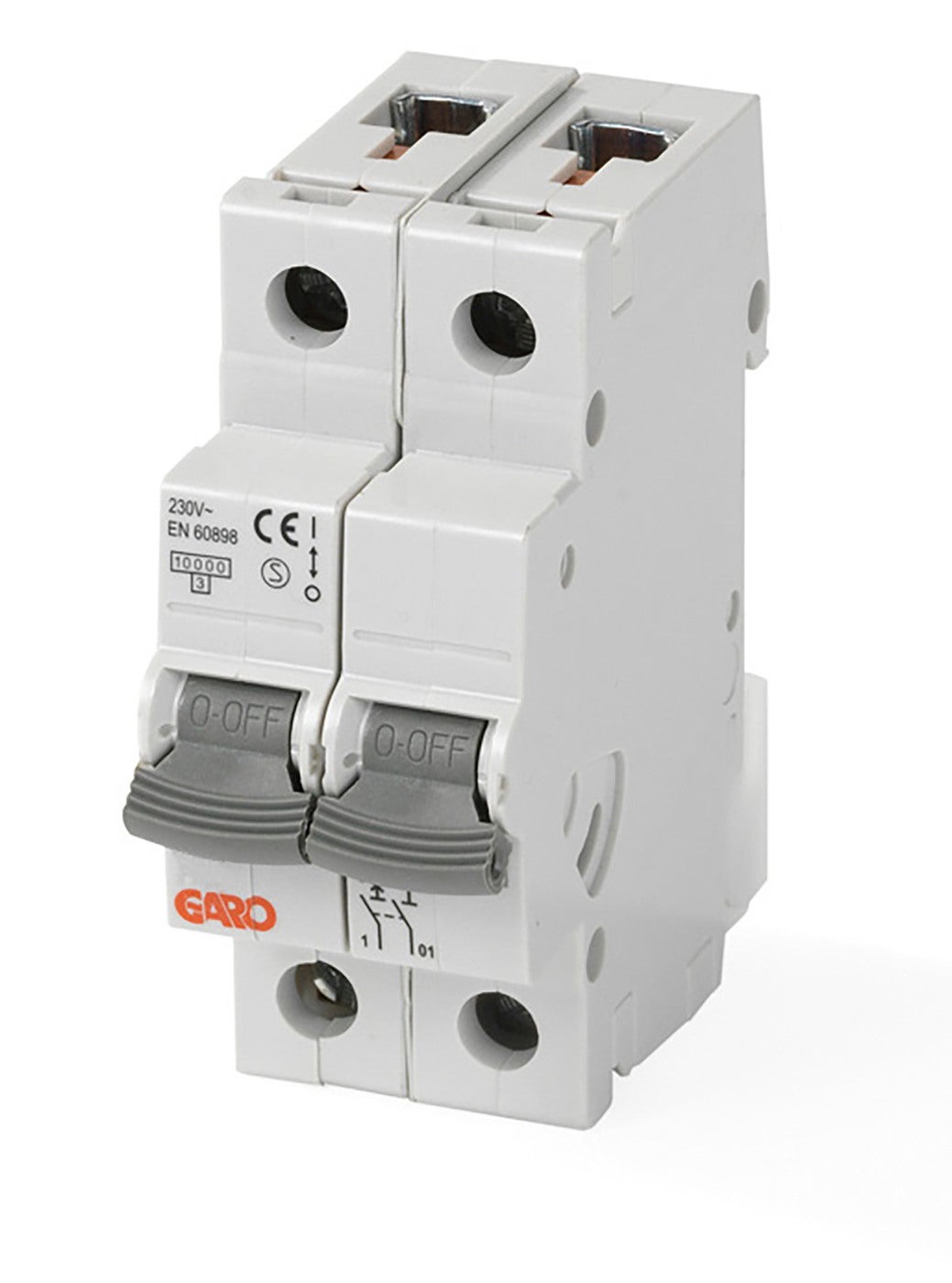

MCB B 2P 13A 10kA GS E2142182 2142182 MCB GS B213 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 13A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 16A 10kA GS E2142183 2142183 MCB GS B216 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 16A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 20A 10kA GS E2142184 2142184 MCB GS B220 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 20A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 25A 10kA GS E2142185 2142185 MCB GS B225 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 25A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 32A 10kA GS E2142186 2142186 MCB GS B232 EN60898-1 10kA -25C...+55C -25C...+55C 50/60Hz Plastic Grey 32A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 40A 10kA GS E2142187 2142187 MCB GS B240 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 40A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 50A 10kA GS E2142188 2142188 MCB GS B250 EN60898-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 50A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
MCB B 2P 63A 10kA GS E2142189 2142189 MCB GS B263 EN60898-1 10kA -35C...+55C -25C...+55C 50-60Hz Plastic Grey 63A 415 V AC 2 2 3,5Nm B Screw 1-25mm² IP20
