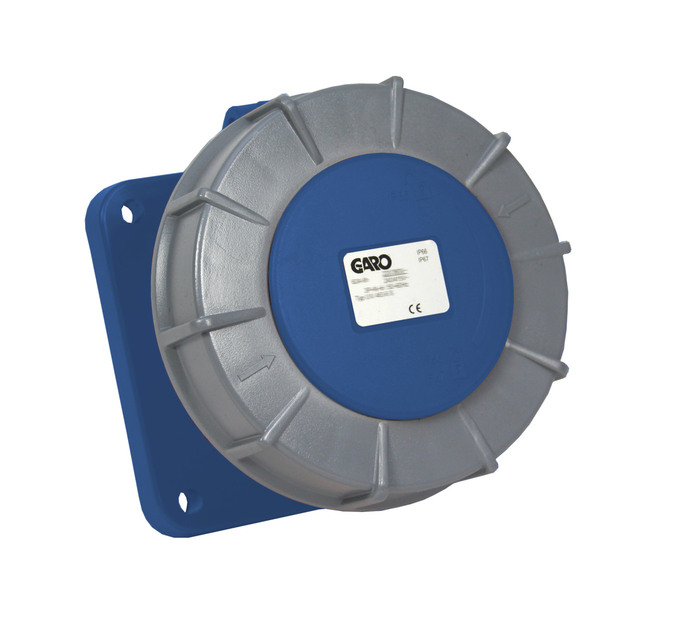

SOCKET STRAIGHT WT 4P 63A 9h

Flanged sockets Basic with straight mounting plate 63A IP67

Basic, our standard range with a screw function. Socket 63A recess mounting with straight mounting plate. Supplied including seal. Socket straight basic watertight 4-poles 63A 9h
E-number
2424989
Article number
2424989
Support
Rated current [A] 63
Degree of protection [IP] 67
Wire flexible [mm²] 6-16
Standard Class 1 EN 60044-8
Width [mm] 100
Height [mm] 100
Depth [mm] 130
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 6-25
Name SOCKET STRAIGHT WT 4P 63A 9h
E-number 2424989
Article number 2424989
Type designation UIV 363-9 S
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] 230
Frequency [Hz] 50/60
Colour Blue
Netweight [kg] 0.60
Position of earth [h] 9
RAL-nummer RAL5017

More variants of Flanged sockets Basic with straight mounting plate 63A IP67

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h] RAL-nummer
SOCKET STRAIGHT WT 3P 63A 4h 2424982 2424982 UIV 263-4 S 3/2P+E 100-130 50/60 Yellow 0.49 4 RAL1023
SOCKET STRAIGHT WT 3P 63A 6h 2424983 2424983 UIV 263-6 S 3/2P+E 200-250 50/60 Blue 0.49 6 RAL5017
SOCKET STRAIGHT WT 3P 63A 9h 2424984 2424984 UIV 263-9 S 3/2P+E 380-415 50/60 Red 0.49 9 RAL3000
SOCKET STRAIGHT WT 3P 63A 12h 2424985 2424985 UIV 263-12 S 3/2P+E Matning fr.isolertransf. 50/60 Grey 0.49 12 RAL7046
SOCKET STRAIGHT WT 4P 63A 4h 2424986 2424986 UIV 363-4 S 4/3P+E 100-130 50/60 Yellow 0.60 4 RAL1023
SOCKET STRAIGHT WT 4P 63A 6h 2424987 2424987 UIV 363-6 S 4/3P+E 400 50/60 Red 0.60 6 RAL3000
SOCKET STRAIGHT WT 4P 63A 7h 2424988 2424988 UIV 363-7 S 4/3P+E 480-500 50/60 Black 0.60 7 RAL9005
SOCKET STRAIGHT WT 4P 63A 9h 2424989 2424989 UIV 363-9 S 4/3P+E 230 50/60 Blue 0.60 9 RAL5017
SOCKET STRAIGHT WT 4P 63A 11h 2424990 2424990 UIV 363-11 S 4/3P+E 440-460 60 Red 0.60 11 RAL3000
SOCKET STRAIGHT WT 5P 63A 4h 2424991 2424991 UIV 463-4 S 5/3PN+E 100-130 50/60 Yellow 0.65 4 RAL1023
SOCKET STRAIGHT WT 5P 63A 6h 2424992 2424992 UIV 463-6 S 5/3PN+E 230/400 50/60 Red 0.65 6 RAL3000
SOCKET STRAIGHT WT 5P 63A 7h 2424993 2424993 UIV 463-7 S 5/3PN+E 480-500 50/60 Black 0.65 7 RAL9005
SOCKET STRAIGHT WT 5P 63A 9h 2424994 2424994 UIV 463-9 S 5/3PN+E 208-250 50/60 Blå/Blue 0.65 9 RAL5017
SOCKET STRAIGHT WT 5P 63A 11h 2424995 2424995 UIV 463-11 S 5/3PN+E 440-460 60 Red 0.65 11 RAL3000
