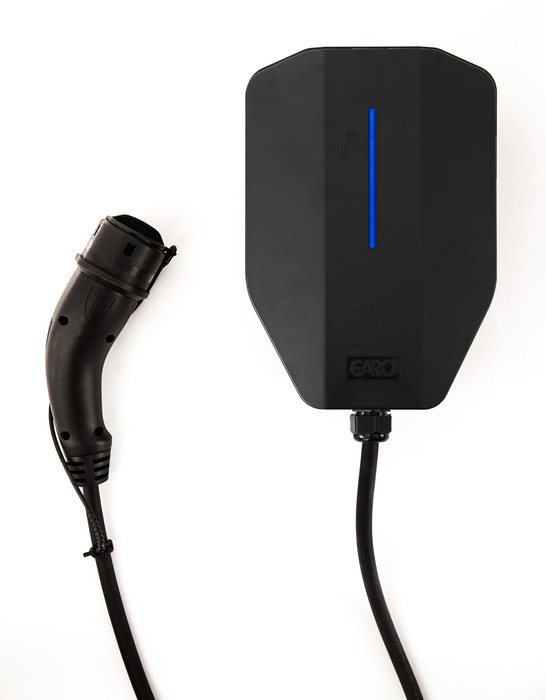

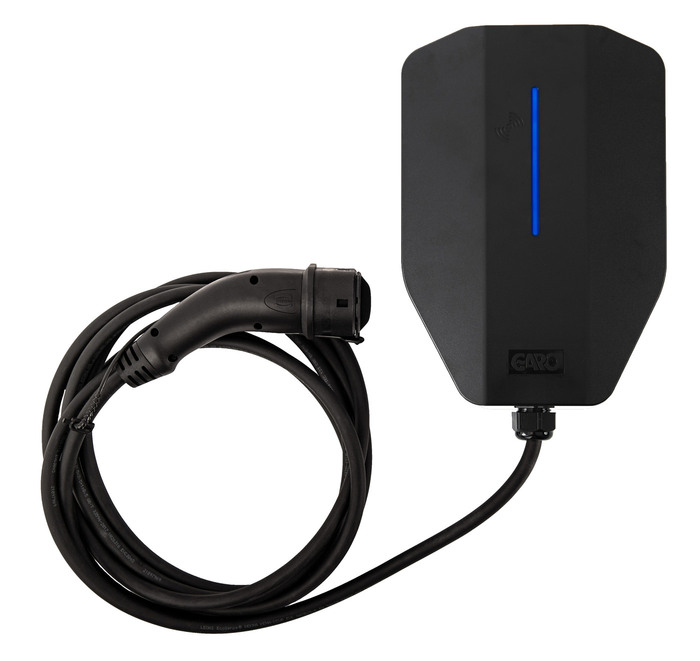

Entity Compact Wallbox

Entity Compact Wallbox. A complete device with all component parts: An installation bracket, a charger and a front panel. Available for purchase with a fixed cable in various lengths. Built-in fuse and electronic meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet connection using Ethernet, Wi-Fi or built in modem. Wallbox 7,4kW with fixed cable 5m 1x32A, modem and SIMcard GARO connect
E-number
2701030
Article number
354234
Meter Built-in meter
Materials Plastic
Colour Black
AC/DC output Type2 fixed cable
Package size [pcs] 1
Standard EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118
Width [mm] 190
Height [mm] 268
Depth [mm] 102
Frequency [Hz] 50
Temperature range [C] -40C...+40C
Mounting method Wall mounting
Degree of protection [IP] 54
Storage temperature [C] -40C...+40C
RFID Yes
Impact strength IK10
RCCB/RCBO Yes
Locks Yes
Short-circuit current [kA] 10
RAL-nummer RAL9011
Name WALLBOX ENTITY COMPACT 7 5M
E-number 2701030
Article number 354234
Type designation ECCSC50132FIGI
Rated current [A] 32
Rated voltage [V AC] 230
Cable [m] 5
Netweight [kg] 4.10
Phases 1
Charging current [A] 0-32
Effekt [kW] 7,4

More variants of Entity Compact Wallbox

E-number Article number Type designation Rated current [A] Rated voltage [V AC] Cable [m] Netweight [kg] Phases Charging current [A] Effekt [kW]
WALLBOX ENTITY COMPACT 14 5M 2701028 354231 ECCSC50320FIGI 20 230/400 5 4.10 3 0-20 13,9
WALLBOX ENTITY COMPACT 14 8M 2701029 354232 ECCSC80320FIGI 20 230/400 8 5.50 3 0-20 13,9
WALLBOX ENTITY COMPACT 7 5M 2701030 354234 ECCSC50132FIGI 32 230 5 4.10 1 0-32 7,4
WALLBOX ENTITY COMPACT 22 4M 2701049 354270 ECCSC40332FIGI 32 230/400 4 4.70 3 0-32 22
