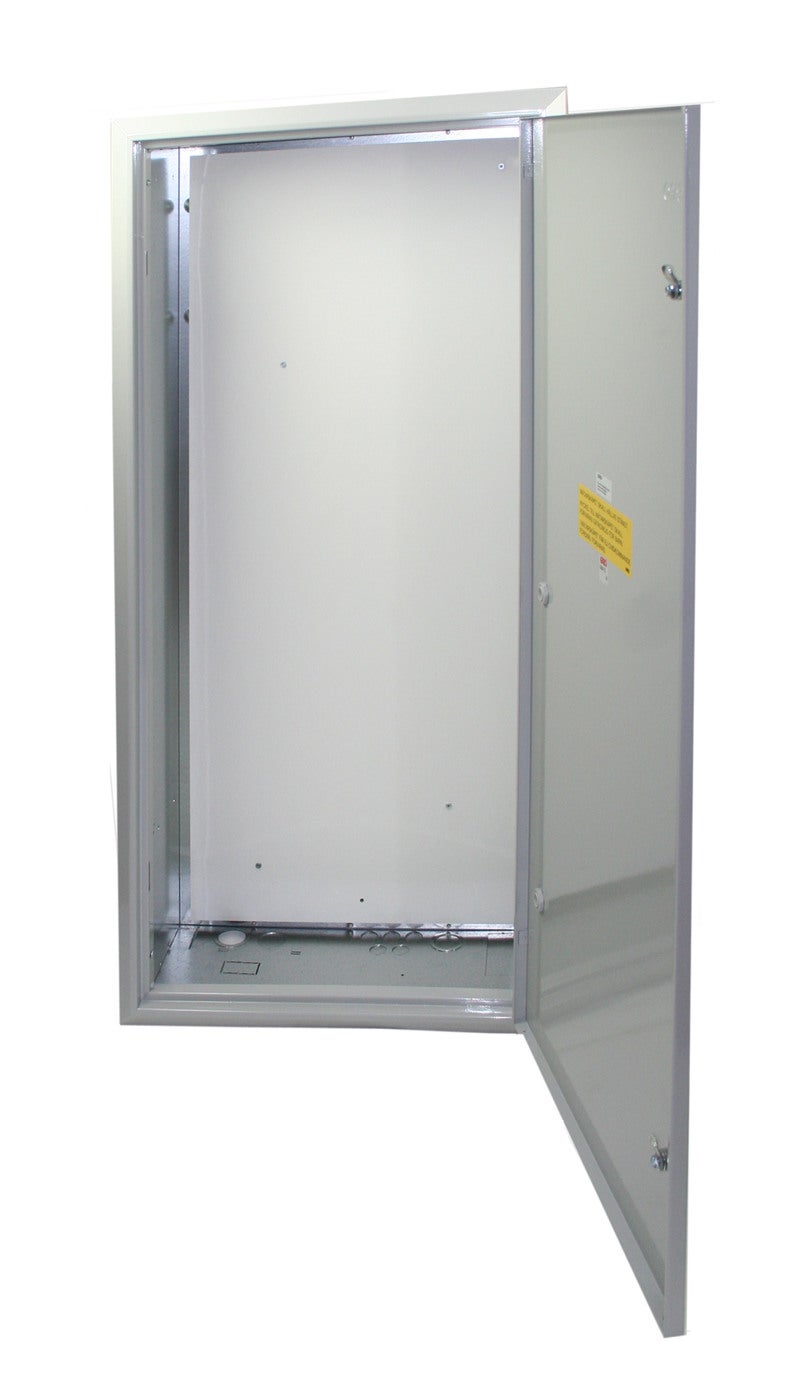

• METERCABINET FLUSH EMPTY T2 - 1

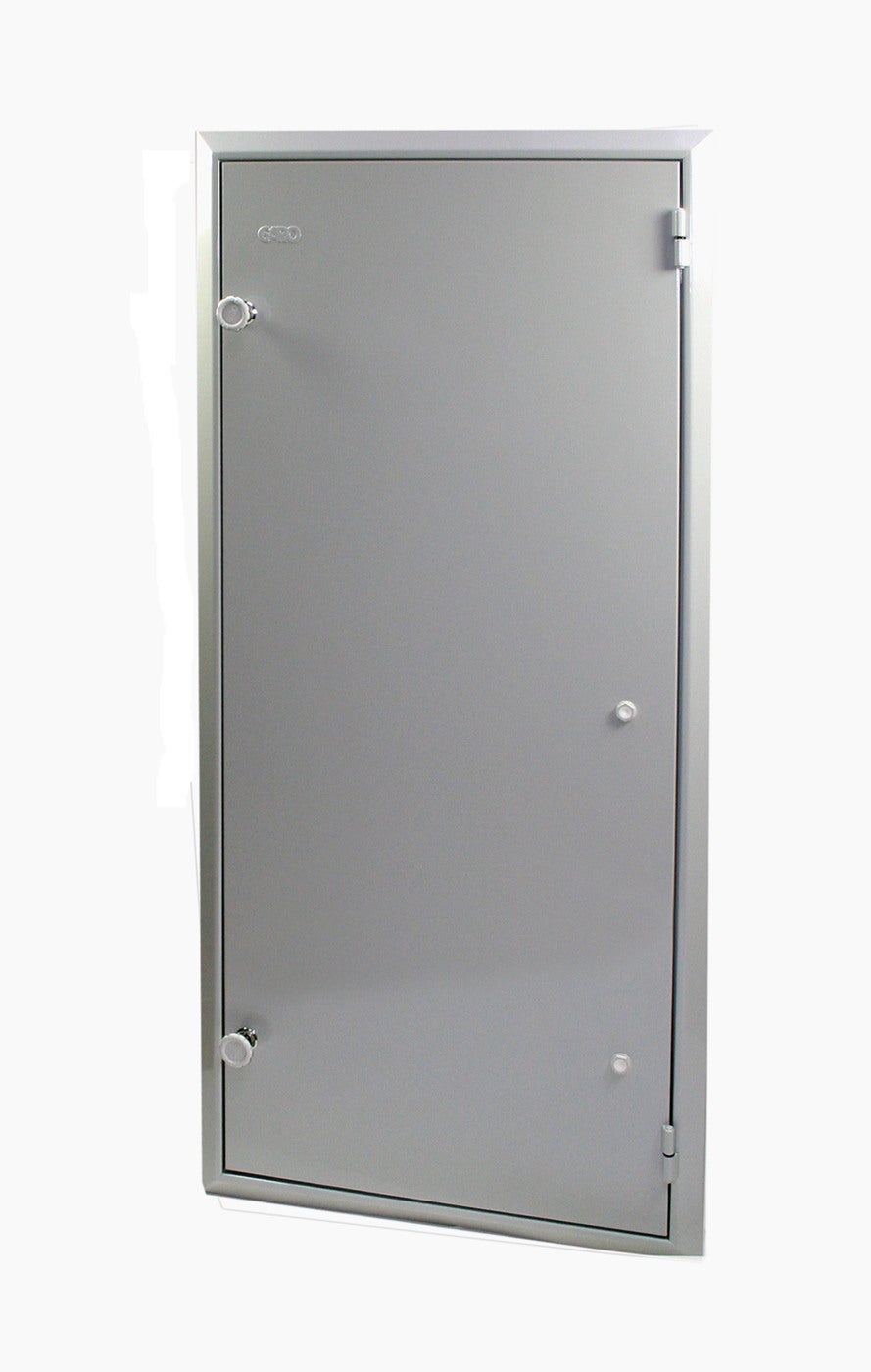

  • METERCABINET FLUSH EMPTY T2 - 2

Meter cabinet empty W632 2-places

Meter cabinet, empty, made of sheet metal for flush mounting. Width 632mm and 2 spaces for meters. Supplied with wooden plate. Meter cabinet recessed with wood board 500x1200mm.
E-number
E2270026
Article number
2270026
Support
Type designation GIM-T2
Standard SS 430 01 01
Frequency [Hz] 50Hz
Housing material Hot dip galvanized sheet metal
Color Grey
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Mounting method Flush mounted
Modelltype GIM
Lock Yes
RAL-number RAL7035
Recessed depth [mm] 190mm
Recessed height [mm] 1245mm
Recessed width [mm] 542mm
Woodplate [mm] 500x1200mm
Degree of protection [IP] IP23
NetProductWeight 18
EngineerWidth 632
EngineerHeight 1325
EngineerDepth 205
Name METERCABINET FLUSH EMPTY T2
E-number E2270026
Article number 2270026

Accessories for Meter cabinet empty W632 2-places

Name E-number Article number Type designation Description
TERMINAL NEUTRAL 7P TERMINAL NEUTRAL 7P E2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL EARTH PE7 G TERMINAL EARTH PE7 G E2178172 108472 JP7 Terminal earth 7-poles green for DIN-rail
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
KEY FOR RT65 LOCK KEY FOR RT65 LOCK E1646612 1646612 RN KEY FOR RT65 LOCK
KEY TRIANGLE TK10 KEY TRIANGLE TK10 E1646614 1646614 PG 51 KEY TRIANGLE TK10
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
SWITCH CHANGEOVER 80A 4P VMI SWITCH CHANGEOVER 80A 4P VMI E2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 E2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB E2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE E2270637 2270637 PTT1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
SURGE PROTECTION KIT URBAN AREAS MET CAB SURGE PROTECTION KIT URBAN AREAS MET CAB E2270638 2270638 PLD1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONSTRUCTION KIT FOR METERCABINETS CONSTRUCTION KIT FOR METERCABINETS E2270641 2270641 BK 416 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PH ll-lll SEALABLE HOOD PH ll-lll E2270644 2270644 PH II-III Sealable hood PHII-III
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONVERSION KIT 25-63A CONVERSION KIT 25-63A E2270649 2270649 OBS 63 Conversion kit 25-63A
BLADE FUSES GIM GUM BLADE FUSES GIM GUM E2270650 2270650 OSK Blade fuses for GIM/GUM
TELE MEDIA BOX FOR METERCABINETS TELE MEDIA BOX FOR METERCABINETS E2270685 2270685 TELE-M Tele media box
LOCK TELEBOX LLT 1 LOCK TELEBOX LLT 1 E2270688 2270688 LLT1 Lock for Telebox.
TELEBOX TELEBOX E2270691 2270691 TELE-D Telebox
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
WEATHER PROT KIT GIM2 WEATHER PROT KIT GIM2 E2270098 351605 DRT-GIM-2 Seal kit for GIM-2.
PADLOCK KIT FOR METERCABINET PADLOCK KIT FOR METERCABINET E2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
