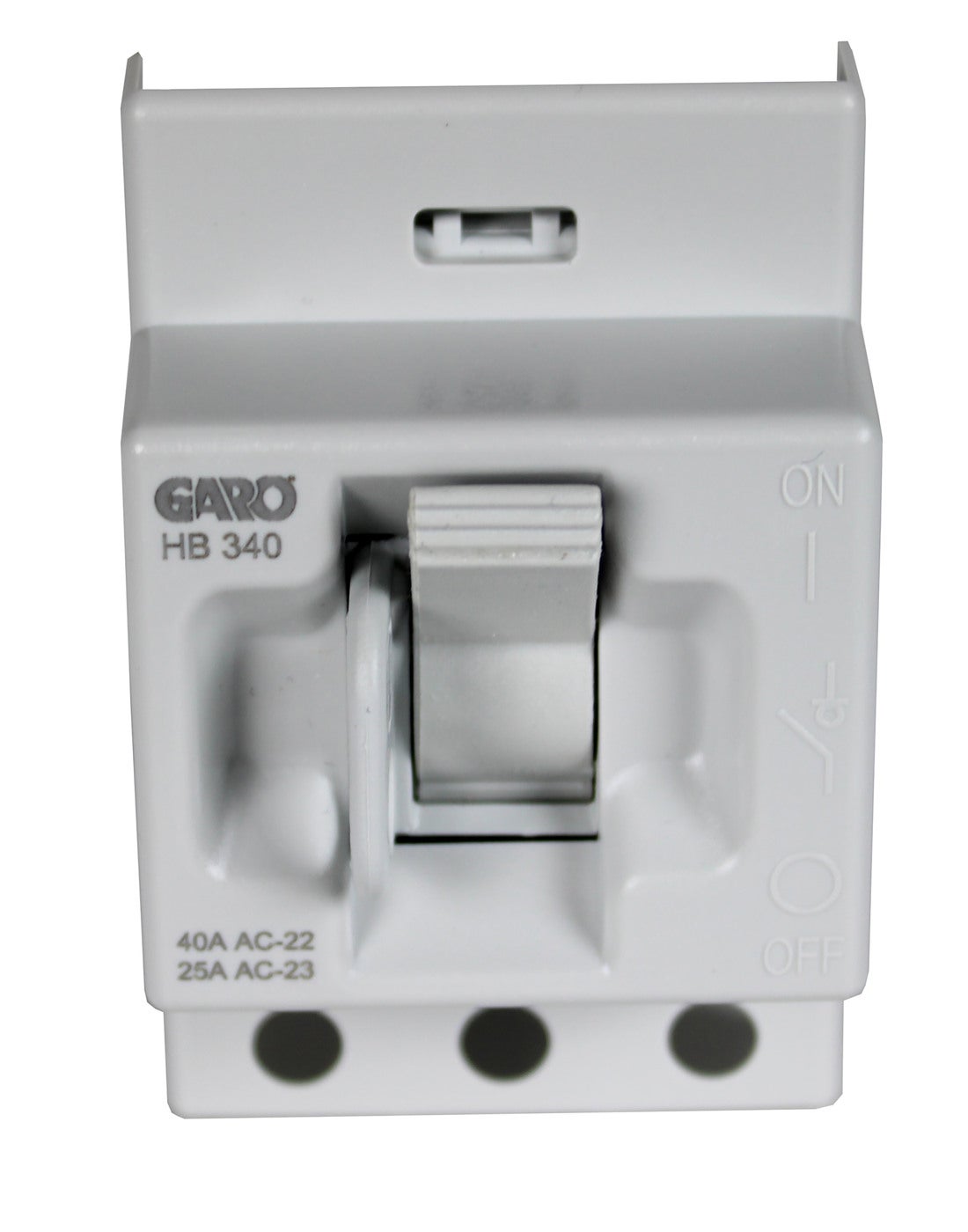

  • MAIN SWITCH 3P 40A - 2

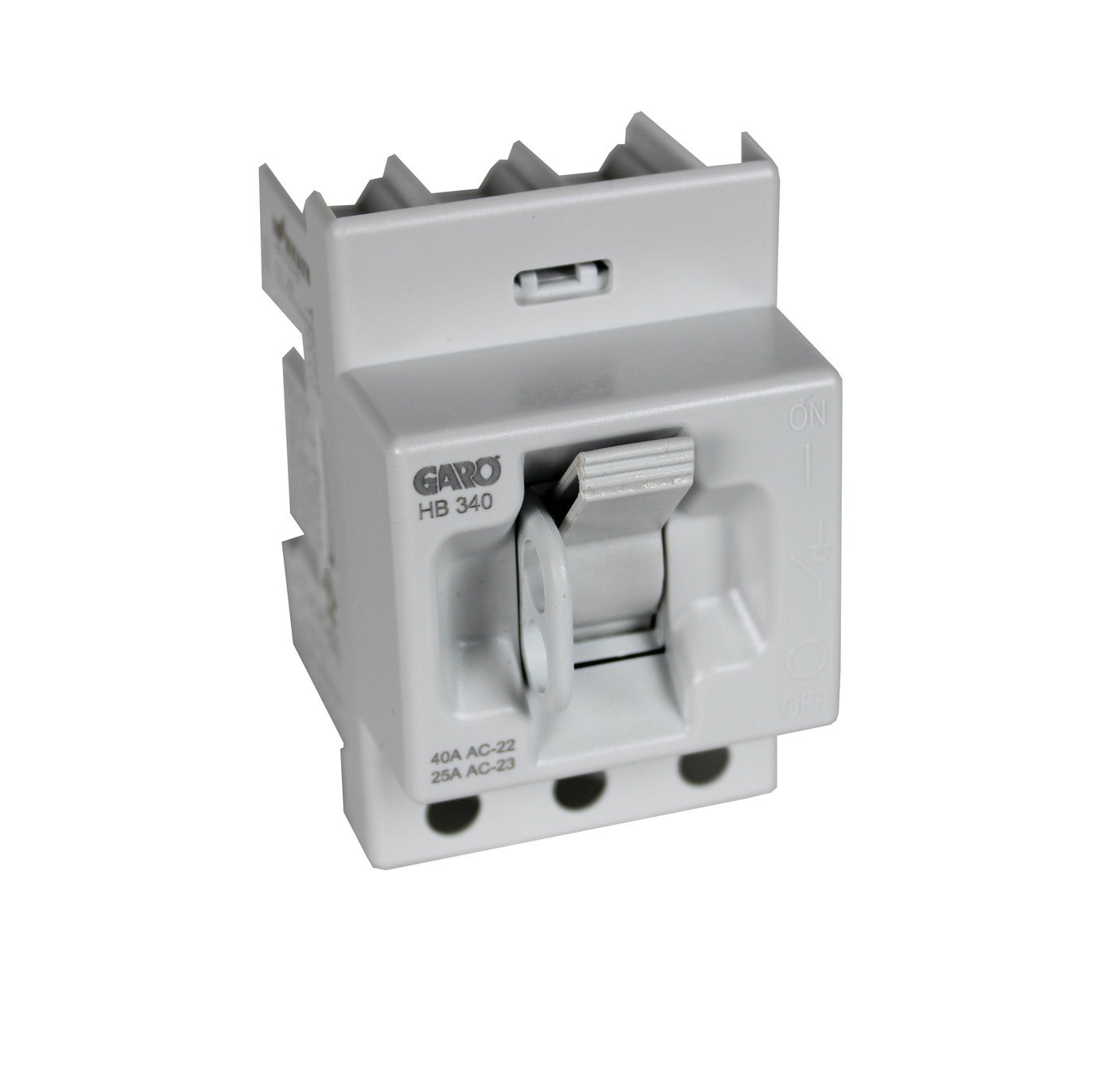

  • MAIN SWITCH 3P 40A - 3

Main switches 3-poles

GARO main switches are developed for electricians and other professionals working with electrical installations in industrial, property and service facilities. A main switch is used for safe and clear disconnection during service, maintenance or emergency situations, and is therefore a central part of a safe and efficient installation. All GARO main switches are adapted for mounting on DIN rail and meet the requirements for placement in enclosures with miniature circuit breakers according to EN 60947-3. The Main switch modular 40A 3-pole
E-number
E2142854
Article number
2142854
Support
Standard EN60947-3
Storage temperature [C] -40C...+80C
Operation Temperature [C] -20C...+40C
Color Grey
Rated voltage [V AC] 400V
Isolation voltage [V] 690V
Degree of protection [IP] IP20
Name MAIN SWITCH 3P 40A
E-number E2142854
Article number 2142854
Type designation HB 340
Short-circuit current [kA] 50kA
Frequency [Hz] 50/60Hz
Rated current [A] 40A
Number of modules 3
Tightening torque [Nm] 1,8Nm
Rated current AC22 400V [A] 40A
NetProductWeight 0.19
EngineerWidth 50
EngineerHeight 85
EngineerDepth 61
Rated current AC21 400V [A] 63A
Rated operation power at AC-23, 15kW

More variants of Main switches 3-poles

E-number Article number Type designation Short-circuit current [kA] Frequency [Hz] Rated current [A] Number of modules Number of poles Tightening torque [Nm] Wire flexible [mm²] Rated current AC23 400V [A] Rated current AC22 400V [A] NetProductWeight EngineerWidth EngineerHeight EngineerDepth Rated current AC21 400V [A] Rated operation power at AC-23,
MAIN SWITCH 3P 40A 2M E2142039 108551 HBS340-2M 50kA 50/60Hz 40A 2 3Nm 2,5-25mm² 32A 40A 0.14 36 80 76 63A
MAIN SWITCH 3P 63A 2M E2142040 108553 HBS363-2M 50kA 63A 2 3Nm 63A 0.15 36 80 76 63A
MAIN SWITCH 3P 160A E2142895 110123 HB 3160 50/60Hz 160A 4 3 6Nm 6-70mm² 125A 160A 0.48 84 80 86 200A 75kW
MAIN SWITCH 3P 40A E2142854 2142854 HB 340 50kA 50/60Hz 40A 3 1,8Nm 40A 0.19 50 85 61 63A 15kW
MAIN SWITCH 3P 80A E2142856 2142856 HB 380 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.2 50 70 80 100A 30kW
SWITCH KUE 340 E2394651 2394651 KUE 340 50kA 50/60Hz 40A 3 3 1,8Nm 1,5-16mm² 40A 0.18 67 50 71 63A
SWITCH KUE 3P 80A E2394652 2394652 KUE 380 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.19 75 65 90 100A
SWITCH KS 3P 80A E2394662 2394662 KU 380 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.19 51 68 65 100A
