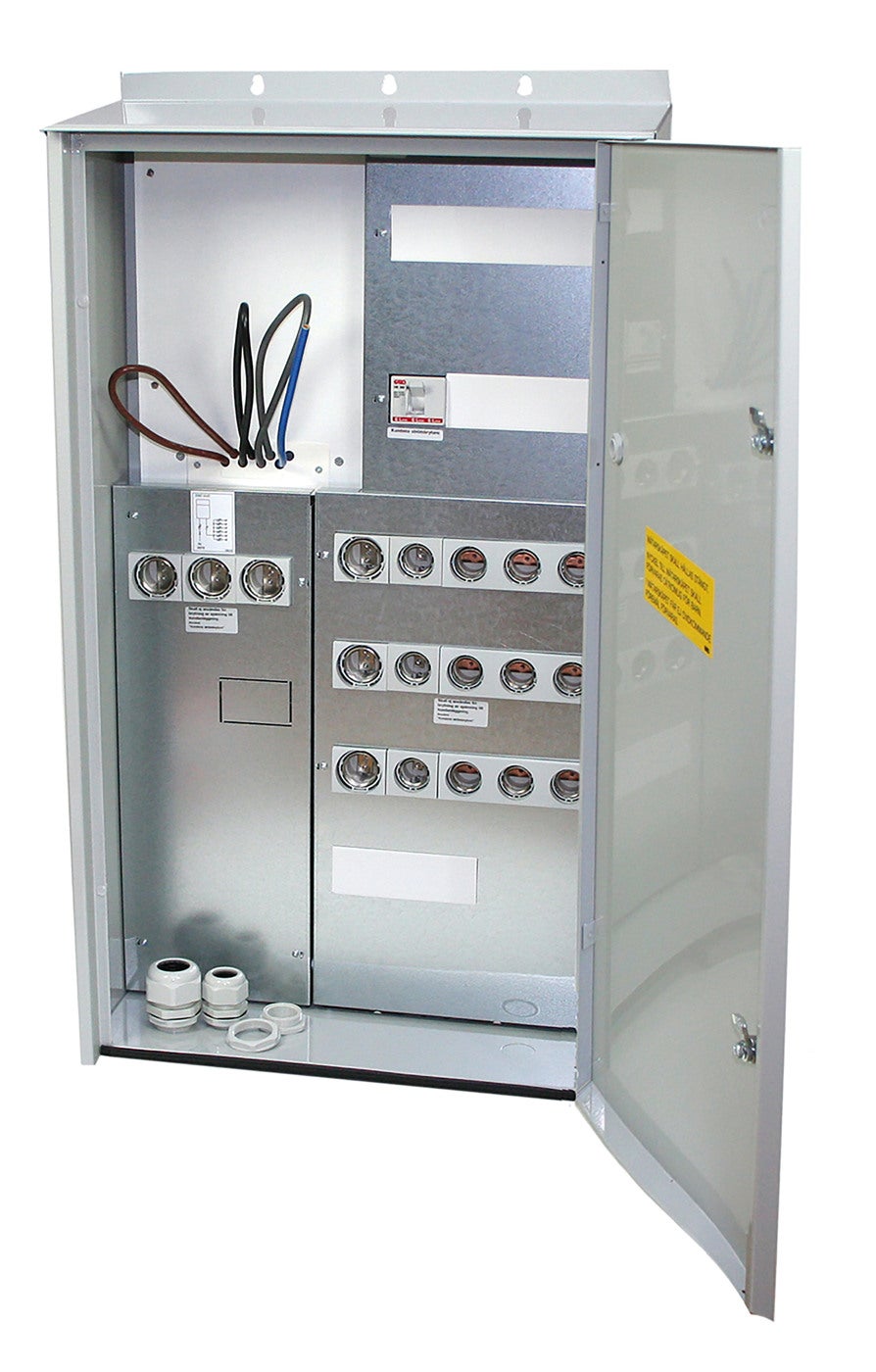

METERCABINET SURF 125-463 F

Meter cabinets with Distribution W520 1place

Metal meter cabinets for surface mounting with distribution. In the standard version the cabinets are equipped with 63A with meter position and the customer’s power switch with switchgear consisting of 1 x 63A 3-phase group and 4 x 25A 3-phas groups in diazed design. These groups are connected to terminal blocks 3 x 16 mm² and 12 x 6 mm². In the standard version of the cabinet it is possible to supplement with standby power switch and a 25A 3-phase group can be changed to a corresponding 63A. There is also Meter cabinet outside type-F 63A 1place.
E-number
E2270019
Article number
2270019
Support
Type designation GUM-F 163-425
Standard SS 430 01 01
Short-circuit current [kA] 25kA
Frequency [Hz] 50Hz
Housing material Hot dip galvanized sheet metal
Color Grey
Mounting method Surface mounted
Modelltype GUM
Lock Yes
RAL-number RAL7035
Incoming terminal [mm²] 50mm² Al/Cu
Module space unmeasured 4
Outgoing [mm²] 16mm² Cu
Degree of protection [IP] IP23
Name METERCABINET SURF 125-463 F
E-number E2270019
Article number 2270019

Accessories for Meter cabinets with Distribution W520 1place

Name E-number Article number Type designation Description
TERMINAL NEUTRAL 7P TERMINAL NEUTRAL 7P E2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL EARTH PE7 G TERMINAL EARTH PE7 G E2178172 108472 JP7 Terminal earth 7-poles green for DIN-rail
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
KEY FOR RT65 LOCK KEY FOR RT65 LOCK E1646612 1646612 RN KEY FOR RT65 LOCK
KEY TRIANGLE TK10 KEY TRIANGLE TK10 E1646614 1646614 PG 51 KEY TRIANGLE TK10
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
SWITCH CHANGEOVER 80A 4P VMI SWITCH CHANGEOVER 80A 4P VMI E2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
SEALKIT METER CABINET IP24 SEALKIT METER CABINET IP24 E2270096 2270096 TK-24 Sealkit for meter cabinet IP24
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 E2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB E2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
KIT RESERVE POWER INLET KIT RESERVE POWER INLET E2270640 2270640 RI 432 Reserve power intake RI 432
CONSTRUCTION KIT FOR METERCABINETS CONSTRUCTION KIT FOR METERCABINETS E2270641 2270641 BK 416 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PH ll-lll SEALABLE HOOD PH ll-lll E2270644 2270644 PH II-III Sealable hood PHII-III
CONVERSION KIT 25A TO 63A GUM-F CONVERSION KIT 25A TO 63A GUM-F E2270646 2270646 OBS-F-63 Conversion kit outgoing 25A 3-phase group to a 63A 3-phase group
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
ATTACH JUMPER METER CABINET ATTACH JUMPER METER CABINET E2270651 2270651 FB1 Attach jumper 2pcs.
STAND METER CABINET STAND METER CABINET E2270657 2270657 SFU1 Stand for meter cabinet.
RUBBER SLEEVE 50 MET CAB RUBBER SLEEVE 50 MET CAB E2270684 2270684 GMM 50 Rubber sleeve 50 fits metal cabinet
PADLOCK KIT FOR METERCABINET PADLOCK KIT FOR METERCABINET E2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
