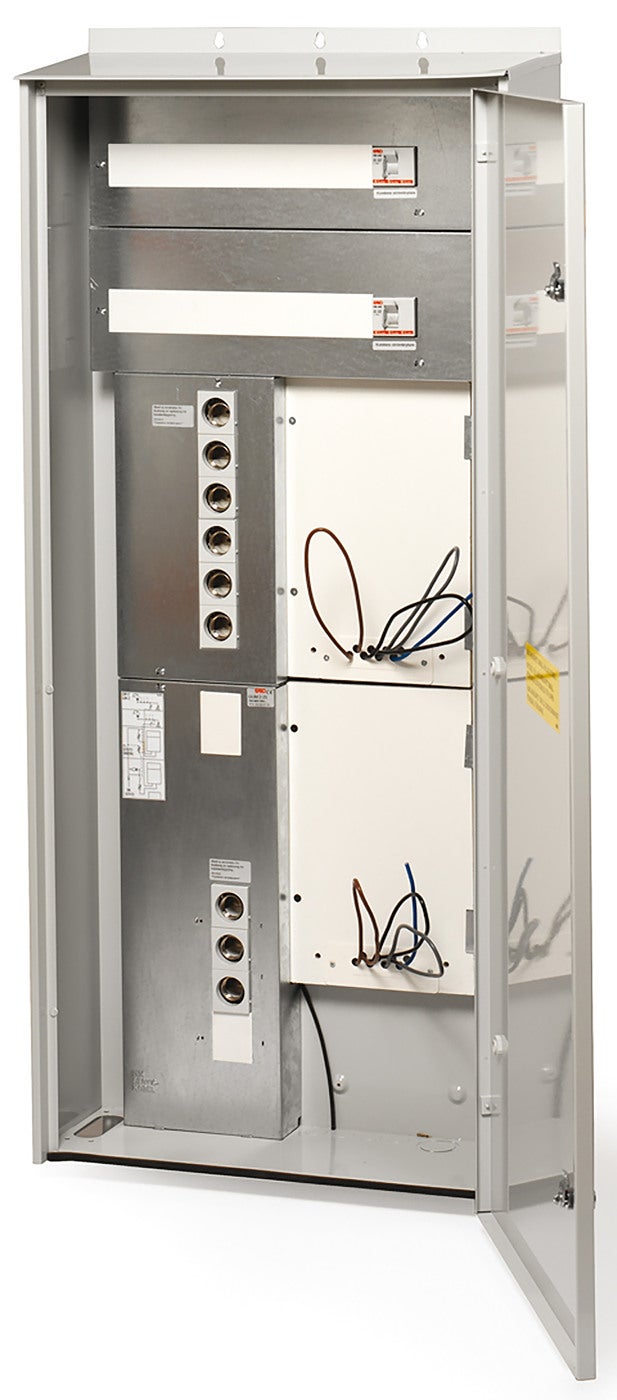

Meter cabinets W580 2-places
Meter cabinets for surface mounting. Also tested and approved with addition seals for IP24, which is the minimum requirement for meter cabinets mounted on a post. GUM 1 and GUM-L are supplied with 2 cable entries while GUM-2 has 3. Meter cabinet outside 25A 2places.
| Type designation | GUM 2-25 |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Surface mounted |
| Modelltype | GUM |
| Lock | Yes |
| RAL-number | RAL7035 |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 4 |
| Outgoing [mm²] | 16mm² Cu |
| Degree of protection [IP] | IP23 |
| Name | METERCABINET SURF 25A 2PL |
|---|---|
| E-number | E2270012 |
| Article number | 2270012 |
