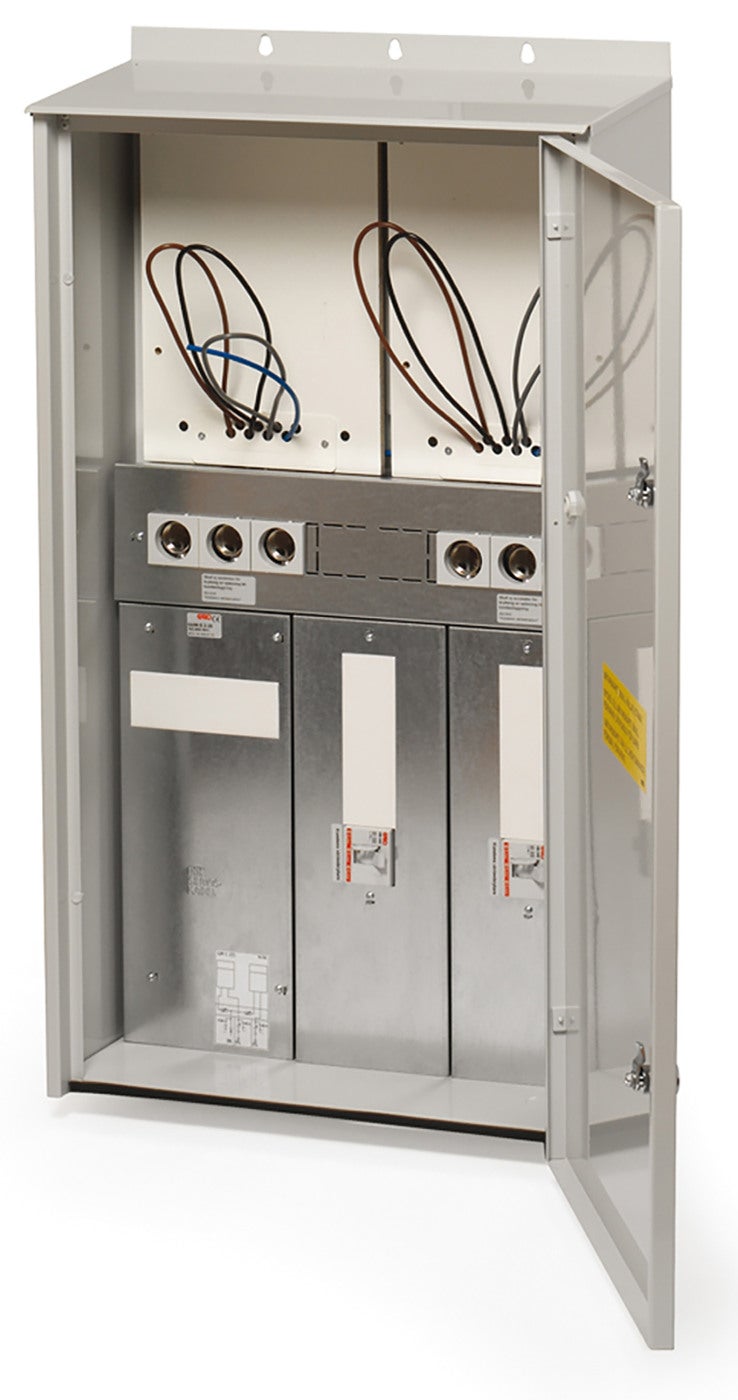

Meter cabinets servis W520 2-places
The meter cabinet is adapted for two meter locations with thread II and can be fitted with surge protector. E2270012 is also equipped with service fuse III. Meter cabinet type-S surface mounted 25A 2-places.
| Type designation | GUM-S 2-25 |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Mounting method | Surface mounted |
| Modelltype | GUM |
| Module space measured | 8 |
| Lock | Yes |
| RAL-number | RAL7035 |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 8 |
| Outgoing [mm²] | 16mm² Cu |
| Degree of protection [IP] | IP23 |
| Name | METERCABINET SURF 25A 2PL S |
|---|---|
| E-number | E2270018 |
| Article number | 2270018 |
