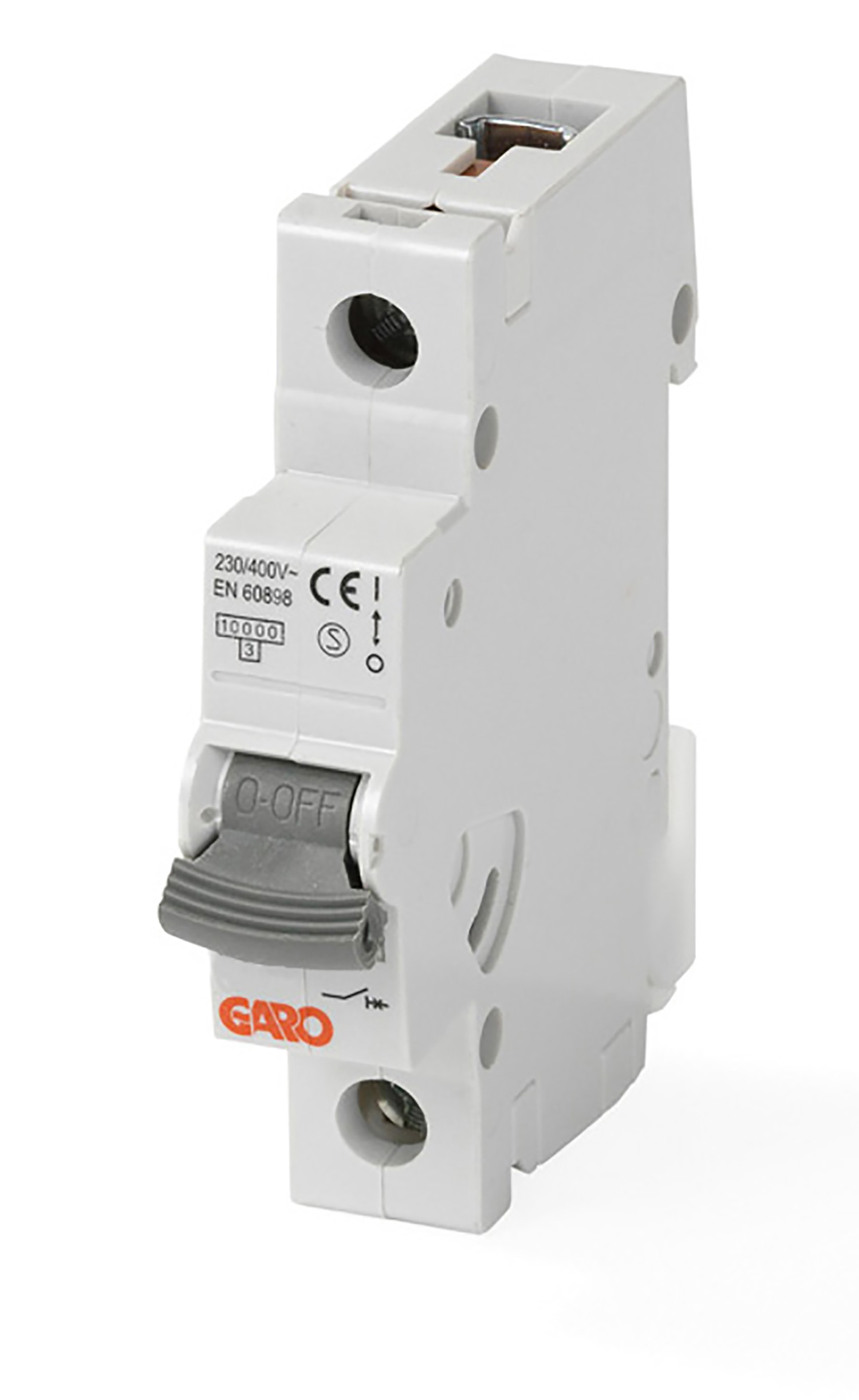

MCB 10kA 1-pole B-characteristics
Miniature circuit breaker 10kA ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10kA. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GS B-Characteristic 40A 10kA 1-pole
-
MCB GS B-KAR 6A 10kA 1PE-number
2142160Article number
2142160 -
MCB G B-KAR 10A 10kA 1PE-number
2142161Article number
2142161 -
MCB GS B-KAR 13A 10kA 1PE-number
2142162Article number
2142162 -
MCB GS B-KAR 16A 10kA 1PE-number
2142163Article number
2142163 -
MCB GS B-KAR 20A 10kA 1PE-number
2142164Article number
2142164 -
MCB GS B-KAR 25A 10kA 1PE-number
2142165Article number
2142165 -
MCB GS B-KAR 32A 10kA 1PE-number
2142166Article number
2142166 -
MCB GS B-KAR 40A 10kA 1PE-number
2142167Article number
2142167 -
MCB GS B-KAR 50A 10kA 1PE-number
2142168Article number
2142168 -
MCB GS B-KAR 63A 10kA 1PE-number
2142169Article number
2142169
| Poles | 1 |
|---|---|
| Rated voltage [V AC] | 240/415 |
| Frequency [Hz] | 50/60 |
| Degree of protection [IP] | 20 |
| Wire flexible [mm²] | 1-25 |
| Colour | Grey |
| Tightening torque [Nm] | 3,5 |
| Temperature range [C] | -25...+55 |
| Storage temperature [C] | -35...+55 |
| Modules [pcs] | 1 |
| Standard | EN 60898-1 |
| Package size [pcs] | 12 |
| Width [mm] | 18 |
| Height [mm] | 90 |
| Depth [mm] | 75 |
| Materials | Plastic |
| Rated short-circuit cap. [kA] | 10 |
| Connection type | Screw |
| Claim prefuse [A] | 125 |
| Tripping characteristics | B |
| Name | MCB GS B-KAR 40A 10kA 1P |
|---|---|
| E-number | 2142167 |
| Article number | 2142167 |
| Type designation | MCB GS B140 |
| Rated current [A] | 40 |
| Netweight [kg] | 0.10 |
