• SWITCH SAFETY 4P 16A WHITE AS - 1

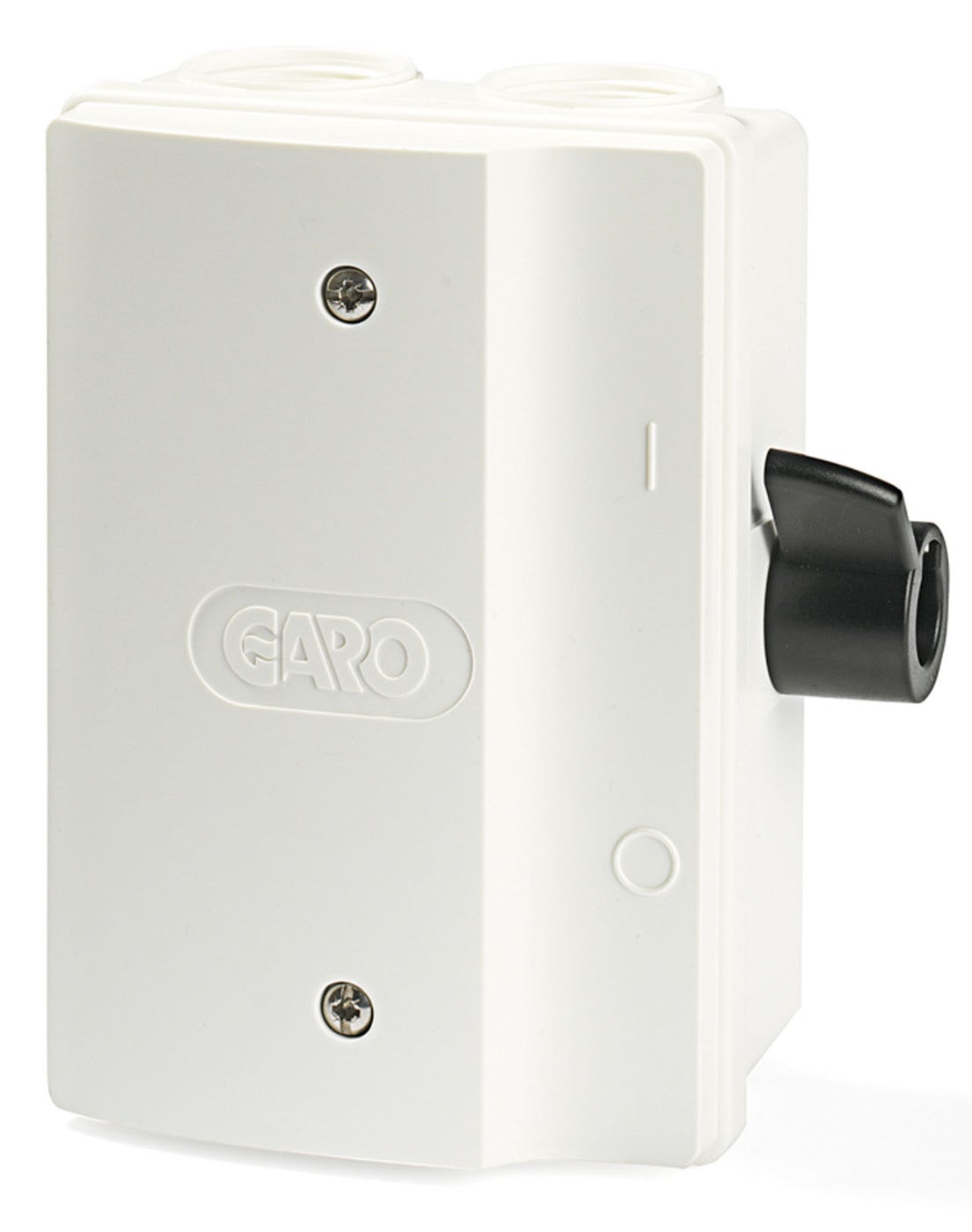

  • SWITCH SAFETY 4P 16A WHITE AS - 2

Safety switches 4-poles with auxiliary switch

Safety switches polycarbonate with auxiliary switch Safety switch white 4 poles 16A with auxilliary
E-number
E3155224
Article number
3155224
Support
Standard EN60947-3
Mounting method Wall mounting
Isolation voltage [V] 690V AC
Degree of protection [IP] IP65
Auxiliary contact Yes
Name SWITCH SAFETY 4P 16A WHITE AS
E-number E3155224
Article number 3155224
Type designation SBG 416VH
Color White
Number of poles 4P
RAL-number RAL9010
Power[kW] 7,5kW
Rated current AC23 400V [A] 16A
Connection PE [mm²] 6mm²
Connection area 16
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62

More variants of Safety switches 4-poles with auxiliary switch

E-number Article number Type designation Color Number of poles RAL-number Power[kW] Rated current AC23 400V [A] With lighting Connection PE [mm²] Connection area EngineerWidth EngineerHeight EngineerDepth
SWITCH SAFETY 4P 16A GREY AS E3155205 3155205 SBG 416GH Grey 4P RAL7035 7,5kW 16A No 12+11 16 117 137 62
SWITCH SAFETY 4P 25A GREY AS E3155207 3155207 SBG 425GH Grey 4P RAL7035 11kW 25A 12+11 16 127 157 71
SWITCH SAFETY 4P 16A WHITE AS E3155224 3155224 SBG 416VH White 4P RAL9010 7,5kW 16A 6mm² 16 117 137 62
SWITCH SAFETY 4P 25A WHITE AS E3155226 3155226 SBG 425VH White 65 RAL9010 11kW 25A 12+11 16 127 157 71
SWITCH SAFETY 4P 16A RED AS E3135630 354191 SBGR 425H Red 4P RAL3009 11kW 25A 12+11 25 127 157 71
SWITCH SAFETY 4P 16A BLACK AS E3135631 354192 SBGS 425H Black 4P RAL9005 11kW 25A 12+11 16 127 157 71
