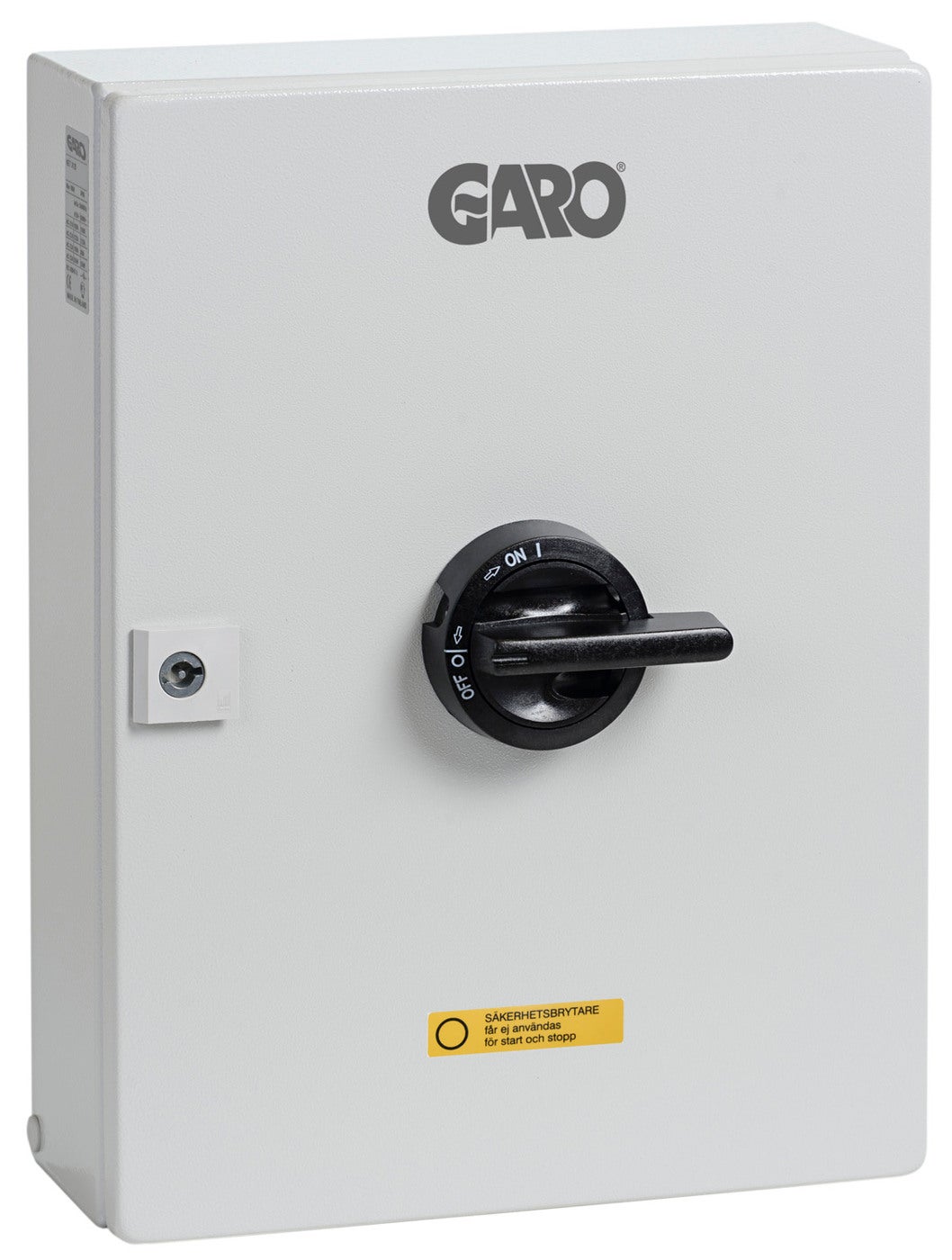

Safety switches metal 3-pole 80A
Safety switches metal Safety switch 3-pole 80A made of sheet steel. IP65
| Type designation | GKUT380T1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Sheet metal |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Floor fastening |
| RAL-number | RAL7035 |
| Power[kW] | 45kW |
| Cable gland | 2xM40+M16 |
| Isolation voltage [V] | 690V AC |
| Rated current AC23 400V [A] | 80A |
| Degree of protection [IP] | IP65 |
| Connection N [mm²] | 70mm² |
| Connection PE [mm²] | 70mm² |
| Connection area | 70 |
| Auxiliary contact | Yes |
| NetProductWeight | 7.5 |
| EngineerWidth | 310 |
| EngineerHeight | 435 |
| EngineerDepth | 190 |
| Name | SWITCH SAFETY 3P 80A M |
|---|---|
| E-number | E3134189 |
| Article number | 107613 |
