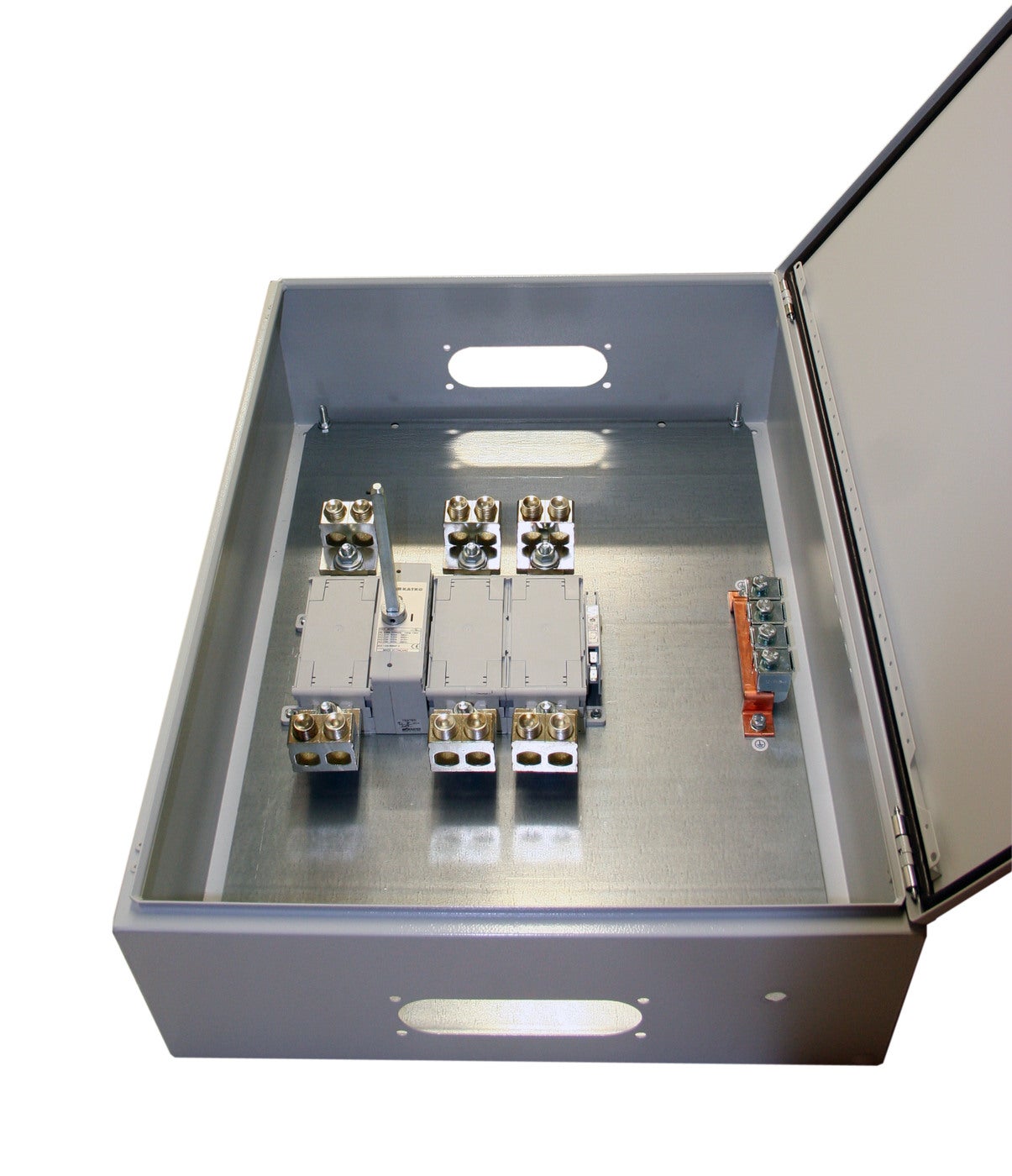

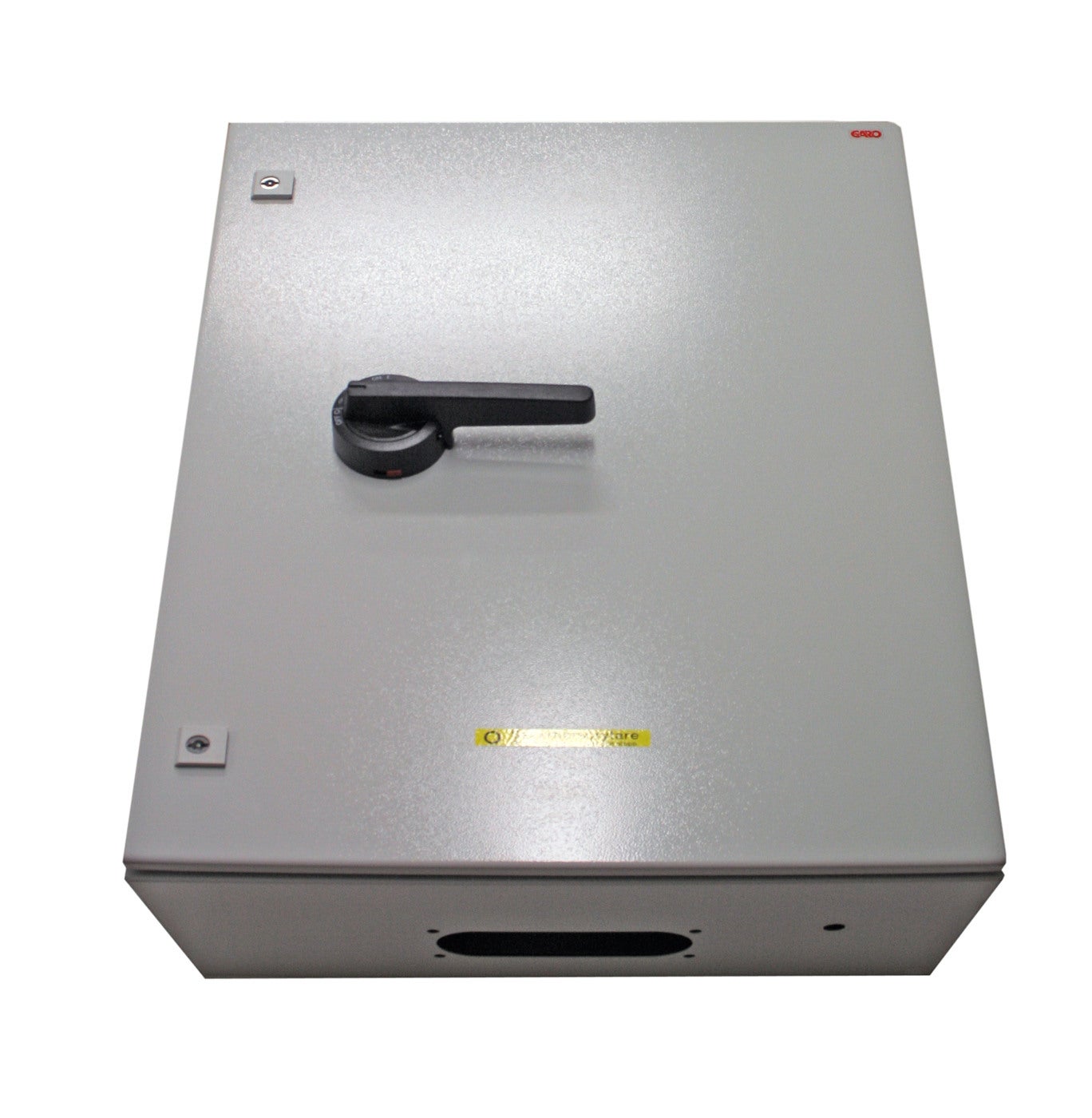

Safety switches metal 3-pole 630A
Safety switches metal Safety switch 3-pole 630A made of sheet steel. IP65
| Type designation | GKUT3630VT1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Sheet metal |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Floor fastening |
| RAL-number | RAL7035 |
| Power[kW] | 355kW |

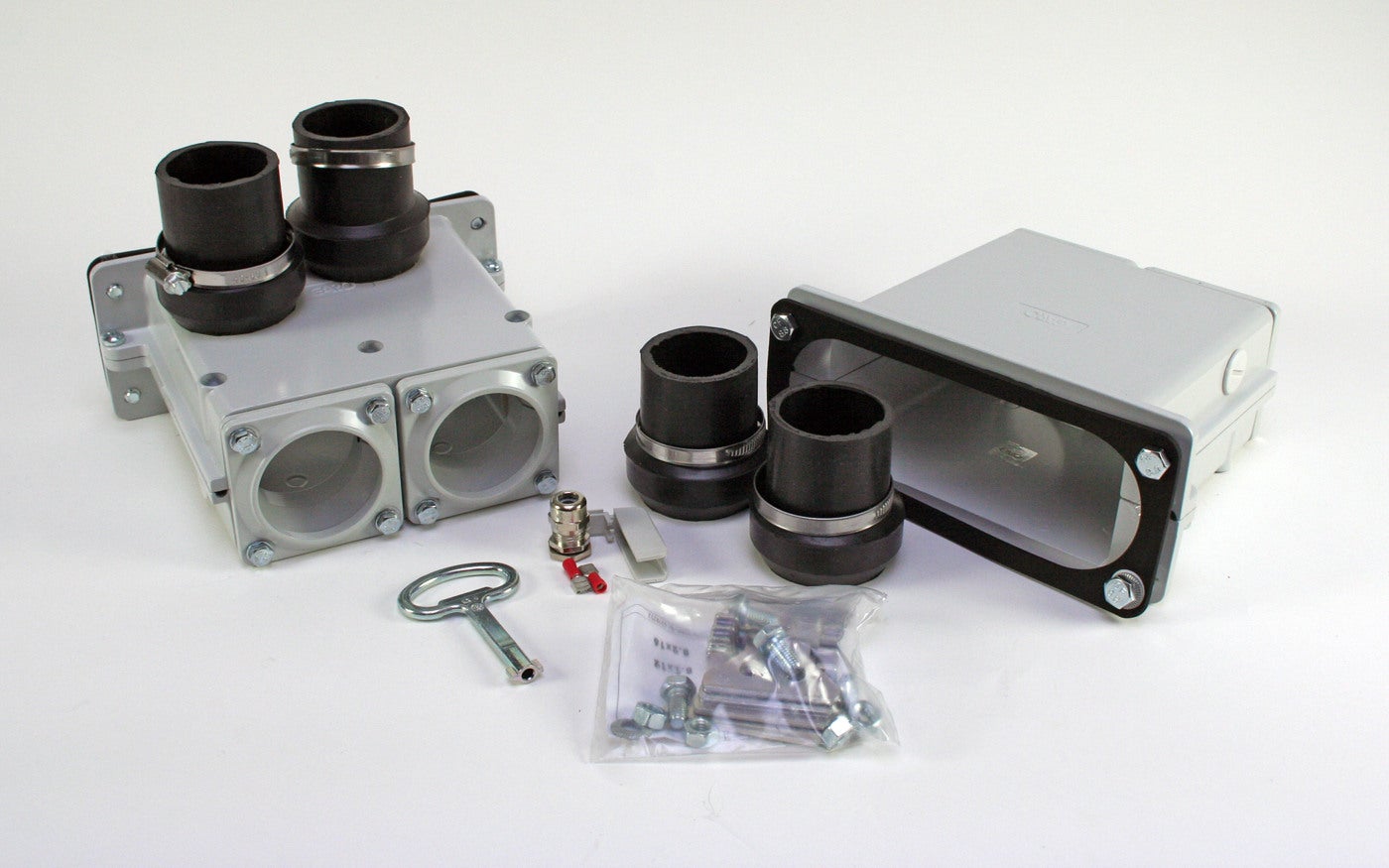

| Cable gland | 2xKF221-56+M16 |
| Isolation voltage [V] | 1000V AC |
| Rated current AC23 400V [A] | 630A |
| Degree of protection [IP] | IP65 |
| Connection PE [mm²] | 70-185 |
| Auxiliary contact | Yes |
| Name | SWITCH SAFETY 3P 630A M |
|---|---|
| E-number | E3134193 |
| Article number | 107617 |
