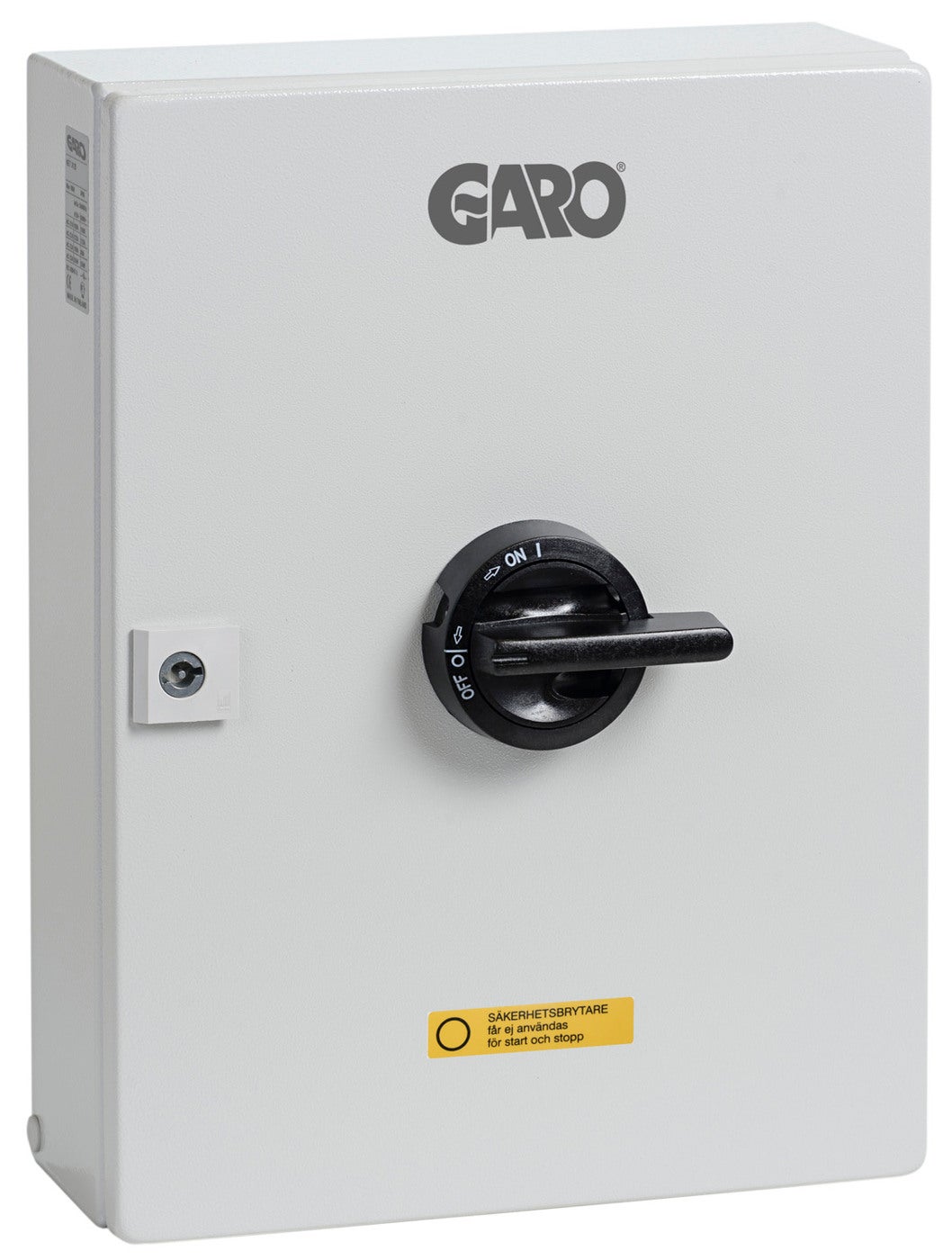

Safety switches metal 3-pole 125A
Safety switches metal Safety switch 3-pole 125A made of sheet steel. IP65
| Type designation | GKUT3125AVT1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Sheet metal |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Floor fastening |
| RAL-number | RAL7035 |
| Power[kW] | 55kW |
| Isolation voltage [V] | 400V |
| Rated current AC23 400V [A] | 125A |
| Degree of protection [IP] | IP65 |
| Connection PE [mm²] | 70mm² |
| Connection area | 120 |
| Auxiliary contact | Yes |
| NetProductWeight | 8.5 |
| EngineerWidth | 310 |
| EngineerHeight | 435 |
| EngineerDepth | 190 |
| Name | SWITCH SAFETY 3P 125A M |
|---|---|
| E-number | E3134190 |
| Article number | 107614 |
