CONSUMER UNIT METAL RECED 3R42M WO BOX

Consumer units metal W335 14mod IP30

GARO’s metal cabinets for recess mounting in walls, delivered without bottom tray. The cabinets are always supplied with a door that can be hung as needed. The doors are prepared for the possible installation of locks. The depth behind the DIN rails is 23 mm in the metal enclosure. The cabinets are equipped with snap-in terminal blocks. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help du CONSUMER UNIT METAL RECED 3R42M WO BOX
E-number
E2290012
Article number
356005
Support
Standard EN61439-3
Housing material Sheet metal
Color White
Rated voltage [V AC] 400V AC
Mounting method Flush mounted
Modelltype NIM
Lock No
RAL-number RAL9010
DIN-rail Yes
Further feeding [A] Further feeding 63A
Mountingplate No
Recessed depth [mm] 82mm
Recessed width [mm] 312mm
Type of door Single
Degree of protection [IP] IP30
Bottombox No
EngineerWidth 335
EngineerDepth 115
Name CONSUMER UNIT METAL RECED 3R42M WO BOX
E-number E2290012
Article number 356005
Type designation NIM 42-3U
Frequency [Hz] 50Hz
Rated current [A] 50A
Number of modules 42
Connection N [pcs] 15+16
Connection PE [pcs] 26
Number of rows 3
Recessed height [mm] 518mm
NetProductWeight 4.1
EngineerHeight 547

More variants of Consumer units metal W335 14mod IP30

E-number Article number Type designation Frequency [Hz] Rated current [A] Number of modules Connection N [pcs] Connection PE [pcs] Number of rows Recessed height [mm] NetProductWeight EngineerHeight
CONSUMER UNIT METAL RECED 1R14M WO BOX E2290010 356001 NIM 14-1U 35A 14 16 16 1 268mm 2.5 297
CONSUMER UNIT METAL RECED RR28M WO BOX E2290011 356003 NIM 28-2U 50Hz 50A 28 16 16 2 393mm 3.2 422
CONSUMER UNIT METAL RECED 3R42M WO BOX E2290012 356005 NIM 42-3U 50Hz 50A 42 15+16 26 3 518mm 4.1 547

Accessories for Consumer units metal W335 14mod IP30

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2 BUSBAR PHASE 3PH 9M 10MM2 E2142371 110390 GBB 3-09-10 Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 14M 10MM2 BUSBAR PHASE 3PH 14M 10MM2 E2142373 110395 GBB 3-14-10 Busbar phase 3PH 14M 10MM2
BUSBAR PHASE 3PH 20M 10MM2 BUSBAR PHASE 3PH 20M 10MM2 E2142375 110402 GBB 3-21-10 Busbar phase 3PH 20M 10MM2
BUSBAR PHASE 3PH 25M 10MM2 BUSBAR PHASE 3PH 25M 10MM2 E2142376 110405 GBB 3-25-10 Busbar phase 3PH 25M 10MM2
BUSBAR PHASE 3PH 57M 10MM2 BUSBAR PHASE 3PH 57M 10MM2 E2142377 110406 GBB 3-57-10 Busbar phase 3PH 57M 10MM2
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²
BLANKING STRIP 14M BLANKING STRIP 14M E2178151 2178151 TB 14 BLANKING STRIP 14 Modules

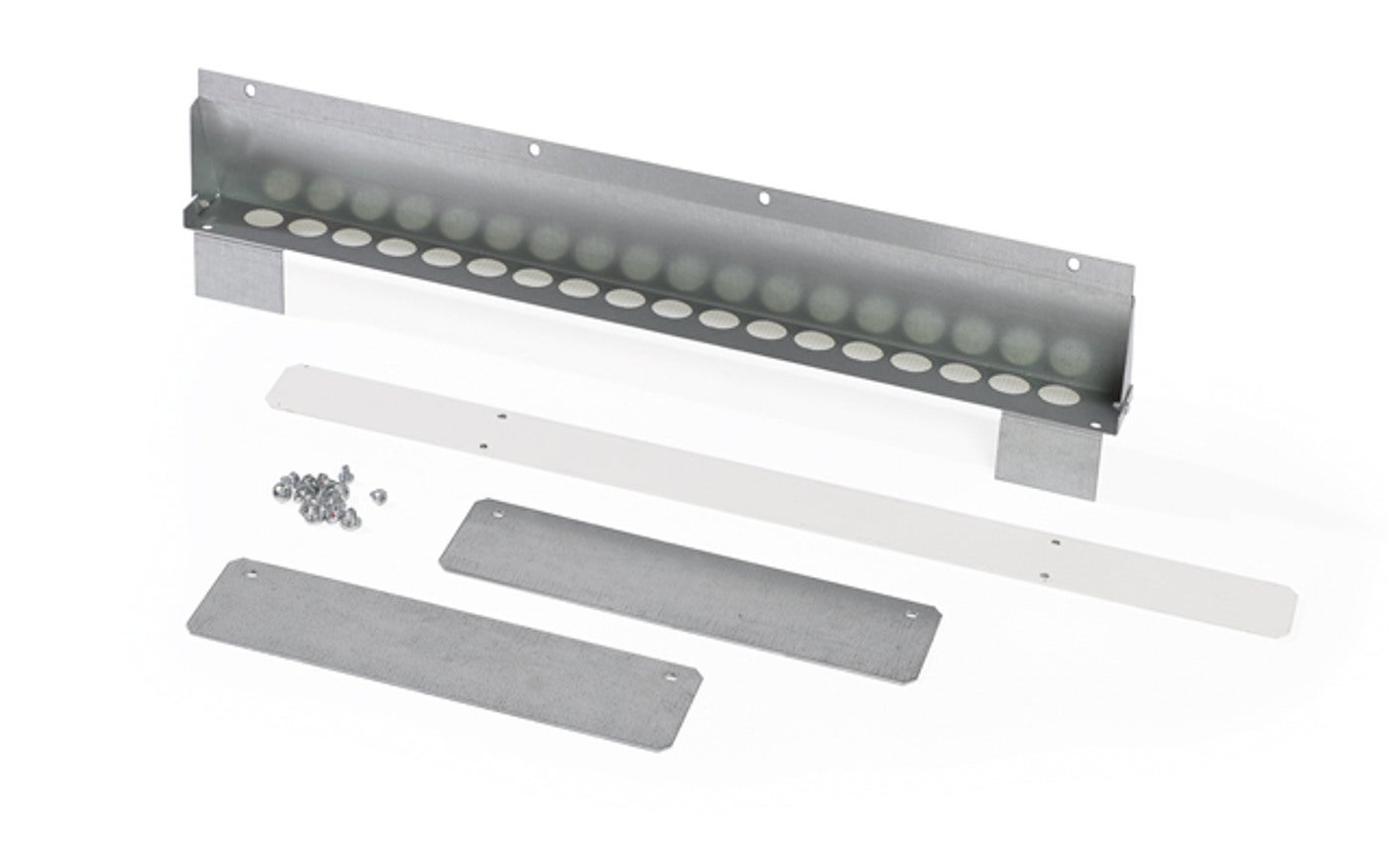

REAR ENTRY NIM 20MOD REAR ENTRY NIM 20MOD E2270746 2270746 IGB-20 Rear entry for vertical mounting between media,-and normcentral,fits recessed central 20-modules.
NUMBERLIST 1-120 NUMBERLIST 1-120 E2270839 2270839 NLT 1-120 Numberlist 1-120
CHASSI CONNEC B-BOX OU CHASSI CONNEC B-BOX OU E2270869 2270869 NUCKI-V Chassis connection for over-under mounting of bottomboxes,W487xH40.
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
NUMBERLIST 1-75 NUMBERLIST 1-75 E2270911 2270911 NLT 1-75 Numberlist 1row 75modules
CHASSI CONNEC B-BOX H488 SS CHASSI CONNEC B-BOX H488 SS E2270980 2270980 NUCKI Chassis connection for side-by-side mounting of bottomboxes,L81xW27xH488.
CHASSICONNECTION H688 CHASSICONNECTION H688 E2270984 2270984 NUCK-4 Chassis connection for side-by-side mounting of bottomboxes,L81xW27xH688.

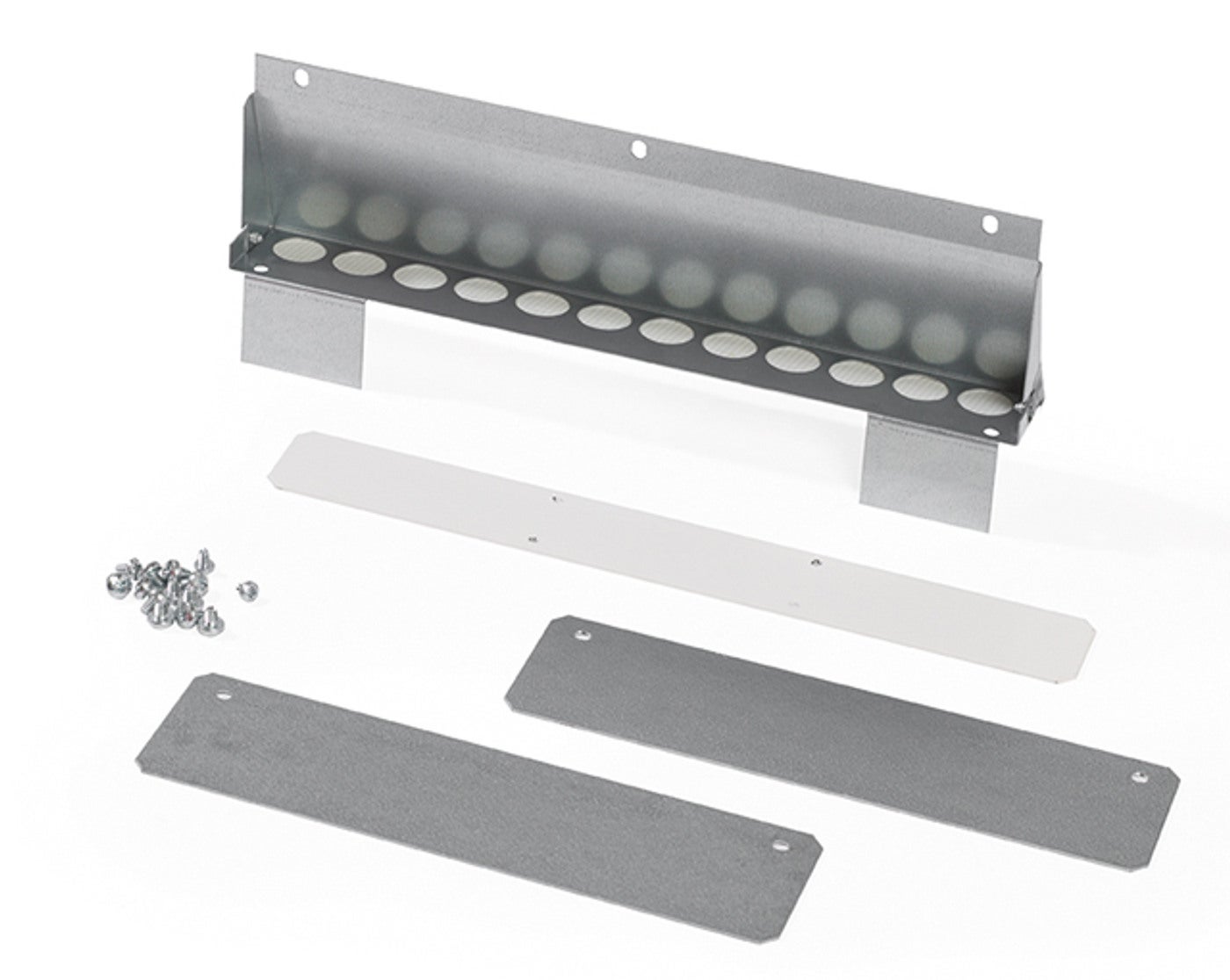

REAR ENTRY NIM 14MOD REAR ENTRY NIM 14MOD E2270989 2270989 IGB-14 Rear entry for vertical mounting between media,-and normcentral,fits recessed central 14-modules.
