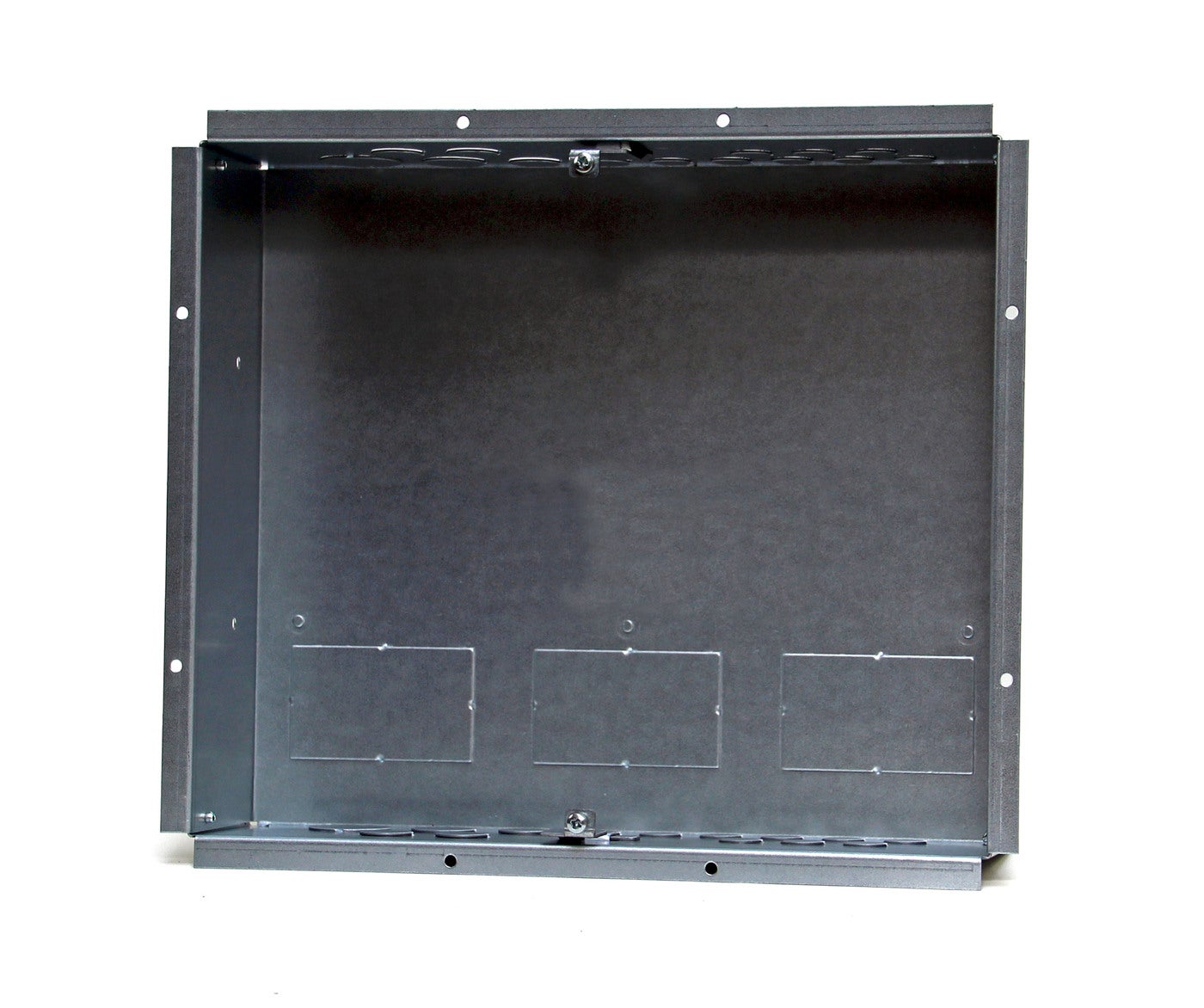

BOTTOMBOX 1R 14M

Bottomboxes 14modules D82

Bottomboxes Width 312mm and depth 82mm 14modules Bottombox 1row 14modules D82mm fits NIM 14-1
E-number
E2290039
Article number
356054
Support
Mounting method Flush mounted
EngineerWidth 330
EngineerDepth 82
Name BOTTOMBOX 1R 14M
E-number E2290039
Article number 356054
Type designation NIL 14-1
Materials Sheet steel
Number of modules 14
Number of rows 1
Knockouts Ø25 Down [pcs] 1
Knockouts Ø25 Up [pcs] 1
Knockouts Ø16 Up [pcs] 8
Knockouts Ø20 Down [pcs] 4
Knockouts Ø20 Up [pcs] 4
Knockouts Ø16 Down [pcs] 8
NetProductWeight 2.1
EngineerHeight 288

More variants of Bottomboxes 14modules D82

E-number Article number Type designation Materials Number of modules Number of rows Knockouts Ø25 Down [pcs] Knockouts Ø25 Up [pcs] Knockouts Ø16 Up [pcs] Knockouts Ø20 Down [pcs] Knockouts Ø20 Up [pcs] Knockouts Ø16 Down [pcs] NetProductWeight EngineerHeight
BOTTOMBOX 1R 14M E2290039 356054 NIL 14-1 Sheet steel 14 1 1 1 8 4 4 8 2.1 288

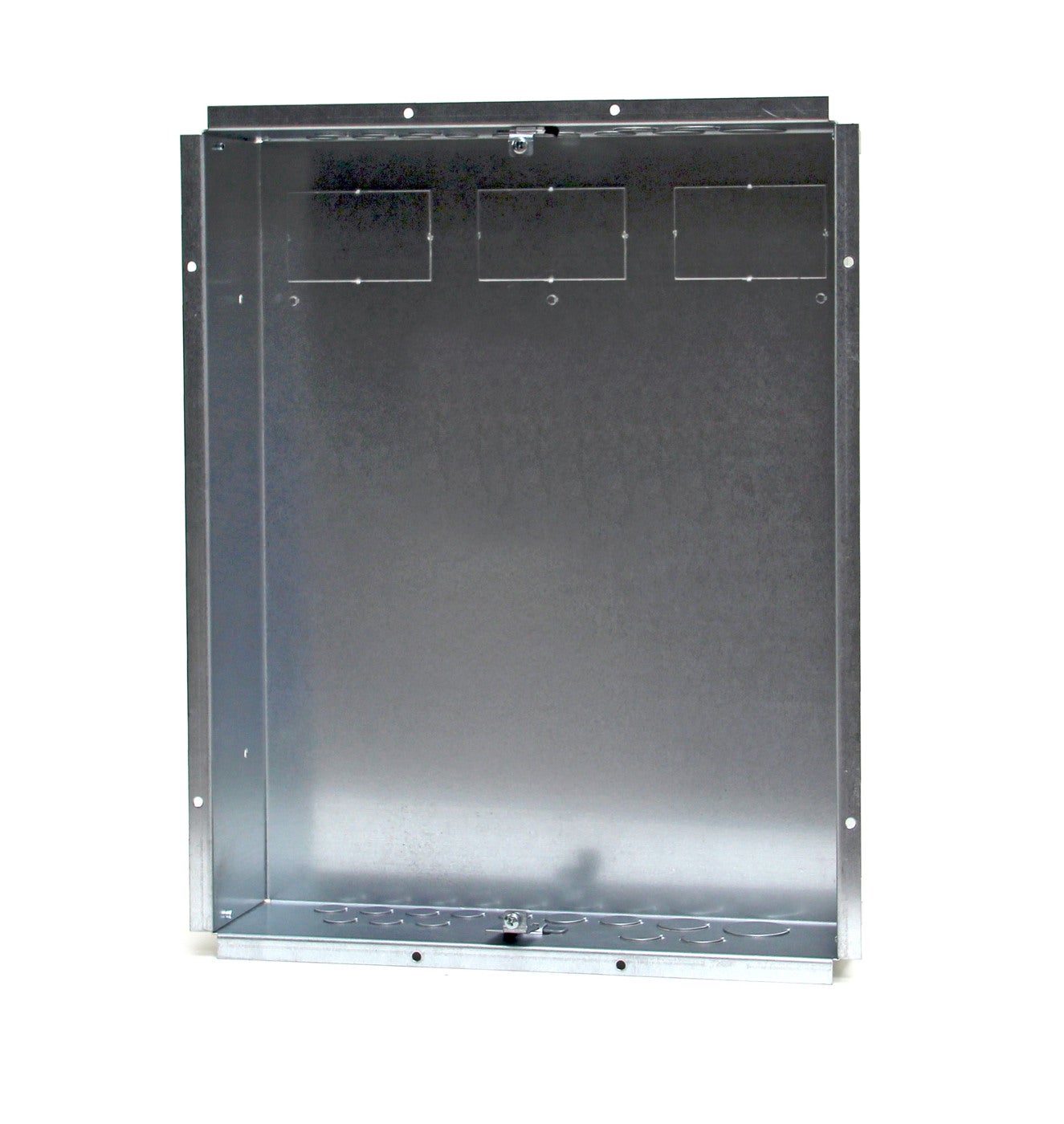

BOTTOMBOX 2R 28M E2290040 356055 NIL 28-2 Sheet metal 28 2 1 8 4 4 8 2.35 413

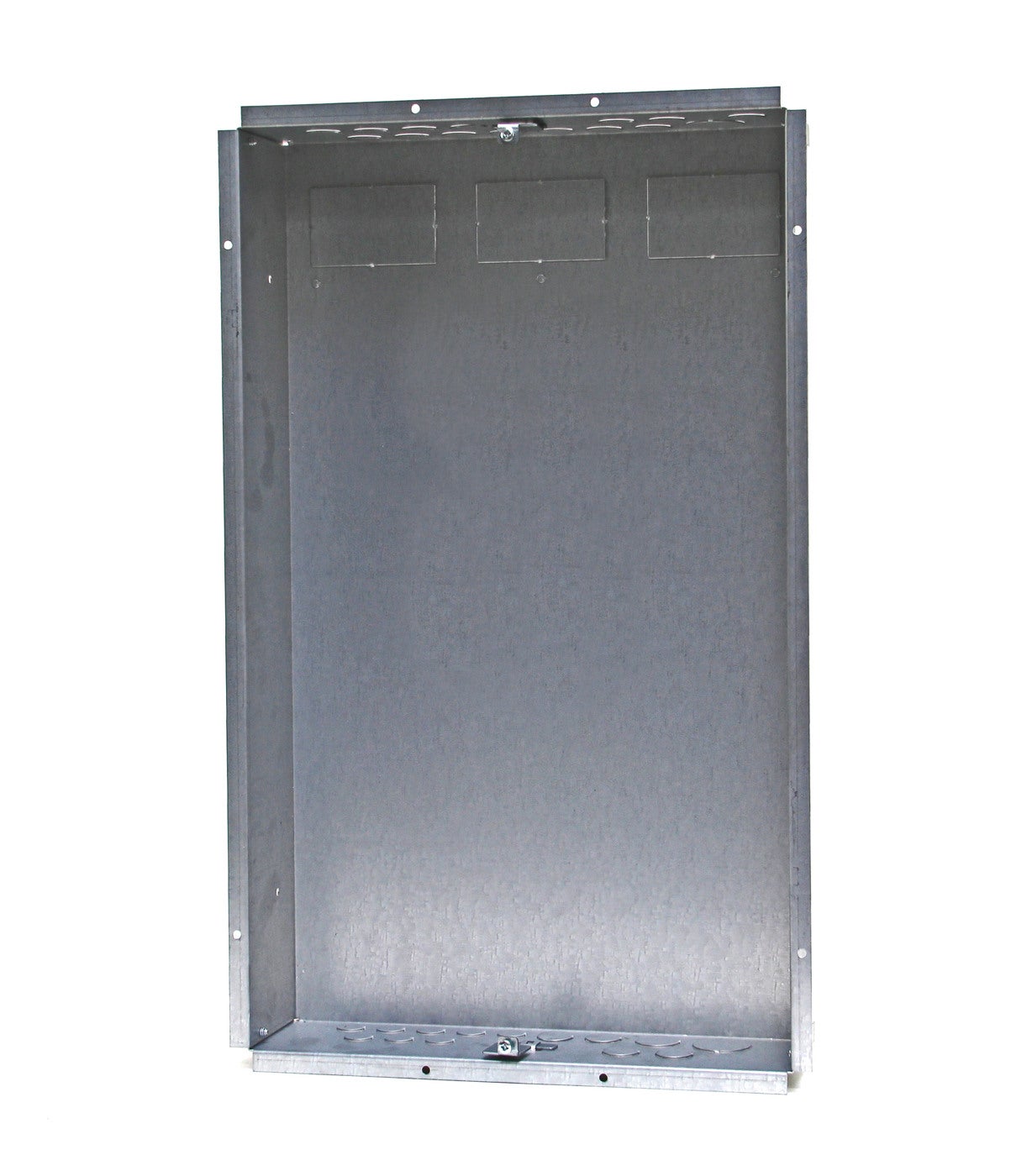

BOTTOMBOX 3R 42M E2290041 356056 NIL 42-3 Sheet metal 42 3 1xM25 4xM20 14xM20 8XM16 2.42 538
