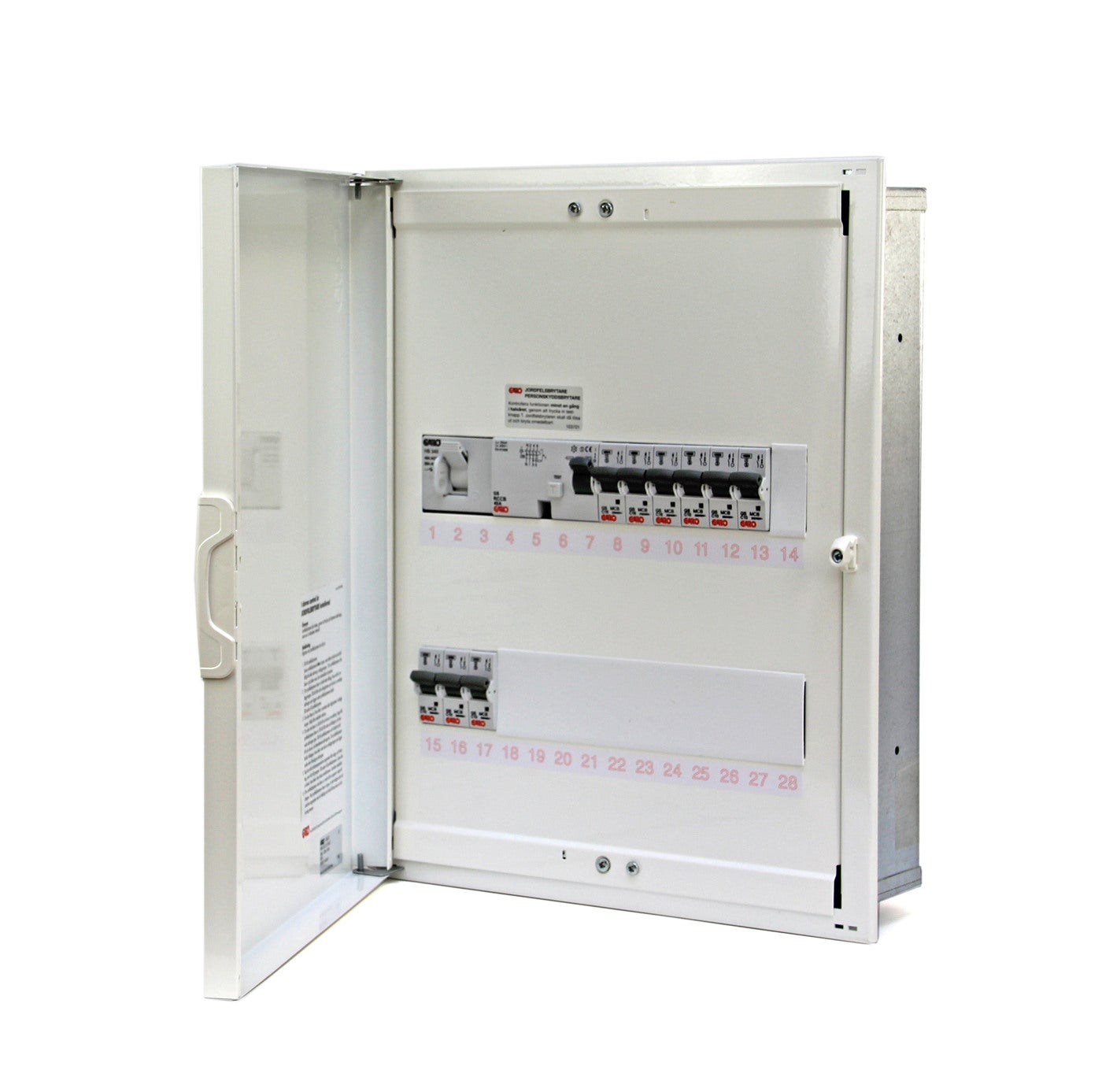

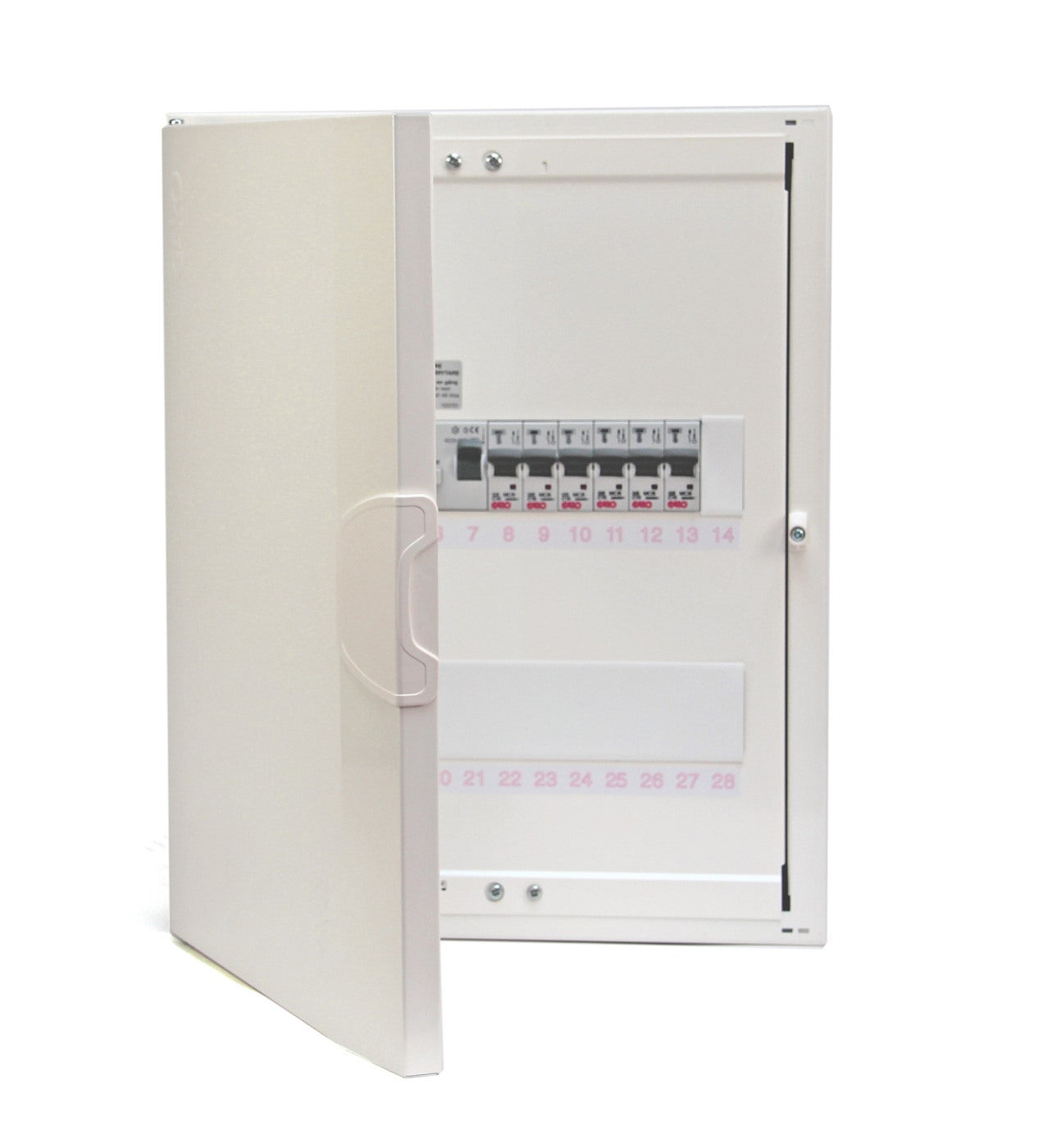

Metal cabinet W335 14mod equipped
GARO’s metal cabinets for flush mounting in walls, delivered with bottom tray. The cabinets are always supplied with a door that can be hung as needed. The doors are prepared for the possible installation of locks. The depth behind the DIN rails is 23 mm in the metal enclosure. The cabinets are equipped with snap-in terminal blocks. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help during Metal cabinet recessed mounting 2 rows 28 modules equipped
E-number
E2290074
E2290074
Article number
356072
356072
| Standard | EN61439-3 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Sheet metal |
| Color | White |
| Rated current [A] | 50A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Flush mounted |
| Modelltype | NIM |
| Energymeter | No |
| RAL-number | RAL9010 |
| Further feeding [A] | Further feeding 63A |
| Switch [pcs] | 3x40A |
| Number of MCB 1P (2) | 3pcs C116 |
| Number of RCCB [pcs] 1 | 1pcs 4P 40A |
| Degree of protection [IP] | IP30 |
| EngineerWidth | 335 |
| EngineerDepth | 115 |
| Name | MET CAB REC 2R 28M EQUIP |
|---|---|
| E-number | E2290074 |
| Article number | 356072 |
| Type designation | NIM 28-2 G-PACK |
| Number of modules | 28 |
| Number of rows | 2 |
| Number of MCB 1P (1) | 6pcs C110 |
| NetProductWeight | 7.1 |
| EngineerHeight | 422 |
