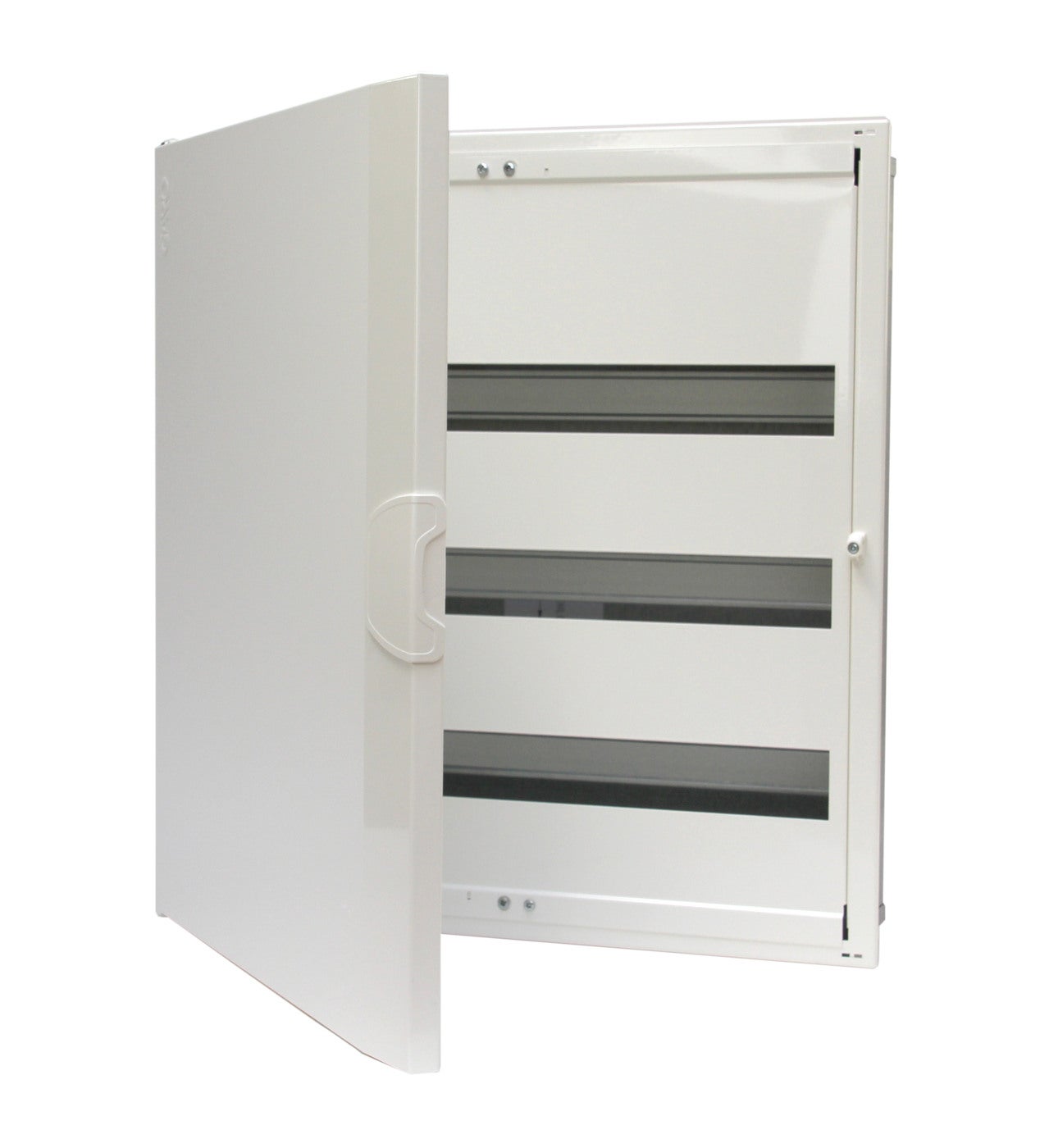

Metal cabinet W51 25mod
GARO’s metal cabinets for recess mounting in walls, delivered with bottombox. The cabinets are always supplied with a door that can be hung as needed. The doors are prepared for the possible installation of locks. The depth behind the DIN rails is 23 mm in the metal enclosure. The cabinets are equipped with snap-in terminal blocks. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help during CONSUMER UNIT METAL RECED 3R75M W BOX
E-number
E2290009
E2290009
Article number
356016
356016
| Type designation | NIM 75-3 |
|---|---|
| Standard | EN61439-3 |
| Short-circuit current [kA] | 10kA |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet metal |
| Color | White |
| Rated current [A] | 50A |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 75 |
| Mounting method | Flush mounted |
| Modelltype | NIM |
| Lock | No |
| RAL-number | RAL9010 |
| Connection N [pcs] | 11+10+11+11 |
| Connection PE [pcs] | 25+25 |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | No |
| Number of rows | 3 |
| Recessed depth [mm] | 82mm |
| Recessed height [mm] | 968mm |
| Recessed width [mm] | 492mm |
| Type of door | Single |
| Degree of protection [IP] | IP30 |
| Bottombox | Yes |
| NetProductWeight | 9 |
| EngineerWidth | 515 |
| EngineerHeight | 547 |
| EngineerDepth | 115 |
| Name | CONSUMER UNIT METAL RECED 3R75M W BOX |
|---|---|
| E-number | E2290009 |
| Article number | 356016 |
