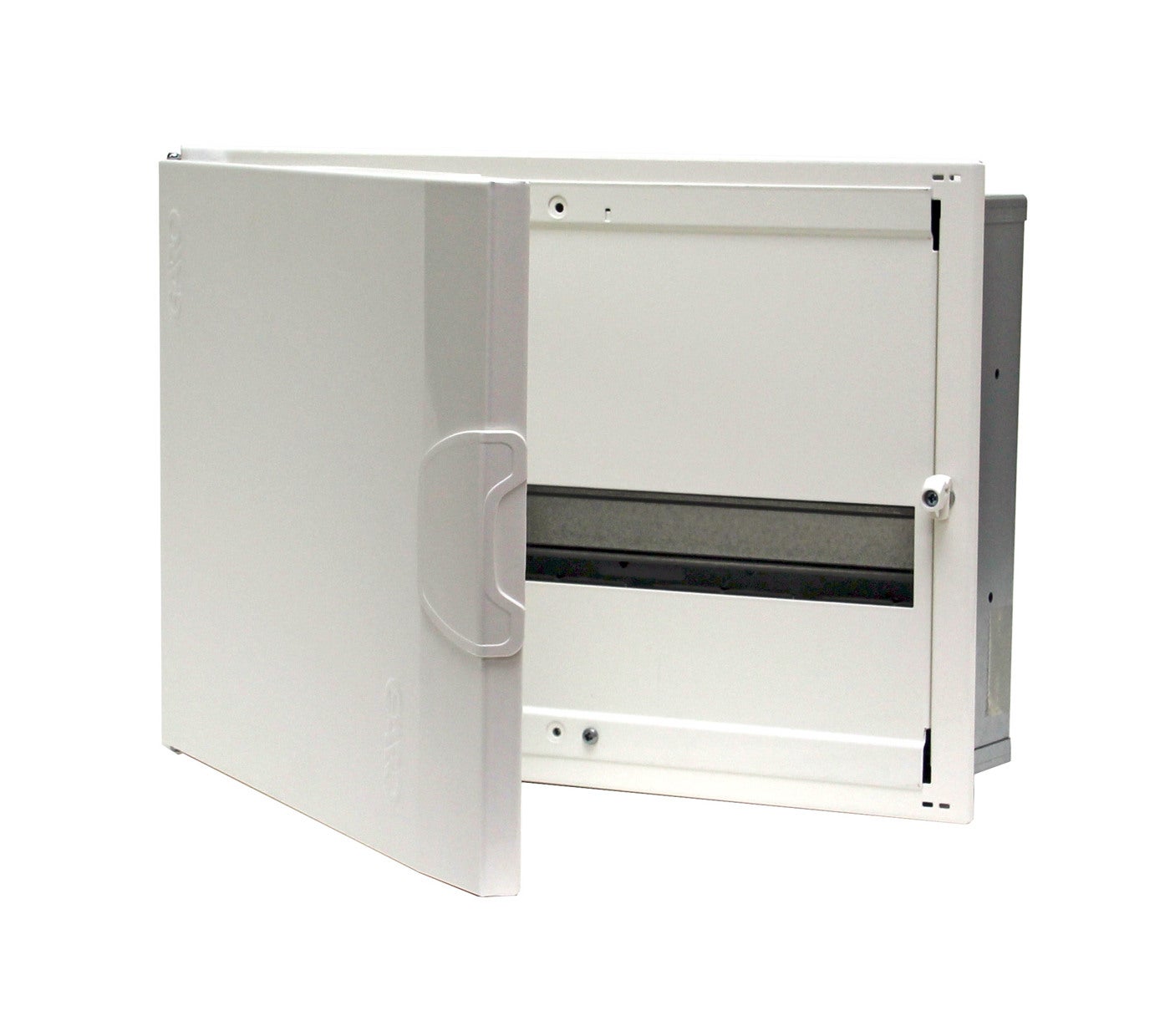

Metal cabinet W335 14mod
GARO’s metal cabinets for flush mounting in walls, delivered with bottom tray. The cabinets are always supplied with a door that can be hung as needed. The doors are prepared for the possible installation of locks. The depth behind the DIN rails is 23 mm in the metal enclosure. The cabinets are equipped with snap-in terminal blocks. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help during Metal cabinet recessed 1row 14modules with bottombox
E-number
E2290001
E2290001
Article number
356000
356000
| Standard | EN61439-3 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet metal |
| Color | White |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Flush mounted |
| Modelltype | NIM |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | No |
| Recessed depth [mm] | 82mm |
| Recessed width [mm] | 312mm |
| Type of door | Single |
| Degree of protection [IP] | IP30 |
| Bottombox | Yes |
| EngineerWidth | 335 |
| EngineerDepth | 115 |
| Name | CONSUMER UNIT METAL RECED 1R14M W BOX |
|---|---|
| E-number | E2290001 |
| Article number | 356000 |
| Type designation | NIM 14-1 |
| Rated current [A] | 35A |
| Number of modules | 14 |
| Connection N [pcs] | 16 |
| Connection PE [pcs] | 16 |
| Number of rows | 1 |
| Recessed height [mm] | 268mm |
| NetProductWeight | 3.75 |
| EngineerHeight | 297 |
