KMNN 20modules IP30 without bottombox

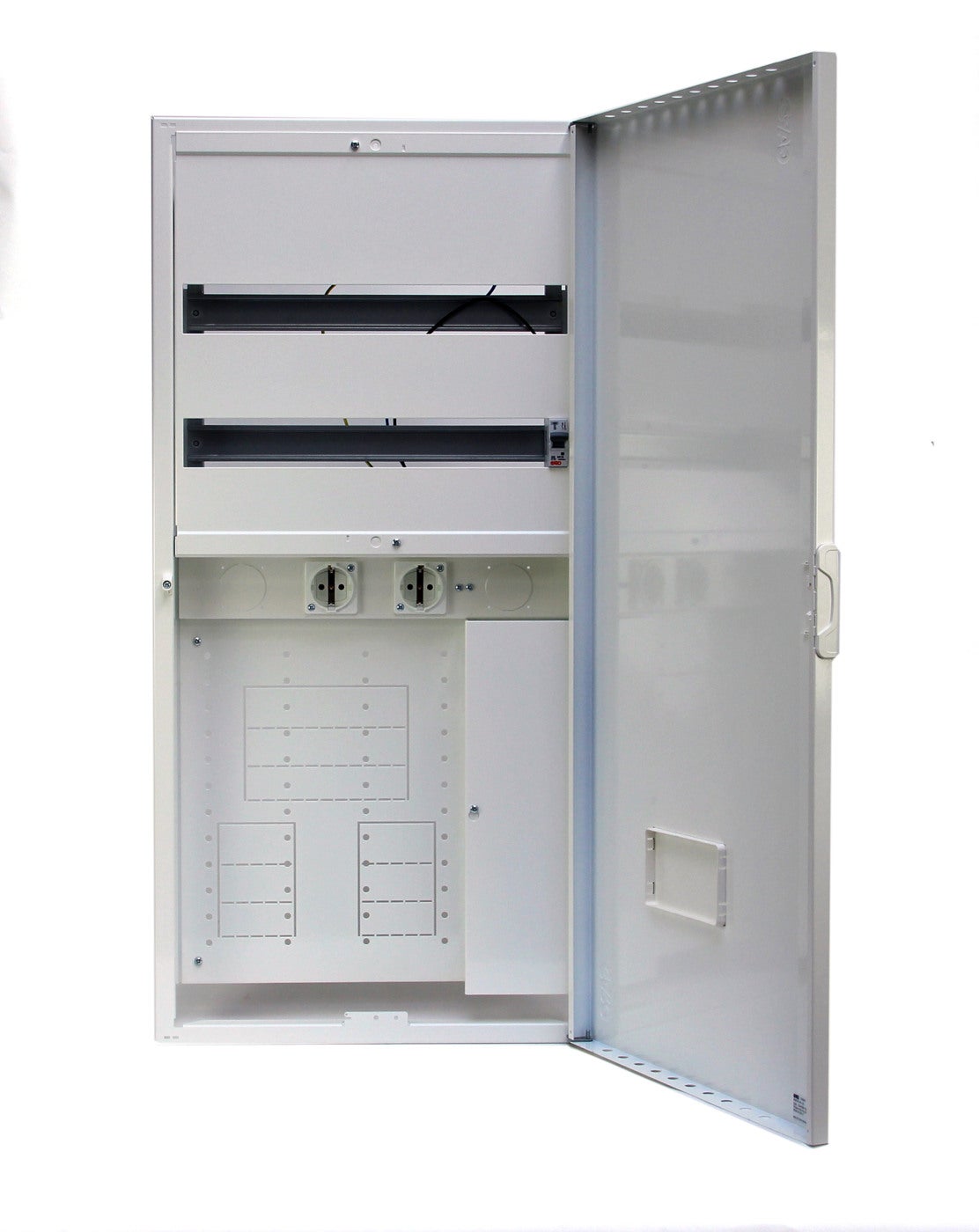

GARO’s metal cabinets, which are a combination of DIN and media metal cabinets, which can be recess mounted in the wall as well as surface mounted, delivered without a bottom tray. The media section is positioned under the DIN section. The number of modules in the DIN section is 20 on each row. Mounting panel with space for 24 x RJ45 jacks (14 x 20 mm per/hole). In addition, there is an extra RJ45 on a separate line. Four wall sockets are mounted on delivery, but two additional power outlets can be connecte Metal cabinet recessed mounting combi 2rows 40modules media under without bottombox.
E-number
E2290032
E2290032
Article number
356041
356041
| Standard | EN61439-3 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Surface mounted/recessed mounted |
| Modelltype | KMN |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | Yes |
| Recessed depth [mm] | 107mm |
| Recessed width [mm] | 395mm |
| Type of door | Single |
| Number of Schuko[pcs] | 2pcs |
| RJ45 [pcs] | 21pcs Keystone (14x20mm/hole) |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| Bottombox | No |
| EngineerWidth | 418 |
| EngineerDepth | 140 |
| Name | MET CAB REC 2R 40M COM D WO BB |
|---|---|
| E-number | E2290032 |
| Article number | 356041 |
| Type designation | KMNN 40-2/5 |
| Rated current [A] | 40A |
| Number of modules | 40 |
| Connection N [pcs] | 15+16 |
| Connection PE [pcs] | 26 |
| Number of rows | 2 |
| Recessed height [mm] | 843mm |
| NetProductWeight | 9.2 |
| EngineerHeight | 872 |
