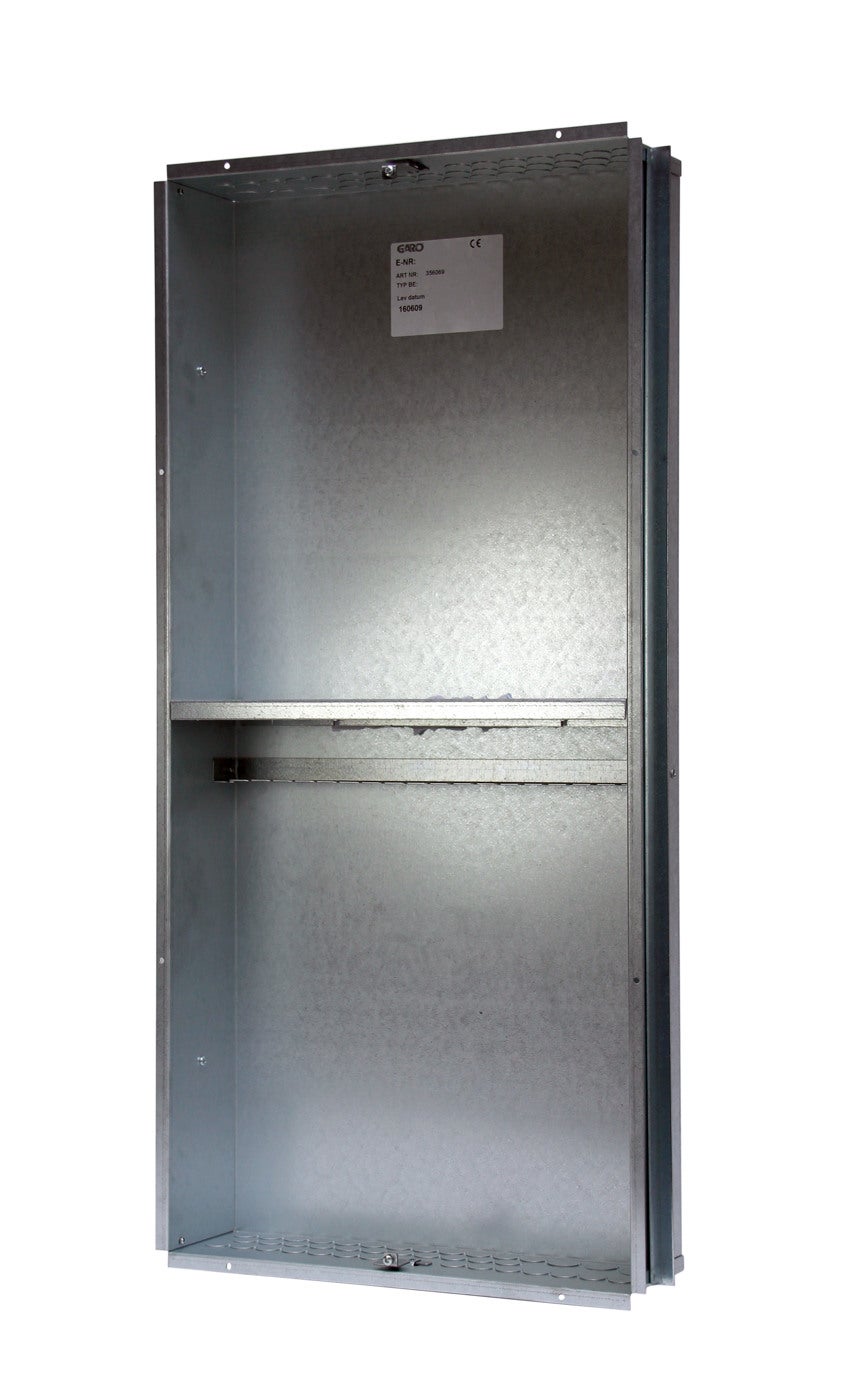

BOTTOMBOX 5R 100M MEDIA

Bottomboxes NIL-MS 20modules

GARO’s bottom trays for recess mounting in walls fit metal distribution cabinets. To support the bottom tray when embedding ,use a woodframe to ensure the bottom tray does not collapse from the pressure of the cement.The result is that the bottom tray keeps its size and the installation of the cabinet is easier. When mounting two trays above each other, accessory IGB can be used. Bottom tray 5row 100modules D107mm fits 2290029 och 2290032
E-number
E2290070
Article number
356069
Support
Materials Sheet metal
Mounting method Floor fastening
Knockouts Ø25 Down [pcs] 2
Knockouts Ø25 Up [pcs] 2
Knockouts Ø20 Down [pcs] 12xM20+6xM25+2xM32+1xM40
Knockouts Ø20 Up [pcs] 12xM20+6xM25+2xM32+1xM40
Name BOTTOMBOX 5R 100M MEDIA
E-number E2290070
Article number 356069
Type designation NIL-MS 100-5
NetProductWeight 6.5
EngineerWidth 412
EngineerHeight 863
EngineerDepth 107

More variants of Bottomboxes NIL-MS 20modules

E-number Article number Type designation NetProductWeight EngineerWidth EngineerHeight EngineerDepth
BOTTOMBOX 5R 100M MEDIA E2290070 356069 NIL-MS 100-5 6.5 412 863 107

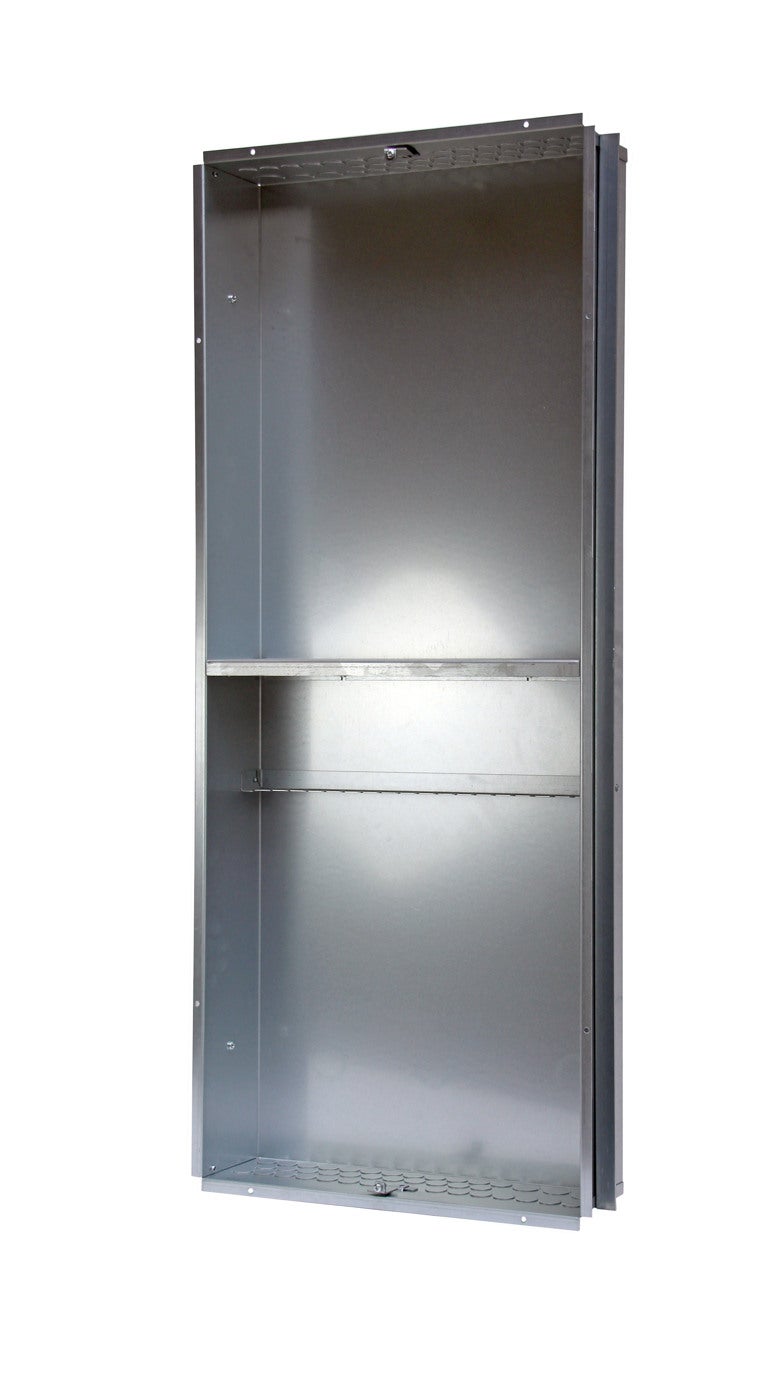

BOTTOMBOX 6R 120M MEDIA E2290071 356070 NIL-MS 120-6 7.5 400 970 110
