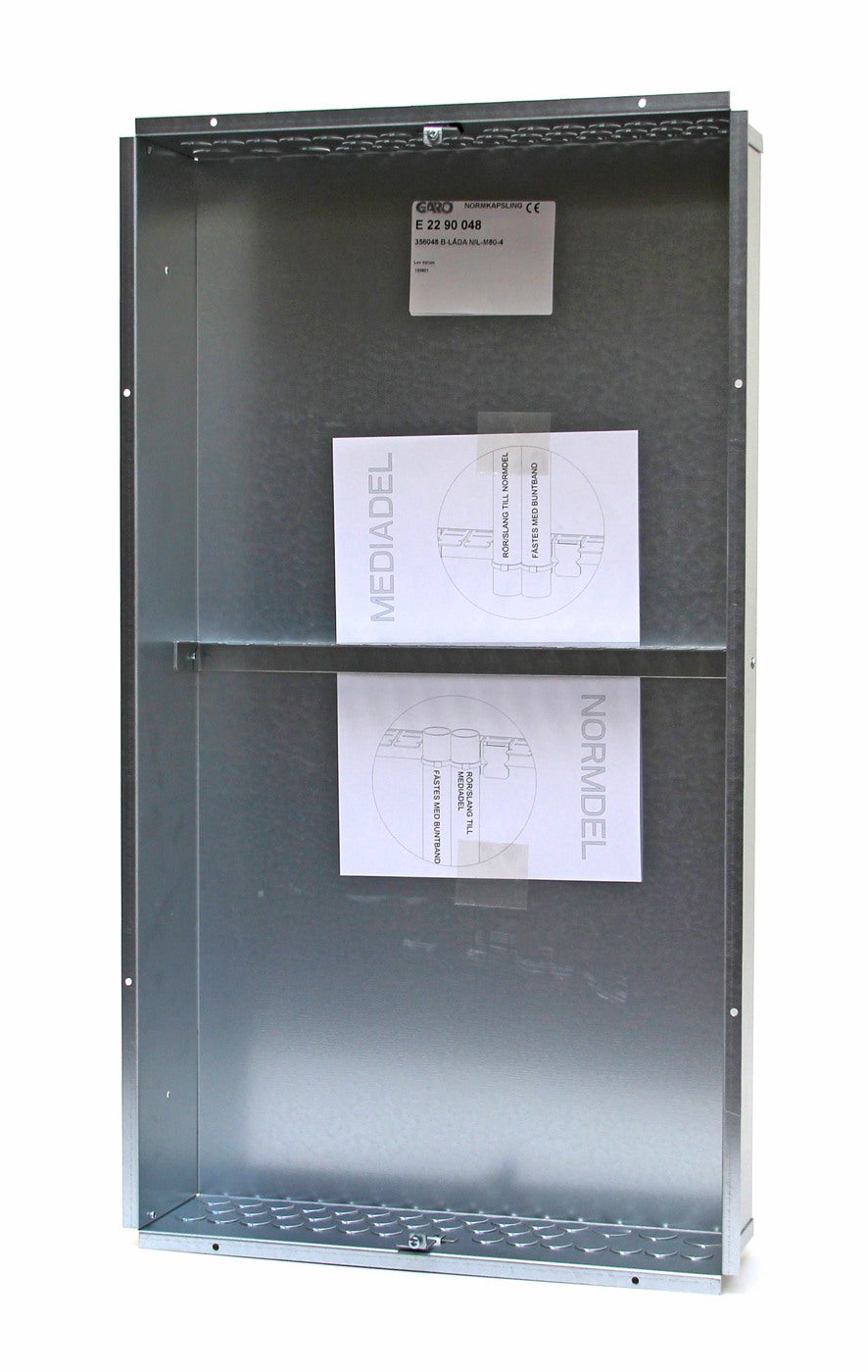

• BOTTOMBOX 4R 80M COMBI - 1

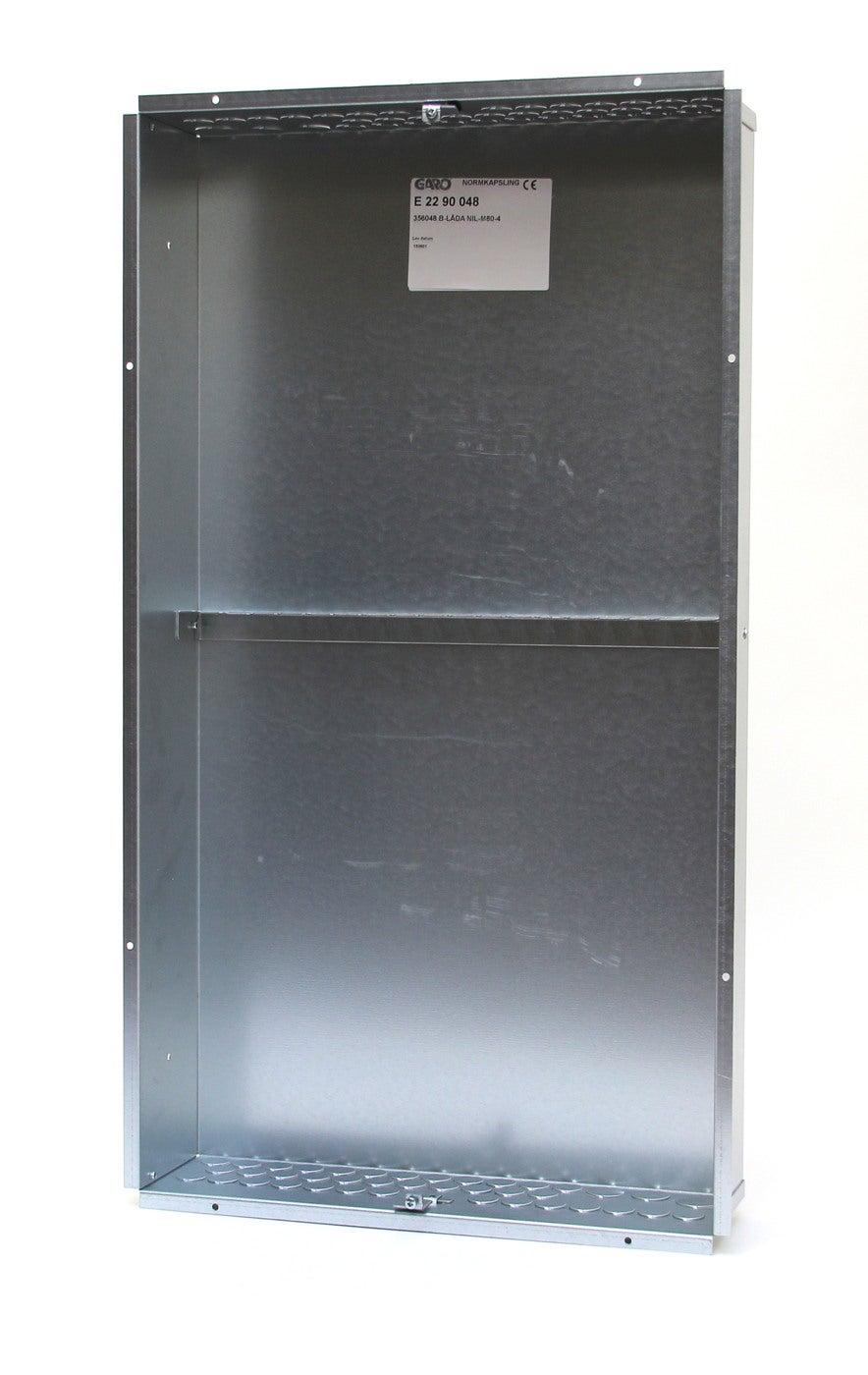

  • BOTTOMBOX 4R 80M COMBI - 2

Bottomboxes NIL-M 20modules D107

GARO’s bottom trays for recess mounting in walls fit metal distribution cabinets. To support the bottom tray when embedding ,use a woodframe to ensure the bottom tray does not collapse from the pressure of the cement.The result is that the bottom tray keeps its size and the installation of the cabinet is easier. When mounting two trays above each other, accessory IGB can be used. Bottombox 4rows 80modules D107mm fits 2290028
E-number
E2290048
Article number
356048
Support
Materials Sheet metal
Mounting method Floor fastening
Knockouts Ø25 Down [pcs] 2
Knockouts Ø25 Up [pcs] 2
Knockouts Ø20 Down [pcs] 12xM20+6xM25+2xM32+1xM40
Knockouts Ø20 Up [pcs] 12xM20+6xM25+2xM32+1xM40
EngineerWidth 412
EngineerDepth 107
Name BOTTOMBOX 4R 80M COMBI
E-number E2290048
Article number 356048
Type designation NIL-M 80-4
NetProductWeight 5
EngineerHeight 738

More variants of Bottomboxes NIL-M 20modules D107

E-number Article number Type designation NetProductWeight EngineerHeight
BOTTOMBOX 4R 80M COMBI E2290048 356048 NIL-M 80-4 5 738

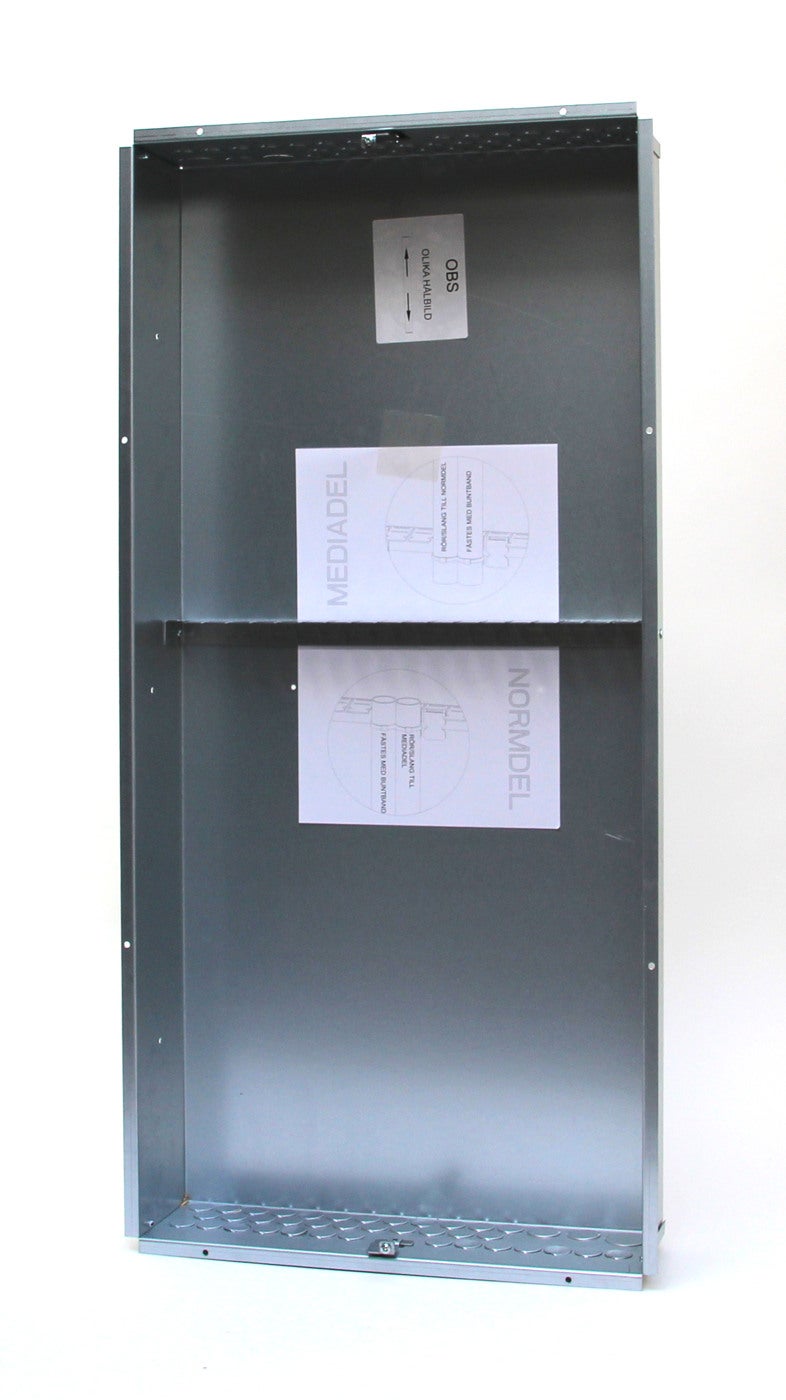

BOTTOMBOX 5R 100M COMBI E2290049 356049 NIL-M 100-5 5.2 863

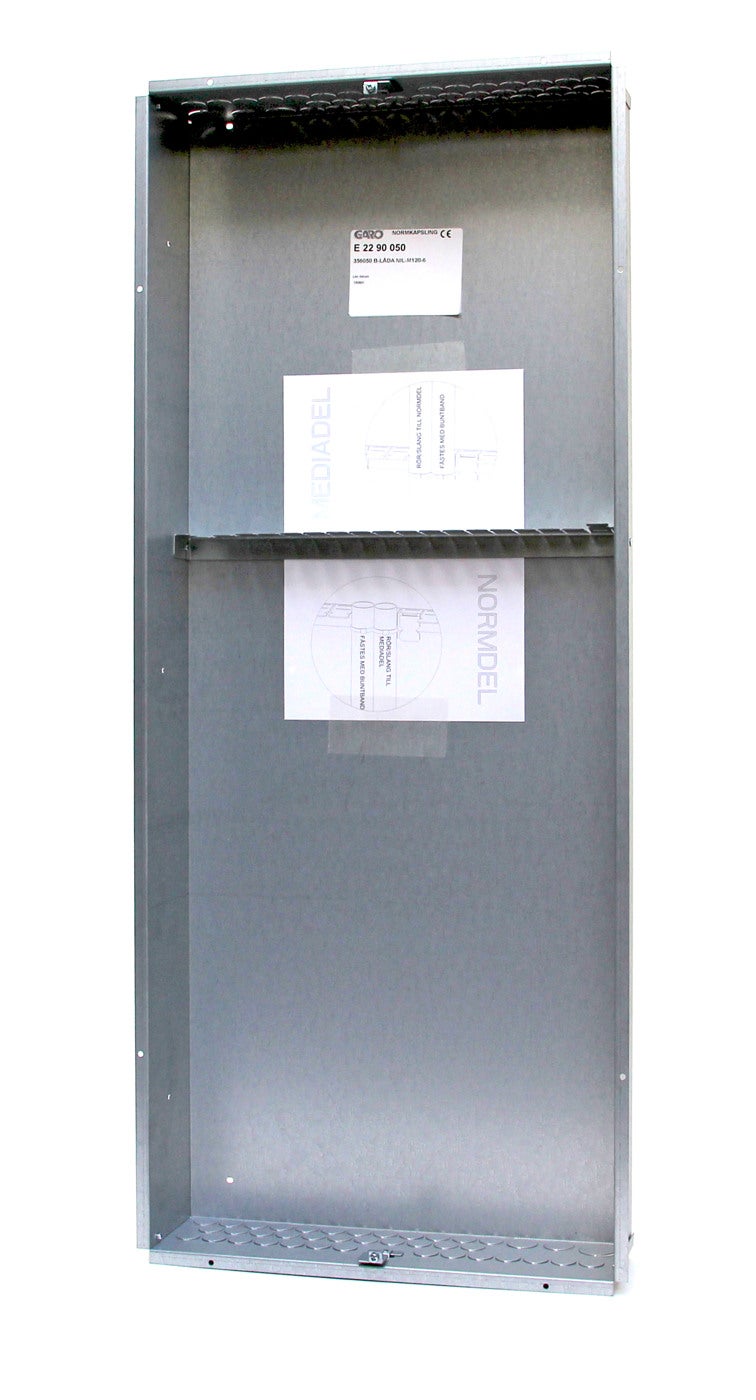

BOTTOMBOX 6R 120M COMBI E2290050 356050 NIL-M 120-6 5.6 988
