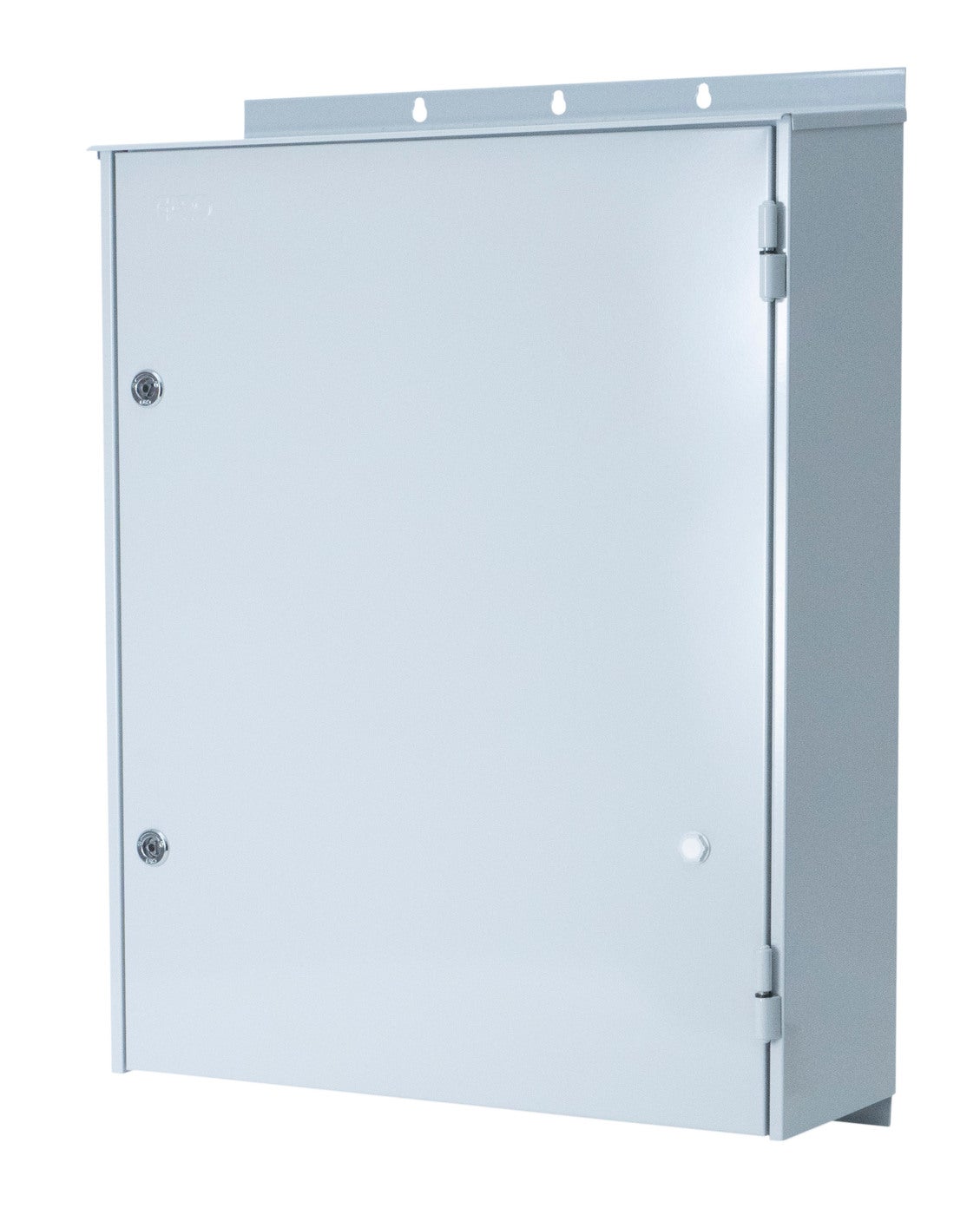

Meter cabinets with surge protection W465
Metal meter cabinets for surface mounting with surge protection. The protection is mounted on the subscriber´s outgoing terminals and is designed for TN-s(5-wire system). Meter cabinet surface mounted 25A surge protection
| Type designation | GUM-L-125-Grovskydd |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Surface mounted |
| Modelltype | GIM |
| Module space measured | 4 |
| Lock | Yes |
| RAL-number | RAL7035 |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 8 |
| Outgoing [mm²] | 16mm² Cu |
| Degree of protection [IP] | IP23 |
| Name | METERCABINET SURF SURGEP RF L |
|---|---|
| E-number | E2270042 |
| Article number | 2270042 |
