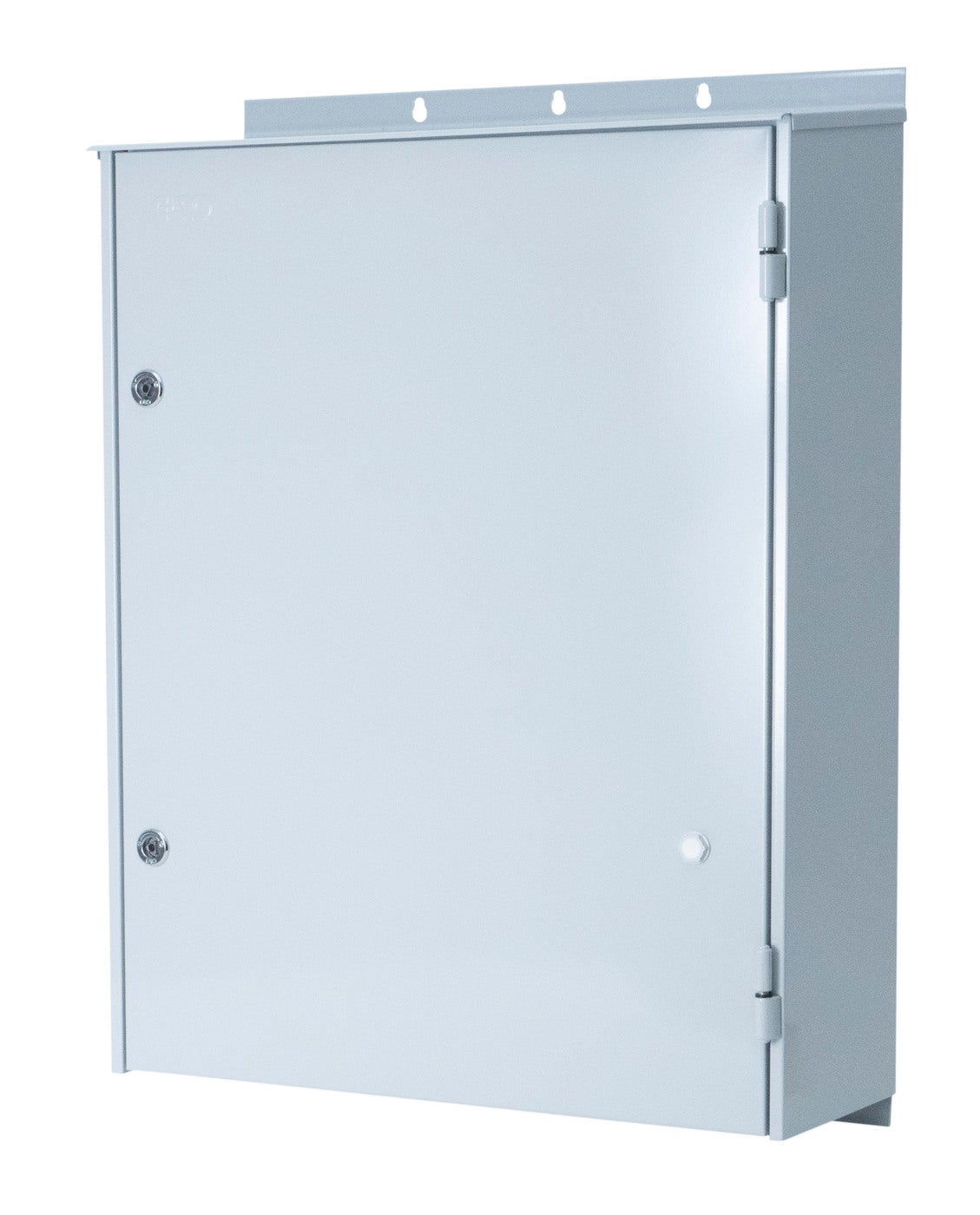

Meter cabinets with surge protection W580
Metal meter cabinets for surface mounting with surge protection. The protection is mounted on the subscriber´s outgoing terminals and is designed for TN-s(5-wire system). Meter cabinet recessed with over voltage arrest.
| Standard | SS 430 01 01 |
|---|---|
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Rated voltage [V AC] | 230/400V AC |
| Modelltype | GUM |
| Lock | Yes |
| RAL-number | RAL7035 |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Degree of protection [IP] | IP23 |
| Name | METERCABINET SURF SURGEP M |
|---|---|
| E-number | E2270041 |
| Article number | 2270041 |
| Type designation | GUM-125-Mellanskydd |
| Rated current [A] | 25A |
| Mounting method | Surface mounted |
| Module space measured | 14 |
| Module space unmeasured | 4 |
| Outgoing [mm²] | 16mm² Cu |
