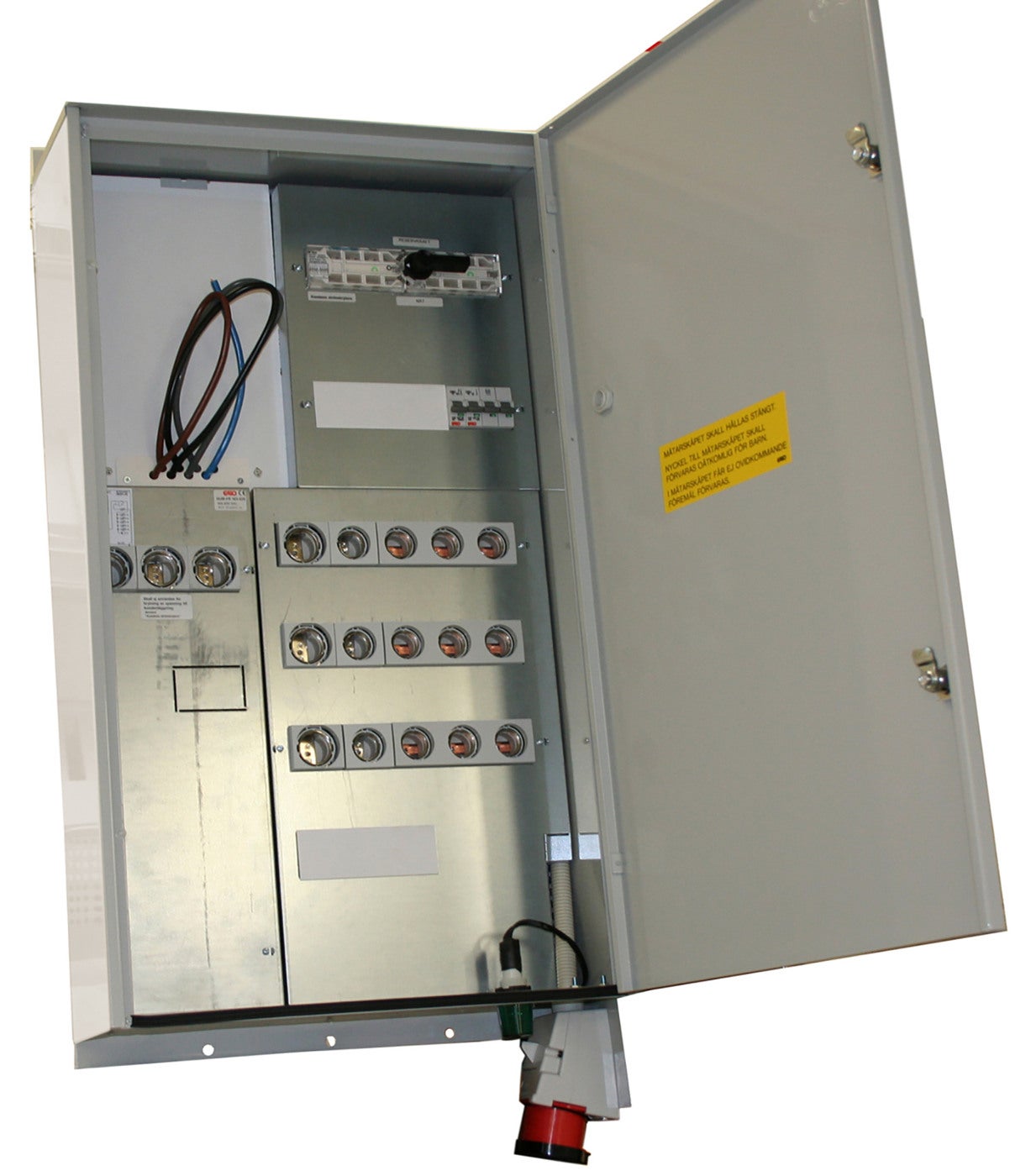

Meter cabinets with Distribution and spare power W520 1place

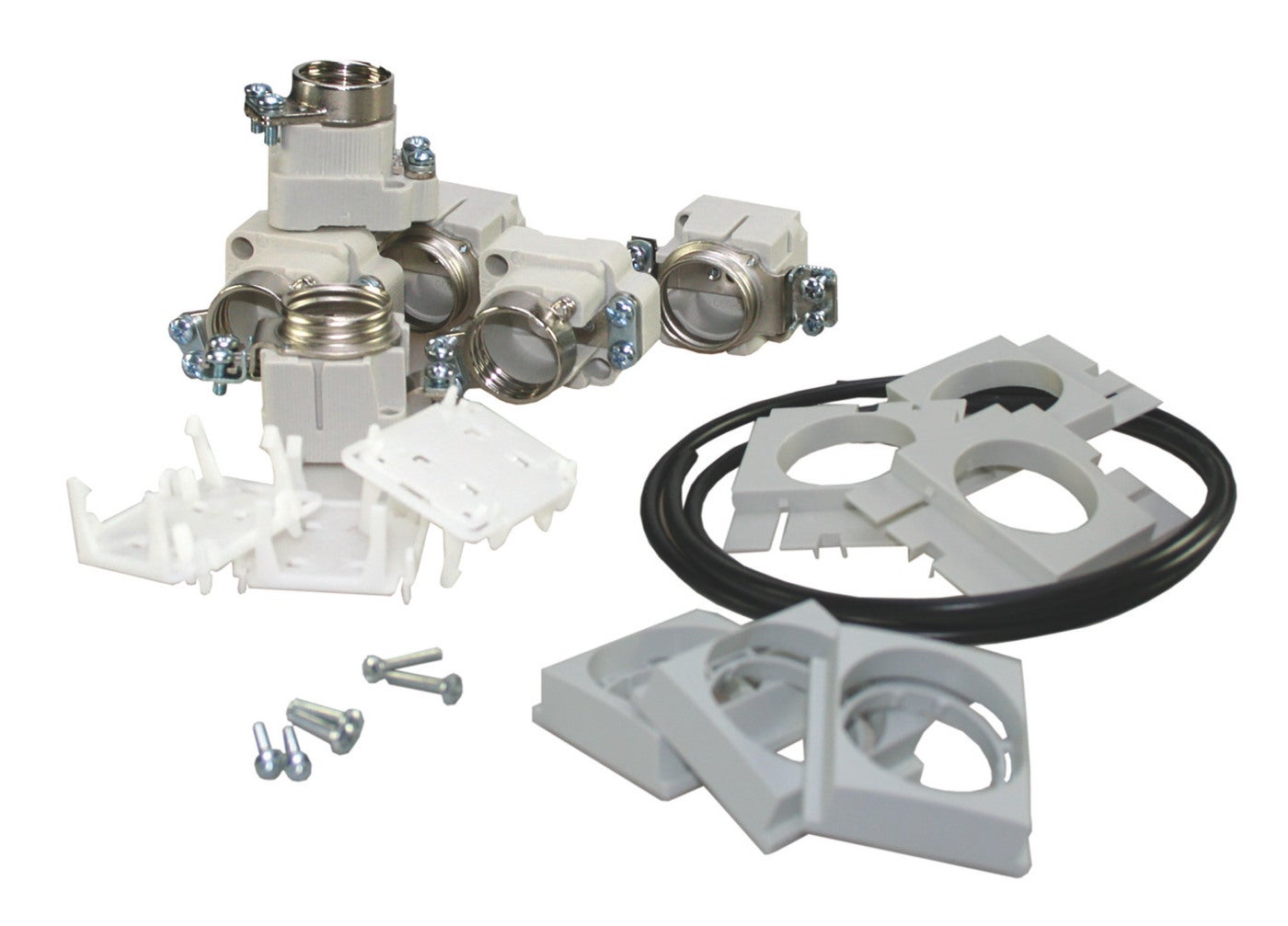

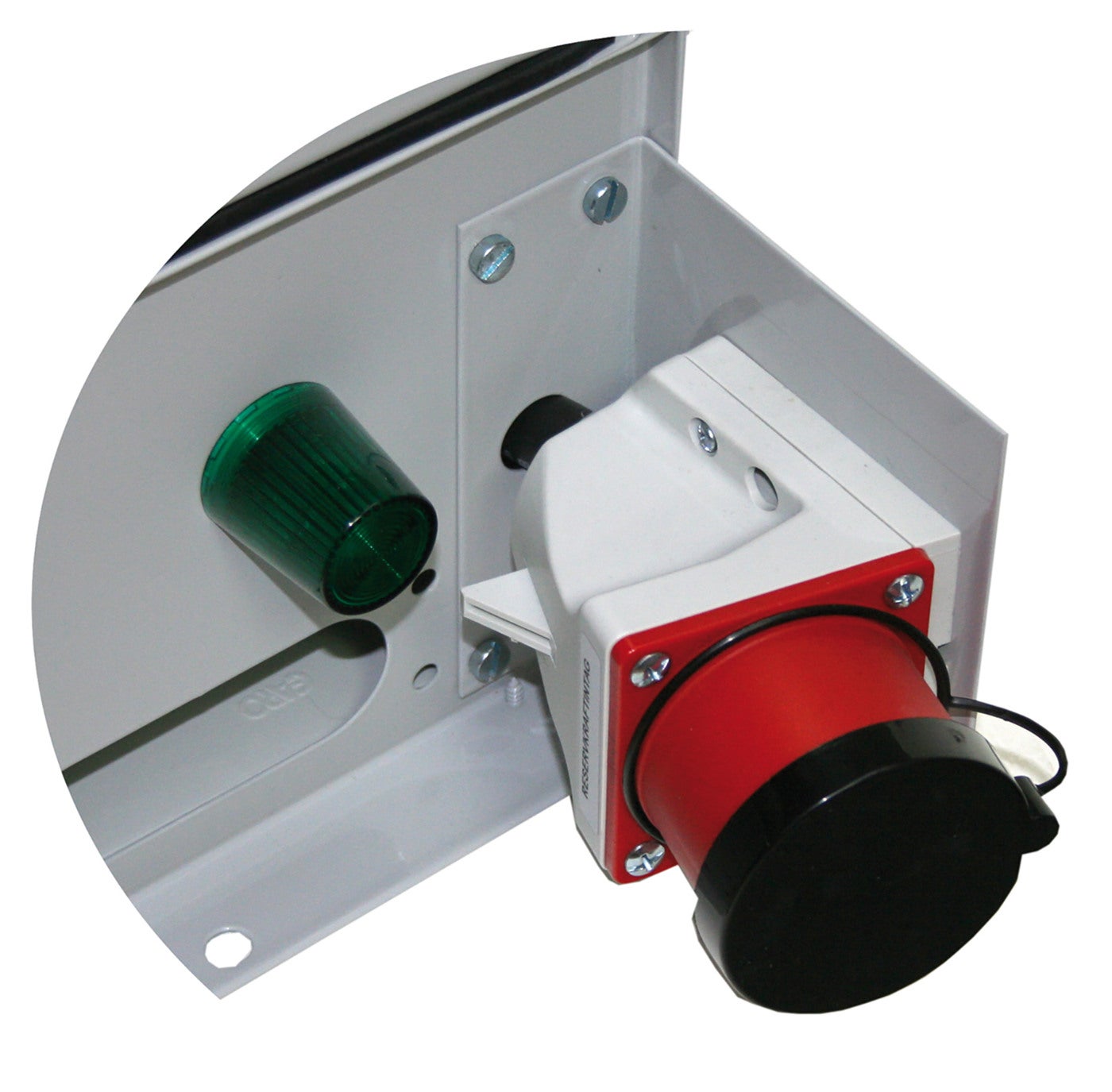

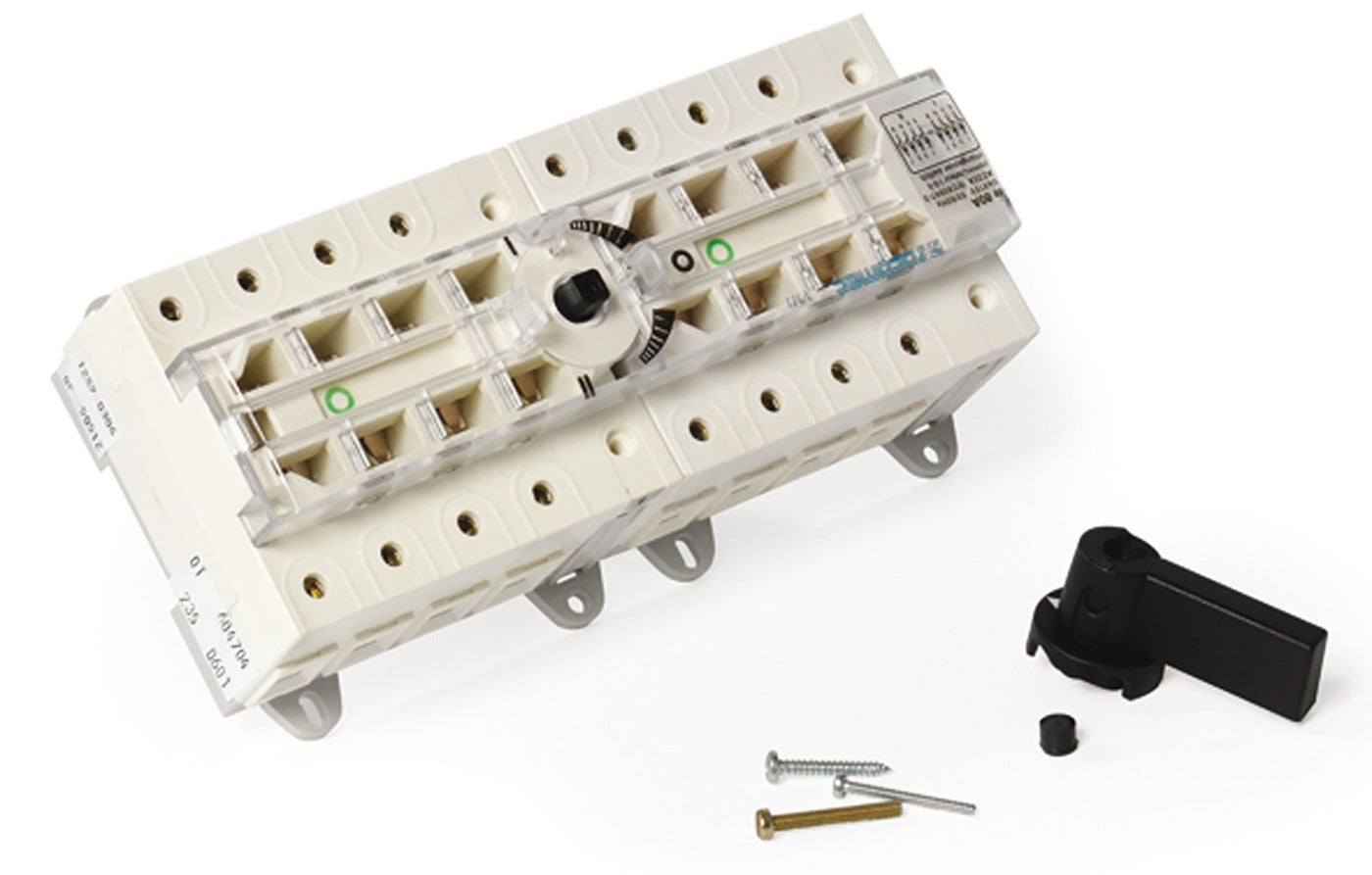

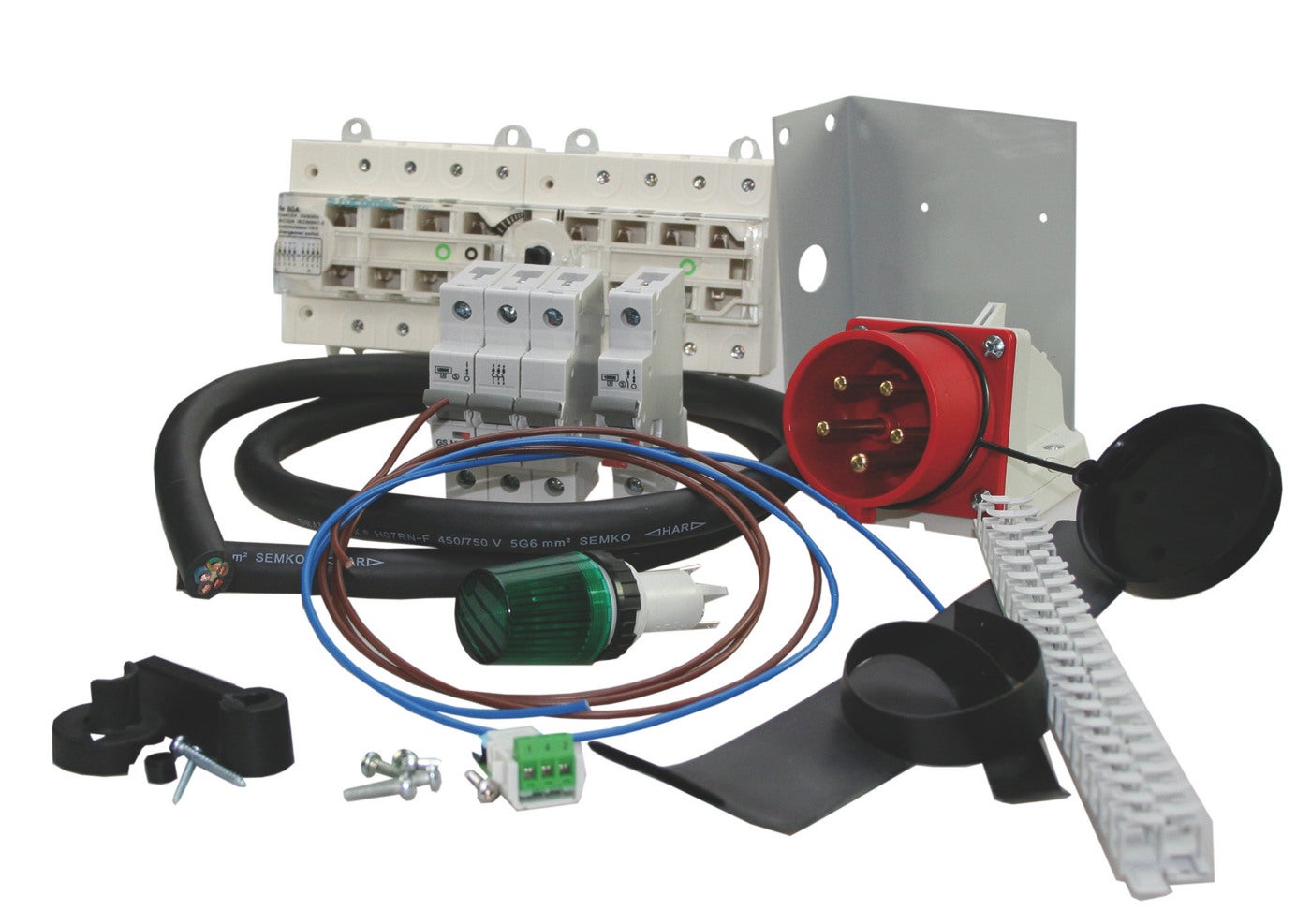

Metal meter cabinets for surface mounting with distribution. In the standard version the cabinets are equipped with 63A with meter position and the customer’s power switch with switchgear consisting of 1 x 63A 3-phase group and 4 x 25A 3-phas groups in diazed design. These groups are connected to terminal blocks 3 x 16 mm² and 12 x 6 mm². In the standard version of the cabinet it is possible to supplement with standby power switch and a 25A 3-phase group can be changed to a corresponding 63A. There is also Meter cabinet outside type-FR 163-425 1place.
| Type designation | GUM-FR 163-425 |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Surface mounted |
| Modelltype | GUM |
| Module space measured | 8+8 |

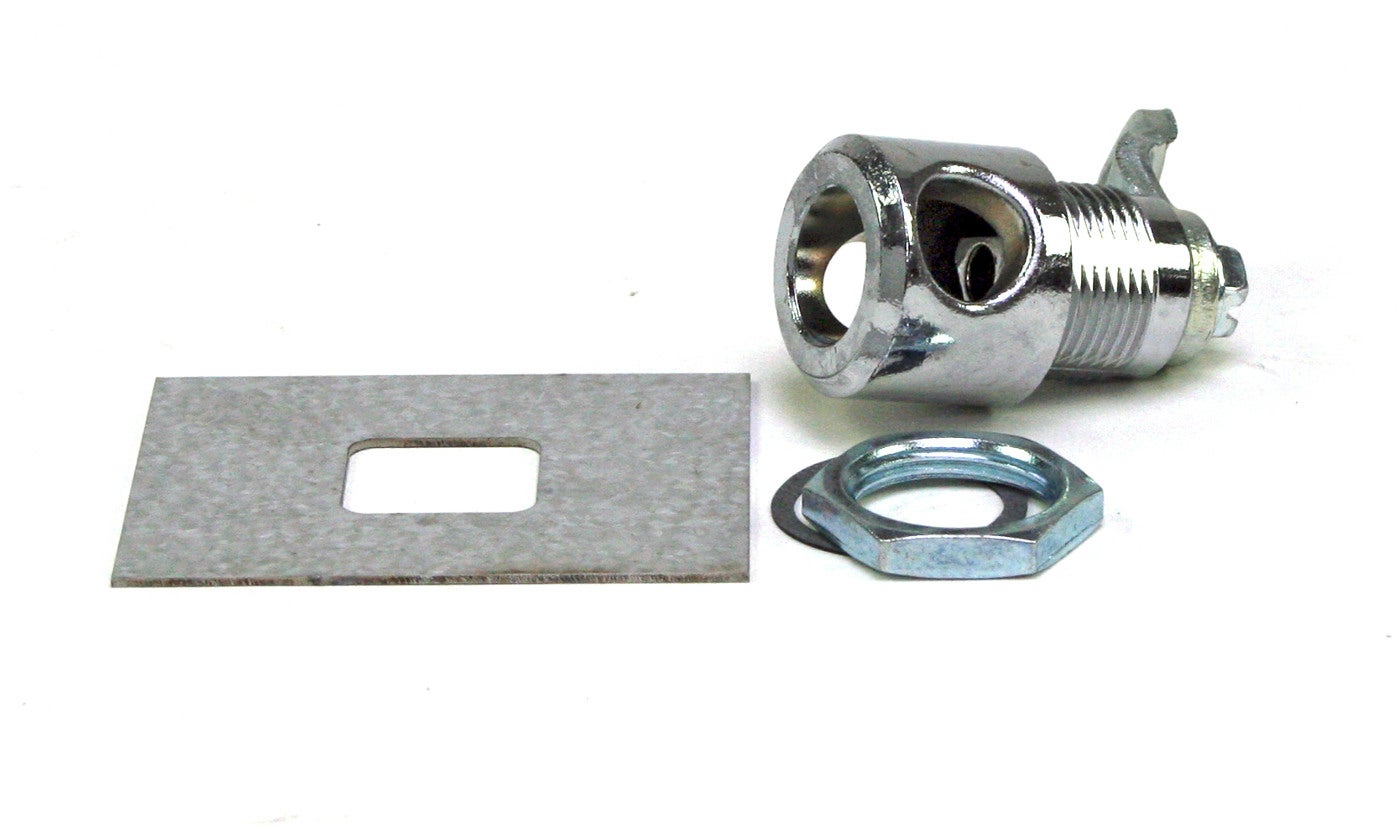

| Lock | Yes |
| RAL-number | RAL7035 |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 4 |
| Outgoing [mm²] | 16mm² Cu |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP23 |
| Name | METERCABINET SURF 163-425 FR |
|---|---|
| E-number | E2270020 |
| Article number | 2270020 |
