Safety switches 6-poles with auxiliary switch

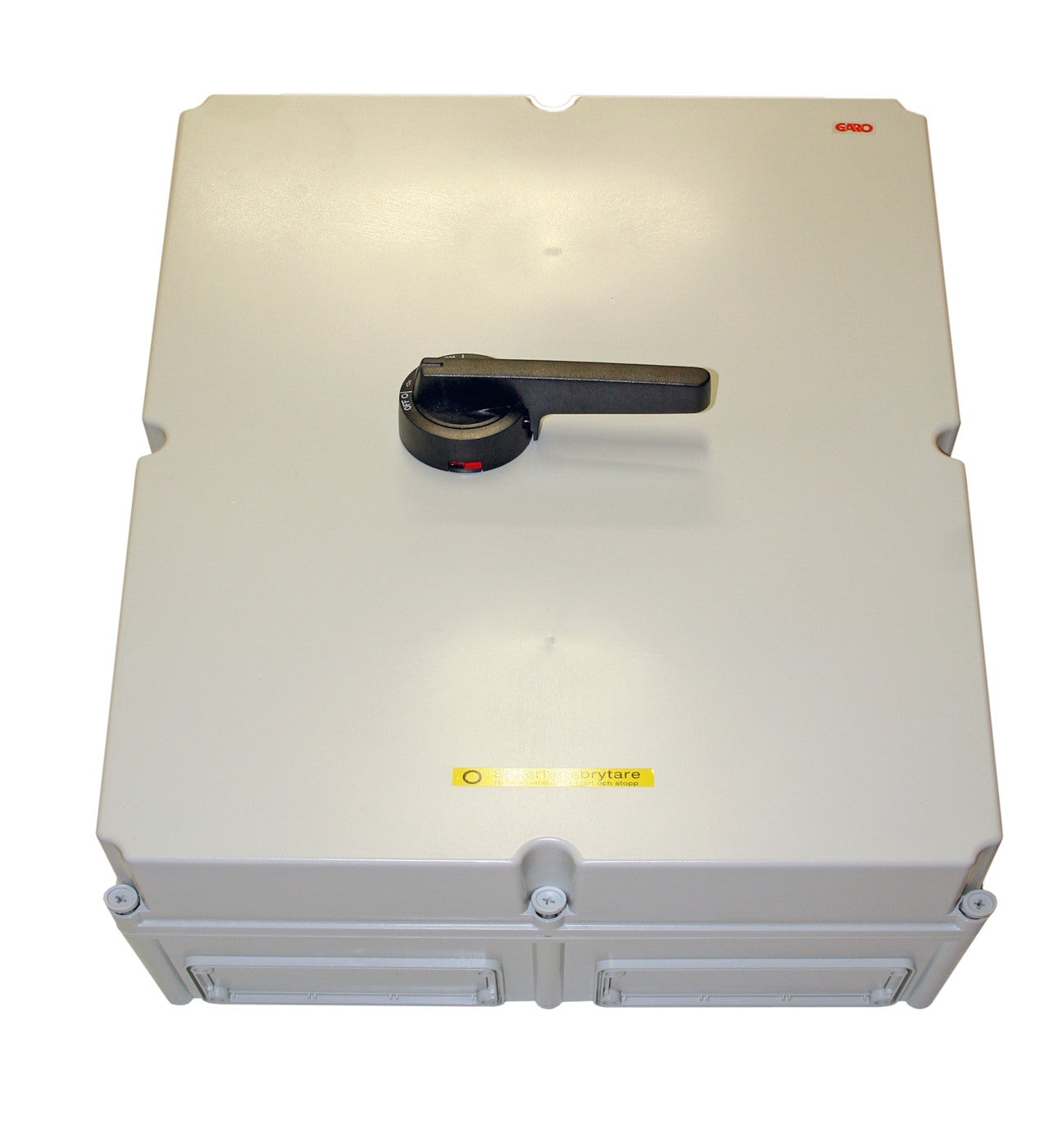

Safety switches polycarbonate with auxiliary switch Safety switch 6-pole 200A polycarbonate.

E-number
E3134180

Article number
107604

Name	SWITCH SAFETY 6P 200A PC
E-number	E3134180
Article number	107604
Type designation	SBG6200
Housing material	Polycarbonate
Color	Grey
Number of poles	6
Mounting method	Wall mounting
RAL-number	RAL7035
Connection PE [pcs]	12+11
Power[kW]	110kW
Isolation voltage [V]	1000V
Rated current AC23 400V [A]	200A
Degree of protection [IP]	IP65
Connection area	Max Al/Cu 240mm²
Auxiliary contact	Yes

More variants of Safety switches 6-poles with auxiliary switch

	E-number	Article number	Type designation	Standard	Housing material	Color	Number of poles	Mounting method	RAL-number	Connection PE [pcs]	Power[kW]	Isolation voltage [V]	Rated current AC23 400V [A]	Degree of protection [IP]	Connection N [mm²]	Connection PE [mm²]	Connection area	Auxiliary contact	NetProductWeight	EngineerWidth	EngineerHeight	EngineerDepth
	E3134180	107604	SBG6200		Polycarbonate	Grey	6	Wall mounting	RAL7035	12+11	110kW	1000V	200A	IP65			Max Al/Cu 240mm²	Yes
	E3135758	110127		EN60947-3	Polycarbonate	Grey	6	Wall mounting	RAL7035	12+11	45kW	690V	80A	IP65			Max Cu 70mm²	Yes	3.82	280	380	171
	E3135759	110128		EN60947-3	Polycarbonate	Grey	6	Wall mounting	RAL7035	12+11	55kW	690V	125A	IP65			Max Cu 70mm²	Yes	10.23	380	560	240
	E3155214	3155214	SBG 625H																	144	190	131
	E3155216	3155216	SBG 632H	EN60947-3	Polycarbonate	Grey	6	Wall mounting	RAL7035	12+11	15kW	690V	32A	IP66	16mm²	16mm²	Max 16mm²	Yes		144	190	131
	E3155218	3155218	SBG 640H	EN60947-3	Polycarbonate	Grey	6	Wall mounting	RAL7035		22kW	690V	40A	IP66	16mm²	12+11		Yes		144	190	131
	E3155220	3155220	SBG 663H	EN60947-3	Polycarbonate	Grey	6	Wall mounting			30kW	690V	63A	IP66	35mm²	12+11	35	Yes		180	255	139
