CONSUMER UNIT PLAST SURF 2R26M

Consumer unit plastic 13mod W300

GARO’s plastic distribution cabinets for surface mounting in an exclusive design equipped with snap-in terminal blocks. The distribution cabinets are available from 1 row up to 3 rows with 13 modular slots per row, but can with a simple knockout be adjusted to 14 modules and bottom sections can be secured tightly next to each other using a chassis coupler. The entire interior is held in place by a snap-bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and Consumer unit plastic surface mounting 2row 26modules
E-number
E2270942
Article number
2270942
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Plastic
Color White
Rated voltage [V AC] 400V AC
Mounting method Surface mounted
Modelltype NUP
Lock No
RAL-number RAL9010
DIN-rail Yes
Earthing terminal block Yes
Further feeding [A] Further feeding 63A
Mountingplate No
Neutral terminal block Yes
Type of door Single
Degree of protection [IP] IP31
EngineerWidth 300
EngineerDepth 125
Name CONSUMER UNIT PLAST SURF 2R26M
E-number E2270942
Article number 2270942
Type designation NUP 2-26
Rated current [A] 50A
Number of modules 26
Connection N [pcs] 16
Connection PE [pcs] 16
Number of rows 2
NetProductWeight 1.63
EngineerHeight 370

More variants of Consumer unit plastic 13mod W300

E-number Article number Type designation Rated current [A] Number of modules Connection N [pcs] Connection PE [pcs] Number of rows NetProductWeight EngineerHeight
CONSUMER UNIT PLAST SURF 1R13M E2270940 2270940 NUP 1-13 35A 13 16 16 1 0.76 245
CONSUMER UNIT PLAST SURF 2R26M E2270942 2270942 NUP 2-26 50A 26 16 16 2 1.63 370
CONSUMER UNIT PLAST SURF 3R39M E2270944 2270944 NUP 3-39 50A 39 26 15+16 3 2.2 495

Accessories for Consumer unit plastic 13mod W300

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2 BUSBAR PHASE 3PH 9M 10MM2 E2142371 110390 GBB 3-09-10 Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 57M 10MM2 BUSBAR PHASE 3PH 57M 10MM2 E2142377 110406 GBB 3-57-10 Busbar phase 3PH 57M 10MM2
BUSBARS 3P 57M/16 BUSBARS 3P 57M/16 E2142378 110410 GBB 3-57-16 Busbars 3-phase 57-modules 16mm²
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²
BLANKING STRIP 13M BLANKING STRIP 13M E2178150 2178150 TB 13 BLANKING STRIP 13 Modules

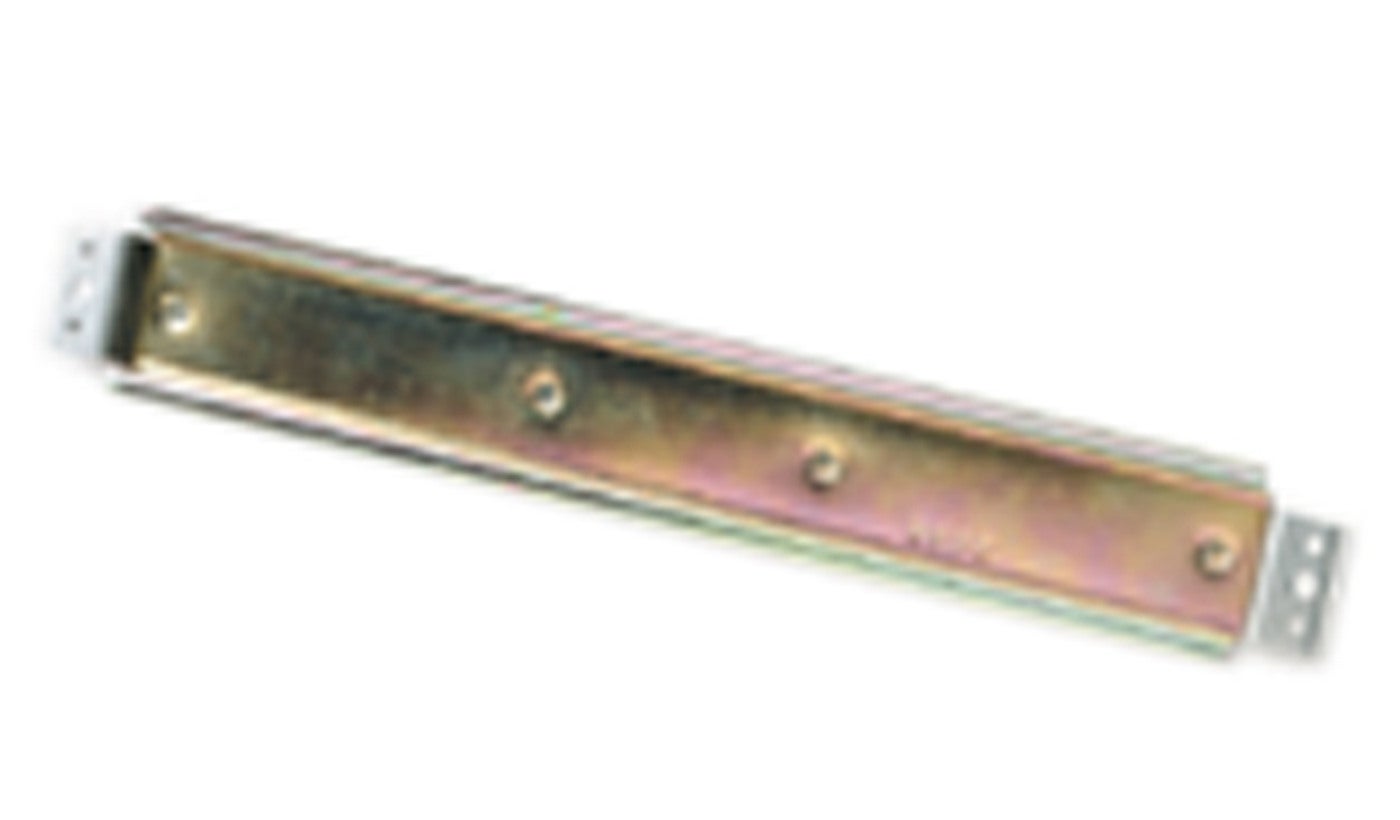

DINRAIL 12MOD LOW DINRAIL 12MOD LOW E2178180 2178180 NDL DIN-rail 12 modules for NUP, adapted for lower mounting of such fuse base DZ or other high components.
CHASSIS CONNEC NUP 4PCS CHASSIS CONNEC NUP 4PCS E2178185 2178185 NUCK Chassiconnection fits consumer units NUP.
PLASTIC POCKET GROUPSCH PLASTIC POCKET GROUPSCH E2270794 2270794 GF-1 Plastic pocket and group schedule.
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
WHITE PAINT SPRAY 2394822 2394822 BFVS White paint spray
TERMINAL Q. GREEN 16 4 2,5 TERMINAL Q. GREEN 16 4 2,5 E2142022 352006 SPG 15 GRÖN Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5 TERMINAL Q. BLUE 16 4 2,5 E2142023 352007 SPB 15 BLÅ Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
TERMINAL Q.CONNECT L EN314L TERMINAL Q.CONNECT L EN314L E2142042 352129 EN-L E314/N314 Quick teminals PE/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142043 352130 EN-L N314/N314 Quick teminals N/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT L E TERMINAL Q.CONNECT L E E2142044 352131 EN-L E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²

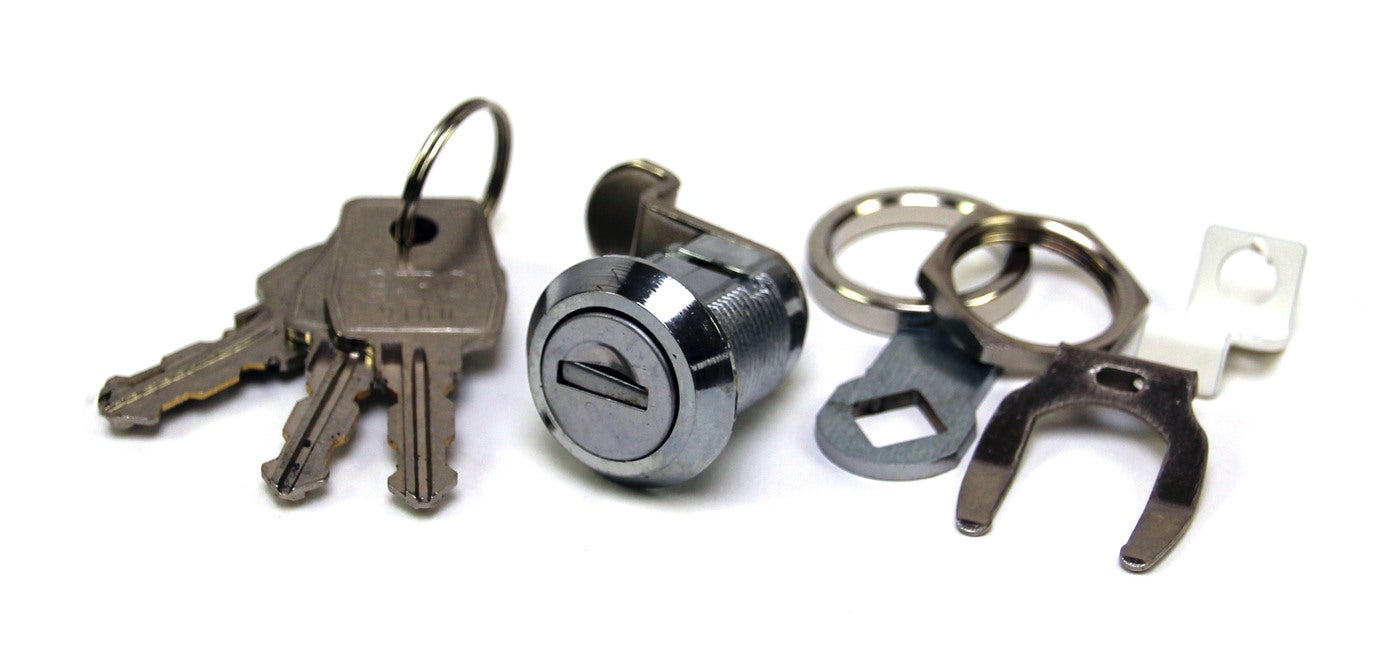

LOCK KIT NLN3 LOCK KIT NLN3 E2290062 356067 NLN3 Locks NLN3
