CONSUMER U PLAST SURF 1R13MEQ6

Consumer unit plastic 13mod W300 equipped

GARO’s plastic distribution cabinets for surface mounting in an exclusive design equipped with snap-in terminal blocks. The distribution cabinets are available from 1 row up to 3 rows with 13 modular slots per row, but can with a simple knockout be adjusted to 14 modules and bottom sections can be secured tightly next to each other using a chassis coupler. The entire interior is held in place by a snap-bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and Consumer unit surface mounting 1row 13modules equipped 6kA
E-number
E2178977
Article number
2178977
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Plastic
Color White
Mounting method Surface mounted
Modelltype NUP
Energymeter No
RAL-number RAL9010
EngineerWidth 300
EngineerDepth 125
Name CONSUMER U PLAST SURF 1R13MEQ6
E-number E2178977
Article number 2178977
Type designation NUP 113-6
Short-circuit current [kA] 10kA
Rated current [A] 35A
Rated voltage [V AC] 400V AC
Number of modules 13
Further feeding [A] Further feeding 63A
Number of rows 1
Switch [pcs] 3x40A
Number of MCB 1P (1) 3pcs C116
Number of MCB 1P (2) 2pcs C110
Number of RCCB [pcs] 1 1pcs 4P 25A
Degree of protection [IP] IP31
NetProductWeight 2.6
EngineerHeight 245

More variants of Consumer unit plastic 13mod W300 equipped

E-number Article number Type designation Short-circuit current [kA] Rated current [A] Rated voltage [V AC] Number of modules Further feeding [A] Number of rows Switch [pcs] Number of MCB 1P (1) Number of MCB 1P (2) Number of RCCB [pcs] 1 Degree of protection [IP] NetProductWeight EngineerHeight
CONSUMER U PLAST SURF 1R13MEQ E2178976 2178976 NUP 113 10kA 35A 400V AC 13 Further feeding 63A 1 3x40A 2pcs C110 3pcs C116 1pcs 4P 40A IP31 2.2 245
CONSUMER U PLAST SURF 1R13MEQ6 E2178977 2178977 NUP 113-6 10kA 35A 400V AC 13 Further feeding 63A 1 3x40A 3pcs C116 2pcs C110 1pcs 4P 25A IP31 2.6 245
CONSUMER U PLAST SURF 2R26MEQ E2178978 2178978 NUP 226 10kA 50A 400V AC 26 Further feeding 63A 2 3x40A 7pcs C110 3pcs C116 1pcs 4P 40A IP31 3.86 245
CONSUMER U PLAST SURF 2R26MEQ6 E2178979 2178979 NUP 226-6 6kA 50A 400V 26 63A 2 3pcs 40A 3pcs C110 3pcs C116 1pcs 4P 25A IP30 3.2 370
CONSUMER U PLAST SURF 3R39MEQ E2178980 2178980 NUP 339 10kA 50A 400V 39 63A 3 3pcs 40A 10pcs C110 3pcs C116 1pcs 4P 40A IP31 4.5 495
CONSUMER U PLAST SU3R39MEQ6 E2178981 2178981 NUP 339-6 6kA 50A 400V 39 Further feeding 63A 3 3pcs 40A 5pcs C110 3pcs C116 1pcs 4P 25A IP31 3.8 495
CONSUMER U PLAST SU2R26M EQ Q E2200265 352136 NUP-Q 226 10kA 50A 400V AC 36 Further feeding 63A 3 3x40A 6pcs C110 1pcs 4P 25A IP31 3.86 370

Accessories for Consumer unit plastic 13mod W300 equipped

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 57M 10MM2 BUSBAR PHASE 3PH 57M 10MM2 E2142377 110406 GBB 3-57-10 Busbar phase 3PH 57M 10MM2
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²

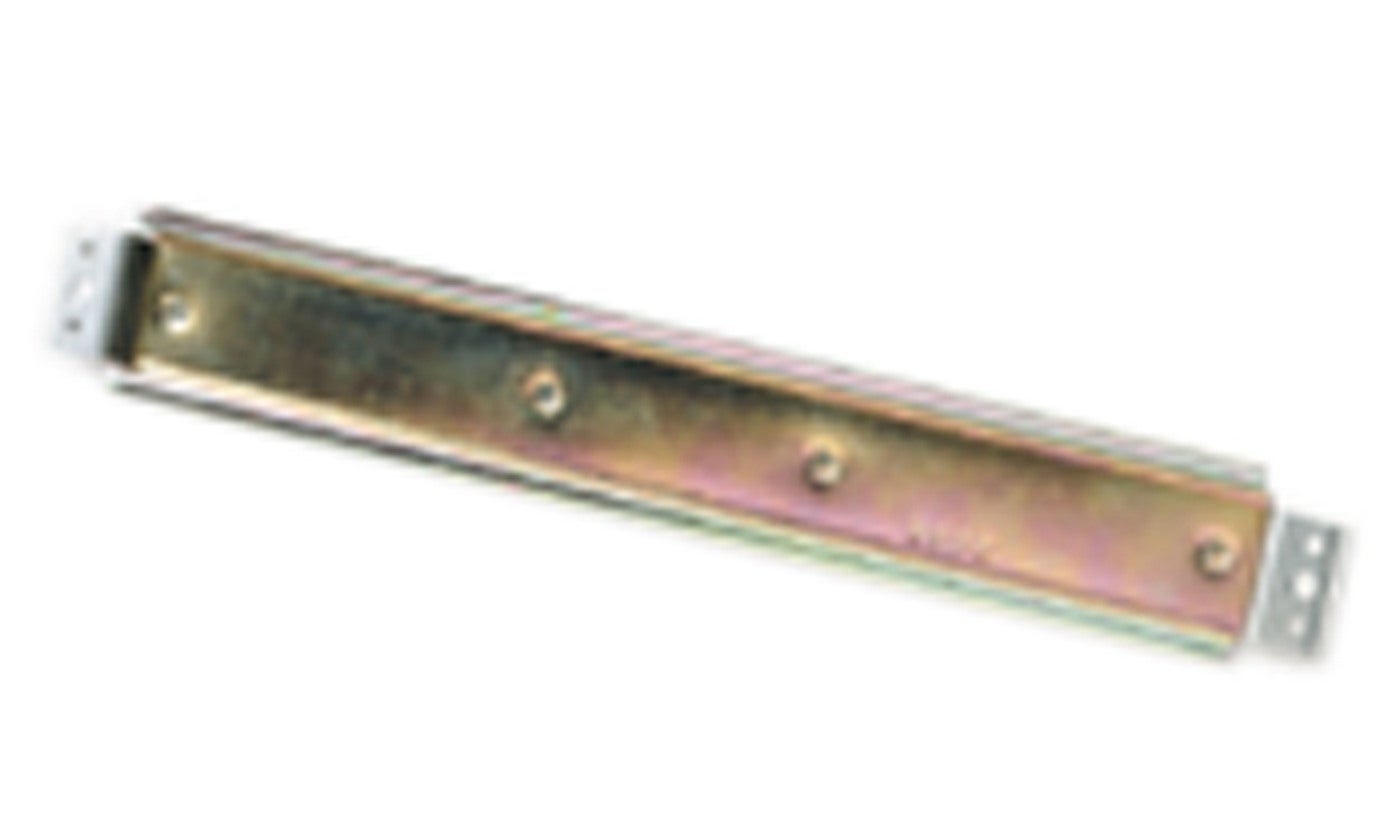

DINRAIL 12MOD LOW DINRAIL 12MOD LOW E2178180 2178180 NDL DIN-rail 12 modules for NUP, adapted for lower mounting of such fuse base DZ or other high components.
CHASSIS CONNEC NUP 4PCS CHASSIS CONNEC NUP 4PCS E2178185 2178185 NUCK Chassiconnection fits consumer units NUP.
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
TERMINAL Q. GREEN 16 4 2,5 TERMINAL Q. GREEN 16 4 2,5 E2142022 352006 SPG 15 GRÖN Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5 TERMINAL Q. BLUE 16 4 2,5 E2142023 352007 SPB 15 BLÅ Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
TERMINAL Q.CONNECT L EN314L TERMINAL Q.CONNECT L EN314L E2142042 352129 EN-L E314/N314 Quick teminals PE/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142043 352130 EN-L N314/N314 Quick teminals N/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT L E TERMINAL Q.CONNECT L E E2142044 352131 EN-L E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
TERMINALS Q 2x16 10x1,5-4 TERMINALS Q 2x16 10x1,5-4 E2142020 352531 EN-M E/N210 Quick teminals 2x16 10x1,5-4

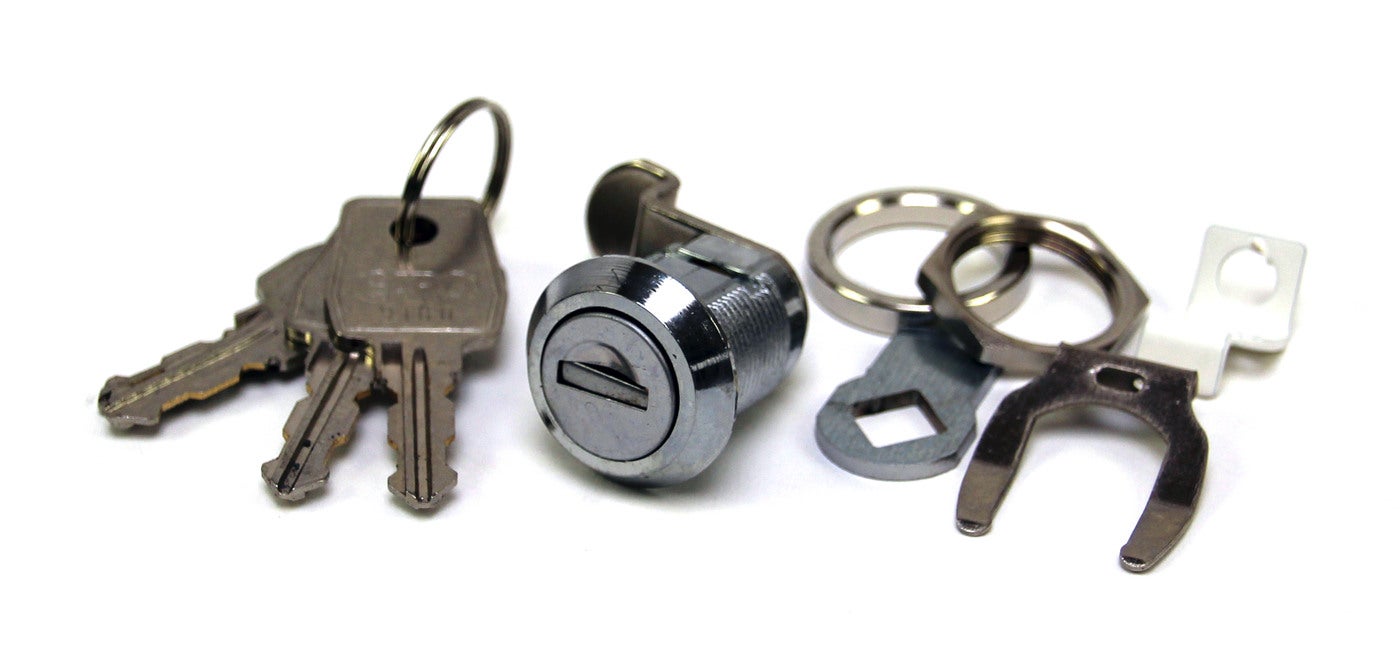

LOCK KIT NLN3 LOCK KIT NLN3 E2290062 356067 NLN3 Locks NLN3
