MET CAB SURF 2R 28M EQUIP

NUM 14 modules equipped IP30

Consumer unit metal surface mounted IP30 width 335, 14modules and 1-, 2-, or 3rows, equipped with components. Metal cabinet surface mounting 2 row 28 modules equipped
E-number
E2290077
Article number
356075
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Sheet metal
Color White
Rated voltage [V AC] 400V AC
Mounting method Surface mounted
Modelltype NUM
Energymeter No
RAL-number RAL9010
Further feeding [A] Further feeding 63A
Switch [pcs] 3x40A
Degree of protection [IP] IP30
EngineerWidth 335
Name MET CAB SURF 2R 28M EQUIP
E-number E2290077
Article number 356075
Type designation NUML 28-2 LGH
Short-circuit current [kA] 10kA
Rated current [A] 50A
Number of modules 28
Number of rows 2
Number of MCB 1P (1) 8pcs C110
Number of MCB 1P (2) 3pcs B116
Number of RCCB [pcs] 1 1pcs 4P 25A
NetProductWeight 5.6
EngineerHeight 370
EngineerDepth 111

More variants of NUM 14 modules equipped IP30

E-number Article number Type designation Short-circuit current [kA] Rated current [A] Number of modules Number of rows Number of MCB 1P (1) Number of MCB 1P (2) Number of RCCB [pcs] 1 NetProductWeight EngineerHeight EngineerDepth
MET CAB SURF 1R 14M EQUIP E2290076 356074 NUML 14-1 LGH 10kA 35A 14 1 7pcs C110 1pcs C120 1pcs 2P 25A 4 245 111
MET CAB SURF 2R 28M EQUIP E2290077 356075 NUML 28-2 LGH 10kA 50A 28 2 8pcs C110 3pcs B116 1pcs 4P 25A 5.6 370 111
MET CAB SURF 2R 28M RCCB 13XMCB E2200991 356100 NUM 28-2BEST 6kA 50A 28 2 10pcs C110 3pcs C116 1pcs 4P 25A 7.5 370 108
MET CAB SURF 3R 42M 2XRCCB 17XMCB E2200992 356101 NUM 42-3BEST 6kA 50A 42 3 14pcs C110 3pcs C116 2pcs 4P 25A 8 549 108

Accessories for NUM 14 modules equipped IP30

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2 BUSBAR PHASE 3PH 9M 10MM2 E2142371 110390 GBB 3-09-10 Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 20M 10MM2 BUSBAR PHASE 3PH 20M 10MM2 E2142375 110402 GBB 3-21-10 Busbar phase 3PH 20M 10MM2
BUSBAR PHASE 3PH 25M 10MM2 BUSBAR PHASE 3PH 25M 10MM2 E2142376 110405 GBB 3-25-10 Busbar phase 3PH 25M 10MM2
BUSBAR PHASE 3PH 57M 10MM2 BUSBAR PHASE 3PH 57M 10MM2 E2142377 110406 GBB 3-57-10 Busbar phase 3PH 57M 10MM2
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²
BLANKING STRIP 14M BLANKING STRIP 14M E2178151 2178151 TB 14 BLANKING STRIP 14 Modules

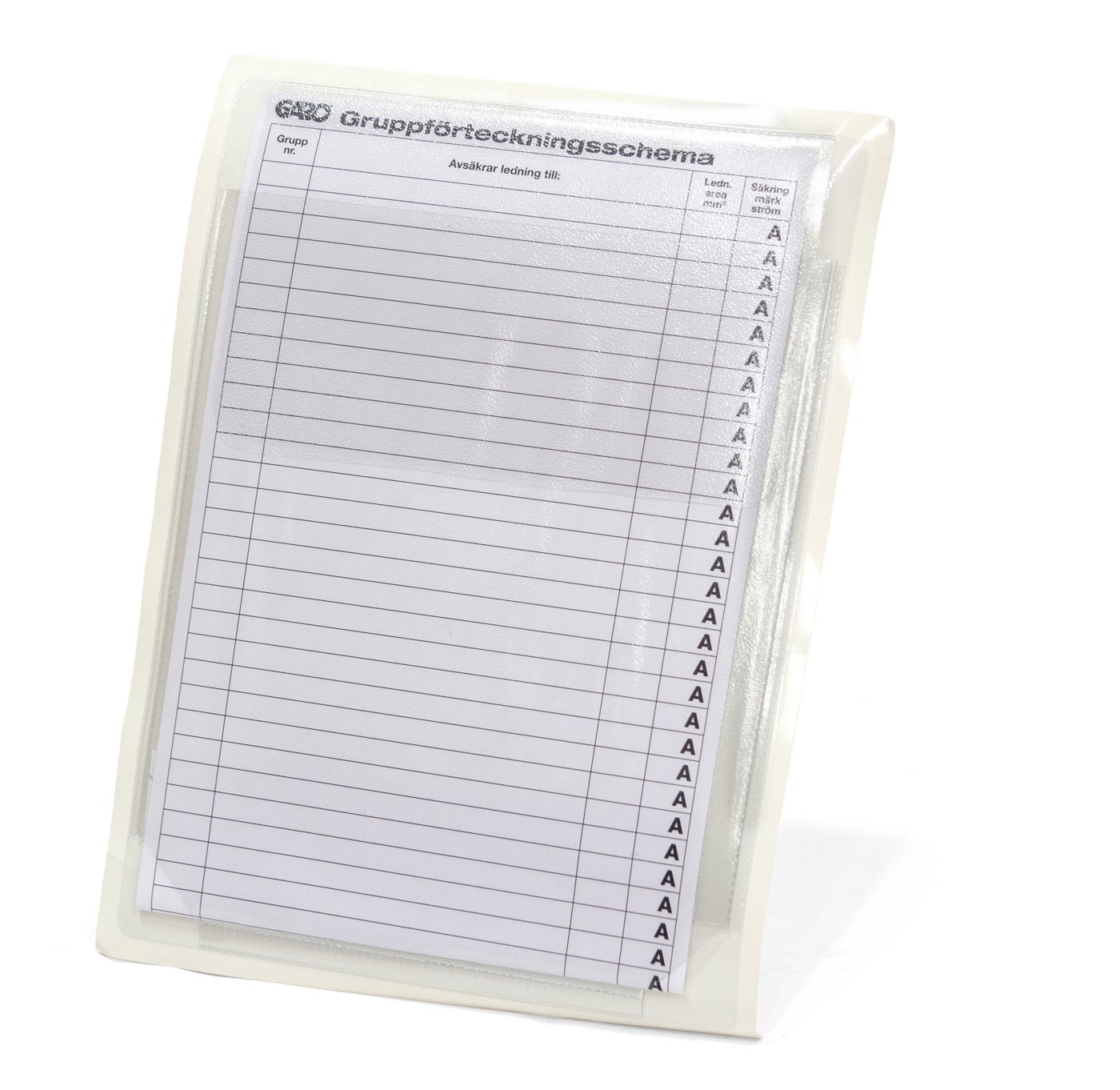

PLASTIC POCKET GROUPSCH PLASTIC POCKET GROUPSCH E2270794 2270794 GF-1 Plastic pocket and group schedule.
NUMBERLIST 1-120 NUMBERLIST 1-120 E2270839 2270839 NLT 1-120 Numberlist 1-120
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
NUMBERLIST 1-75 NUMBERLIST 1-75 E2270911 2270911 NLT 1-75 Numberlist 1row 75modules
WHITE PAINT SPRAY 2394822 2394822 BFVS White paint spray
TERMINAL Q. GREEN 16 4 2,5 TERMINAL Q. GREEN 16 4 2,5 E2142022 352006 SPG 15 GRÖN Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5 TERMINAL Q. BLUE 16 4 2,5 E2142023 352007 SPB 15 BLÅ Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
