CONSUMER UNIT METAL SURFACE 3R42M

NUM 14modules IP30

Consumer unit metal surface mounted IP30 width 335, 14modules and 1-, 2-, or 3rows CONSUMER UNIT METAL SURFACE 3R42M
E-number
E2290021
Article number
356020
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Sheet metal
Color White
Rated voltage [V AC] 400V AC
Mounting method Surface mounted
Modelltype NUM
Lock No
RAL-number RAL9010
DIN-rail Yes
Further feeding [A] Further feeding 63A
Mountingplate No
Type of door Single
Degree of protection [IP] IP30
EngineerWidth 335
EngineerDepth 108
Name CONSUMER UNIT METAL SURFACE 3R42M
E-number E2290021
Article number 356020
Type designation NUM 42-3
Rated current [A] 50A
Number of modules 42
Connection N [pcs] 15+16
Connection PE [pcs] 26
Number of rows 3
NetProductWeight 5.4
EngineerHeight 549

More variants of NUM 14modules IP30

E-number Article number Type designation Rated current [A] Number of modules Connection N [pcs] Connection PE [pcs] Number of rows NetProductWeight EngineerHeight
CONSUMER UNIT METAL SURFACE 1R14M E2290019 356018 NUML 14-1 35A 14 16 16 1 2.8 245
CONSUMER UNIT METAL SURFACE 2R28M E2290020 356019 NUML 28-2 50A 28 16 16 2 3.8 370
CONSUMER UNIT METAL SURFACE 3R42M E2290021 356020 NUM 42-3 50A 42 15+16 26 3 5.4 549

Accessories for NUM 14modules IP30

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2 BUSBAR PHASE 3PH 9M 10MM2 E2142371 110390 GBB 3-09-10 Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 14M 10MM2 BUSBAR PHASE 3PH 14M 10MM2 E2142373 110395 GBB 3-14-10 Busbar phase 3PH 14M 10MM2
BUSBAR PHASE 3PH 20M 10MM2 BUSBAR PHASE 3PH 20M 10MM2 E2142375 110402 GBB 3-21-10 Busbar phase 3PH 20M 10MM2
BUSBAR PHASE 3PH 25M 10MM2 BUSBAR PHASE 3PH 25M 10MM2 E2142376 110405 GBB 3-25-10 Busbar phase 3PH 25M 10MM2
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²
BLANKING STRIP 14M BLANKING STRIP 14M E2178151 2178151 TB 14 BLANKING STRIP 14 Modules

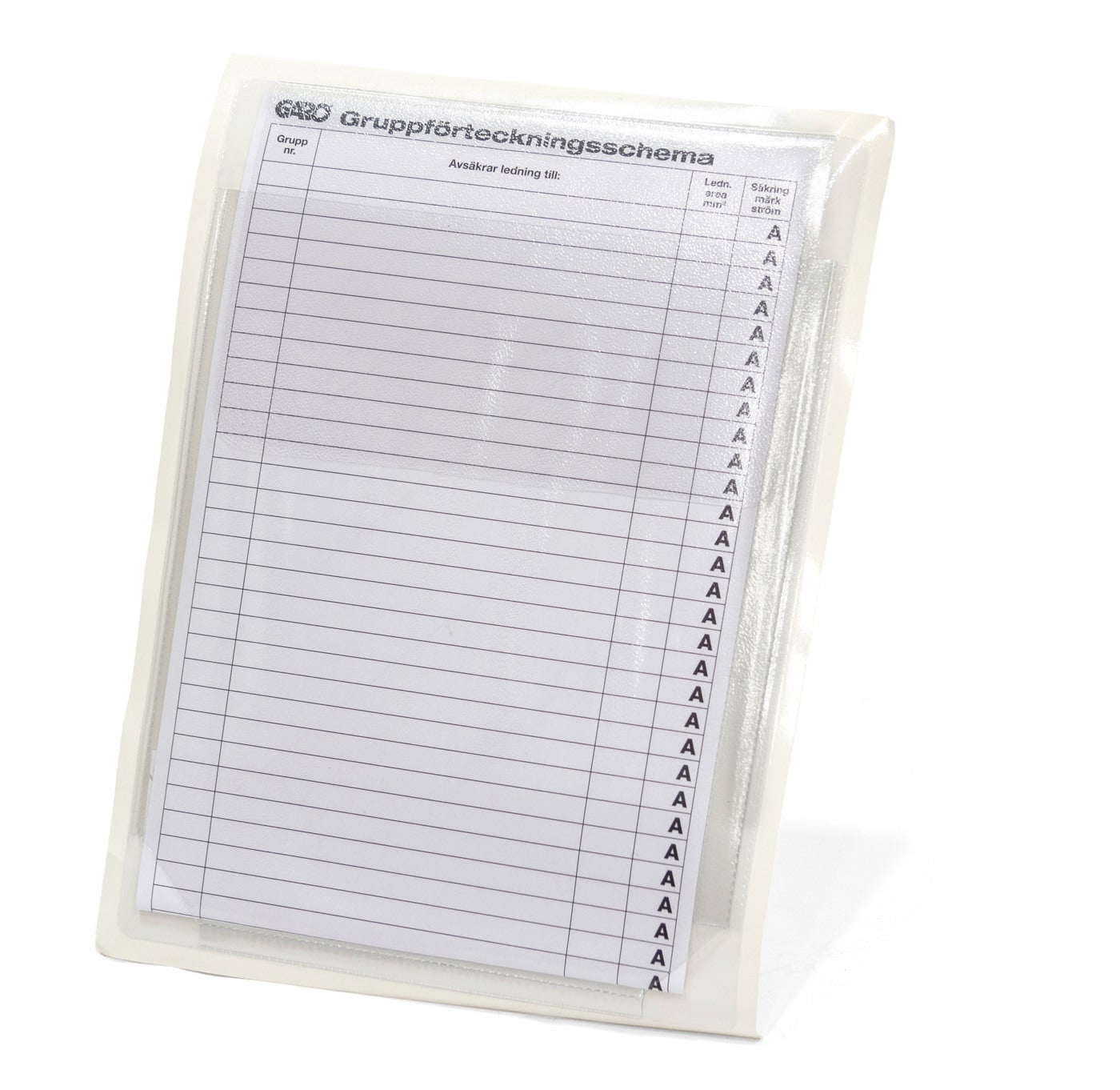

PLASTIC POCKET GROUPSCH PLASTIC POCKET GROUPSCH E2270794 2270794 GF-1 Plastic pocket and group schedule.
NUMBERLIST 1-120 NUMBERLIST 1-120 E2270839 2270839 NLT 1-120 Numberlist 1-120
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
NUMBERLIST 1-75 NUMBERLIST 1-75 E2270911 2270911 NLT 1-75 Numberlist 1row 75modules
WHITE PAINT SPRAY 2394822 2394822 BFVS White paint spray
TERMINAL Q. GREEN 16 4 2,5 TERMINAL Q. GREEN 16 4 2,5 E2142022 352006 SPG 15 GRÖN Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5 TERMINAL Q. BLUE 16 4 2,5 E2142023 352007 SPB 15 BLÅ Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
TERMINAL Q.CONNECT L EN314L TERMINAL Q.CONNECT L EN314L E2142042 352129 EN-L E314/N314 Quick teminals PE/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142043 352130 EN-L N314/N314 Quick teminals N/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT L E TERMINAL Q.CONNECT L E E2142044 352131 EN-L E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
TERMINAL Q.CONNECT EN310S TERMINAL Q.CONNECT EN310S E2142045 352132 EN-S E310/N210 uick teminals PE/N 3x2,5-16m² och 10x1,5-4mm
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142046 352133 EN-S N310/N210 Quick teminals N/N 2x2,5-16m² och 10x1,5-4mm²/3x2,5-16m² och 10x1,5-4mm²,
TERMINAL Q.CONNECT E621S TERMINAL Q.CONNECT E621S E2142047 352134 EN-S E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
DISTANCE N14 2290064 352530 RD REGELDISTANS NORM N14 Distance N14 fits 20-modules bottombox
TERMINALS Q 2x16 10x1,5-4 TERMINALS Q 2x16 10x1,5-4 E2142020 352531 EN-M E/N210 Quick teminals 2x16 10x1,5-4

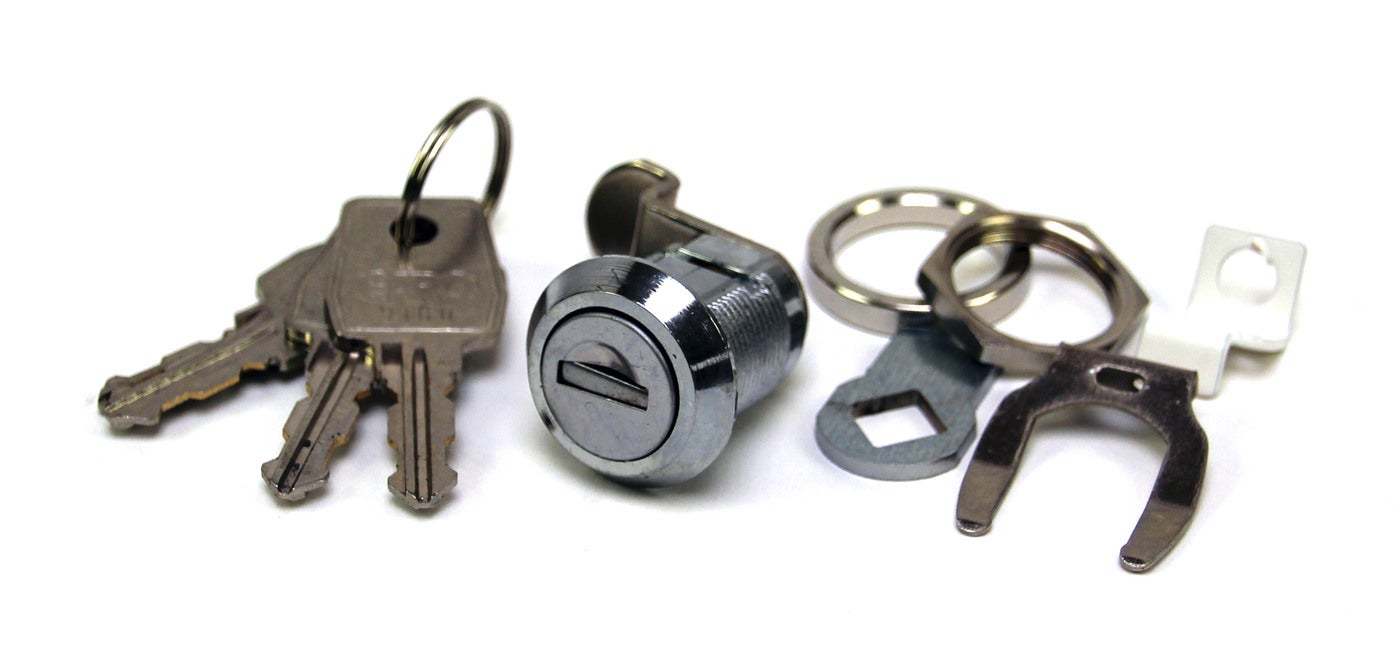

LOCK KIT NLN3 LOCK KIT NLN3 E2290062 356067 NLN3 Locks NLN3
