Consumer units metal W418 20mod IP30

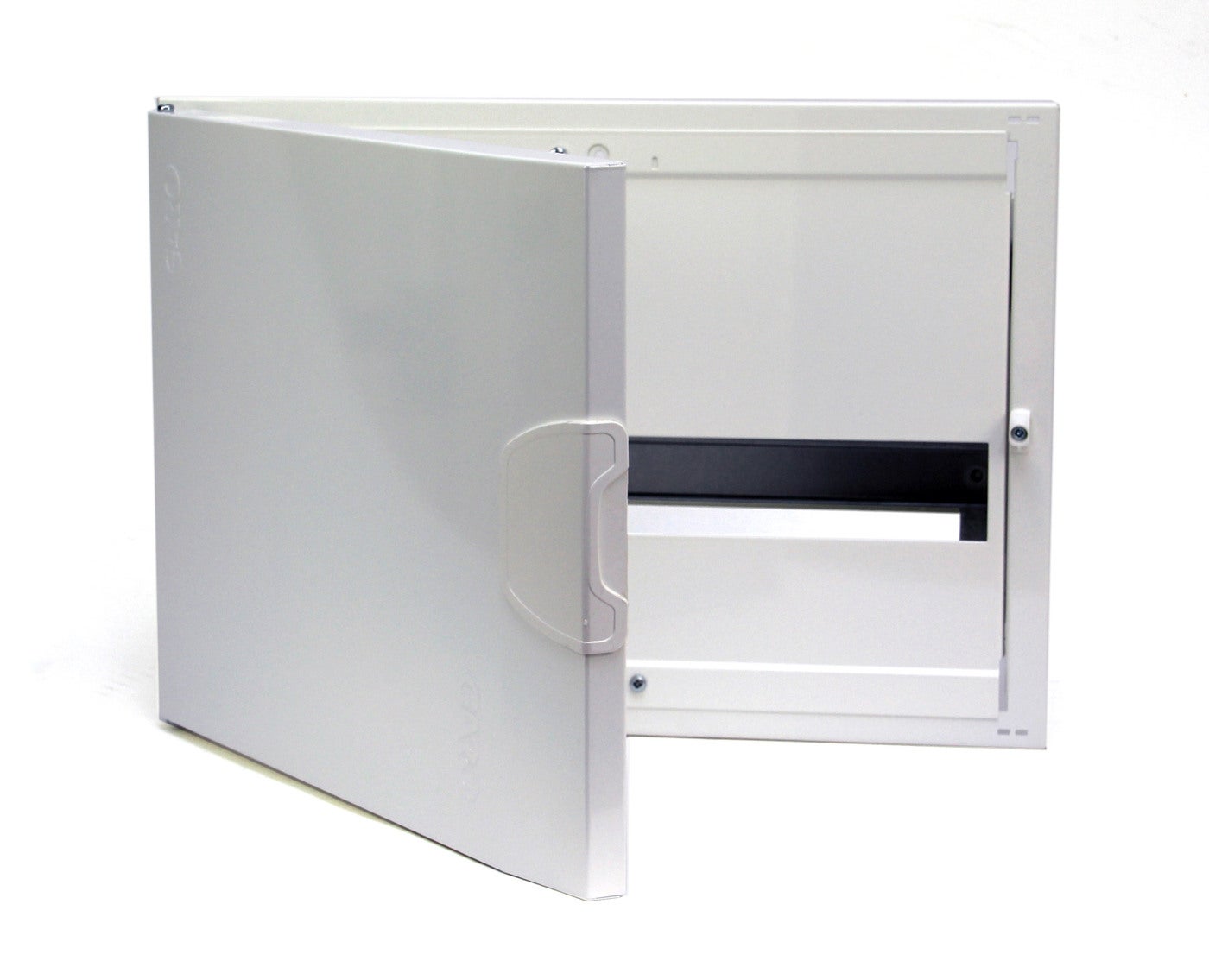

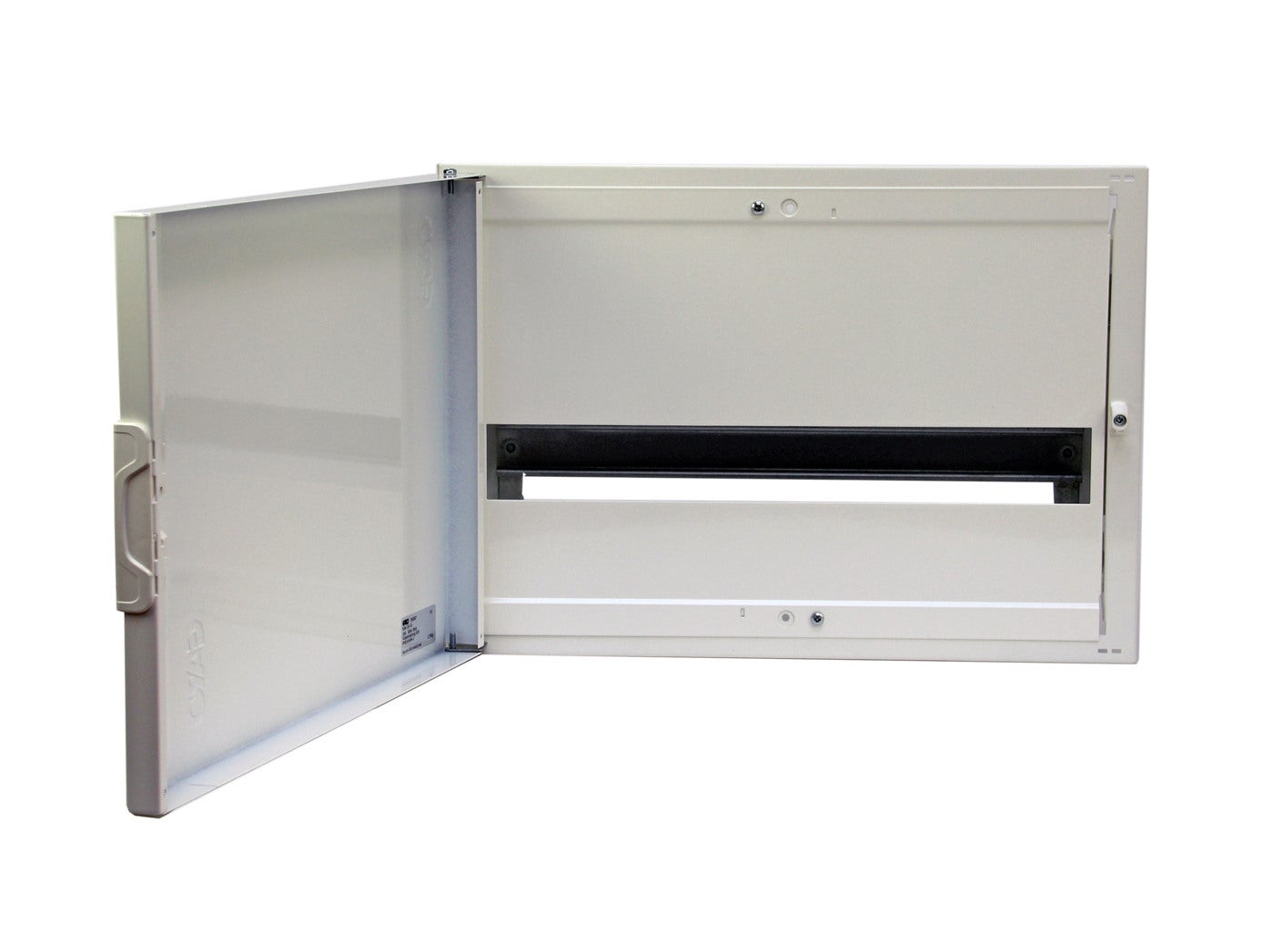

GARO’s metal cabinets for recess mounting in walls, delivered without bottom tray. The cabinets are always supplied with a door that can be hung as needed. The doors are prepared for the possible installation of locks. The depth behind the DIN rails is 23 mm in the metal enclosure. The cabinets are equipped with snap-in terminal blocks. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help du CONSUMER UNIT METAL RECED 1R20M WO BOX
E-number
E2290013
Article number
356007
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Sheet metal
Color White
Rated voltage [V AC] 400V AC
Mounting method Flush mounted
Modelltype NIM
Lock No
RAL-number RAL9010
DIN-rail Yes
Further feeding [A] Further feeding 63A
Mountingplate No
Recessed depth [mm] 82mm
Recessed width [mm] 395mm
Type of door Single
Degree of protection [IP] IP30
Bottombox No
Name CONSUMER UNIT METAL RECED 1R20M WO BOX
E-number E2290013
Article number 356007
Type designation NIM 20-1U
Rated current [A] 35A
Number of modules 20
Connection N [pcs] 16
Connection PE [pcs] 16
Number of rows 1
Recessed height [mm] 268mm
NetProductWeight 2.7
EngineerWidth 418
EngineerHeight 297
EngineerDepth 115

More variants of Consumer units metal W418 20mod IP30

E-number Article number Type designation Rated current [A] Number of modules Connection N [pcs] Connection PE [pcs] Earthing terminal block Neutral terminal block Number of rows Recessed height [mm] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
CONSUMER UNIT METAL RECED 1R20M WO BOX E2290013 356007 NIM 20-1U 35A 20 16 16 1 268mm 2.7 418 297 115

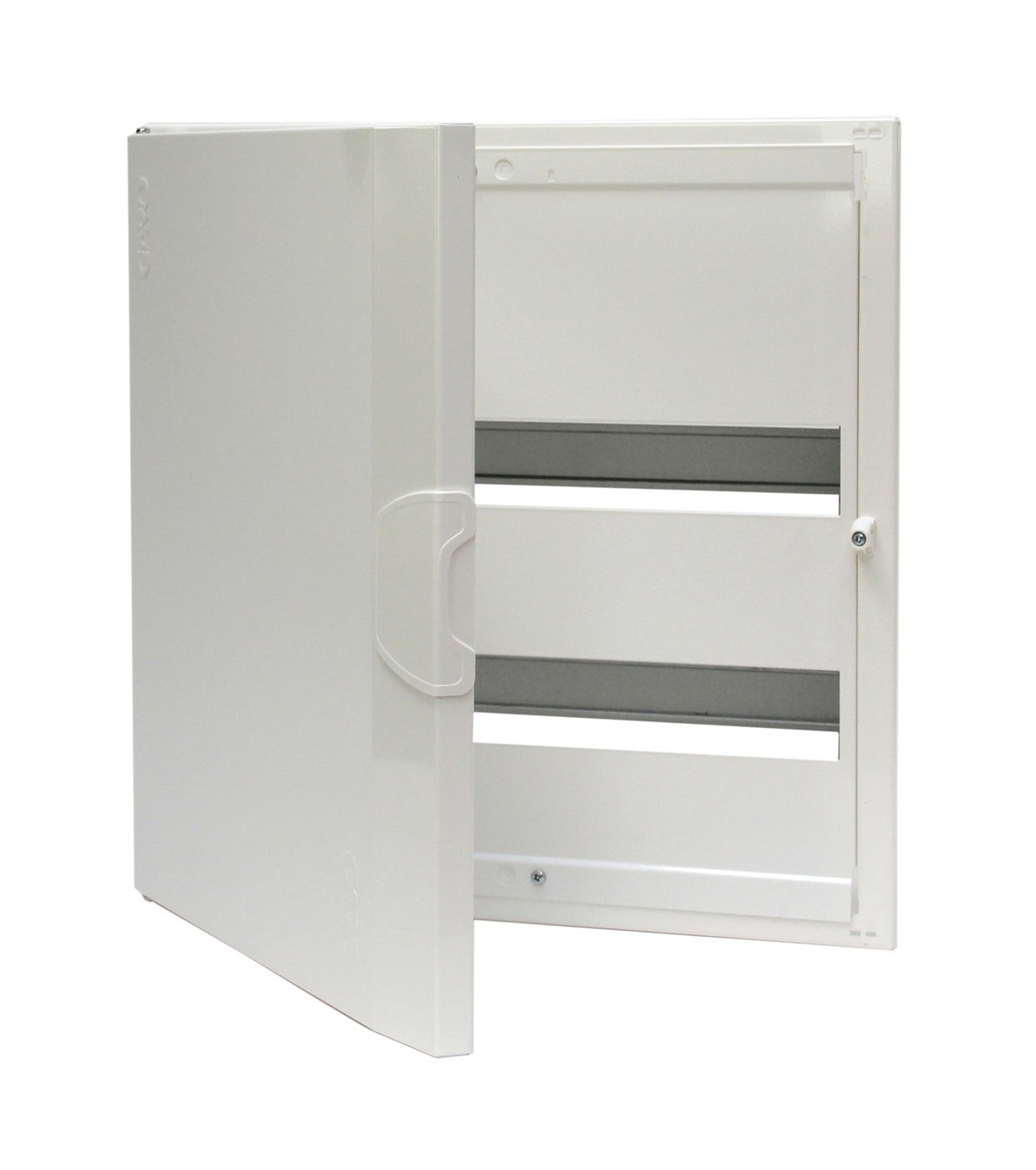

CONSUMER UNIT METAL RECED 2R40M WO BOX E2290014 356009 NIM 40-2U 50A 40 15+16 26 Yes 2 393mm 3.9 425 425 130

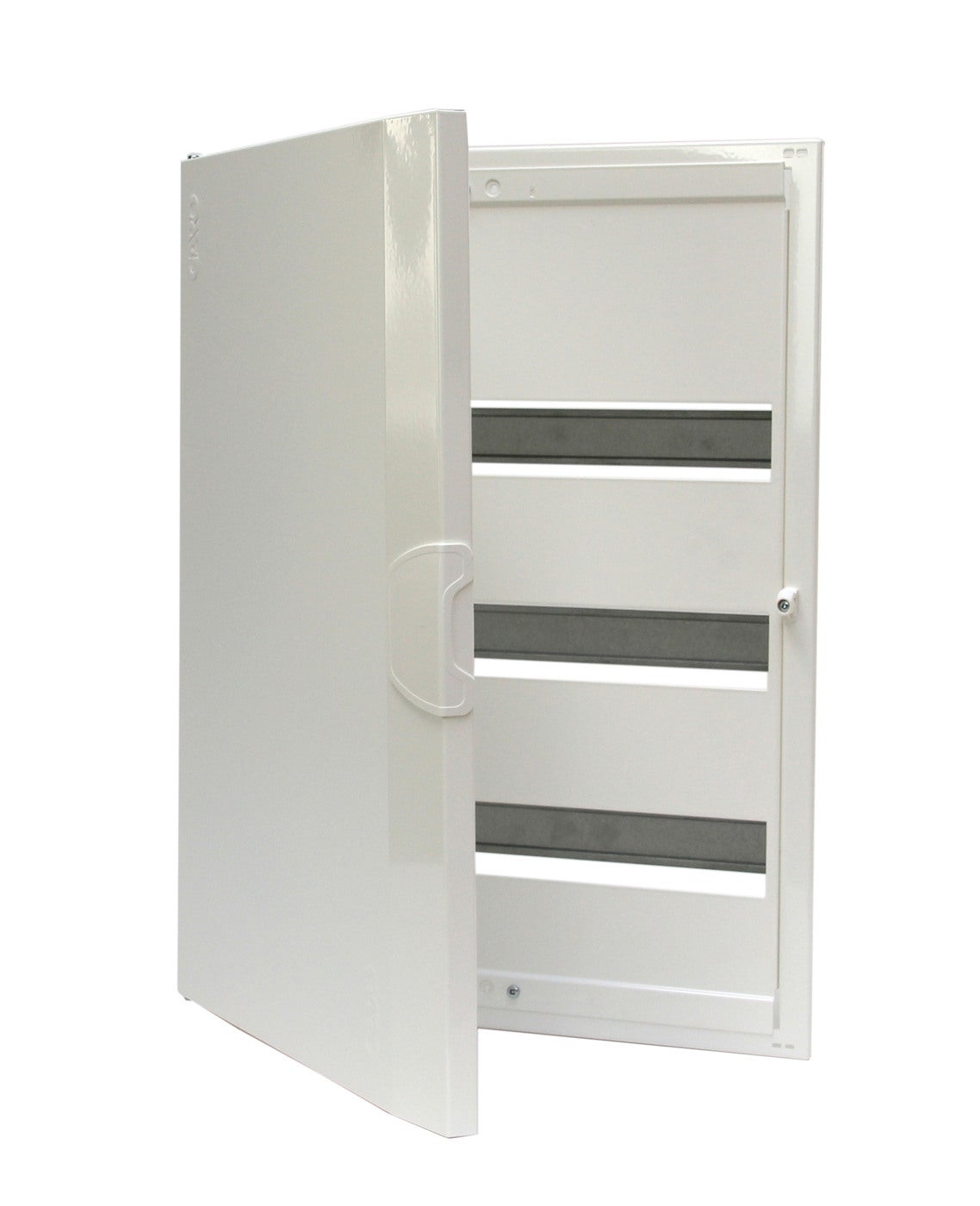

CONSUMER UNIT METAL RECED 3R60M WO BOX E2290015 356011 NIM 60-3U 50A 60 15+16+11 25+11 Yes Yes 3 518mm 5.2 418 547 115

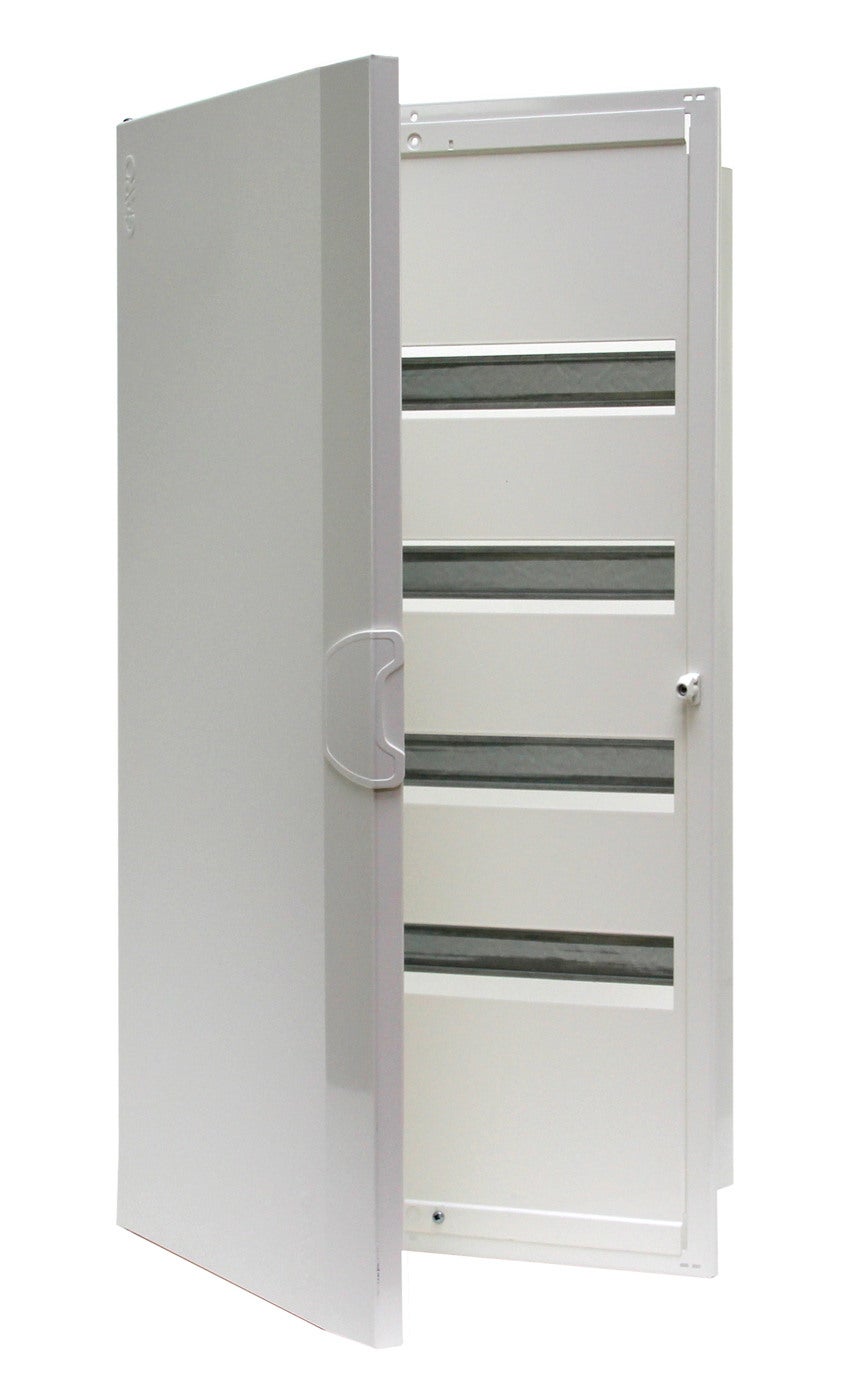

CONSUMER UNIT METAL RECED 4R80M WO BOX E2290016 356013 NIM 80-4U 50A 80 15+16+11+16 24+11+16 4 718mm 7 418 747 115

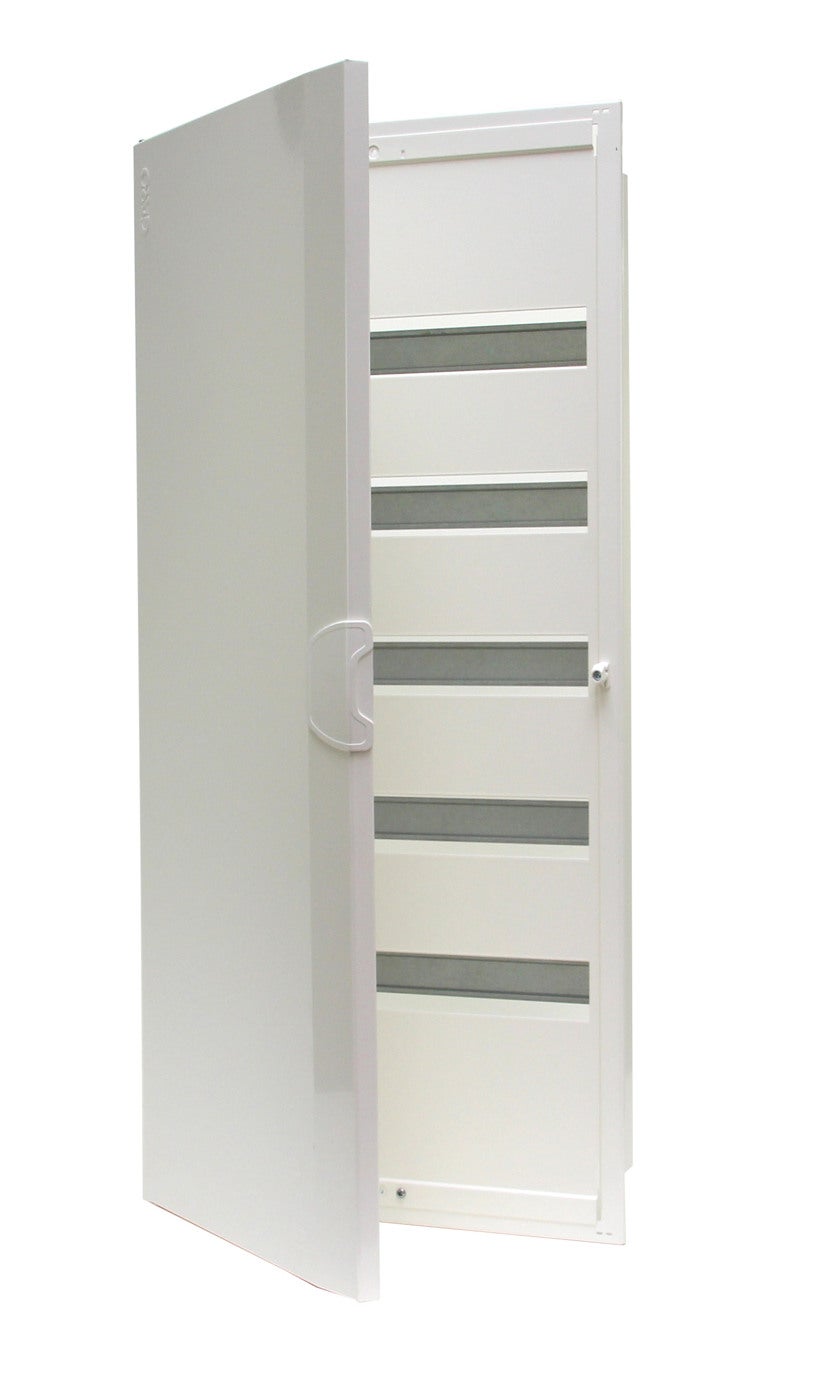

CONSUMER UNIT METAL RECED 5R100M WO BOX E2290017 356015 NIM 100-5U 50A 100 15+16+11+15+16 24+11+26 5 843mm 7.9 418 872 115

Accessories for Consumer units metal W418 20mod IP30

Name E-number Article number Type designation Description
BLANKING STRIP 1M WHITE BLANKING STRIP 1M WHITE E2178149 107378 TB 57 Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2 BUSBAR PHASE 3PH 6M 10MM2 E2142370 110387 GBB 3-06-10 Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2 BUSBAR PHASE 3PH 9M 10MM2 E2142371 110390 GBB 3-09-10 Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2 BUSBAR PHASE 3PH 12M 10MM2 110393 Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2 BUSBAR PHASE 3PH 13M 10MM2 E2142372 110394 GBB 3-13-10 Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 14M 10MM2 BUSBAR PHASE 3PH 14M 10MM2 E2142373 110395 GBB 3-14-10 Busbar phase 3PH 14M 10MM2
BUSBAR PHASE 3PH 20M 10MM2 BUSBAR PHASE 3PH 20M 10MM2 E2142375 110402 GBB 3-21-10 Busbar phase 3PH 20M 10MM2
BUSBAR PHASE 3PH 25M 10MM2 BUSBAR PHASE 3PH 25M 10MM2 E2142376 110405 GBB 3-25-10 Busbar phase 3PH 25M 10MM2
BUSBAR PHASE 3PH 57M 10MM2 BUSBAR PHASE 3PH 57M 10MM2 E2142377 110406 GBB 3-57-10 Busbar phase 3PH 57M 10MM2
BUSBARS 3P+N 57M/16 BUSBARS 3P+N 57M/16 E2142379 110411 GBB 3N-57-16 Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10 BUSBARS 1P 57M/10 E2142380 110414 GBB 1-57-10 Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16 BUSBARS 1P+N 57M/16 E2142381 110415 GBB 1N-57-16 Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D ENDCAP BUSBARS 3P 10 TYPE D E2142382 110417 GBBEP 3-10 Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C ENDCAP BUSBARS 4P 10 TYPE C E2142383 110418 GBBEP 4-16 Endcap for busbars 4-phase 16mm²
PROTECTION COVER BUSBAR 5MODULE PROTECTION COVER BUSBAR 5MODULE E2142384 110419 GBBTP 5M Protection cover busbar 5module
SCREWSEALING 100PCS/BAG SCREWSEALING 100PCS/BAG E2201605 110586 PB-S Screwsealing universal packed 100pcs/bag.
TOUCH UP PAINT WHITE TOUCH UP PAINT WHITE E1693384 1693384 BFV Touch up paint white
WIRING BRIDGES 10/125 3P WIRING BRIDGES 10/125 3P E2142849 2142849 ÖB 3 Wiring bridges 3-phase 10mm²
BLANKING STRIP 14M BLANKING STRIP 14M E2178151 2178151 TB 14 BLANKING STRIP 14 Modules
REAR ENTRY NIM 20MOD REAR ENTRY NIM 20MOD E2270746 2270746 IGB-20 Rear entry for vertical mounting between media,-and normcentral,fits recessed central 20-modules.
PLASTIC POCKET GROUPSCH PLASTIC POCKET GROUPSCH E2270794 2270794 GF-1 Plastic pocket and group schedule.
NUMBERLIST 1-120 NUMBERLIST 1-120 E2270839 2270839 NLT 1-120 Numberlist 1-120
CHASSI CONNEC B-BOX OU CHASSI CONNEC B-BOX OU E2270869 2270869 NUCKI-V Chassis connection for over-under mounting of bottomboxes,W487xH40.
NUMBERLIST 1-42 NUMBERLIST 1-42 E2270910 2270910 NLT 1-42 Numberlist 1-42
NUMBERLIST 1-75 NUMBERLIST 1-75 E2270911 2270911 NLT 1-75 Numberlist 1row 75modules
CHASSI CONNEC B-BOX H488 SS CHASSI CONNEC B-BOX H488 SS E2270980 2270980 NUCKI Chassis connection for side-by-side mounting of bottomboxes,L81xW27xH488.
CHASSICONNECTION H688 CHASSICONNECTION H688 E2270984 2270984 NUCK-4 Chassis connection for side-by-side mounting of bottomboxes,L81xW27xH688.
REAR ENTRY NIM 14MOD REAR ENTRY NIM 14MOD E2270989 2270989 IGB-14 Rear entry for vertical mounting between media,-and normcentral,fits recessed central 14-modules.
REAR ENTRY NIM 25MOD REAR ENTRY NIM 25MOD E2270990 2270990 IGB-25 Rear entry for vertical mounting between media,-and normcentral,fits recessed central 25-modules.
TERMINAL Q. GREEN 16 4 2,5 TERMINAL Q. GREEN 16 4 2,5 E2142022 352006 SPG 15 GRÖN Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5 TERMINAL Q. BLUE 16 4 2,5 E2142023 352007 SPB 15 BLÅ Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
TERMINAL Q.CONNECT L EN314L TERMINAL Q.CONNECT L EN314L E2142042 352129 EN-L E314/N314 Quick teminals PE/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142043 352130 EN-L N314/N314 Quick teminals N/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT L E TERMINAL Q.CONNECT L E E2142044 352131 EN-L E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
TERMINAL Q.CONNECT EN310S TERMINAL Q.CONNECT EN310S E2142045 352132 EN-S E310/N210 uick teminals PE/N 3x2,5-16m² och 10x1,5-4mm
TERMINAL Q.CONNECT NN314L TERMINAL Q.CONNECT NN314L E2142046 352133 EN-S N310/N210 Quick teminals N/N 2x2,5-16m² och 10x1,5-4mm²/3x2,5-16m² och 10x1,5-4mm²,
TERMINAL Q.CONNECT E621S TERMINAL Q.CONNECT E621S E2142047 352134 EN-S E621 Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
DISTANCE N14 2290064 352530 RD REGELDISTANS NORM N14 Distance N14 fits 20-modules bottombox
TERMINALS Q 2x16 10x1,5-4 TERMINALS Q 2x16 10x1,5-4 E2142020 352531 EN-M E/N210 Quick teminals 2x16 10x1,5-4
BOTTOMBOX 4R 80M BOTTOMBOX 4R 80M E2290045 356046 NIL 80-4 Bottombox 4rows 80modules D82mm fits 2290016 & 2290028
BOTTOMBOX 5R 100M BOTTOMBOX 5R 100M E2290046 356047 NIL 100-5 Bottombox 5rows 100modules fits 2290029 & 2290032
BOTTOMBOX 1R 20M BOTTOMBOX 1R 20M E2290042 356057 NIL 20-1 Bottombox 1row 20modules D82mm fits NIM 20-1
BOTTOMBOX 2R 40M BOTTOMBOX 2R 40M E2290043 356058 NIL 40-2 Bottombox 2rows 40modules D82mm fits NIM 40-2
BOTTOMBOX 3R 60M BOTTOMBOX 3R 60M E2290044 356059 NIL 60-3 Bottombox 3rows 60modules D82m fits NIM 60-3
BOTTOMBOX 4R 100M BOTTOMBOX 4R 100M E2290082 356096 NIL 100-4 Bottombox 4rows 100modules fits NIM 100-4
