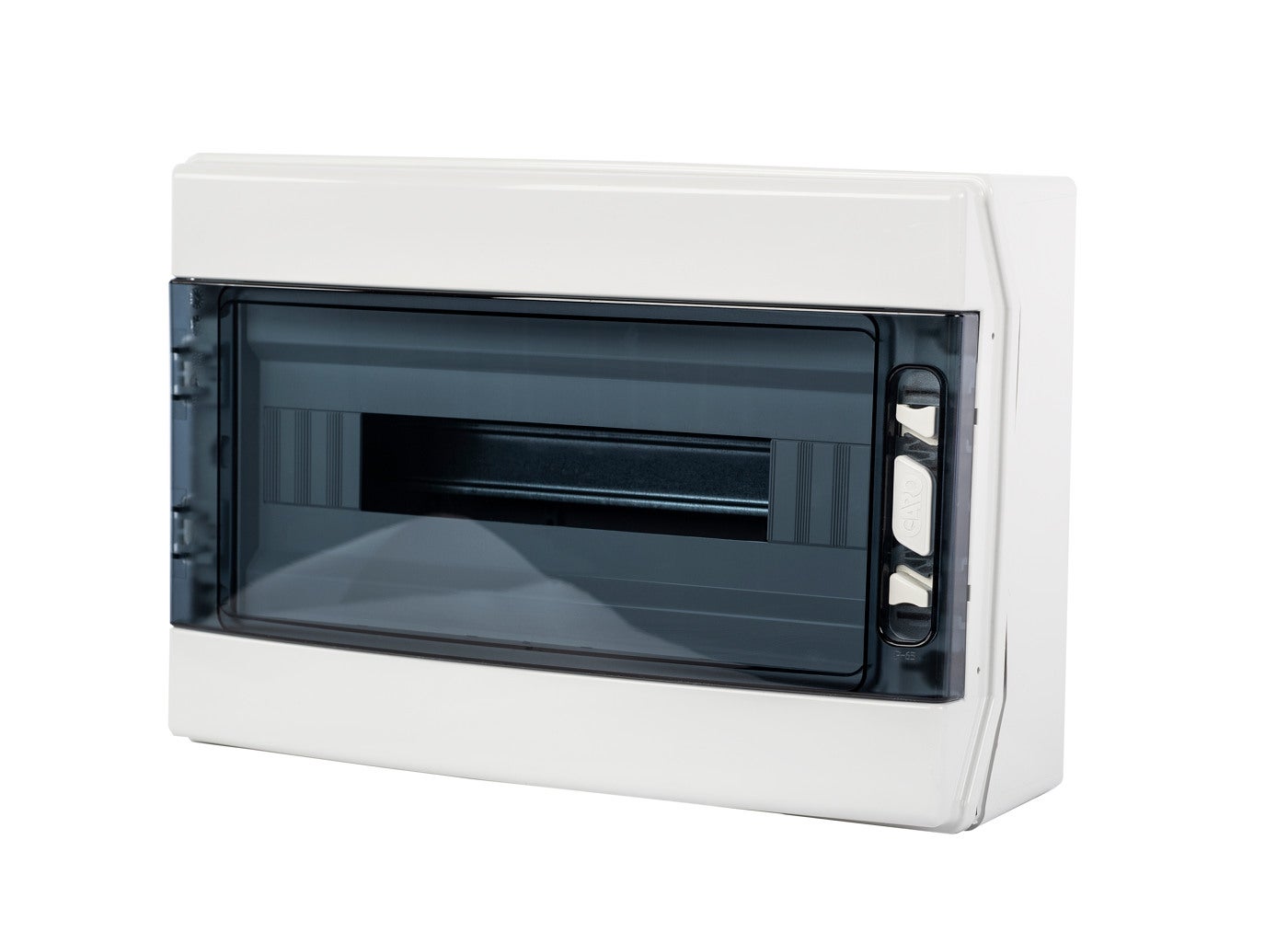

Consumer unit plastic 18mod W418
GARO’s plastic consumer unit for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spacing between the DIN rails with space for wiring under the rails. Module widths are adapted to components that are 17.5 mm wide. Enclosures are sealable and manufactured of halogen-free ABS plastic.GARO’s plastic distribution cabinet for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spac Consumer unit ABS plastic surface mounting 1row 18modules IP65.
| Standard | EN61439-3, EN62208 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | White |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Surface mounted |
| Modelltype | NUPT |
| Lock | No |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | No |
| Type of door | Single |
| Knockouts Ø25 Down [pcs] | 6xM25 |
| Knockouts Ø25 Up [pcs] | 6xM25 |
| Knockouts Ø40 Up [pcs] | 1xM40 |
| Knockouts Ø40 Down [pcs] | 1xM40 |
| Knockouts Ø32 Down [pcs] | 2xM32 |
| Degree of protection [IP] | IP65 |
| Knockouts Ø20 Down [pcs] | 12xM20 |
| Knockouts Ø20 Up [pcs] | 12xM20 |
| Name | CONSUMER UNIT PLAST SURF 1R18M |
|---|---|
| E-number | E2271143 |
| Article number | 110301 |
| Type designation | NUPT 1-18 |
| Number of modules | 18 |
| RAL-number | RAL9010 |
| Neutral terminal block | Yes |
| Number of rows | 1 |
| Knockouts Ø32 Up [pcs] | 2xM25 |
| Connection N [mm²] | 1x16-35mm²+1x10-25mm²+8x4-10mm²+8x2,5-6mm² |
| Connection PE [mm²] | 1x16-35mm²+1x10-25mm²+8x4-10mm²+8x2,5-6mm² |
| NetProductWeight | 2.174 |
| EngineerWidth | 295 |
| EngineerHeight | 425 |
| EngineerDepth | 160 |
