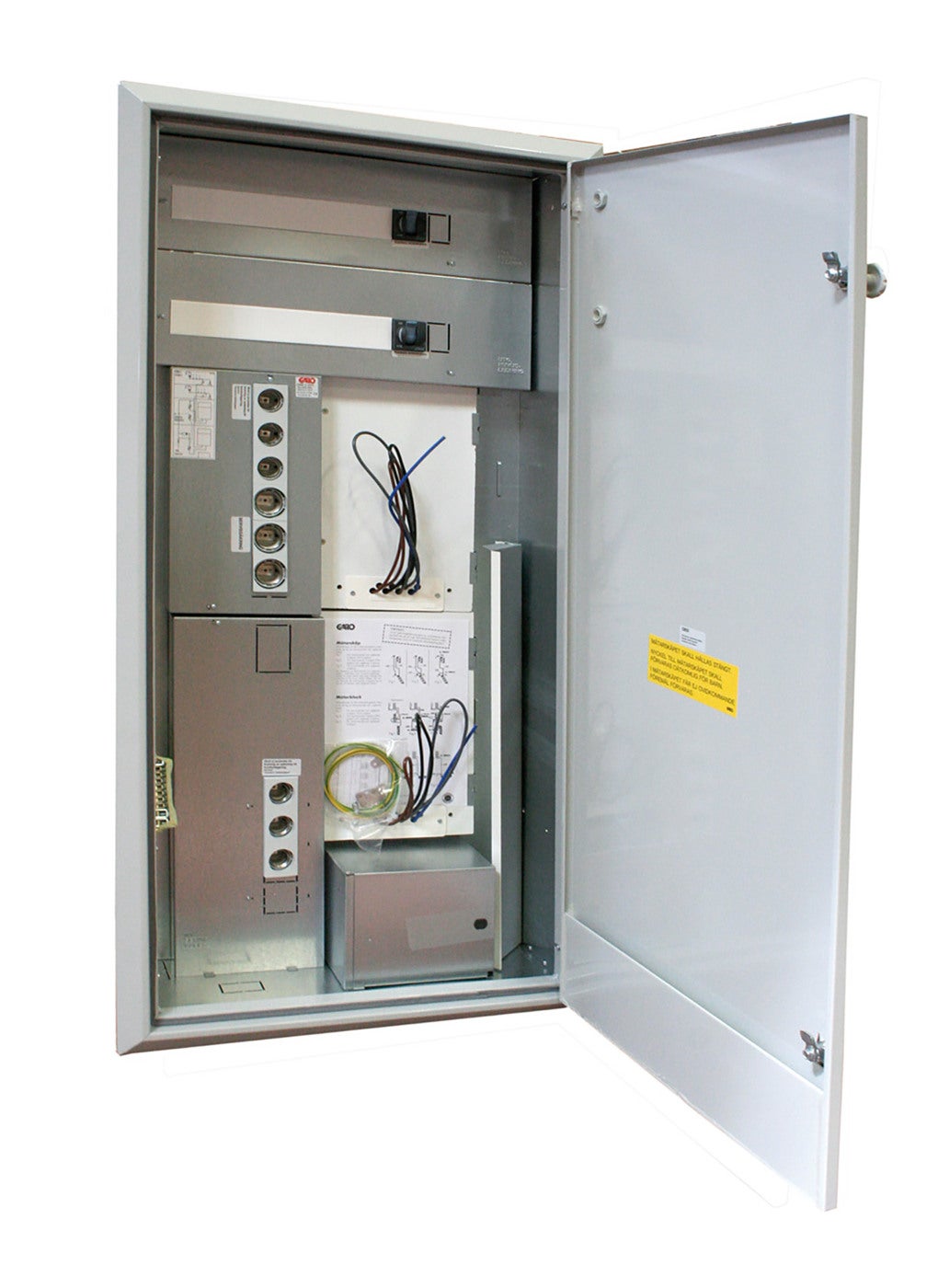

Meter cabinets Weatherprotected W632 2-place
Metal meter cabinets for flush mounting, for extra watertightness. Supplemented with an overhanging strip running water from above. The cabinets are tested and approved to meet watertightness in storm driven rain up to 30m/s, which corresponds to a heavy storm. Tested and approved to meet a rating up to 600 Pa, which corresponds to the classification 9A according to standard EN 1027, Windows and doors. Watertightness. Also tested according to Meter cabinet Swedish Standard SS 430 01 10 (where a rating of on Meter cabinet recessed water protected 25A 2places.
| Type designation | GIM 2-25-T |
|---|---|
| Standard | SS 430 01 01 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Flush mounted |
| Modelltype | GIM |
| Module space measured | 18+18 |
| Lock | Yes |
| RAL-number | RAL7035 |
| Recessed depth [mm] | 205mm |
| Recessed height [mm] | 1245mm |
| Recessed width [mm] | 542mm |
| Density class [Pa] | 600Pa |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Module space unmeasured | 4 |
| Outgoing [mm²] | 16mm² Cu |
| Name | METERCABINET FLUSH 25A 2PL WP |
|---|---|
| E-number | E2270093 |
| Article number | 2270093 |
