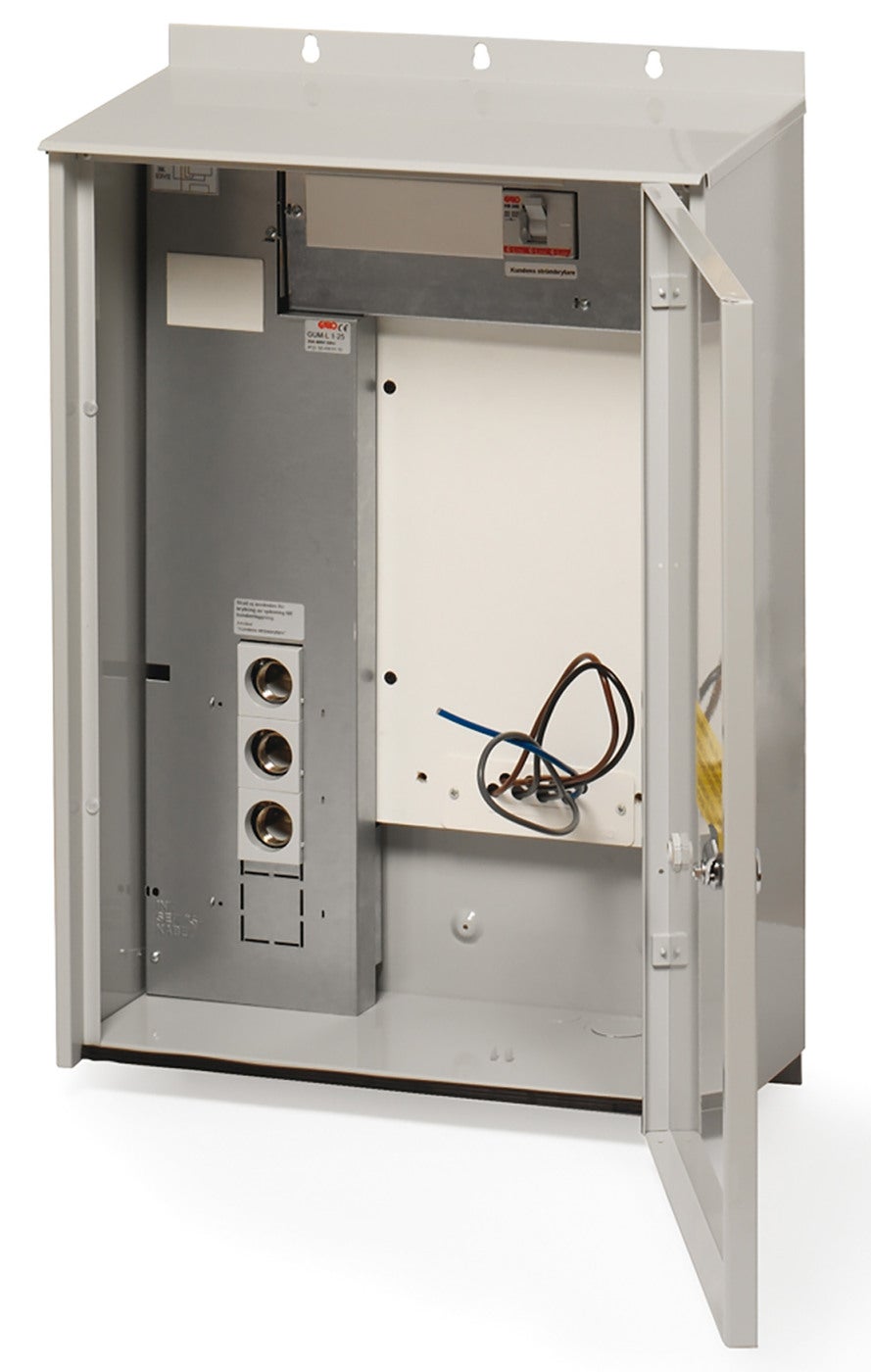

METERCABINET SURF 25A 1PL L

Meter cabinets W465 1-place

Meter cabinets for surface mounting. Also tested and approved with addition seals for IP24, which is the minimum requirement for meter cabinets mounted on a post. GUM 1 and GUM-L are supplied with 2 cable entries while GUM-2 has 3. Meter cabinet outside type-L 25A 1place.
E-number
E2270015
Article number
2270015
Support
Standard SS 430 01 01
Short-circuit current [kA] 25kA
Frequency [Hz] 50Hz
Housing material Hot dip galvanized sheet metal
Rated voltage [V AC] 230/400V AC
Mounting method Surface mounted
Modelltype GUM
Lock Yes
Module space unmeasured 4
Outgoing [mm²] 16mm² Cu
Name METERCABINET SURF 25A 1PL L
E-number E2270015
Article number 2270015
Type designation GUM-L 1-25
Color Grey
Rated current [A] 25A
Module space measured 8
RAL-number RAL7035
Incoming terminal [mm²] 50mm² Al/Cu
Degree of protection [IP] IP23

More variants of Meter cabinets W465 1-place

E-number Article number Type designation Color Rated current [A] Module space measured RAL-number Incoming terminal [mm²] Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
METERCABINET SURF 25A 1PL L E2270015 2270015 GUM-L 1-25 Grey 25A 8 RAL7035 50mm² Al/Cu IP23

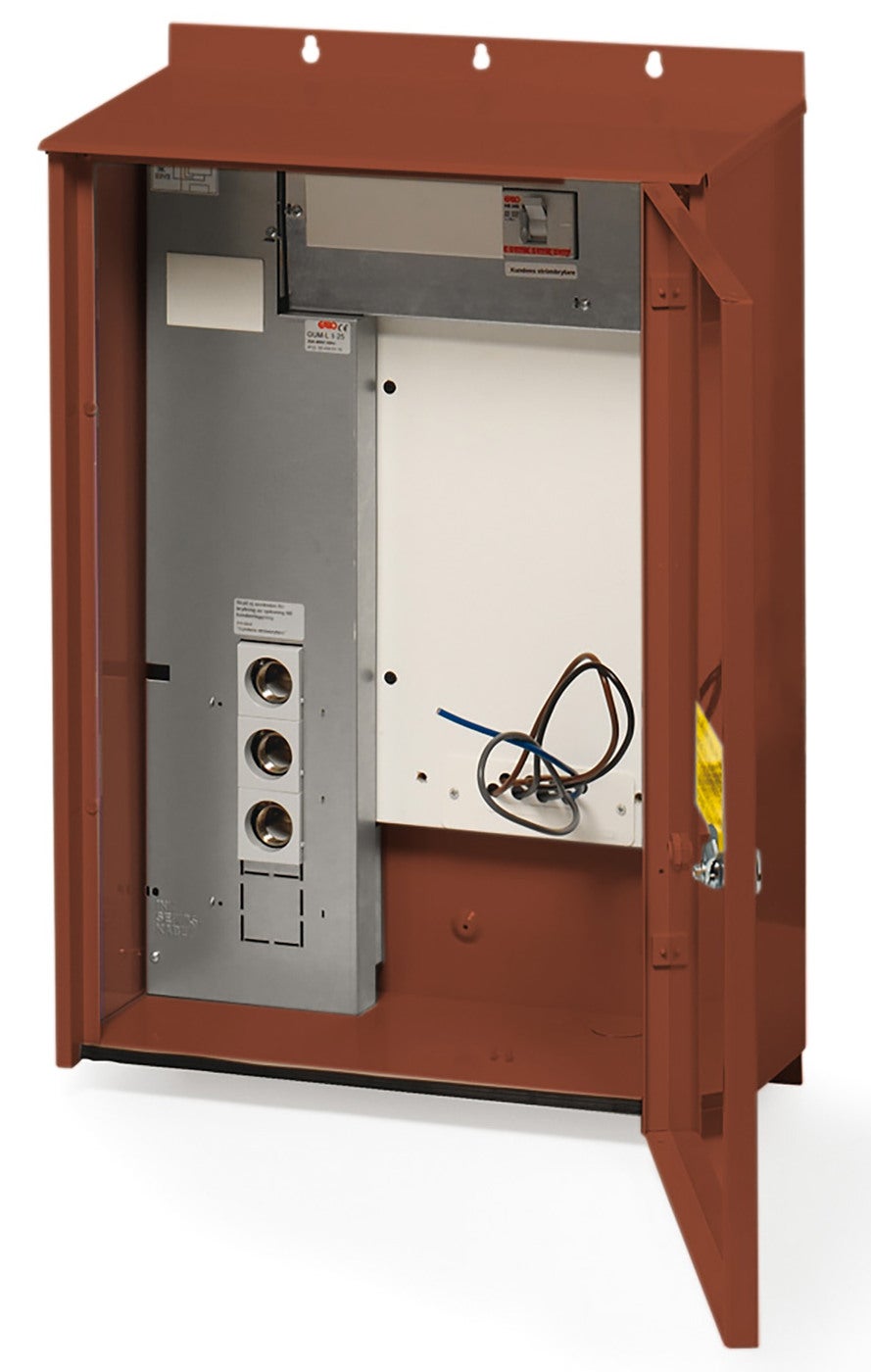

METERCABINET SURF 25A 1PL L RE E2270016 2270016 GUM-L 1-25 Faluröd Red 25A 8 RAL3009 50mm² Al/Cu IP23

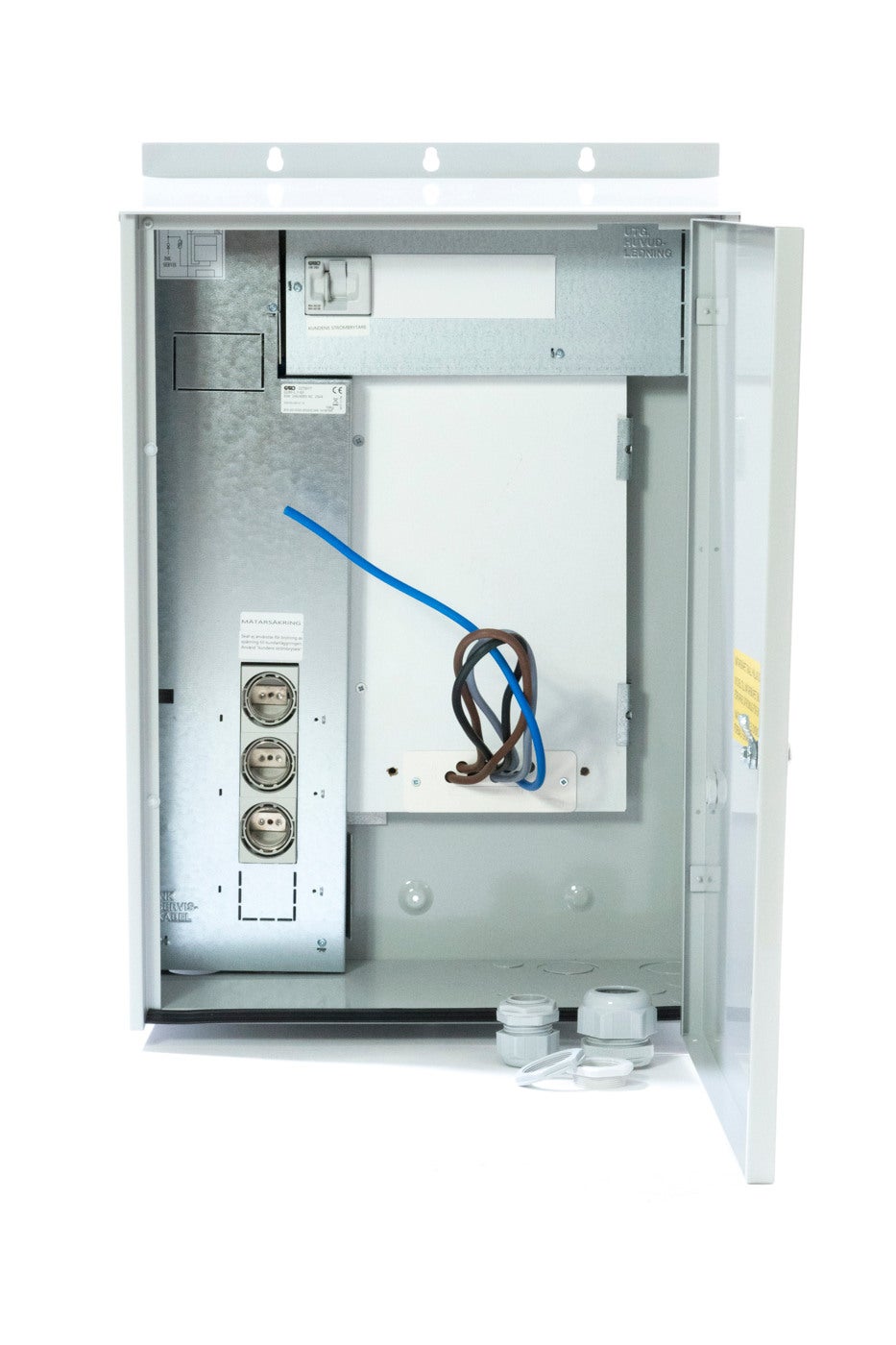

METERCABINET SURF 63A 1PL L E2270017 2270017 GUM-L 1-63 Grey 63A 8 RAL7035 50mm² Cu IP23

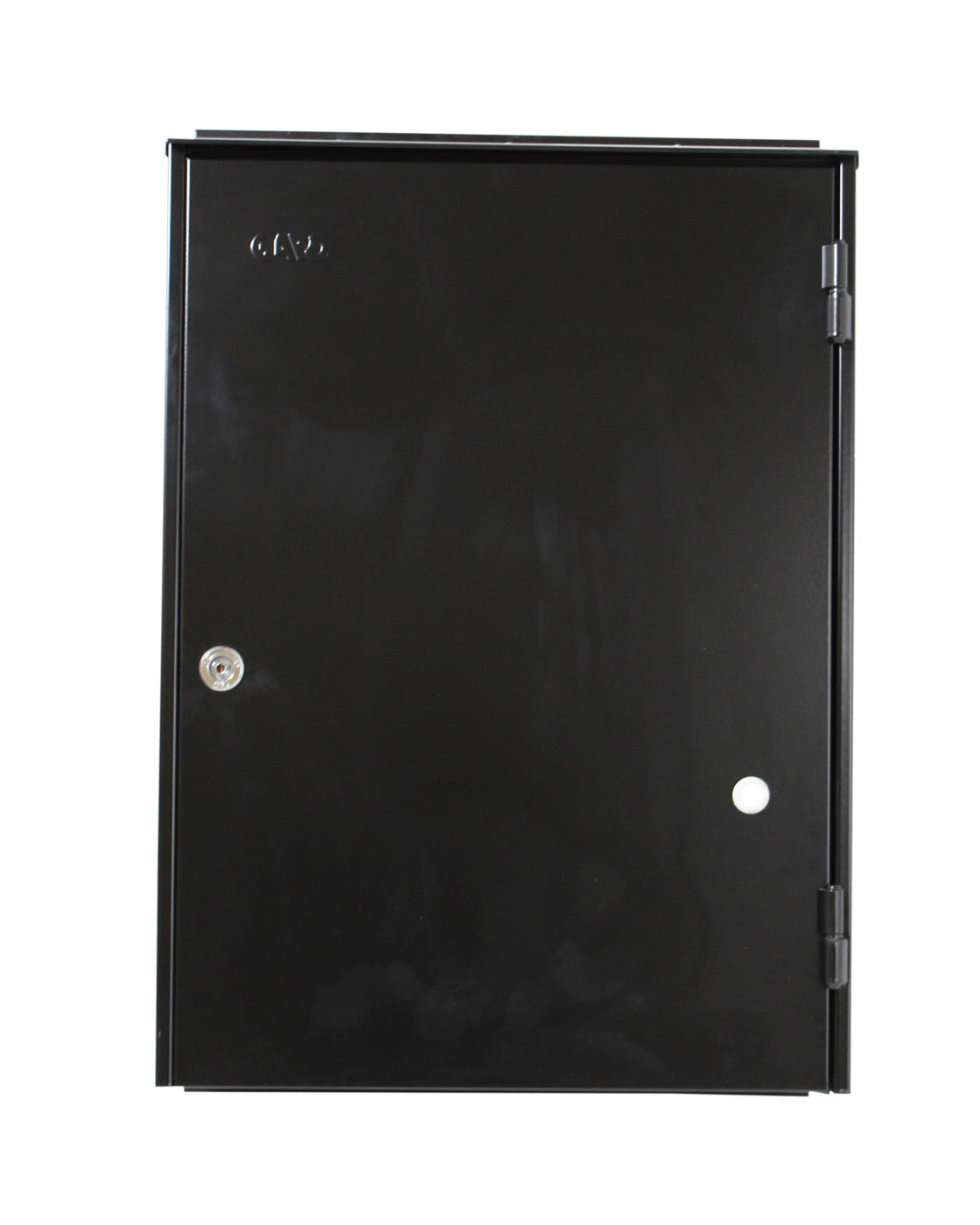

METER CABINET OUTS L25A BLACK E2270108 354436 GUM-L 1-25 SVART Black 25A 8 RAL9005 50mm² Al/Cu IP20 15 465 705 210

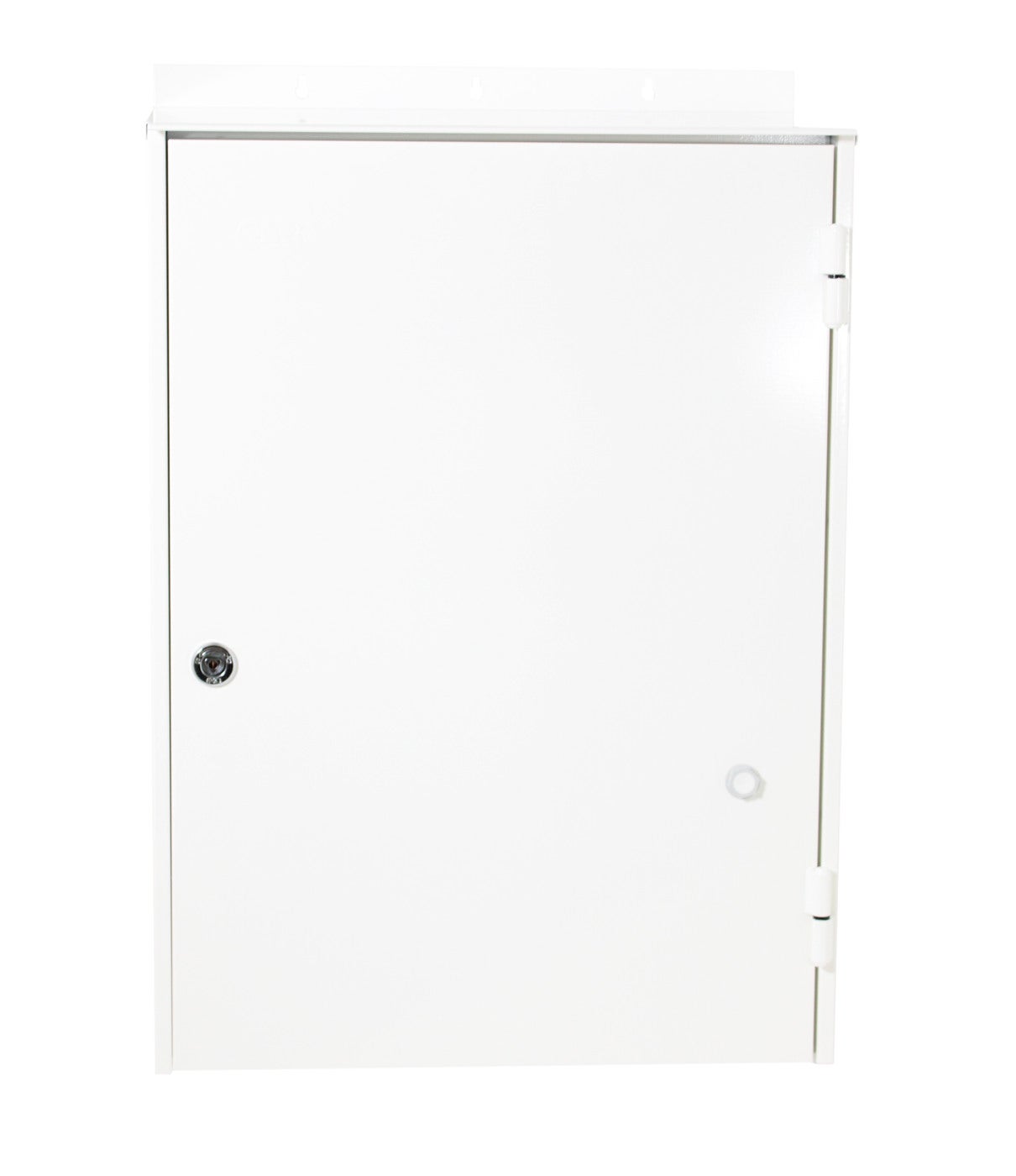

METER CABIN OUTS L25A WHITE E2270109 354437 GUM-L 1-25 VIT White 25A 18 RAL9010 50mm² Al/Cu IP23 15 465 705 210

Accessories for Meter cabinets W465 1-place

Name E-number Article number Type designation Description
TERMINAL NEUTRAL 7P TERMINAL NEUTRAL 7P E2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL EARTH PE7 G TERMINAL EARTH PE7 G E2178172 108472 JP7 Terminal earth 7-poles green for DIN-rail
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
KEY FOR RT65 LOCK KEY FOR RT65 LOCK E1646612 1646612 RN KEY FOR RT65 LOCK
KEY TRIANGLE TK10 KEY TRIANGLE TK10 E1646614 1646614 PG 51 KEY TRIANGLE TK10
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
SWITCH CHANGEOVER 80A 4P VMI SWITCH CHANGEOVER 80A 4P VMI E2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
SEALKIT METER CABINET IP24 SEALKIT METER CABINET IP24 E2270096 2270096 TK-24 Sealkit for meter cabinet IP24
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 E2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB E2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE E2270637 2270637 PTT1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
SURGE PROTECTION KIT URBAN AREAS MET CAB SURGE PROTECTION KIT URBAN AREAS MET CAB E2270638 2270638 PLD1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
KIT RESERVE POWER INLET KIT RESERVE POWER INLET E2270640 2270640 RI 432 Reserve power intake RI 432
CONSTRUCTION KIT FOR METERCABINETS CONSTRUCTION KIT FOR METERCABINETS E2270641 2270641 BK 416 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PH ll-lll SEALABLE HOOD PH ll-lll E2270644 2270644 PH II-III Sealable hood PHII-III
CONVERSION KIT 25A TO 63A GUM-F CONVERSION KIT 25A TO 63A GUM-F E2270646 2270646 OBS-F-63 Conversion kit outgoing 25A 3-phase group to a 63A 3-phase group
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONVERSION KIT 25-63A CONVERSION KIT 25-63A E2270649 2270649 OBS 63 Conversion kit 25-63A
BLADE FUSES GIM GUM BLADE FUSES GIM GUM E2270650 2270650 OSK Blade fuses for GIM/GUM
ATTACH JUMPER METER CABINET ATTACH JUMPER METER CABINET E2270651 2270651 FB1 Attach jumper 2pcs.
STAND METER CABINET STAND METER CABINET E2270657 2270657 SFU1 Stand for meter cabinet.
RUBBER SLEEVE 50 MET CAB RUBBER SLEEVE 50 MET CAB E2270684 2270684 GMM 50 Rubber sleeve 50 fits metal cabinet
TELE MEDIA BOX FOR METERCABINETS TELE MEDIA BOX FOR METERCABINETS E2270685 2270685 TELE-M Tele media box
LOCK TELEBOX LLT 1 LOCK TELEBOX LLT 1 E2270688 2270688 LLT1 Lock for Telebox.
TELEBOX TELEBOX E2270691 2270691 TELE-D Telebox
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
PADLOCK KIT FOR METERCABINET PADLOCK KIT FOR METERCABINET E2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
