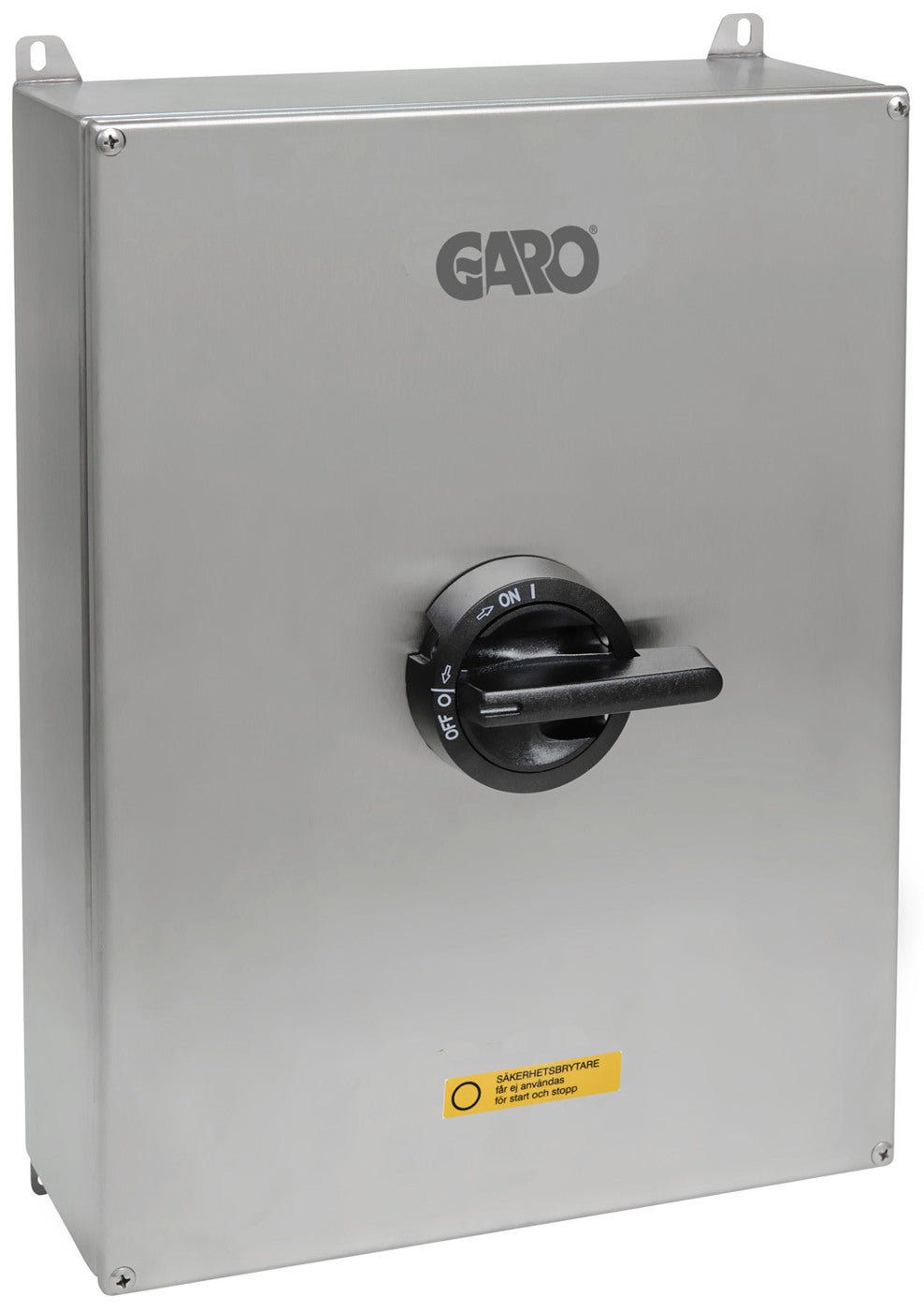

Safety switches stainless 3-pole 125A
Safety switches stainless GKUR Safety switch 3-pole 125A stainless steel. IP65
E-number
E3134207
E3134207
Article number
107631
107631
| Type designation | GKUR3125VT1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Sheet metal |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Wall mounting |
| Power[kW] | 55kW |
| Cable gland | 2xM63+M16 |
| Isolation voltage [V] | 690V AC |
| Rated current AC23 400V [A] | 125A |
| Degree of protection [IP] | IP66 |
| Connection N [mm²] | Al/CU 16-95, ALK 16-95 |
| Connection PE [mm²] | Selectable N or PE terminal |
| Connection area | Max 16 |
| Auxiliary contact | Yes |
| Name | SWITCH SAFETY 3P 125A SS |
|---|---|
| E-number | E3134207 |
| Article number | 107631 |
